Kinds of Granule Packing
Suits to pack popcorn, tea, chocolate, sugar, salt, rice, beans, grain, pistachio, peanuts, biscuits, seeds, coffee beans, ground coffee, lima beans, desiccant, washing powder etc.
Kinds of laminated material films
Pillow bags, pillow bags with bottom gusset, quad bags etc

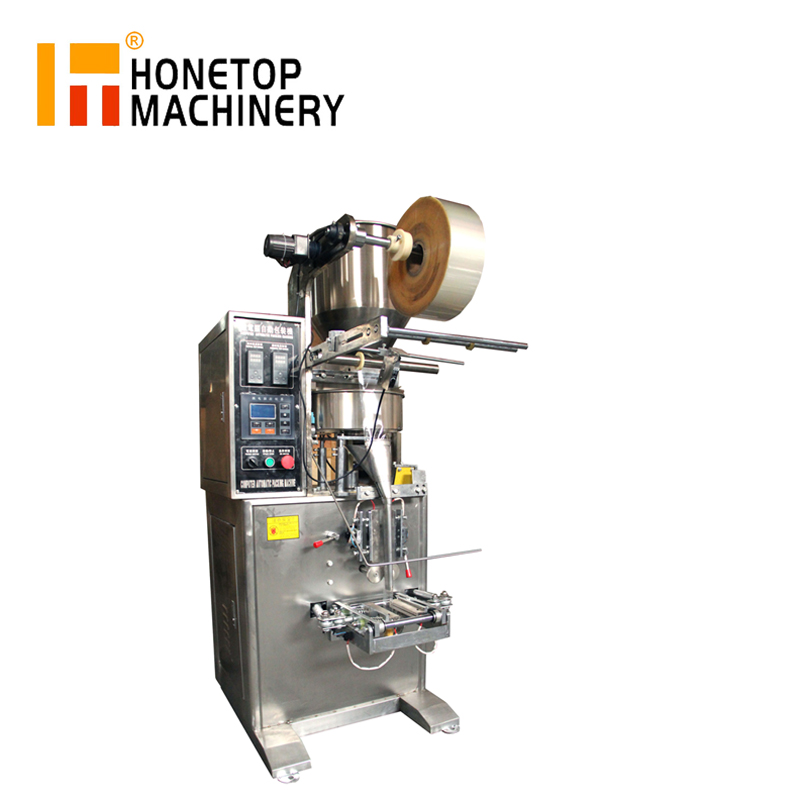

| SPECIFICATIONS FOR PACKAGING MACHINE HTL-420A | |||
| Packing specification | Bag size range | L80mm - 300mm | W80mm - 200mm |
| Packing weight | 10gr - 1500gr | ||
| Packing speed | 25- 60 bags/min | ||
| Main performance parameters | Total power | 3.5 kw | Kw/Hr |
| Compressed air Consumption | 0.36 | m3/min | |
| Air pressure | 0.6 | mpa | |
| Main Control System | PLC | Schneider | France |
| HMI | Schneider | France | |
| SERVO MOTOR | Schneider | France | |
| | Machine Dimensions | (L)1750*(W)1050*(H)2600mm | |
| Machine Weight | 750kgs |
Main Features

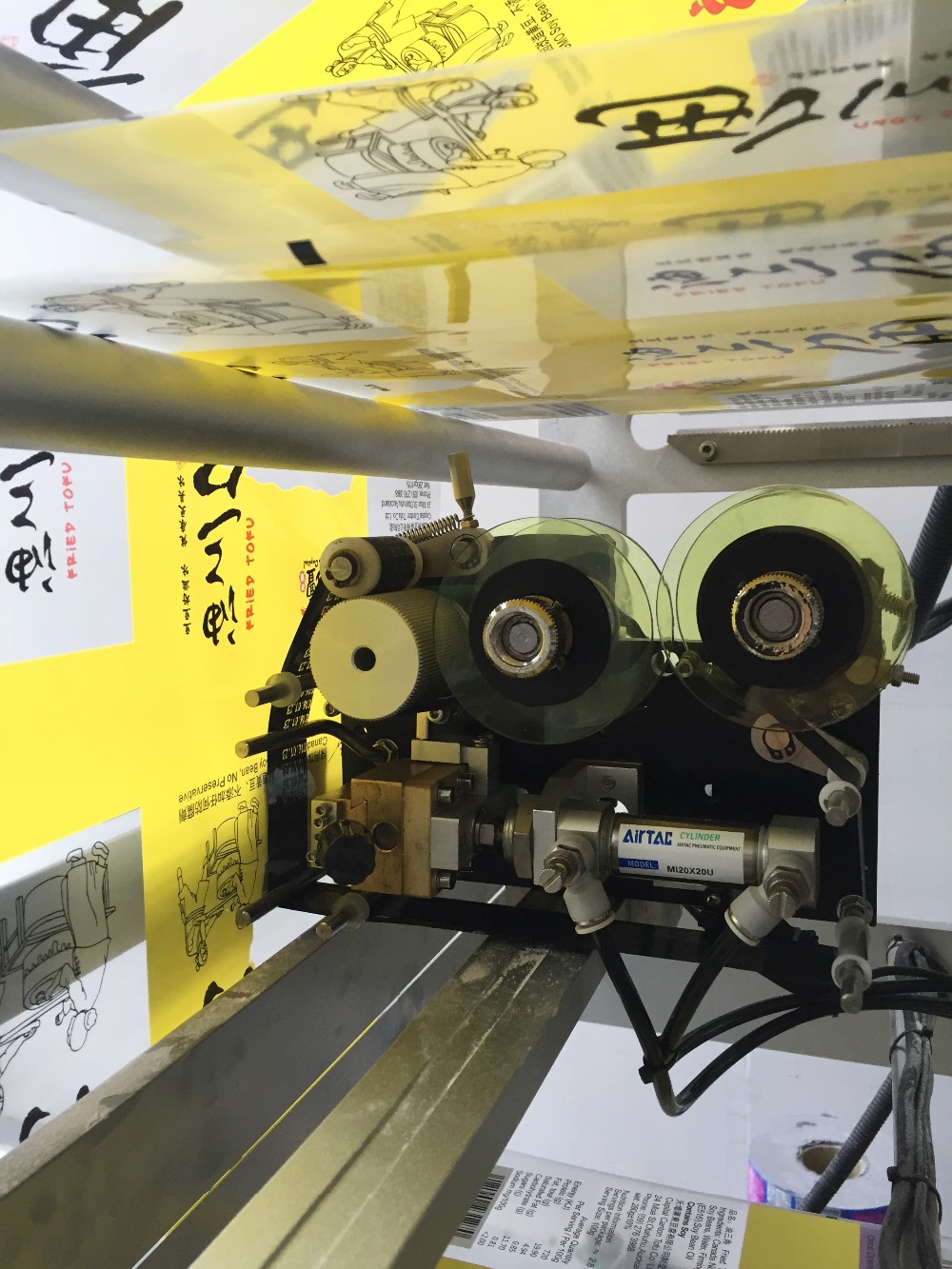

1. Automatic feeding, measuring, bag-making, deviation, filling, sealing, date printing and finished product output .
The whole machine controlled by PLC (Schneider/France) and Touch Screen (Schneider/France).

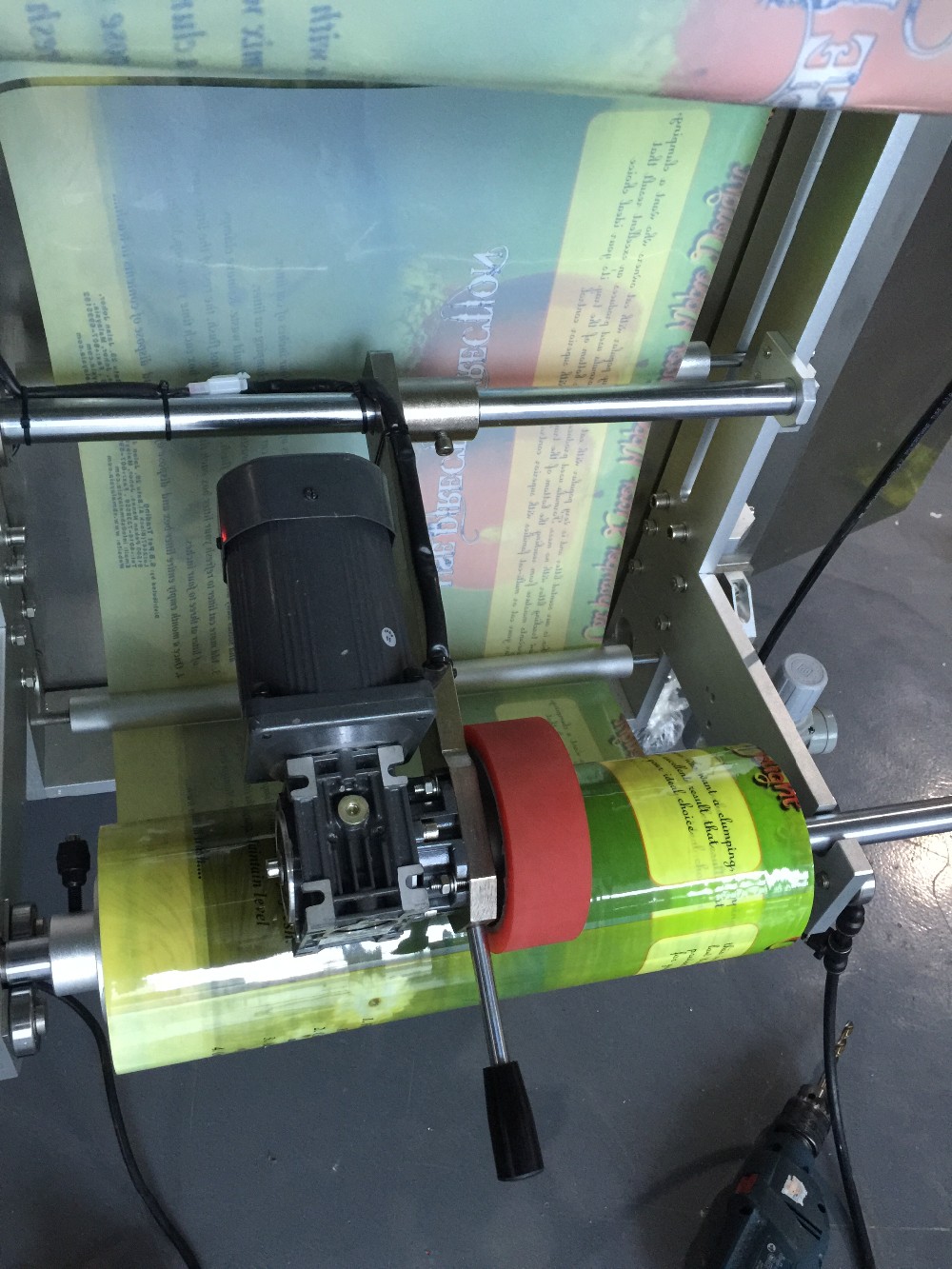

2. Servo motor (Schneider/France) drawing film.
3. Independent temperature control system (Schneider/France).
4. Horizontal and vertical sealing temperature control independently.
5. Simple and fast bag size changeover without tools.
6. Easy to maintain-low maintenance.
7. Work environment quiet, low noise, saving energy.
Small Granule Packing Machine
91.8% Response Rate

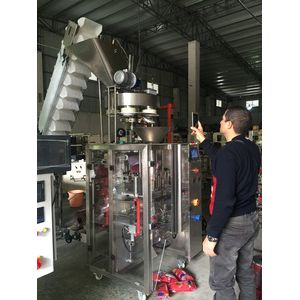

Vertical Packing Machine with 10 Head Weigher
91.8% Response Rate

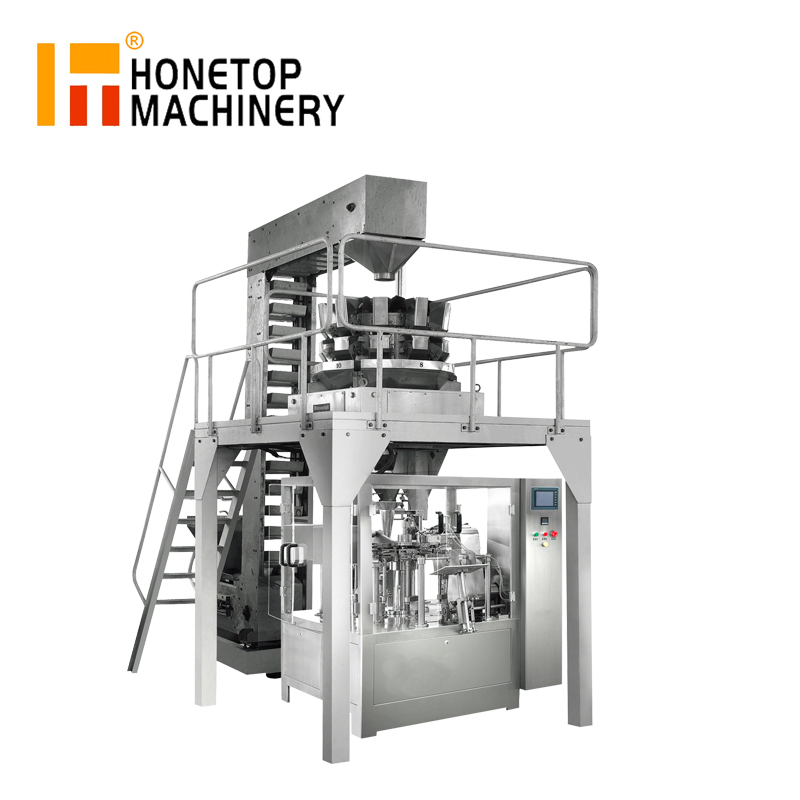

Premade Doypack Machine with 10 Head Weigher
91.8% Response Rate
Machine Parts

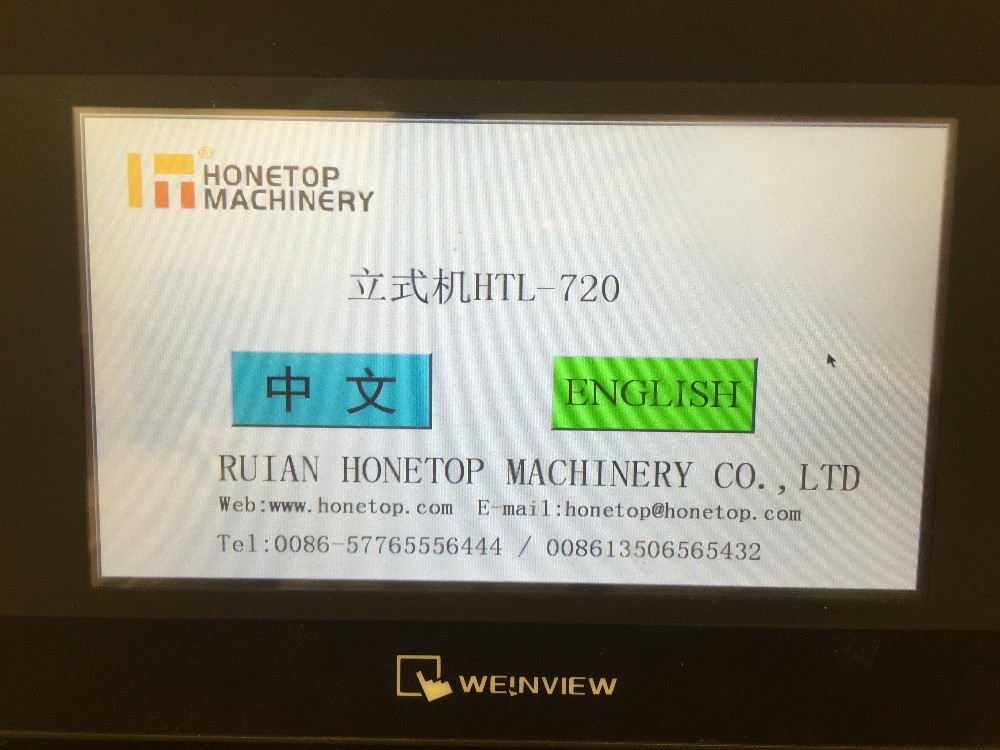

Name: HMI
Brand: Schneider
Original: France
Machine Parts
Name: PLC
Brand: Schneider
Original: France
Machine Parts
Name: Servo Motor
Brand: Schneider
Original: France
Machine Parts
Name: Temperature Controller
Brand: Schneider
Original: France
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, how to use the machine.
* Engineers available to service machinery overseas.

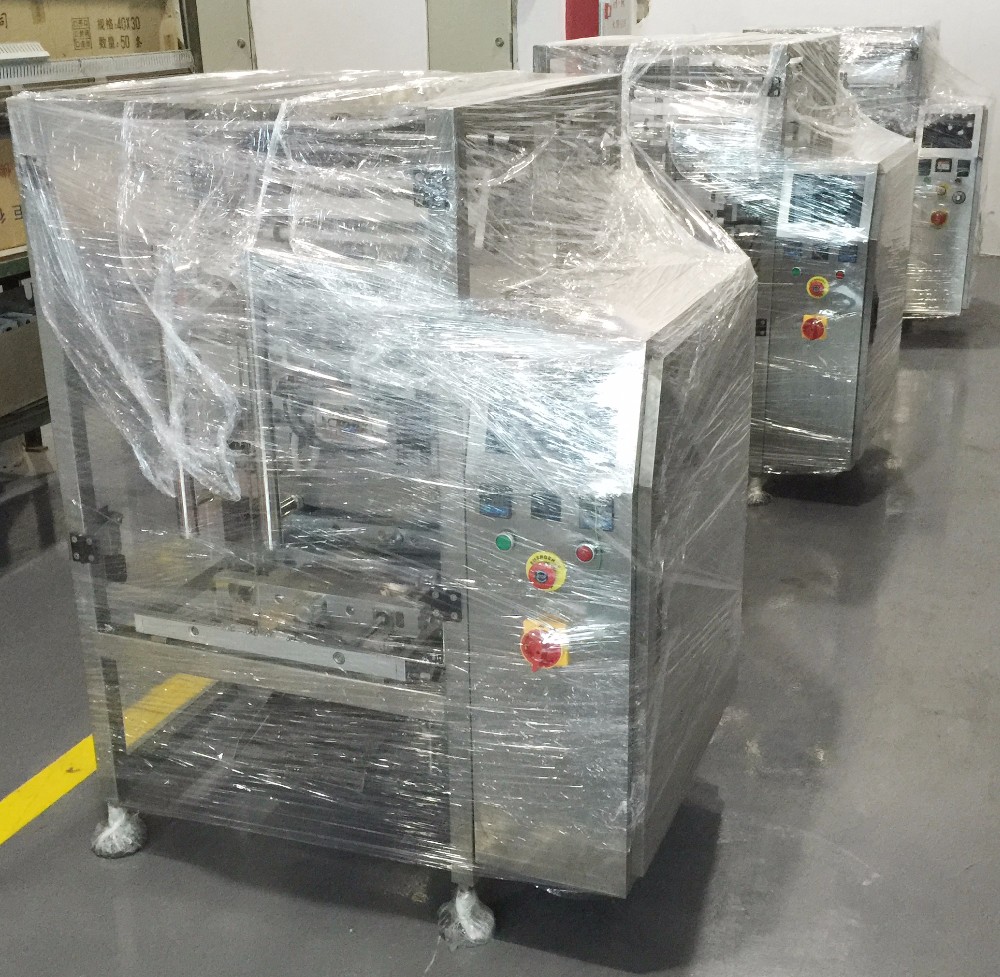

| Packaging for VFFS Machine | |
| Size (mm) | 1950 (L) * 1300 (W) * 1700 (H) |
| Weight | 660kgs |
| Packaging Details | 1st. Use PE film for packing machine first 2nd. Use wooden box packed finaly. Note: All wooden box will be fumigated for exporting to any country. |
| Shipment Term | |
| Packaging Details | 1 * 20 feet container or LCL shipment term. |
