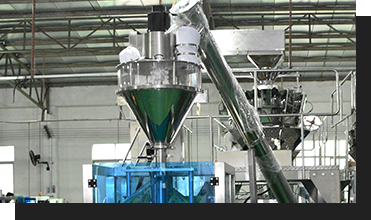

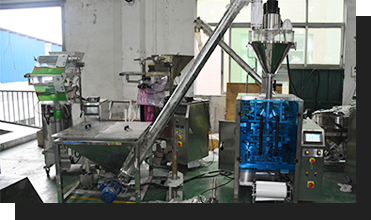

Hot selling 5kg cocoa powder flour filling packing machine

PRIMARY PARAMETERS

Type

Other

Condition

New

Application

Chemical, Commodity, Food, Machinery & Hardware, Medical, cocoa powder,flour

Packaging Type

Bags, Film, Pouch, Stand-up Pouch, quad-sealed gusseted bag,zipper bag,gusseted bag

Packaging Material

Paper, Plastic, aluminum film,pure aluminum film

Automatic Grade

Automatic

Driven Type

Pneumatic

Voltage

220V

Power

3.6KW

Place of Origin

Guangdong, China (Mainland)

Brand Name

Kingvictor

Weight

850KG

Dimension(L*W*H)

1100mm*900mm*1850mm

Certification

CE SGS

After-sales Service Provided

Engineers available to service machinery overseas

Product name

hot selling 5kg cocoa powder flour filling packing machine

Region

Foshan,China

Machine material

304 Stainless Steel

Packing speed

1~80bags/min

Bag width

100-350mm

Bag length

100-450mm

Type of seals

Back seal

Cutting form

Shape mouth,Flat cut

Avaliable configuration

Coding,Labelling, Embossing,Filling,Sealing,Slitting

Warranty

1 Year

DETAIL DESCRIPTION

Product Description

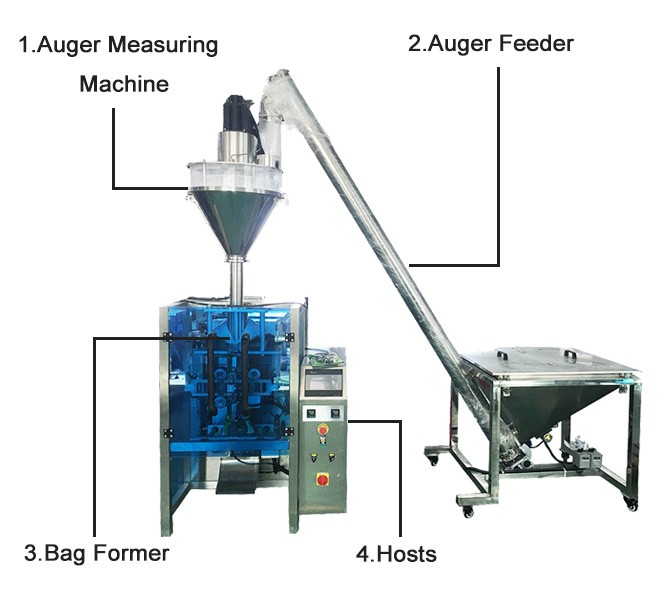

Detailed Images

1.Auger Measuring Machine

(1)All stainless steel material contact parts
(2)Transform the screw can be measured at different weight to adapt to a variety of powder materials

2.Auger Feeder

(1)Automatic feeding
(2)304 auger feeder for powder filling efficiency and less noise

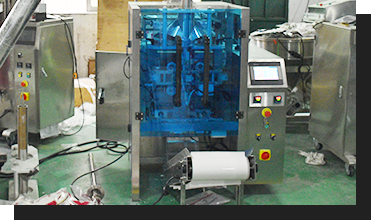

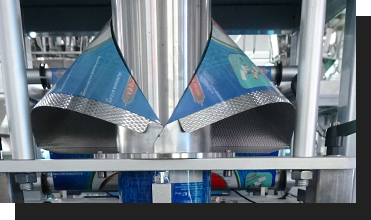

3.Bag Former

(1)High precision of bag making, error is less than 0.5mm
(2)Can provide customers with pillow-shaped bags, hanging hole bags, gusseted bags, and even bags,etc.

4.Hosts

(1)More suitable for packaging various materials
(2)Automatic correction function, save time, labor, film, more intelligent operation
(3)Dual encoders for more stable performance

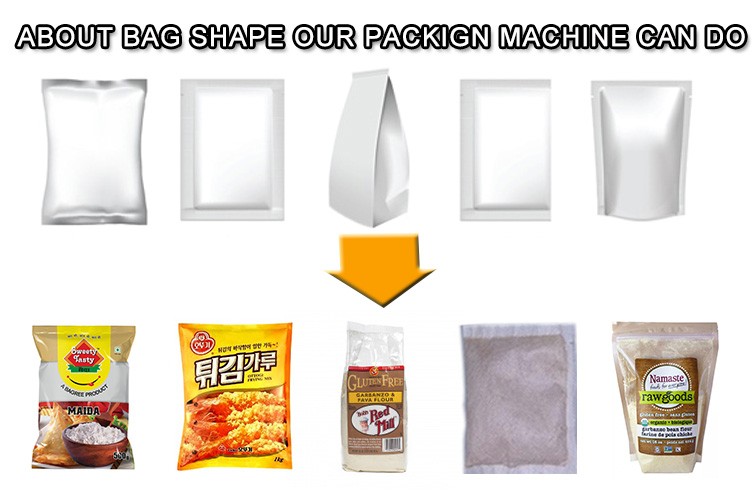

Materail & Sample

What kind of products can used this type Packing Machine?

Applications:Milk Powder,Wheat Powder,Sesame Powder,Corn Starch,Flour,Chili Powder,Bean Flour,Coffee Powder,Chocolate Powder etc.

We have several Models.
Don't Worry! We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.

Machine Parameters

Model	KV-320FD	KV-420FD	KV-520FD	KV-620FD	KV-720FD	KV-820FD
Packaging speed	1~80bags/min	1~80bags/min	1~80bags/min	1~80bags/ min	1~80bags/ min	1~80bags/ min
Bag width	50~150mm	60~200mm	80~250mm	100~300mm	100~350mm	120~400mm
Bag Length	80~240mm	80~300mm	80`350mm	100~450mm	100~450mm	120~550mm
Power Specifications	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Equipment power	2Kva	2.2Kva	3.Kva	3.4Kva	3.6Kva	3.8Kva

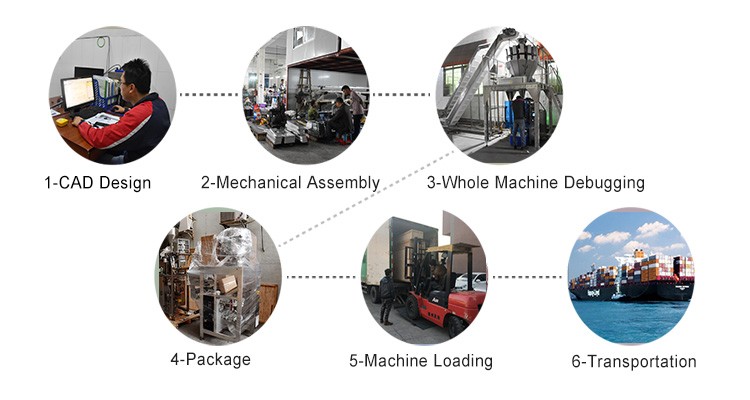

Our Factory

Our Customers

Packing & Delivery

We wrap the machine in film ,put it Into the wooden box.

And put the machine in the lorry,then transport to the port or airport.

After Sales Service

1. Providing professional installation instructions and video of troubleshoot.

2. Providing machine control software updates and operation teaching in our factory.

3. Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.

4. Engineers available to service the machinery overseas, buyers pay 100 US dollars daily service fees and travel expenses.

5. Pick-up services at BAIYUN airport, providing packaging solutions and testing material on machines, full refund if unsatisfied with the machine.
