SUMMARIZE:

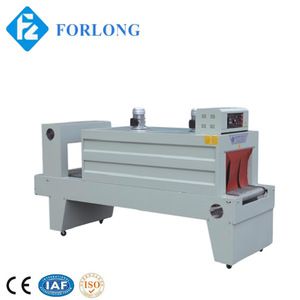

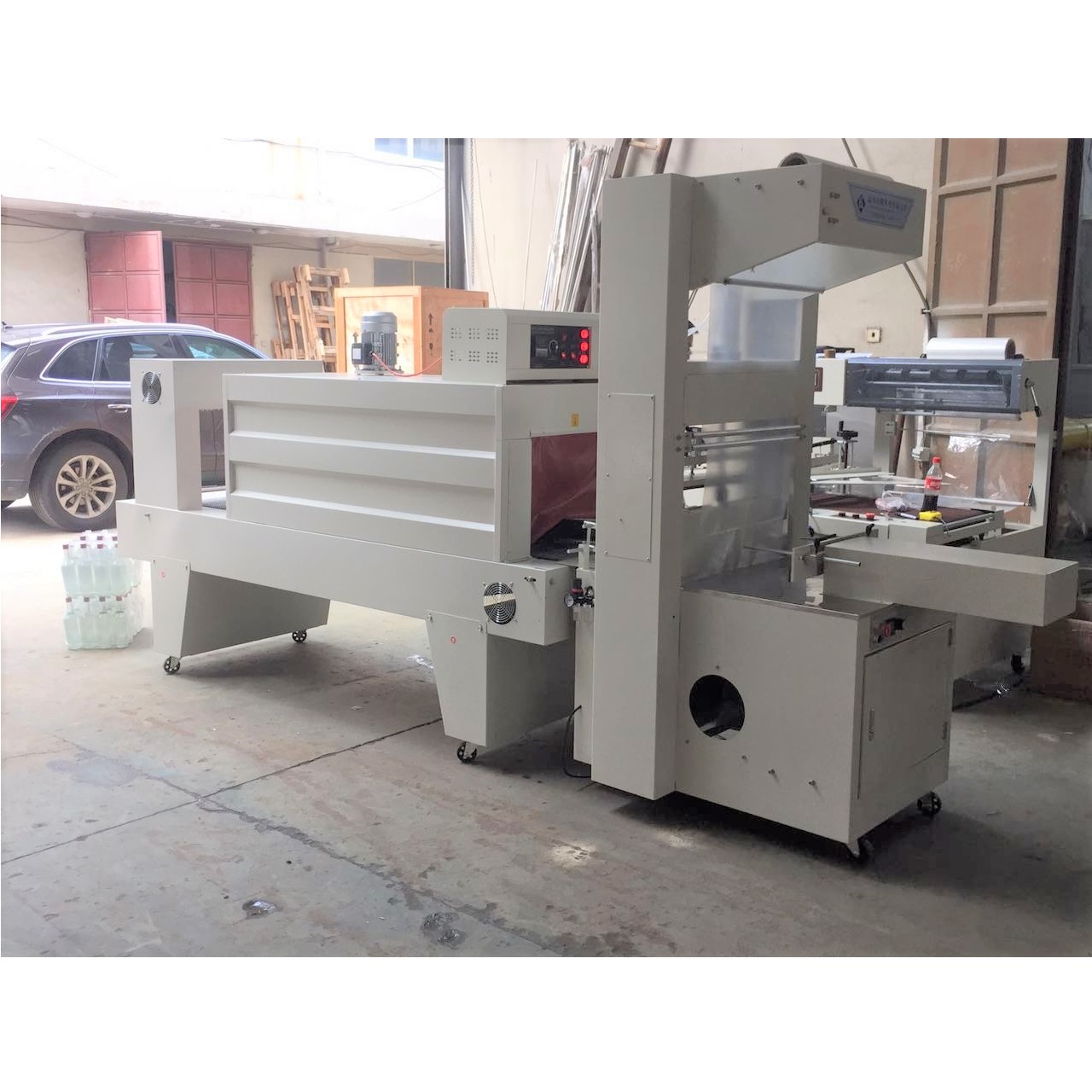

FL-5038 series semi-auto sleeve wrapper is suitable for wrapping pop-cans, bottles etc.It works with PE shrink tunnels.
The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time.
Characteristic:
1. Up and down magnetic switch prevent sealing mistakes, and protect the operators.
2. The input position is adjustable, base on the size of products packaged.
3. Intelligent temperature controller performs stable.
4. Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
5. Up and down large power fan system ensures the excellent effect of shrinking in one time.
6. Super cooling system cools the packing and makes the figuration perfectly.
7. The size of tunnel can be customized as your request.
Specification:
Model | FL-5038(Pneumatic) | Model | BSE5040 |
Power supply | 220-240V, 50-60Hz;1.8KW | Power supply | 3phase 220V/380-460V 50-60HZ |
Capacity | 0-6pcs/minute | Heater power | 20KW Adjuster |
Sealing time/shrink time | 0.5-1.5s, 0-0.6s | Conveyer speed | 0-10m/minute |
Conveyor loading | 25kg | Tunnel size(L*W*H) | 1500*500*460mm |
Film width | Max. 500mm | Conveyer loading | 30Kkg MAX. |
Film thickness | 0.03-0.25mm | Shrink film | PE,POF,PVC,PP |
Max. packing dimension(L*W*H) | 450 x 270 x 350mm | Machine weight | 470KG |
Machine size(L*W*H) | 1020 x 830 x 1980mm | Machine size | 2500*820*1680mm |
