shrink packing machine

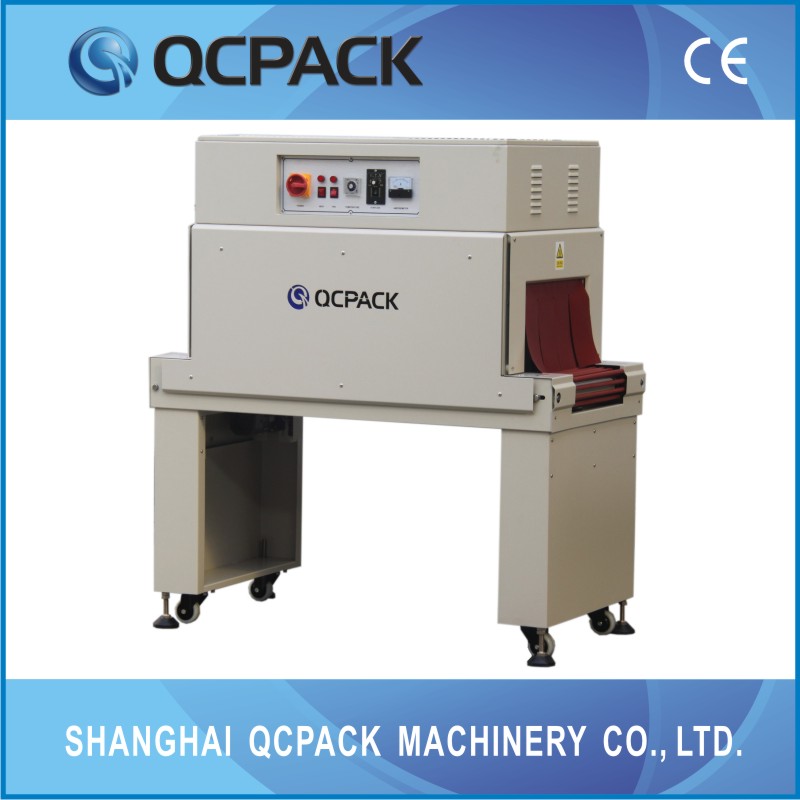

1.Machine photo:
heat shrink tunnel
2.Performance Characteristics:
The machine adopts roller conveyor, high temperature resistant silicone tube each drum outsourcing can free rotation.Stainless steel heating tube, internal three layer heat insulation, high power cycle motor, bi-directional thermal cycling wind heat evenly, constant temperature.Temperature and conveying speed can be adjusted, ensure contract products to have best packing effect. Hot air circulation channel,return type heat furnace tank structure, hot air only run within the furnace chamber, prevent heat loss effectively.
heat shrink tunnel

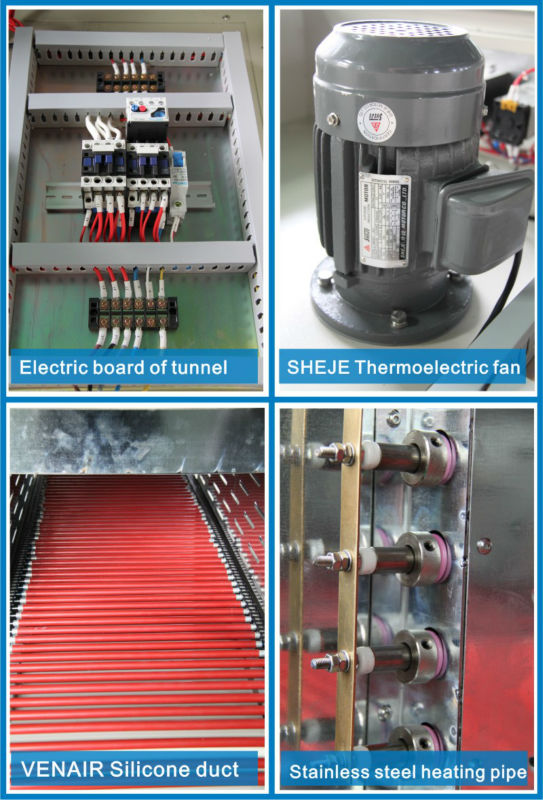

3.Spare parts1:
heat shrink tunnel

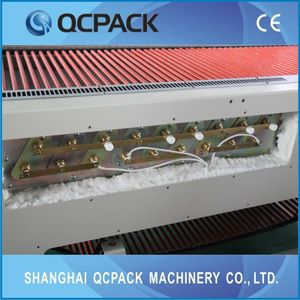

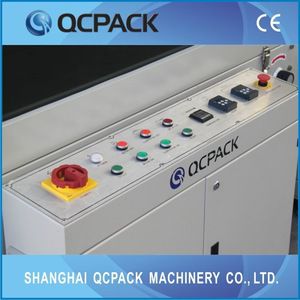

4.Spare parts1:
heat shrink tunnel
5.Main Technical Parameters:
Model | BM- 7 00 L |
Power Supply and Total Power | 380v/50-60Hz 1 6 kw |
Packing Speed | 0~ 30 m/min |
Chamber Size | (L)1000*(W)450*(H)250mm |
Weight | 50 0kg |
Overall Dimensions | (L)1800 * (W)1300 * (H)1300mm |
Shrink film | PE POF PVC PP |
heat shrink tunnel

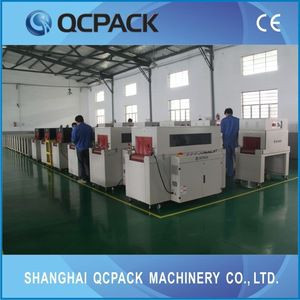

6.Work shop 1:
heat shrink tunnel
7.Work shop1:
heat shrink tunnel
8.Component list:
No. | Item | Brand | Qty |
1 | Wind blow motor | SHEJE | 1 |
2 | Conveyor motor | VTV | 1 |
3 | Breaker | CHNT | 1 |
4 | Contactor | CHNT | 2 |
5 | Heat relay | CHNT | 1 |
6 | Temperature controller | OMRON | 1 |
7 | stainless steel electrical heating pipe | SANCHANG | 10 |
8 | Thermal couple | ROTFIL | 1 |
9 | silicone pipe | VENAIR | 105 |
10 | Tape | TACONIC | 1 |
11 | Castor | SISIKU | 4 |
12 | Cooling fan | FULLTECH | 1 |
heat shrink tunnel

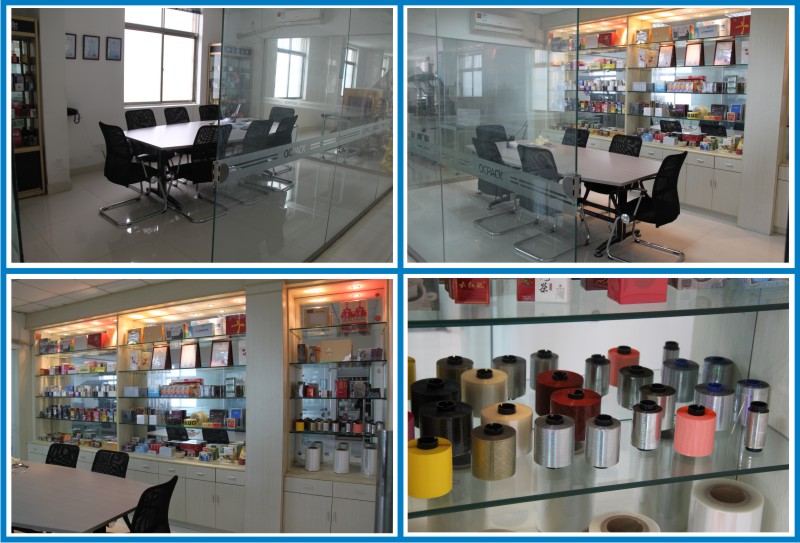

9.Factory Overview:
heat shrink tunnel

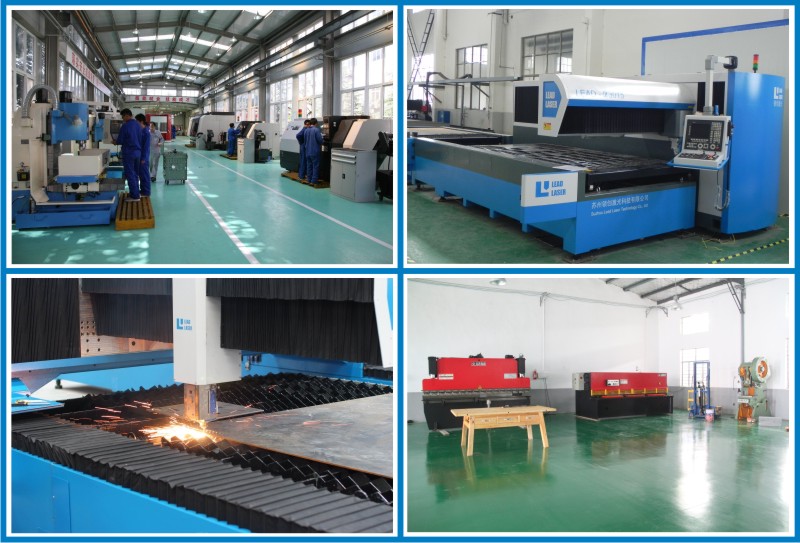

10.Equipment:
heat shrink tunnel
11.Customer Visit:
heat shrink tunnel
12.Samples 1:
heat shrink tunnel
13.Samples 2:
heat shrink tunnel
14.Trade Show:
heat shrink tunnel
15.Certificate:
heat shrink tunnel

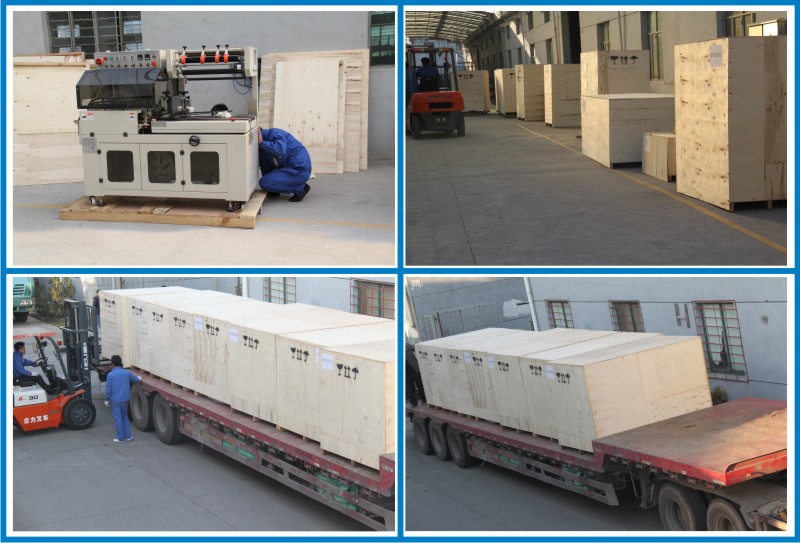

16.shipping details:
heat shrink tunnel
17.We Promise:
12 Months guarantee,during this period we offer free replacement after confirming that it is our quality problems.
pls add my skype id qcpack888 for better discuss
