We have been engaged in R&D and manufacturing of pressure vessels and liquefied gas storage and transportation equipment since 1980s.
Our main products include: various storage and transportation equipment for LPG, LNG, Cryogenic liquid, and other chemical liquid.

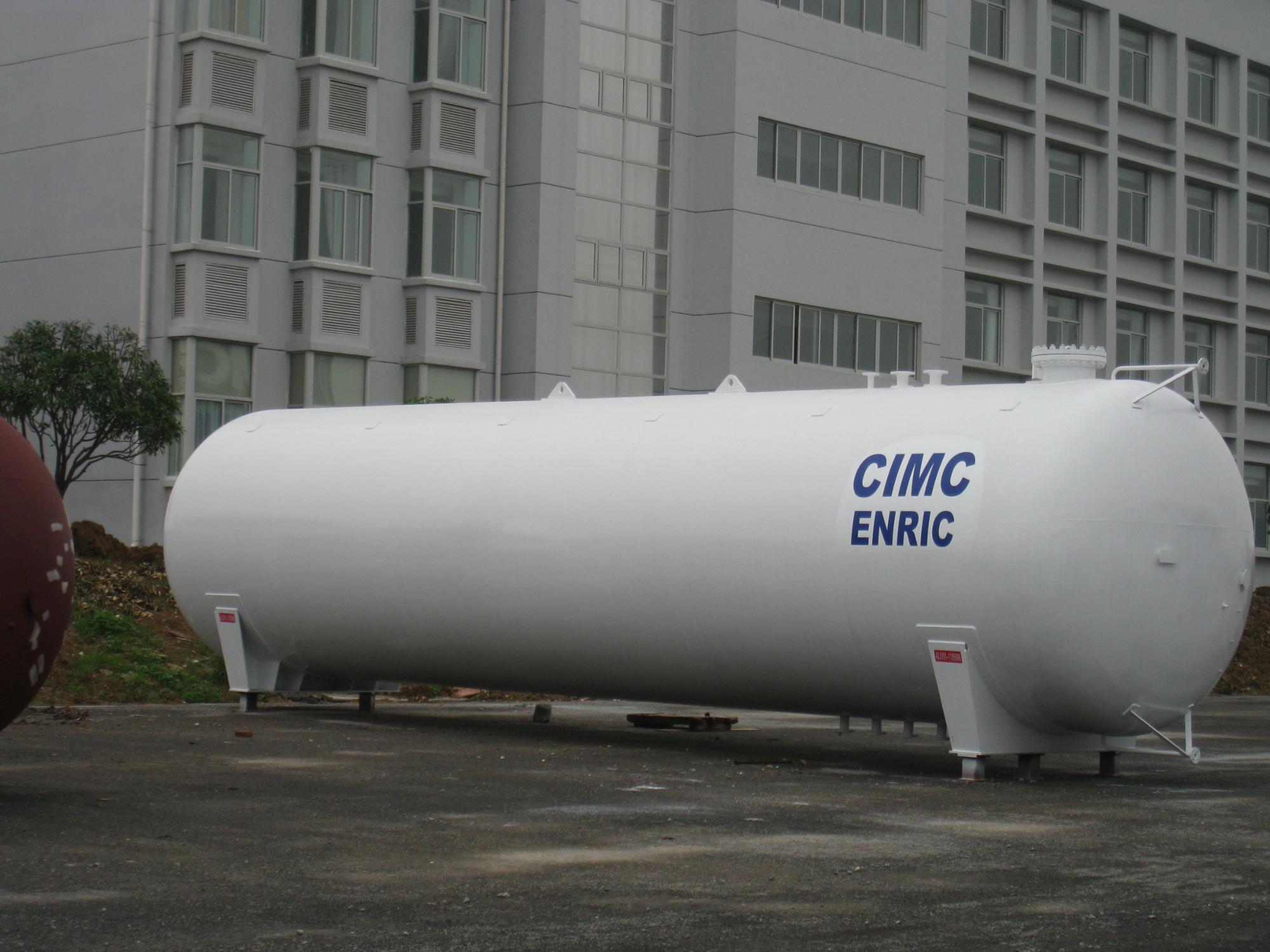

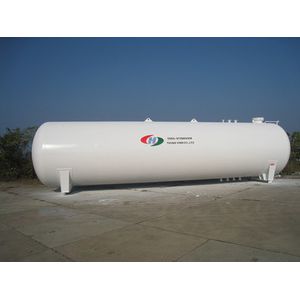

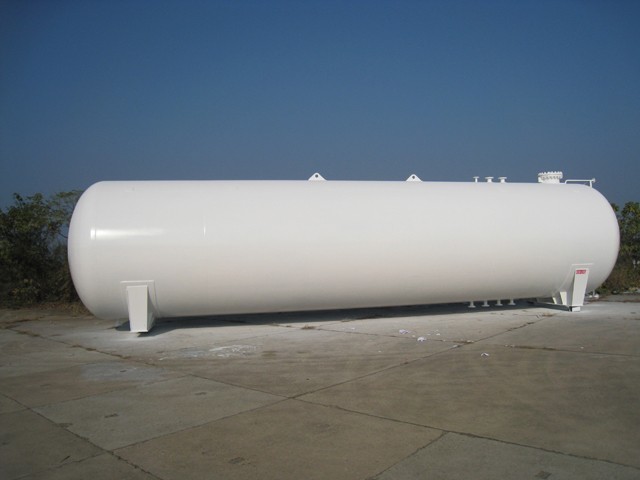

| Technical Parameters of 10m3 LPG Storage Tank | ||
| Product Name | 10m3 LPG Storage Tank | |
| Model | WG18-1600-10 | |
| Design Capacity | 10m3 | |
| Payload | 4035KG | |
| Net weight | 3400KG | |
| Tank Outline Dimension( ID * H * L) | 1600*2370*5300mm | |
| | LA | 5300mm |
| LB | 3530mm | |
| LC | 450mm | |
| Working Pressure | ≤1.61MPa | |
| Design pressure | 1.61 MPa | |
| Allowable Working pressure | 1.77 MPa | |
| Working Temperature | -20~50 ℃ | |
| Design Temperature | -20/50 ℃ | |
| Medium | LPG (propane) / explosive,inflammable; Note: H2S content ≤10mg/m³ | |
| Filling Ratio | 0.9 | |
| Ambient Temperature | -20~50 ℃ | |
| Life Expectancy | 20 years | |
| Seismic Intensity | less than 7 degree | |
| Corrosion Allowance | 1.0mm | |
| Wind Load & Snow Load | Not Considered | |
| Hydro Test Pressure | 2.22MPa | |
| Shell Design Thickness | 8.53(10)mm | |
| Head Design Thickness | 8.51(10)mm | |
| Material | Q345R (Hot-rolled, controlled rolling) | |
| Saddle Standard | JB/T 4712-2007 | |
| Design Code | Chinese GB Standard |

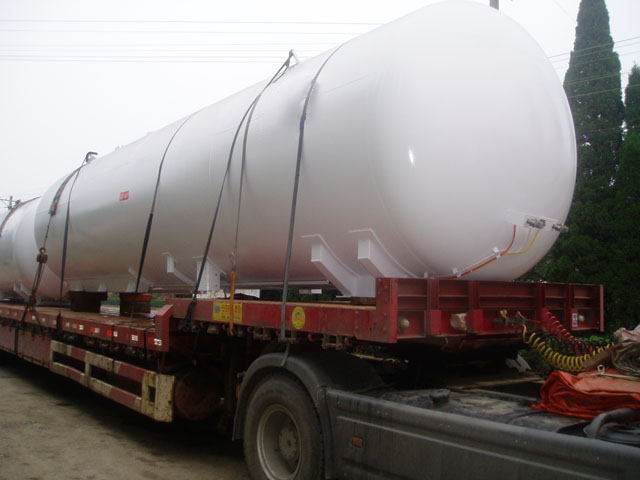

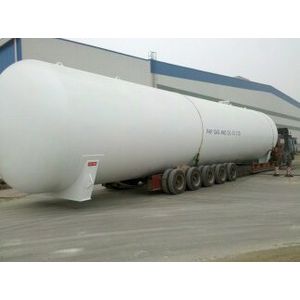

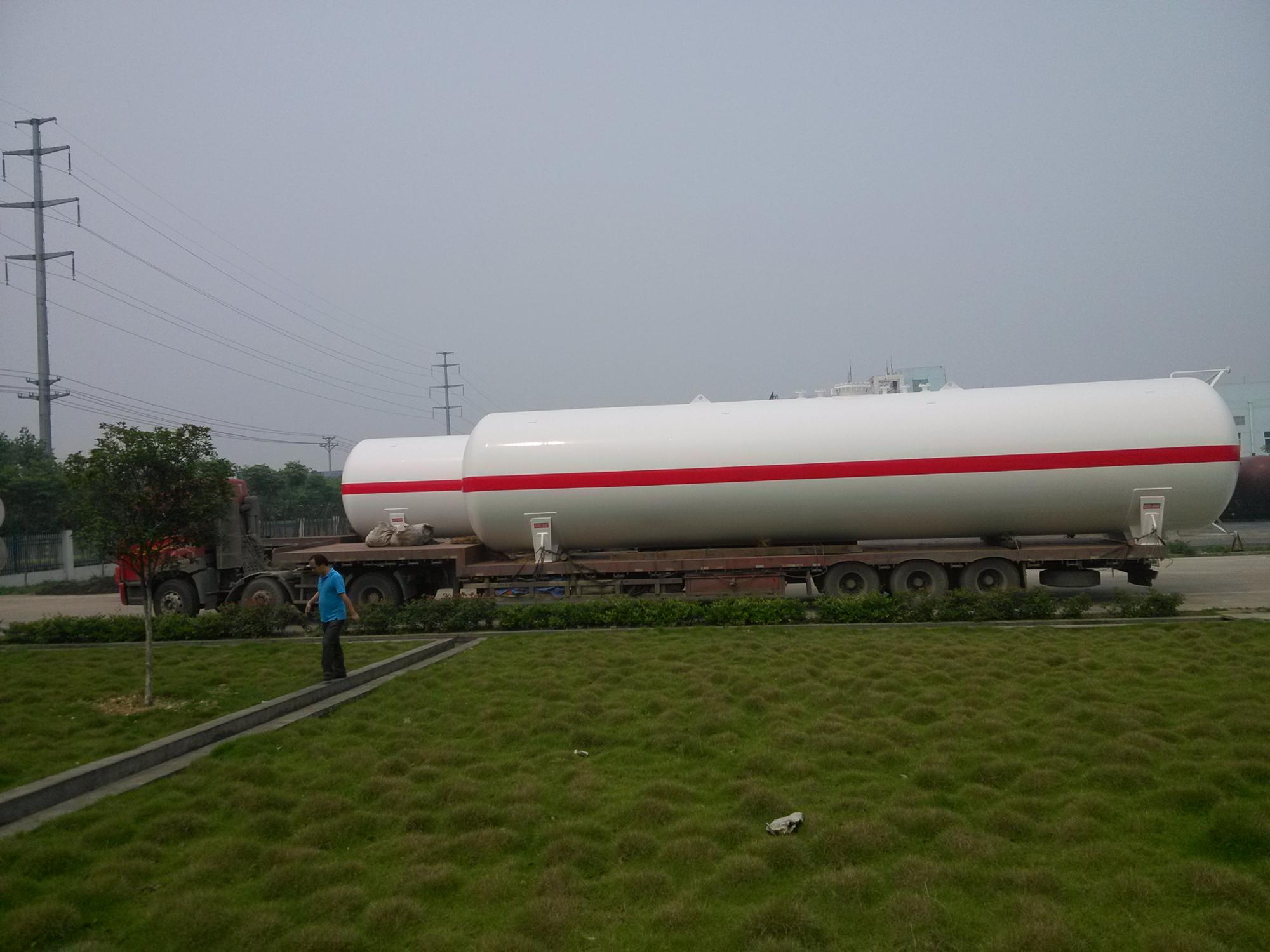

Packaging: Nude or according to customer's requirements

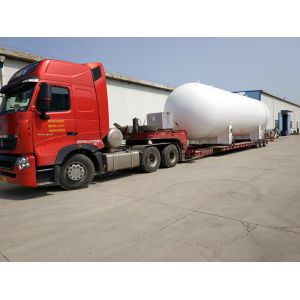

Delivery: Ship in 60 days after payment
CIMC ENRIC • Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called Hongtu, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since her establishment in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked 68th in Chinese Top 500 businesses), is engaged in R&D of normal temperature storage & transportation equipment and cryogenic storage & transportation equipment, EPC contracting, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2.
The Company always stands in the forefront leading the industrial development. "HONTO" Brand LPG tanker's production and sales has ranked No.1 in China for the past three decades with a domestic market share over 60% all along. Hongtu has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also the only LPG full-industrial chain equipment manufacturer and solution provider in China.
"HONTO" brand LPG storage and transportation equipment has been distributed to more than 32 countries in America, Middle East, South America, Southeast Asia, Northeast Asia and Africa.
Our main products:
LPG Semi-trailer
LPG Bobtail/Rigid Tanker
LPG ISO Tank Container
LPG Spherical Tank
LPG Horizontal/Mounded/Domestic Storage Tank
LPG Plant/Filling Plant/Autogas Station
LPG/Autogas Filling Skid

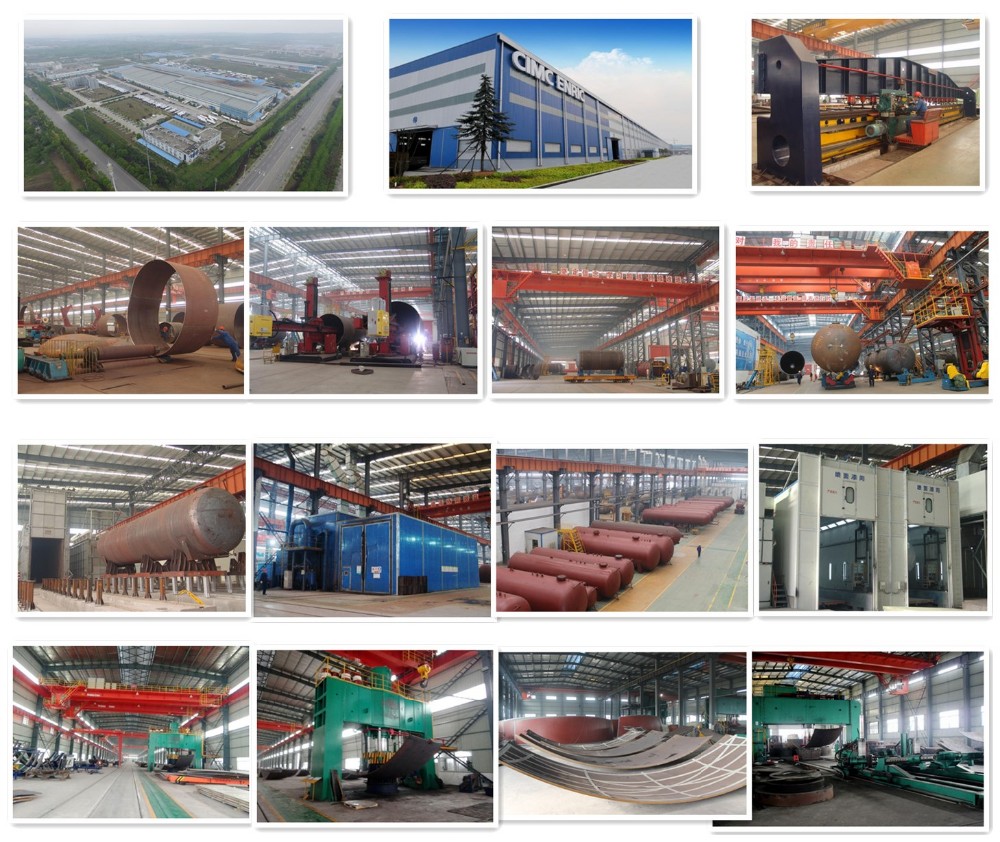

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m2 .
