Product Description:
Item Specification Tolerance | ||
Item | Specification | Tolerance |
Rated Volume(L) | 1000 | / |
Brimful Volume(L) | ≥1050 | / |
Overall Dimension(mm) | 1200x1000x1150 | ±5 |
Top cap Mouth diameter | 142(diameter of thread SLCS 160mm,Pitch 7mm) | ±2 |
Weight for Inner Tank(kg) | 15.5 | ±0.5 |
Weight for IBC Tank(kg) | 58 | ±2 |
Valve outside diameter(mm) | 50 | ±1 |
Wall Thickness(min) | ≥1.5mm | / |
Outlet Valve(discharge valve) | DN50 ball valve& butterfly valve | / |
Height for Pallet(mm) | 120 | / |
Height for forklift holes(mm) | 90 | / |
Length for forklift holes(mm) | 795 |
NOTES:
1.Item: IBC-2
2.UNMark:each IBC Tank will mark exclusive UN Uumber
3.Overall dimensiobn:1200*1000*1150mm(±5mm)
4.Max Allowable Weight:2013 kg
5.Tare Weight:58±2kg
6.Allowable Stacking Weight:4056kg
7.Material of inner Receptacle: HDPE
8.Material of outer Casing :Galvanized steel DCD51D
9.Material of pallet: Galvanized steel DC53D
10.Material of seal :EPDM,FKM,Nitrile,PE

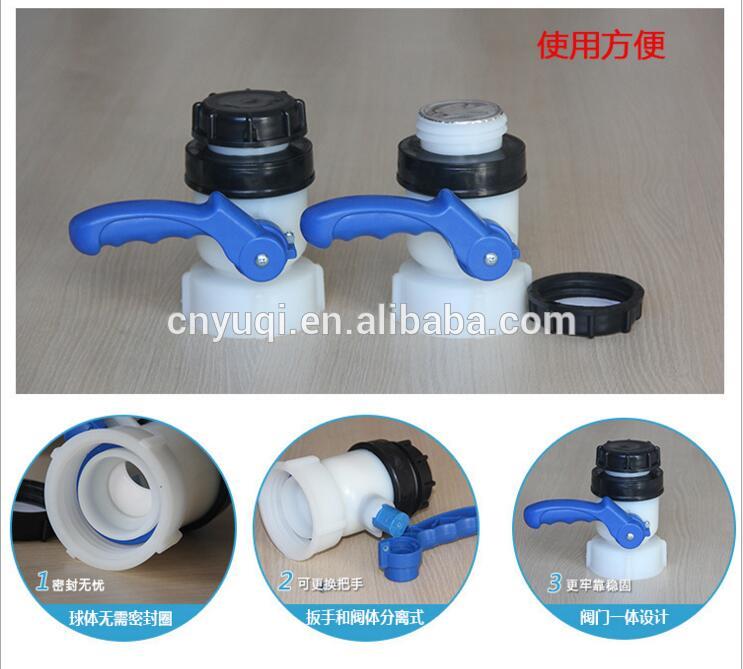

11.Valve and Material:Ball Valve DN50 or Butterfly Valve DN 50
12.Stacking Test Weight;4056kg
13.Dropping Test Height:1.9mm
14.Hydraulic Test pressure:100kpa
15.Vibration Test:Amplitude:25±5%mm,Time Duration:1 hour

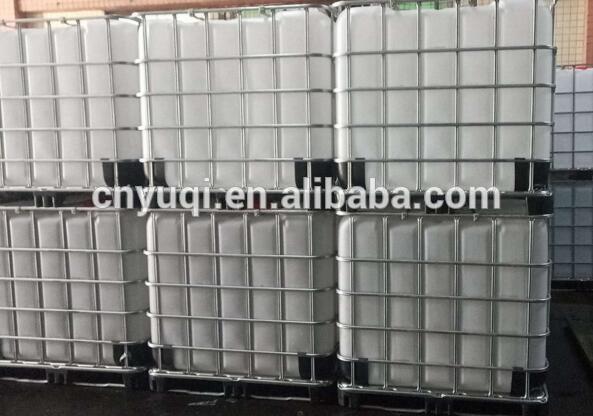

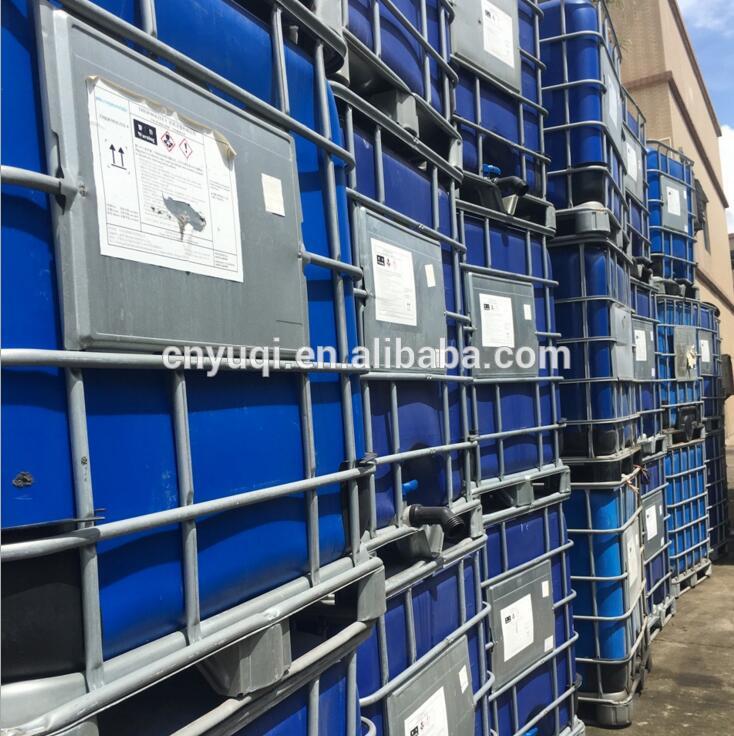

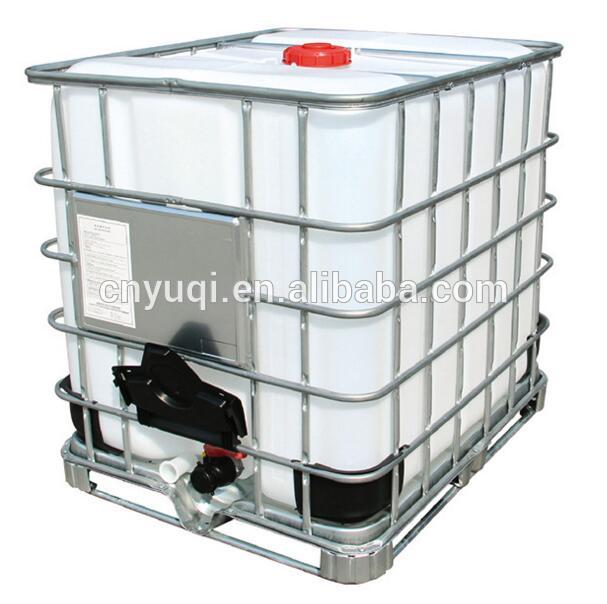

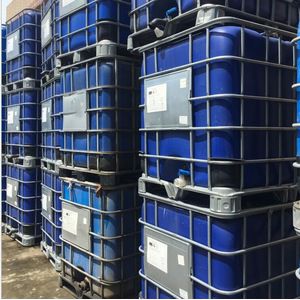

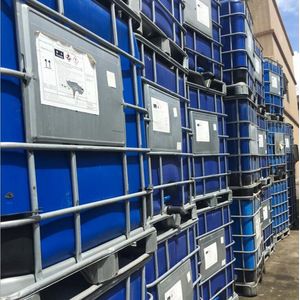

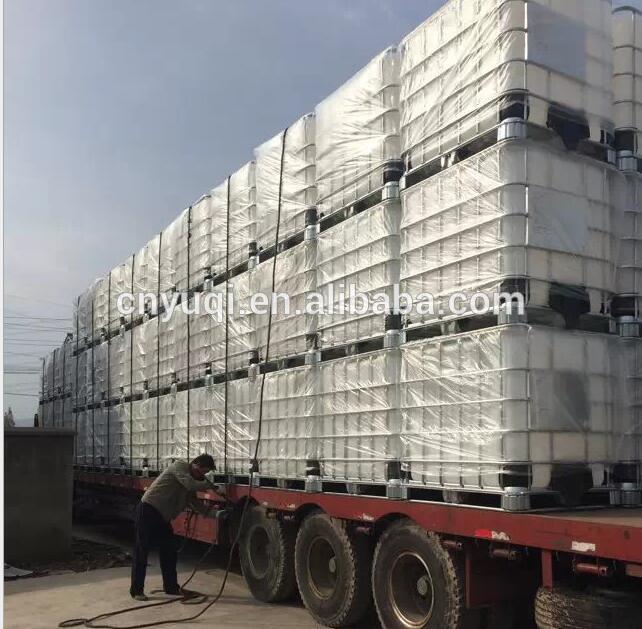

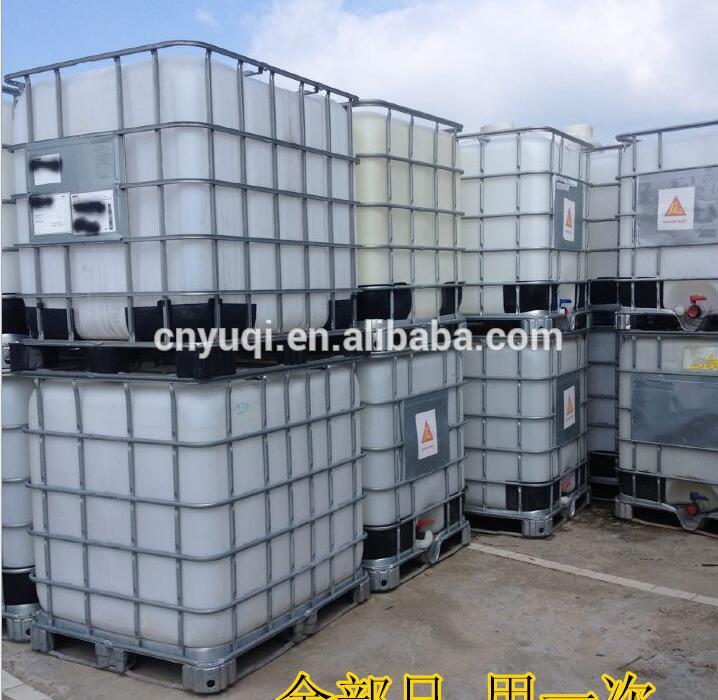

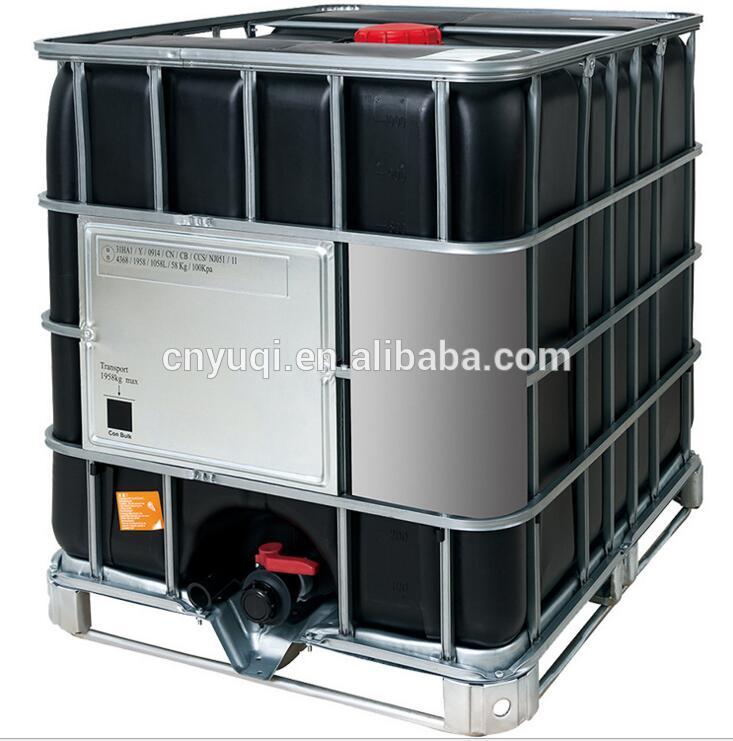

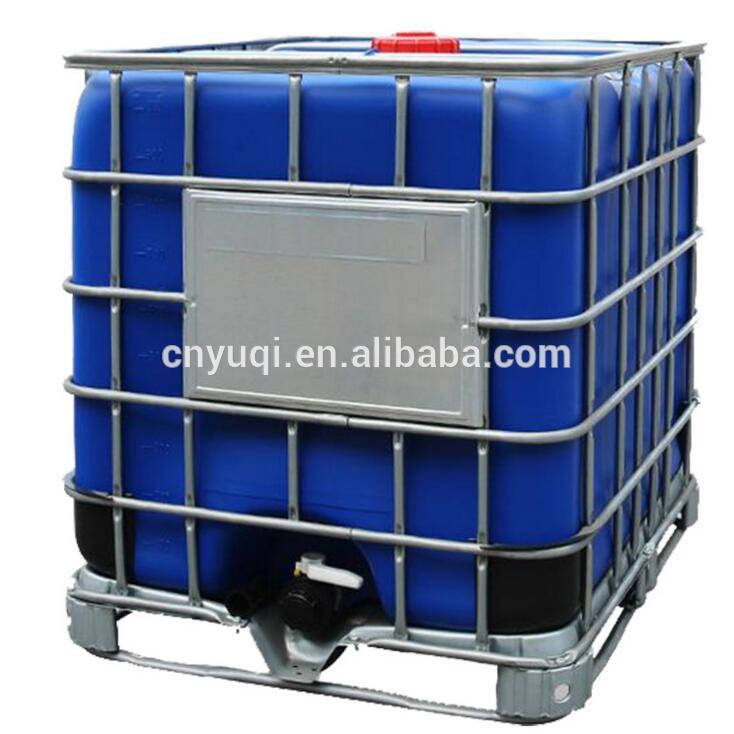

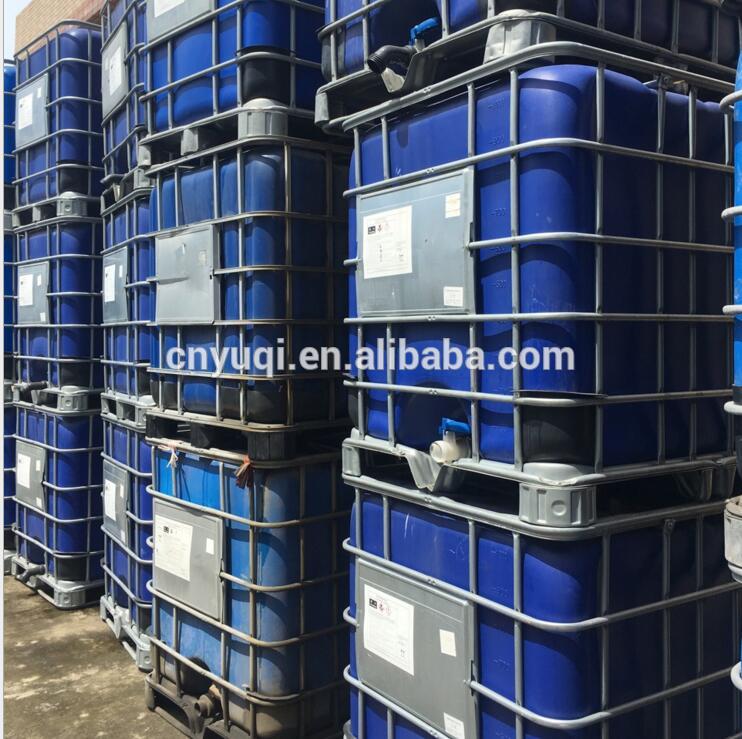

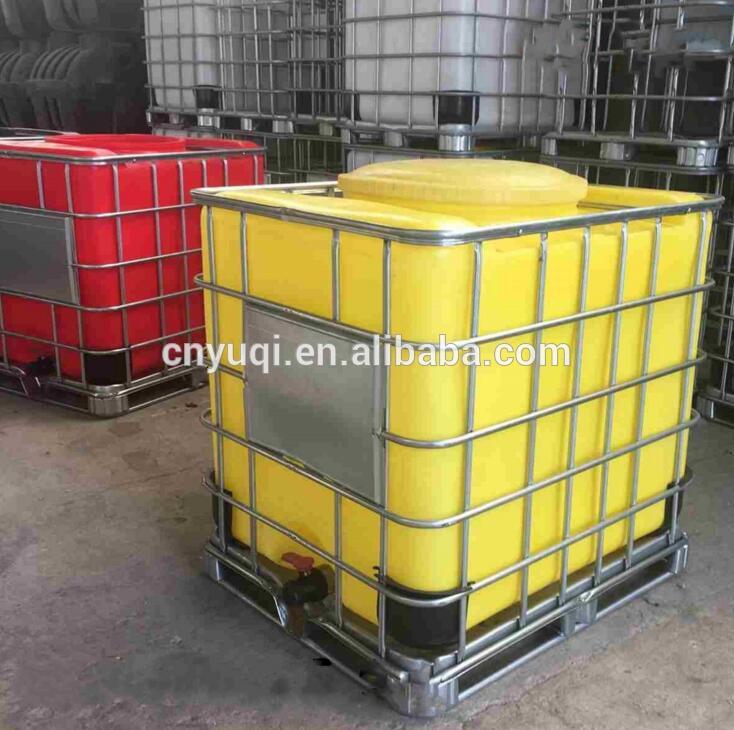

Some Pictures:
