High quality low price large capacity diesel fuel oil storage tank with national standard
Product Description
Our company is a professional manufactory of large storage tanks, it contains the design, provided steel material and overseas installation. Professional engineers and construction teams, all the tanks are made in accordance with international standards.
The large storage tanks of various specifications and models can be made. We can choose different types and different materials storage tanks according to the properties of the materials.

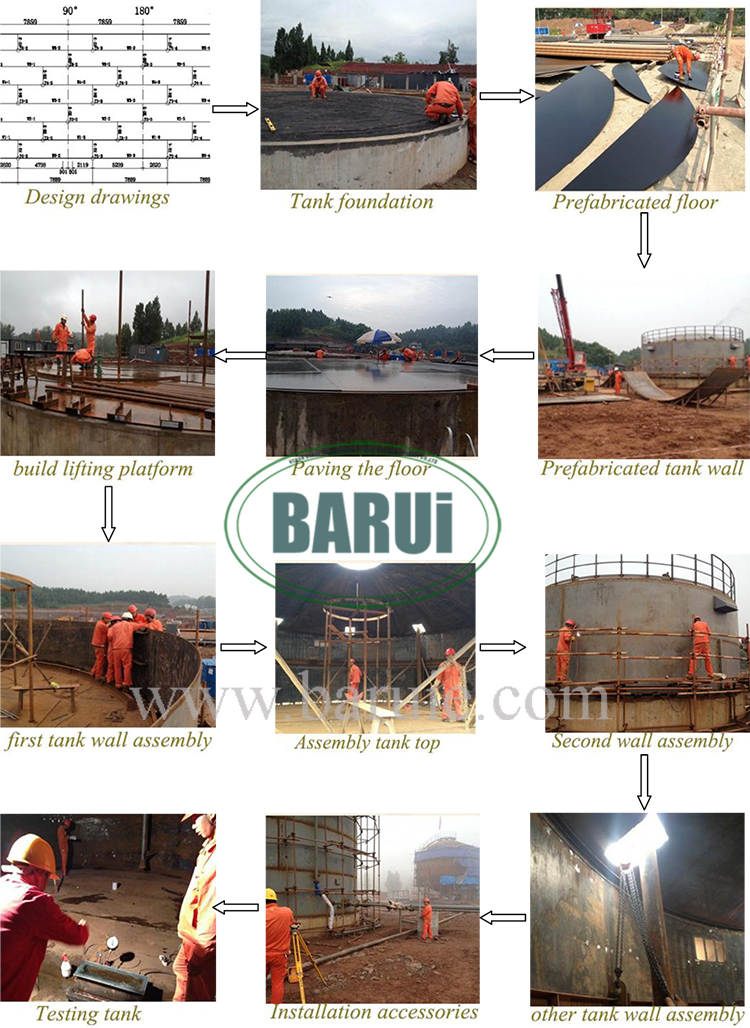

1. Production process and parameters
Storage tank parameters
| Name | Volume(m3) | Volume(barrals) | Total height(mm) | Diameter(mm) | Total weight(kg) |
| Cone top oil tank | 40 | 252 | 5188 | 3710 | 3630 |
| Dome roof tank | 60 | 378 | 5717 | 4320 | 5330 |
| Dome roof tank | 100 | 630 | 5822 | 5320 | 6685 |
| Dome roof tank | 200 | 1260 | 7087 | 6720 | 10230 |
| Dome roof tank | 300 | 1890 | 8012 | 7880 | 13475 |
| Dome roof tank | 400 | 2520 | 8917 | 8730 | 16355 |
| Dome roof tank | 500 | 3150 | 9717 | 9130 | 18370 |
| Dome roof tank | 700 | 4410 | 10632 | 10330 | 22780 |
| Dome roof tank | 1000 | 6300 | 11960 | 11630 | 31615 |
| Dome roof tank | 2000 | 12600 | 12835 | 15920 | 53310 |
| Dome roof tank | 3000 | 18900 | 14350 | 19030 | 83070 |
| Dome roof tank | 5000 | 31500 | 15289 | 23830 | 119070 |
| Dome roof tank | 10000 | 63000 | 17690 | 31350 | 220915 |

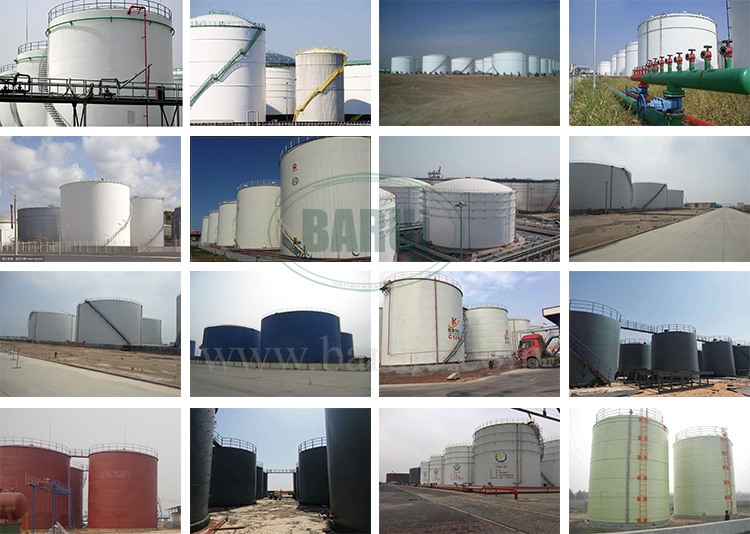

2. dawings and Images
3.Our professional teams

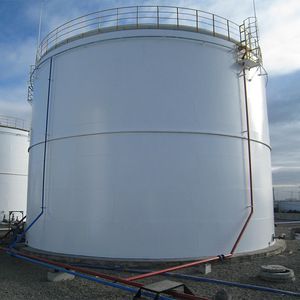

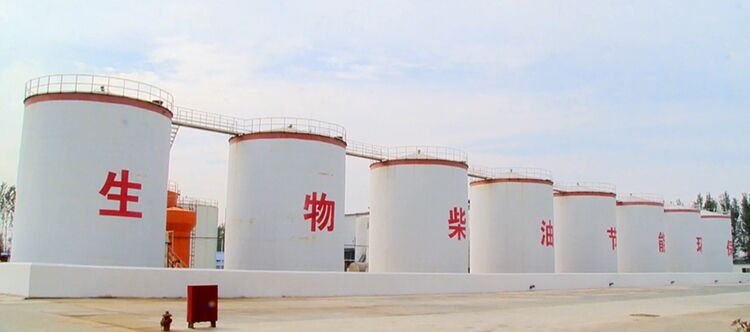

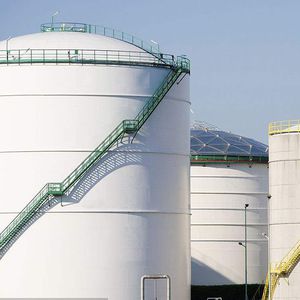

4. fuel storage tank

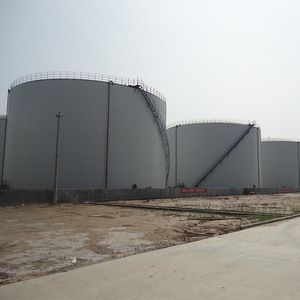

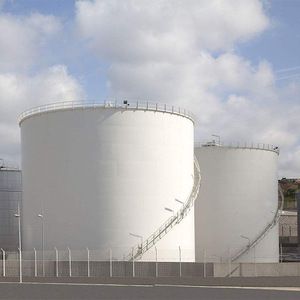

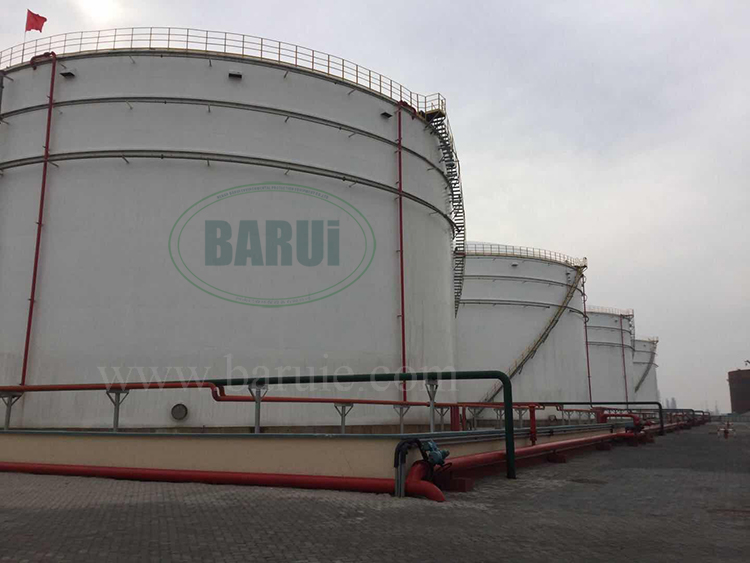

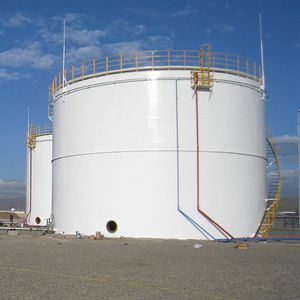

5.oil storage tank

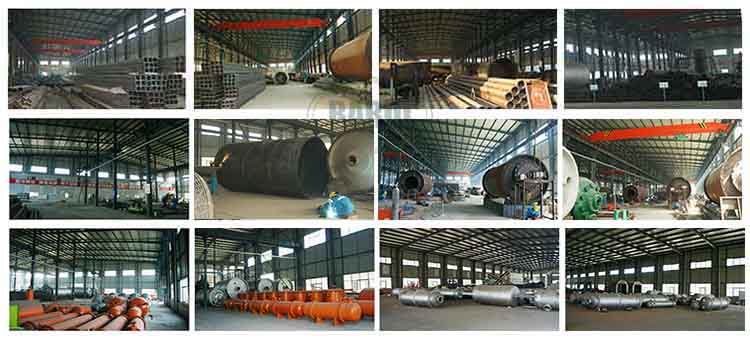

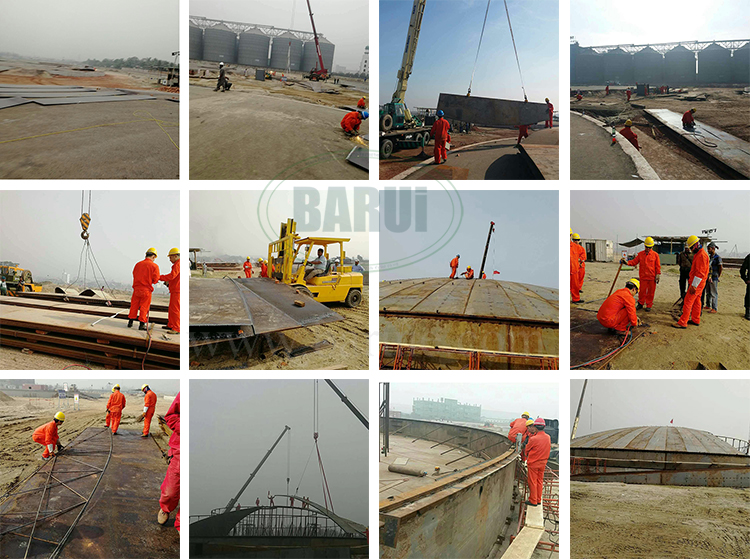

6. Production workshop
Packaging & Shipping
All goods are packed with export standard package to make sure no
damage during transportation.
