ASME 1000L 16Bar liquid nitrogen storage tank price for low

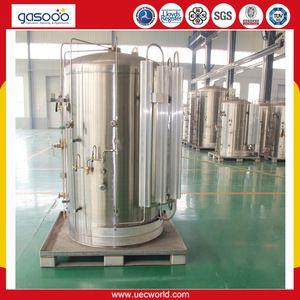

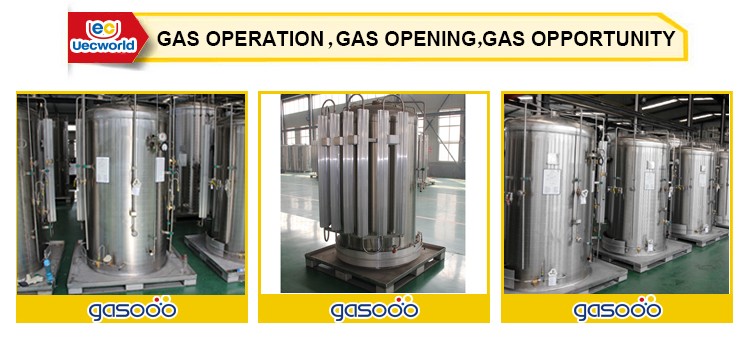

Typical Model Specification of Vertical Compact Cryogenic Tank | ||||||||||||
Full volume(L) | 1069 | 2135 | 3071 | 5327 | ||||||||
Effective volume(L) | 1016 | 2028 | 2917 | 5061 | ||||||||
Working pressure(Mpa) | 1.6 | 2.5 | 3.5 | 1.6 | 2.5 | 3.5 | 1.6 | 2.5 | 3.5 | 1.6 | 2.5 | 3.5 |
Vessel sort | II | |||||||||||
Surface treatment | Mirror surface Ra 0.025 | |||||||||||
Thermal- insulating type | High vacuum Multi-layers thermal-insulating | |||||||||||
Base-supports structure | Saddle base | |||||||||||
Material | Inner vessel:06Cr19Ni 10/ Outer cylinder: S30408/ Saddle base:S30408 | |||||||||||
Specification | TSG R0004-2009 GB150-2011 GB/T 18442-2011 | |||||||||||
Loading media and filling weight | ||||||||||||
LOX(Kg) | 1696 | 2159 | 2277 | 3460 | 3795 | 4098 | 4979 | 5353 | 5761 | 8103 | 8754 | 9350 |
LN(Kg) | 1631 | 1821 | 1939 | 2784 | 3120 | 3423 | 4008 | 4381 | 4790 | 6417 | 7068 | 7664 |
LAr(Kg) | 2225 | 2415 | 2533 | 3971 | 4306 | 4609 | 5715 | 6088 | 6497 | 9378 | 10029 | 10625 |
LCO2(Kg) | 1856 | 2046 | 2164 | 3235 | 3570 | 3873 | 4655 | 5028 | 5437 | 7541 | 8192 | 8788 |
LNG (Kg) | 1267 | 1457 | 1575 | 2059 | 2394 | 2697 | 2964 | 3337 | 3746 | 4605 | 5256 | 5852 |
Product Parameters | ||||||||||||
Gas flow rate(Nm³/H) | 30 Nm³/h | 60 Nm³/h | 60 Nm³/h | 100 Nm³/h | ||||||||
Evaporation(LN) | ≤0.8% | ≤0.7% | ≤0.6% | ≤0.45% | ||||||||
Empty weight | 810 | 1000 | 1118 | 1146 | 1481 | 1784 | 1651 | 2024 | 2433 | 2328 | 2979 | 3575 |
Dimensions | 1500*1450*2306 | 1700*1650*2939 | 1900*1850*3060 | 1900*1850*4740 |

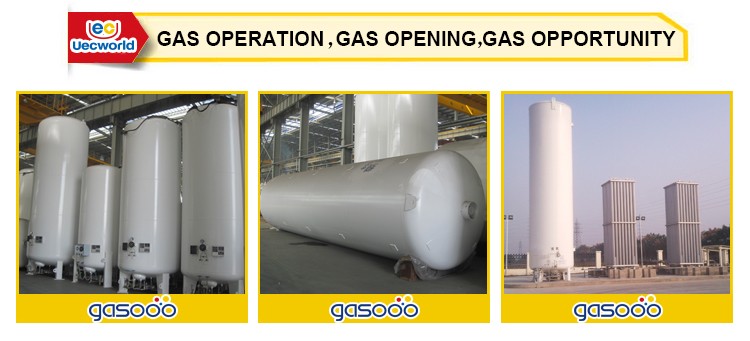

GASOOO brand cryogenic tank for liquid gases covers manufacturing standard:
GB150, ASME, EN standard.
It is widely used for liquid oxygen ( LOX / LO2 ), liquid nitrogen ( LIN ), liquid argon ( LAR ), liquid carbon dioxide ( LCO2 ), and liquid natural gas ( LNG ), etc.
Water volume: 1M3 - 200M3
Working pressure: 0.8Mpa, 1.6Mpa, 2.0Mpa, 2.2Mpa, 2.4Mpa etc.

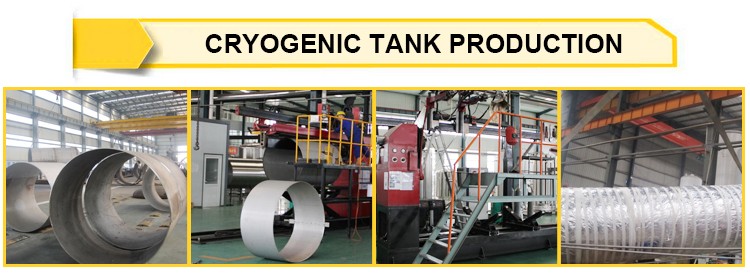

All the required procedure and tests, including automatic welding process, X-ray and ultrasonic tests, Vacuum production and testing, hydraulic tests, leak test for inner vessel, etc. Thanks to advanced technology, high-preformance equipment, prefessional personnel and stictly procedure and tests, GASOOO cryogenic cylinder for liquid gases earned customers' praise for good quality.

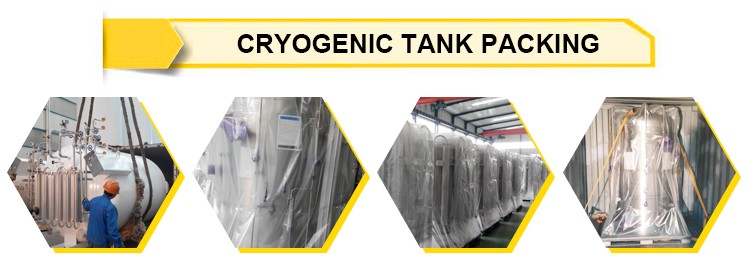

GASOOO cryogenic tank for liquid gases has safe delivery way to protect tanks. As for the 5m3,10 m3 or 20 m3 tanks, it can be shippey by 20FC or 40FC.
How about price? |
We provide competitive price. At least, please let us know the water volume, working pressure, gas media, manudacturing standard to choose exact type. |
How about delivery time? |
It is based on quantity and exact type. Gernerally, it is 45 to 90 days. |
How about cryogenic cylinder application? |
Our tanks can be used for LOX, LIN, LAr, LCO2, LNG, etc. |
How to ensure quality? |
Advance quality management assures Uec products with the perfect performance including approval of ASME, EN Standards and etc. |
How about payment? |
TT and L/C are both ok. We also support online order on alibaba or on our online store BUYCYLINDER. Just contact us for more detail. |
