We specialized in fluid technology
-Exquisite appearance,easy to maintenance.
-Smaller size,lower noise,high precision,good stability.
Application area:

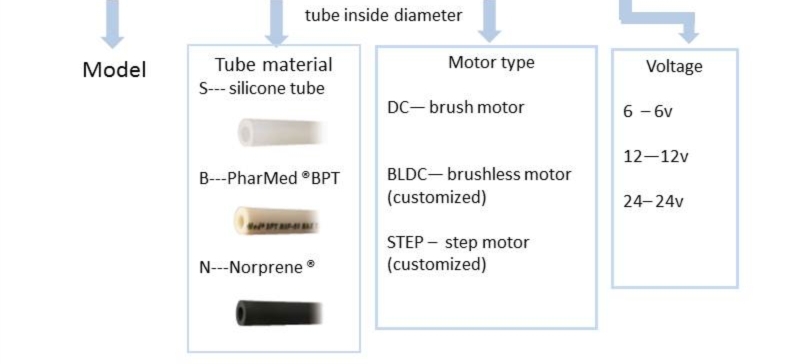

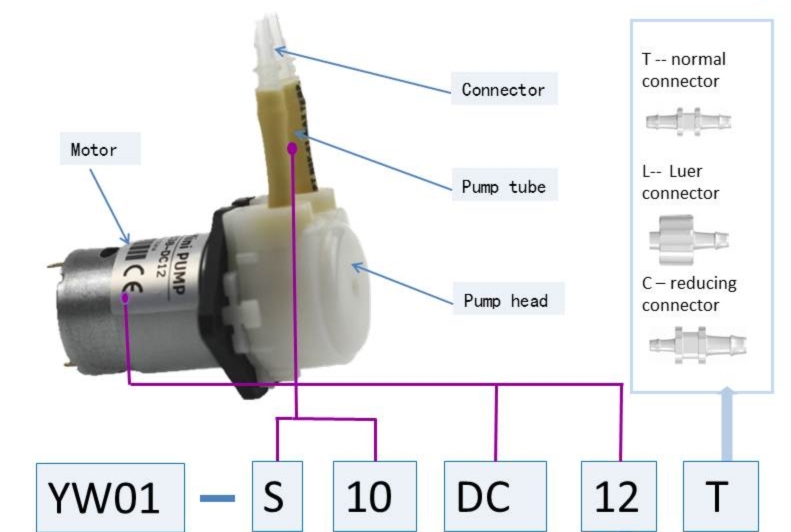

Tube selection:
Tube No. | Material | information |
B | PharMed®BPT
|
|
N | Norprene®
|
|
S | silicone tube
|
|
Tube size | 06 | 10 | 15 | 20 | 25 | 30 |
Inside dimension | 0.6mm | 1.0mm | 1.5mm | 2.0mm | 2.5mm | 3mm |
Material | S | S | S | B/S | B/S | S |
Max flow | 6ml/min | 18ml/min | 32ml/min | 60ml/min | 80ml/min | 100ml/min |
Motor type | DC | BLDC | STEP |
Positive pressure | 0.1MPa | ||
Negative pressure | -0.09 MPa | ||
Hose size applied | 1~1.2mm | ||
Motor temp | 50℃ | 50℃ | 60℃ |
Noise | <50dB | <50dB | <52dB |
Motor lifetime | 800hrs | 10000hrs | 10000hrs |
Work temp | 0~40℃ | 0~40℃ | 0~40℃ |
Relative humidity | < 80% | < 80% | < 80% |

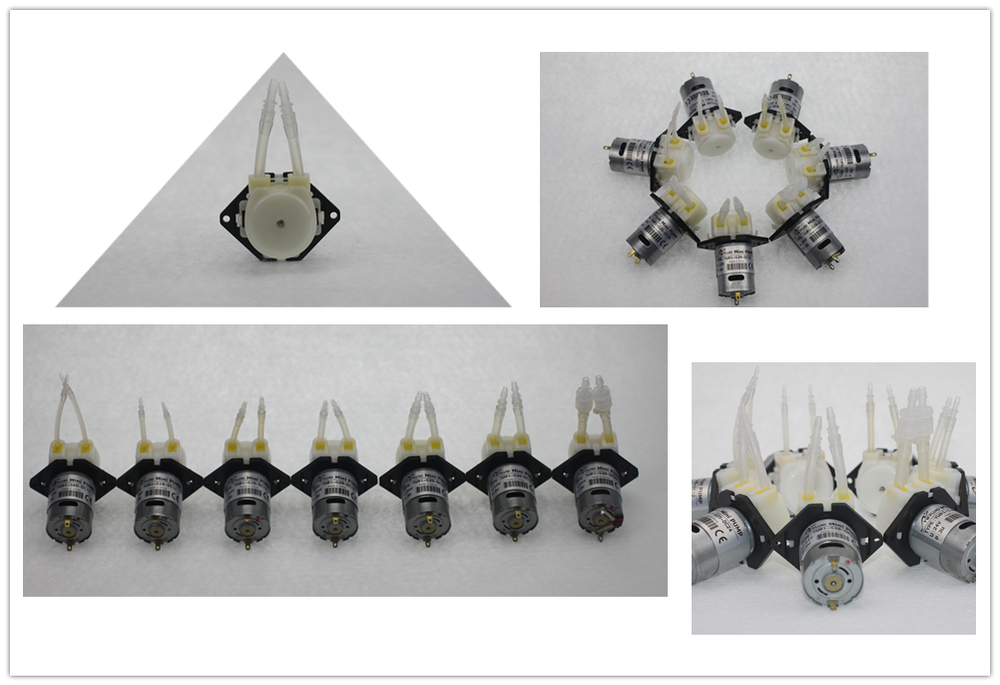

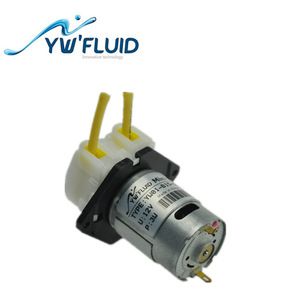

Photo:

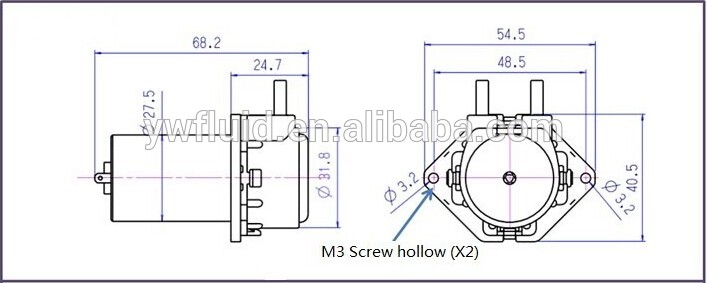

Installation drawing
Our service
We are a manufacturer of pumps. So we can offer OEM service.
Who we are?

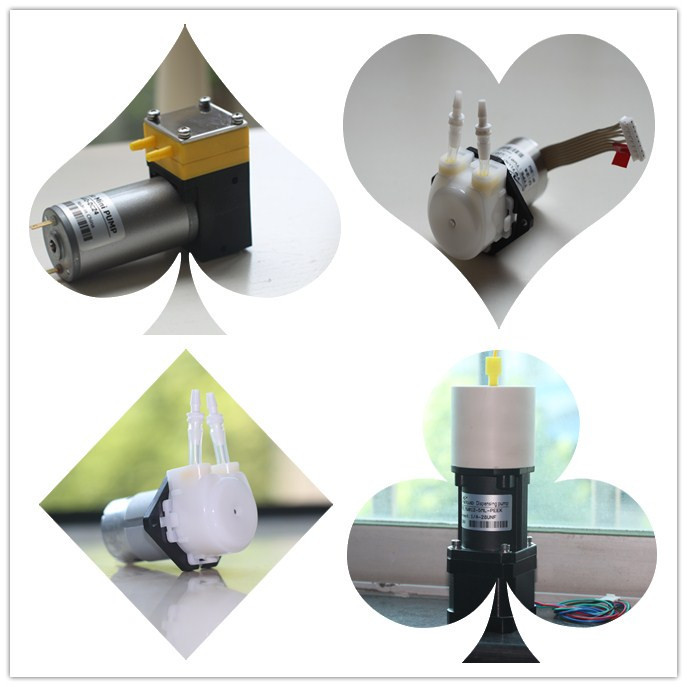

We are a factory,manufacturing micro pumps such as micro peristaltic pump,micro diaphragm pump,vacuum pump and accessories.Our products sell very well and win good reputations within customers who repeat many orders.
What we provide?
We'd like to recommend suitable pumps for you. And you can have your pumps custom-made. We'd like to help solving any problems after-sale.
Where are we?
We are located in No.6 Tongshun Road,Henglin Town,Wujin,Changzhou City,Jiangsu,China. Welcome to visit us :)
How to contact us?
Any questions,pls feel free to contact Tel: +86-0519-88726838; Fax:+86=0519-88721314
Why choose us?
We are a new manufacturer with new equipment and new but experienced designers. So we have new ideas and large supply capacity.And we can finish your orders in the shortest time. We are young! So nothing is impossible!
