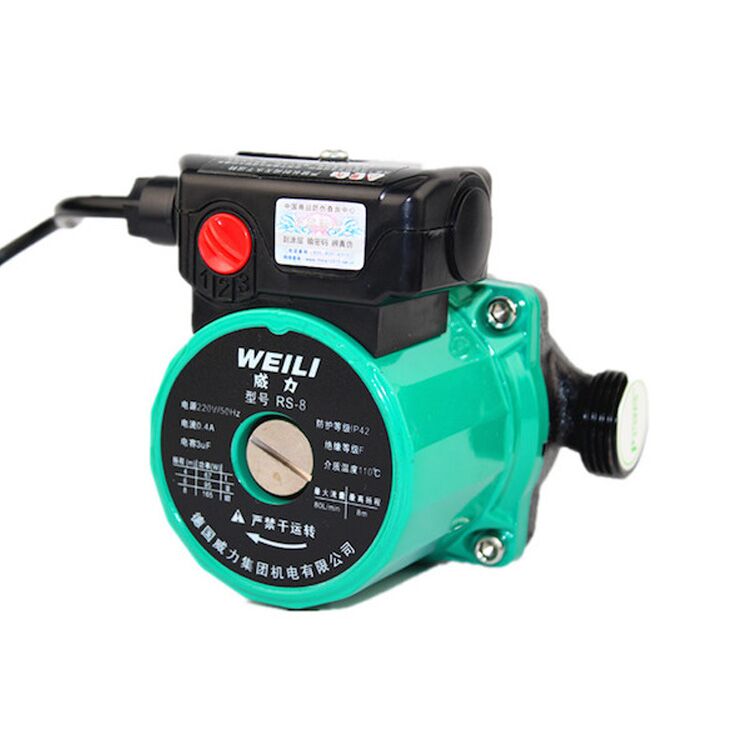

STARFLO 65LPM 6M lift water heater booster circulating water pump for Domestic hot water systems

PERFORMANCE

1) Fluid temperature range: -10°C - +110 °C

2) Max. working pressure: 10 bars
3) Ambient temperature: permissible up to 40 °C

Power:  Main power: 1 - 230V, 50Hz /60Hz.

MOTOR

1) Degree of protection: lp44
2) Insulation class: F
Construction materials:
1) Pump body: cast iron
2) Impeller: PPO, stainless steel on request
3) Shaft: porcelain
4) Bearings: graphite or ceramic

MOUNTING  POSITIONS
1) Pump shaft in the horizontal plane, terminal box
2) Optional 3, 6, 9 or 12 o'clock
PUMP EQUIPMENT
1) Screwed end single head pump
2) Manual 3-speed control
3) Non-overloading single phase motor
4) Cast iron body, 130mm/180mm port-to-port

FEATURES

Low-noise & Low-energy

Easy installation

no leakage

environmental protection

beautiful appearance

convenient installation..

APPLICATION

Heating systems

Domestic hot water systems

Cooling and air-condition systems

Water circulating system for industrial boiler

Dsigned for circulation of liquid in heating and air-conditioning systems. Such as:

One- and two-pipe heating systems

Main pumps/Zone pumps

Boiler shunt pumps

Calorifiers

Solar heating systems

Geothermal heating systems

Heat recovery systems

Two-pipe air-conditioning systems

Pumps for refrigeration units

Domestic hot water systems

Water circulating system for industrial micro boiler

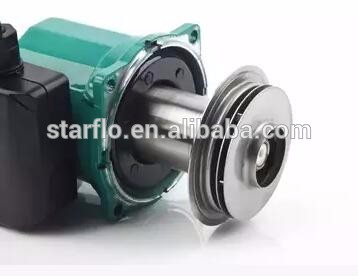

Structural characteristics

Coil wire: 100% Copper wire

Impeller: Brass

Bearing: C&U/NSK/SKF

Insulation class: B and F

Protection class: IP44 or IP54

Mechanical seal: Carbon-ceramic/Stainless steel

Shaft: 45# Steel / Stainless steel 420

Single phase motor with Thermal protector

Model : RS-6

Voltage: 220V/50HZ

Max Lift:6m

Max Flow Rate: 65LPM

Power: 100W/67W/42W

Port Size:6/ 1"/1.2"/1.5"

Electric Cable: 1m

Weight: 2.5KG

       1. What is your MOQ?

100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.

2. What about the delivery time?

It depends on your order quantity; it usually takes 7-12 days upon receipt of your 30% deposit by T/T.

Sample can be delivered within 7days.

3. Can I buy different types in one container?

Yes, you can mix different types in one container.

4. Do you have oversea agents?

Of course. We have many agents overseas, if you are interestd in it ,Welcome oversea agents!

 5.Do you accept OEM/ODM ?

Yes. We are also the OEM supplier of many famous companies, such as WALMAT.

6. What is your terms of payment.

T/T, 30% in advance, balance against B/L copy.

7. What is your warranty?

1 year, and within 24 hours reply will be provided to solve customers’ problems.

8. What is your port of loading?

Xiamen Port,Fuzhou Port,Ningbo Port,Shanghai port.
