Description:
Brand New and High Quality

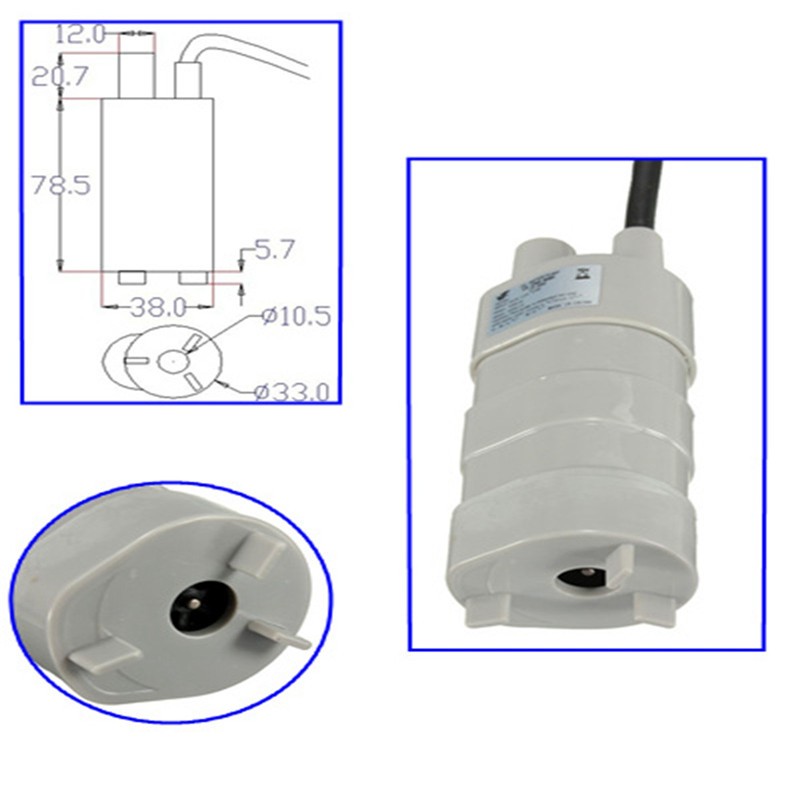

Size:98mm(height)*38mm(diameter)
Water Outlet Outer Diameter:12mm
Water Outlet Inner Diameter:9.7mm
Rated Voltage: 12V
Working Voltage: 6-15V (Maximum 18V)
Rated Current: 1.2A
Maximum Lift: 5M
Notice: it means height the water can arrive if the u connect a plastic pipe with the pump
Maximum Flow Rate: 600L/Hour

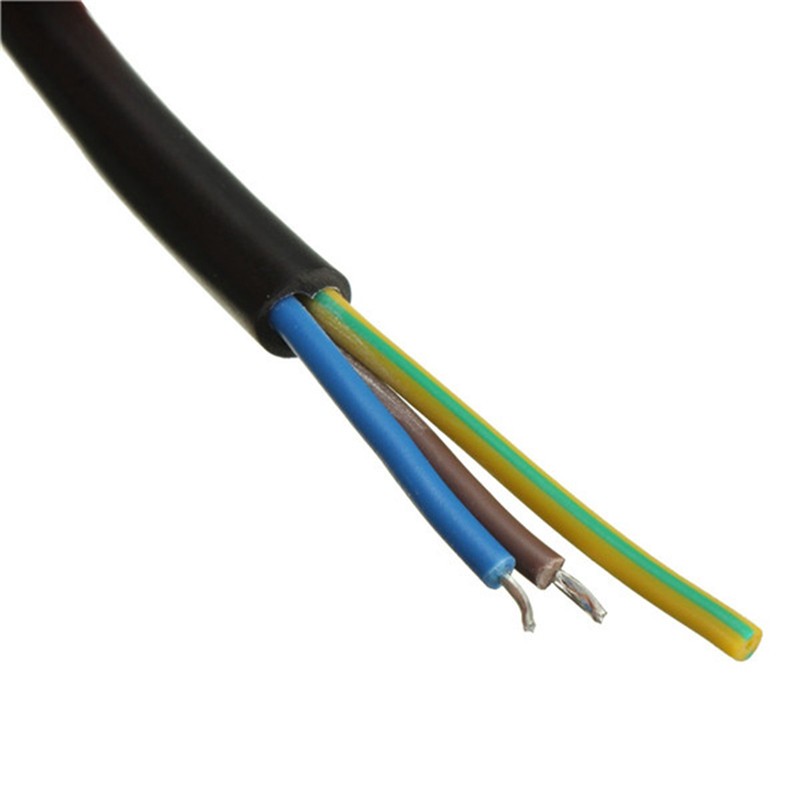

Cable: three core
Cable Length: 1.5m
Cable Diameter: 5.7mm


Notice:
1.The temperature of the water cannot be over 40 Degrees
2.the Brown cable connects the Positive Pole "+"
3.the Blue cable connects Negative Pole "-"
4.the Yellow cable is GND, don't need to connect.

Please use it on 6V-15V, otherwise the Water Pump will be burning-out


Package includes:

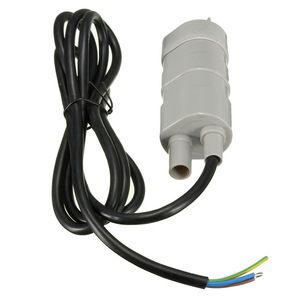

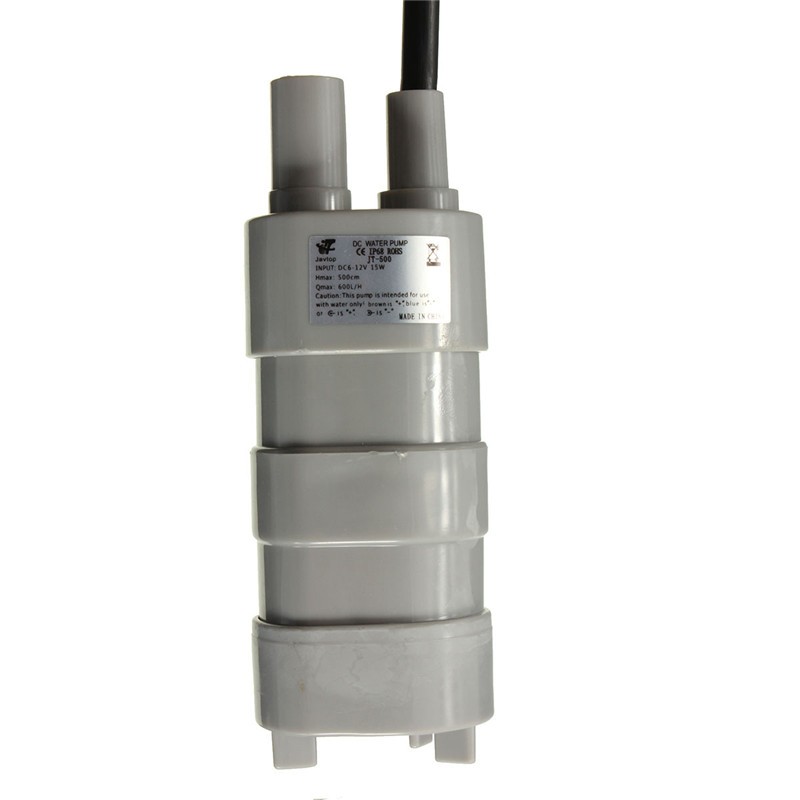

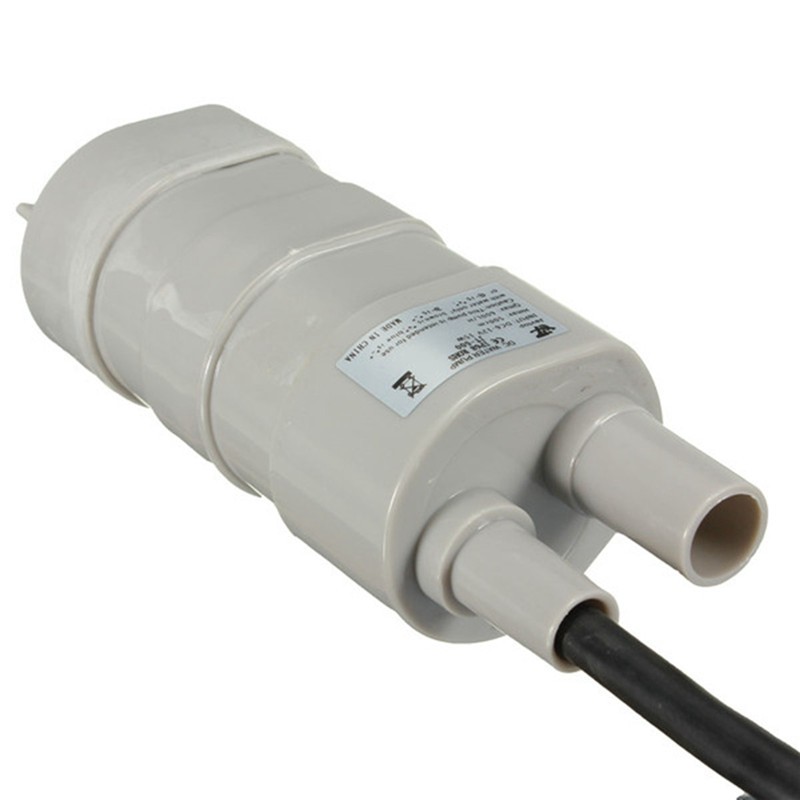

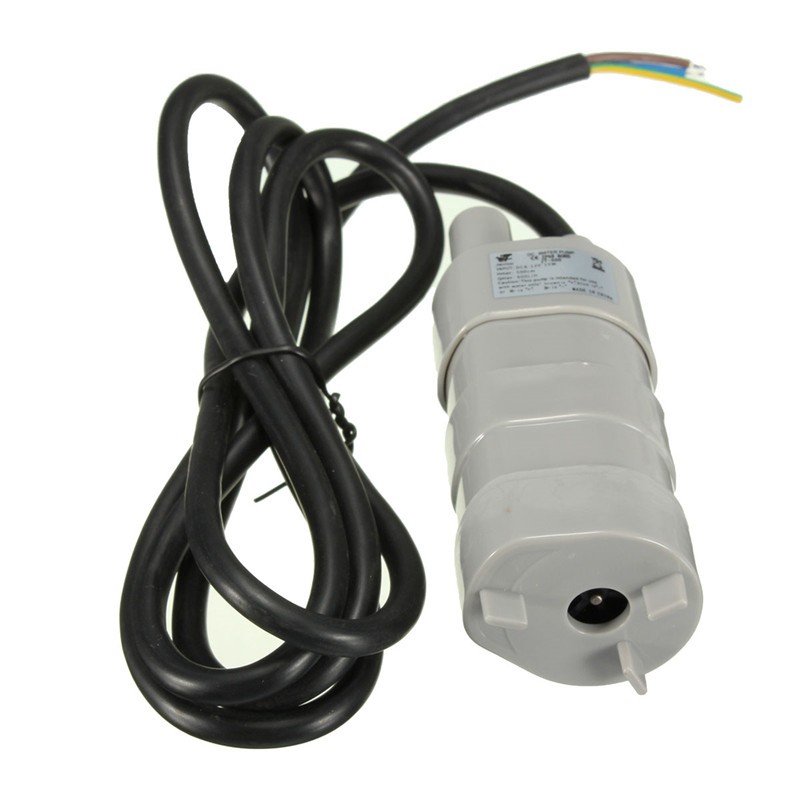

1 x Micro Submersible Motor Water Pump

Shenzhen HeHejin industrial Co.,Ltd(Hongkong YSmart Technology Co.,Ltd)is an energetic and technological innovative company,dedicated in researching,manufacturing and marketing solar related products,the factory is located in Shenzhen China.We provide products including Solar Controllers,Micro Grid Tie Inverter,Solar Lamp,MC4 Connectors and other Solar Related Products.

The company presses the ISO9000 quality management system control product quantity strictly,the export production all passes the relevant national company check (CE),get high evaluation of the customer.

Q 1.Would you accept to use our logo ?
All of our products are accepted to print your logo on the enclosure and package box,it depends on the amount,From 200pcs to 1000pcs.

Q 2.We want to know month capacity.
20000-30000PCS per Month.

Q 3.Where is your main market?
Our main market, United States,European and Australia.

Q 4.Does the inverter connect with solar system ?
Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in officer equipment,household items,power tools ans etc..

Q5. What kind of certificate you have ?
CE certificates.

Q7.How long of the warranty or guaranty?
1 Year,MPPT Controllers 2 Years.

Q8.How to pay for solar controller?
We accecpt paypal,western union, T/T. If you have any good payment, we also can accept.
