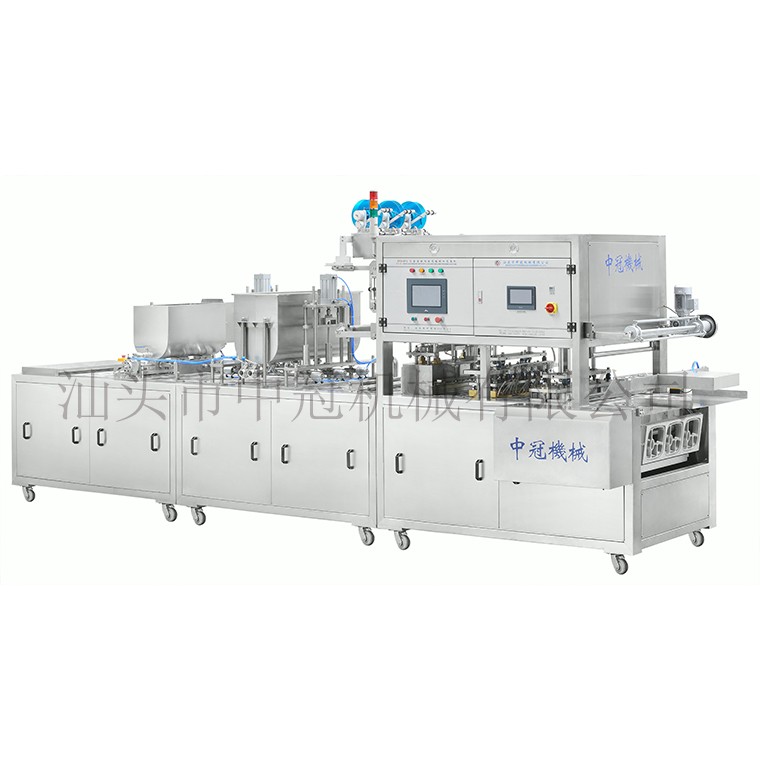

Product Application
capability:manual placing cup(box) →auto placing food→auto filling soup→auto placing film →auto pasting sticker →auto photoelectric rectifying→auto vacuum sealing & air charging→second sealing→automatic cutting→auto seceding cup(box)→auto collecting scrap film
| type | CFD-2 | CFD-3 | CFD-4 | CFD-6 | CFD-8 | |
| pcs/h packing rapid | 1200-2800 | 2500-3800 | 2500-4800 | 3000-7000 | 3000-8000 | |
| heating power | 3.2KW | 4.8KW | 6.5KW | 9.6KW | 10.7KW | |
| power of motor | 1.5KW | 1.5KW | ||||
| power supply | 380v/50Hz | |||||
| use pressure | 0.6-0.8Mpa | |||||
| extermal size L*W*H | 3.6*0.8*1.8m | 3.6*0.8*1.8m | 4.2*1.0*1.8m | 5.2*1.2*1.8m | 5.2*1.2*1.8m |
Main Features
The inert gas is charged after the air is exhausted. This machine is applying to the packing of cooked meat products.rice, dish.sauce, potato chips. The whole fitting is welded by type 304 stainless steel tube. It is equipped with imported vacuum pump. The electric components are imported from Germany and France. It is highly intelligent with many technology patents. Its technology standard reach the top level of the domestic same industry.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

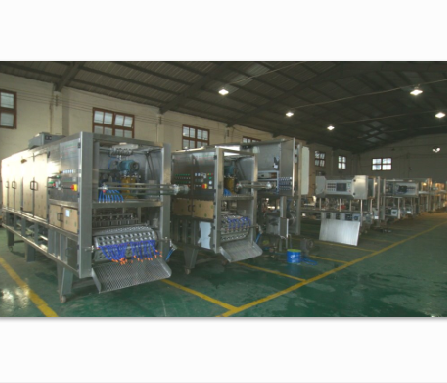

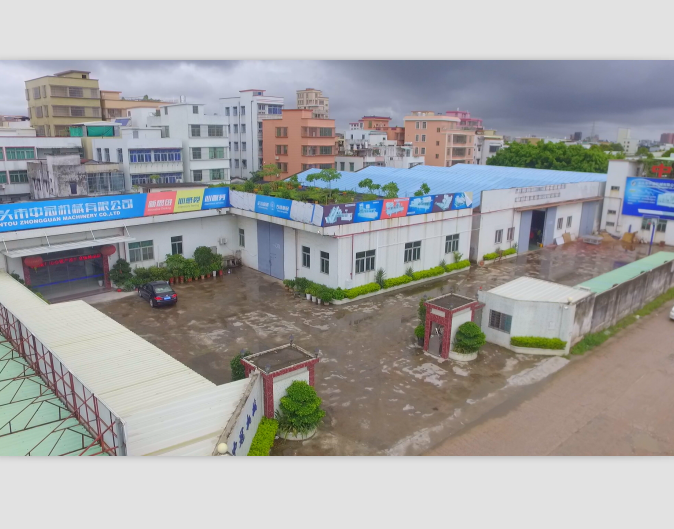

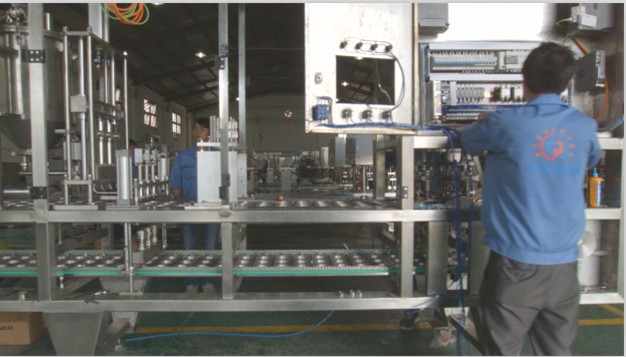

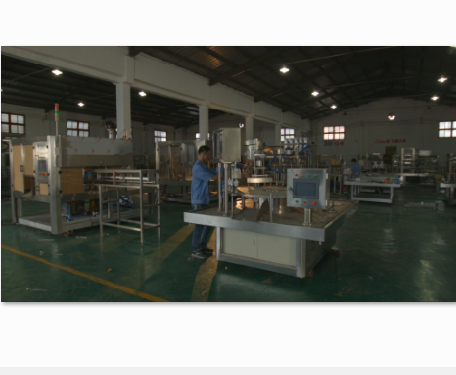

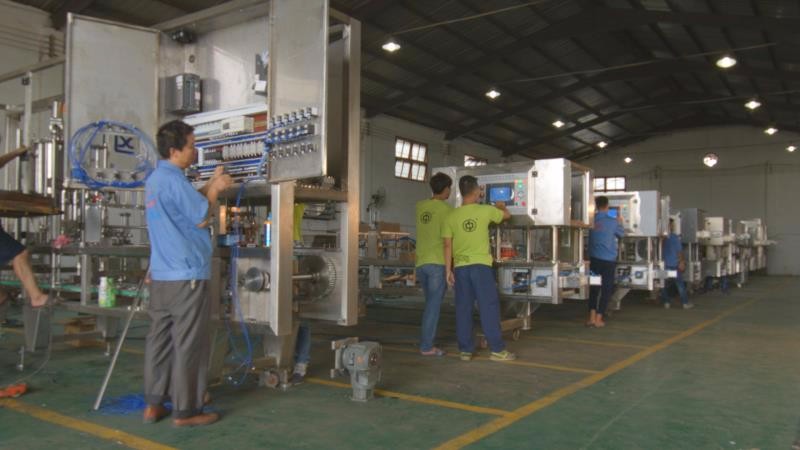

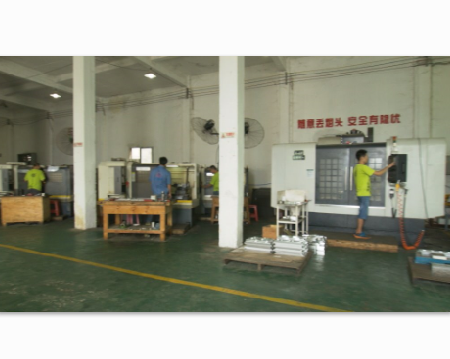

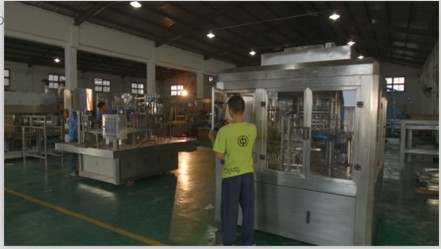

* View our Factory.
After-Sales Service
Serice Commitments：1-year maintenance guaranteed to machine for non-man-made damages，half a year maintenance guaranteed to machine accessories.supply the technology counseling of machine and maintenance for long.

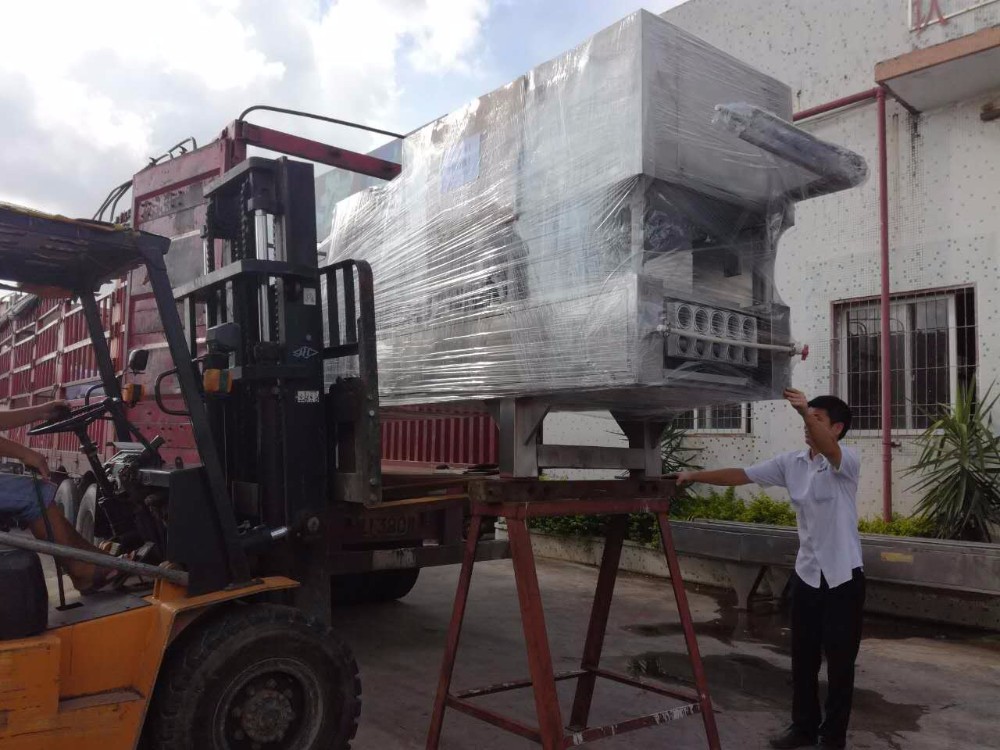

| Packaging | |
| Size | 4(L) * 1 (W) * 2.5 (H) |
| Weight | 1.2 T |
| Packaging Details | Suitable Film: PE packing，we will use pe film for packing or pack it according to customers special request. |
