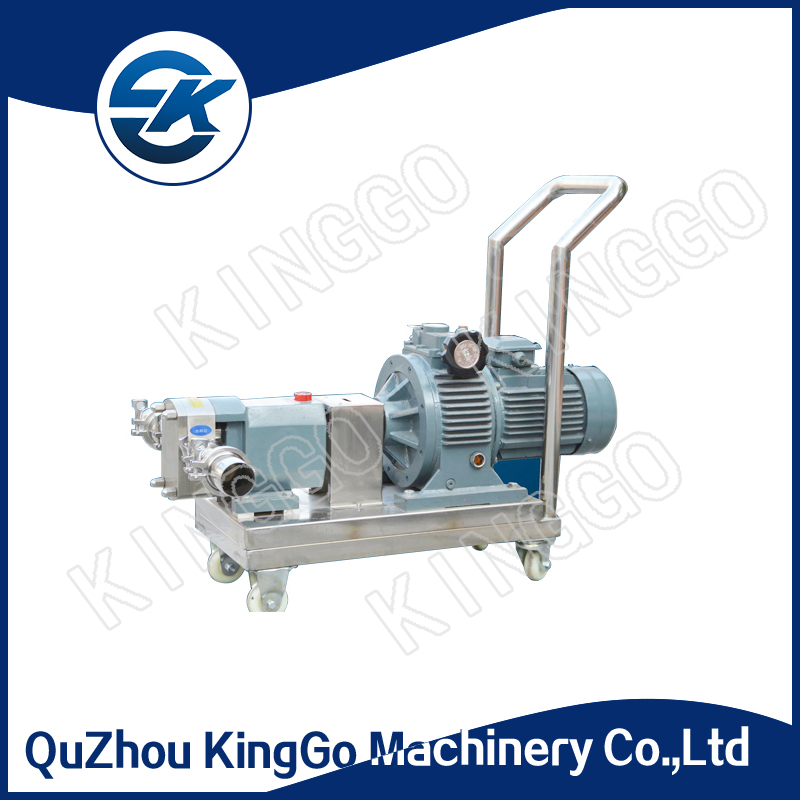

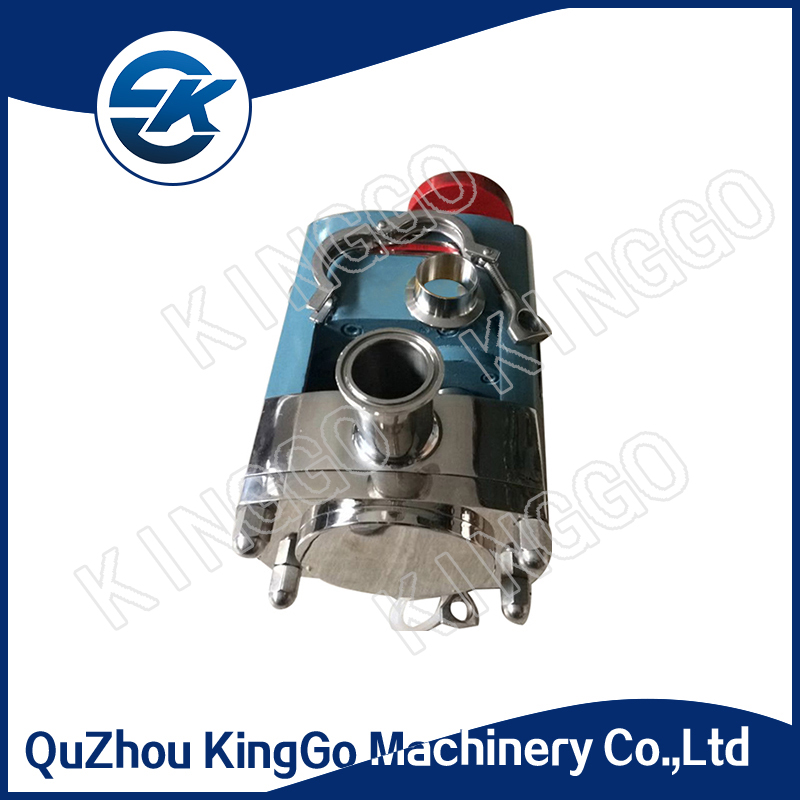

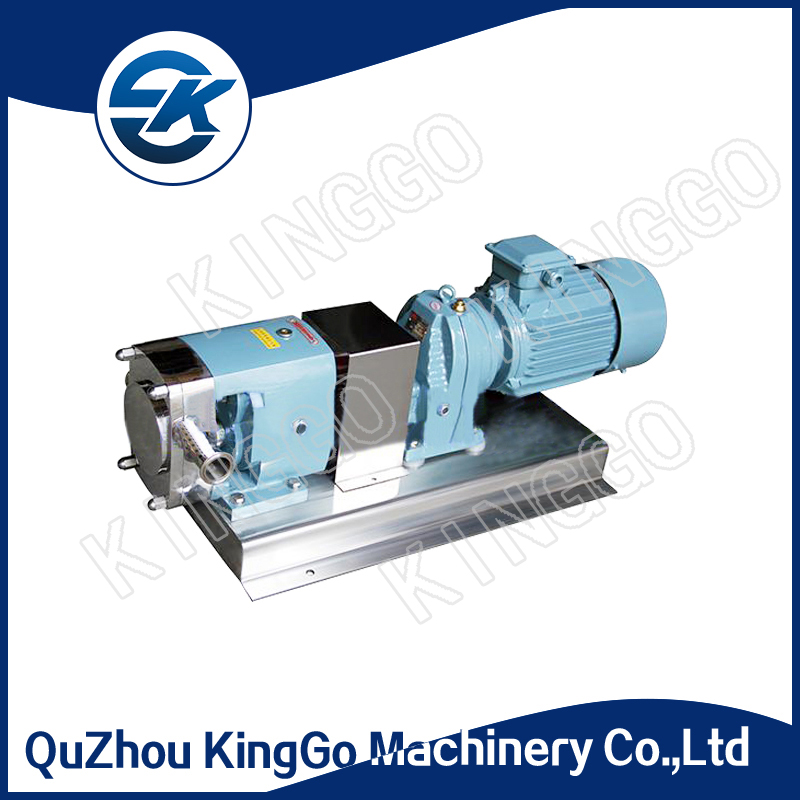

Product Name: | Stainless steel SS304 food grade head pump for sanitary rotor pump |
Material: | SS304/SS316L/1.4301/1.4404 |
Seal Material: | EPDM (Standard) |
Max. Flow: | 43000 L/H |
Max.Power: | 22kw |
Max. temperature: | 150 C / 302 F |
Max. rev: | 500 rmp |
Max.viscosity: | 1000000CP |

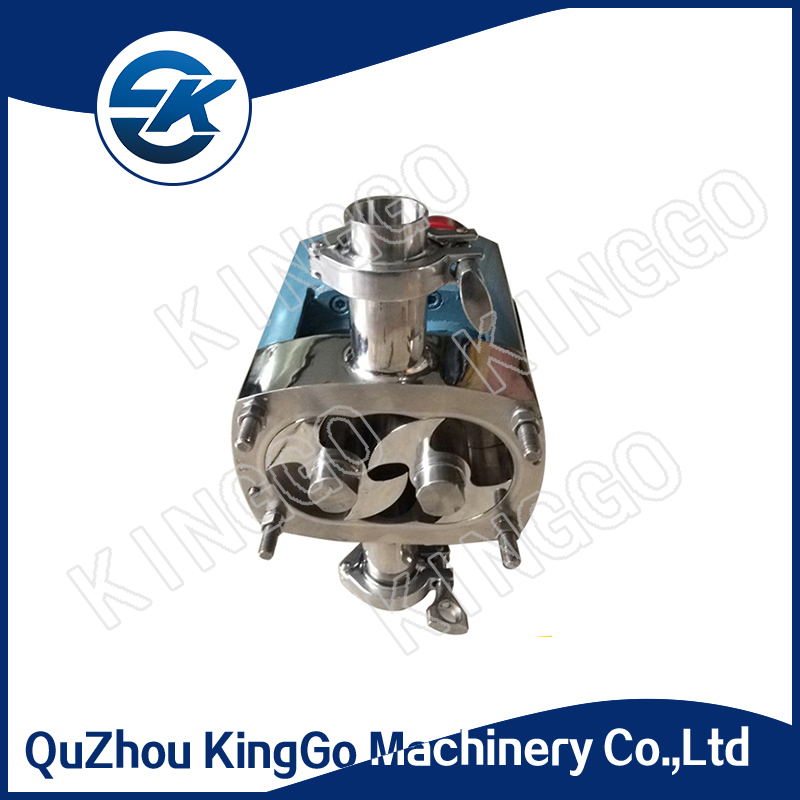

Rotor Type: | 2-leaves, 3-leaves, butterfly, signal butterfly |
Mechanical seal: | SIC/SiC/EPDM(Standard) |
Motor power: | 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw |
Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
Voltage: | 220V, 240V,380V,440V |
Motor: | ABB, 50hz/ 60hz |
Surface treatment: | Inner polished and Sandblast outside |
Availably connection: | Clamp, Thread Butt weld, Flange |
Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
Application: | Dairy and food industrial,honey,chocolate,jam with high viscosity |
1,How about the surface finishing ?
KingGo valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be
confirmed by customer’s requirement.
2,If free sample available before place order ?
Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers.
3,Is there any MOQ provide ?
Our standard products MOQ will be ok to be 10pcs each size,for special custom by customer it will be check detail.
4,Our business payment terms ?
We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.
5,Our standard export packing ?
For small order: plastic package each pc to carton and then into weaving bag.
Large order: plactic package into cartons,then cartons into plywood case.
6,Shipment way choose ?
Small orders will be choose by express,by airline.
Large orders will be choose by sea.
It will according to customer’s request.
