SZX low-shear transfer feeding pump sanitary fruit juice biscuit fillings potato mud No damage transport sine machinery pump

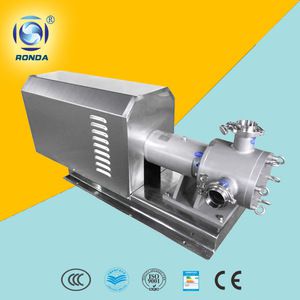

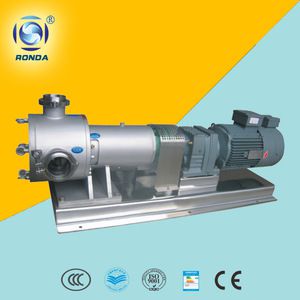

Perfect appearance:
Introduction:
1. SZX low-shear transfer feeding pump sanitary fruit juice biscuit fillings potato mud No damage transport sine machinery pump - excellent efficiency, high viscosity Best selection of super low shear feeding
2. Super low shear feeding Although with a great deal of solid particle and fragile product A safe and no damage feeding can be provided.
3. High viscosity performance reaches the limit of flowing capability can reach 4,000,000cps.
4. No pulse, stable feeding.
4. Flow cubage adjustment precisely, without interference and shock.
5. It can supply a stable product dose evenly.
Product details:
| Working Principle: | Sine structure, Low shearing/grinding |
| Main applications: | Food, fruit, condiment, beverage, candy, meat, cosmetic, etc |
| Driver: | Electric motor |
| Power Specs: | 220V,240V,380V,400V,415V,440V 3phase 50hz/60hz |
| Max.permissible fluid temperature: | 120°C |
| Type of connection: | Quick clamp, Flange, Thread, SMS, etc |
| Installation position: | Horizontal |
| Pump casing and wet parts: | Stainless Steel 304 or 316L |
| Shaft seal type: | Water cooling mechanical seal |
| Maximum drive rating: | 15KW(20HP) |
| Maximum caliber: | 152mm(6inch) |
| Maximum discharge-side pressure: | 16Bar |
| Flow rate range: | 180-90000L/h(0.8-23760US.GPM) |
Working principle:
1. The sine wave shape of impeller means a cavity can be formed at every rotation (4 cavities can be formed every passing the lining space). This operation can "push" or "release" flowing products. The pump cavity is divided into suction chamber and extraction chamber by control panel to ensure pressure tolerances at exit and entrance. Meanwhile, control panel plays another important rote to lubricate the pump bearing by product in compulsion.
2. Sine pump: Special two sine-curve-like vane is taken, instead of rotor, epicyclic gear or piston, and it runs with a movable panel and a fixed line, forming a special volume pump and realizing liquid super low shear, without pulse feeding, although in condition of 10/15 bar back pressure (water feeding), there won't be any movement on pressure gauge.
Performance data:
Model | Capacity of per rotation (L) | Caliber | Speed Range (r/min) | Capacity range (L/H) | Max. pressure Bar | Motor power | ||
Inch | mm | KW | HP | |||||
SZX-1" | 0.06 | 1" | 25 | 50 - 1000 | 180 - 3600 | 10 | 1.5 | 2 |
SZX-2" | 0.11 | 2" | 51 | 50 - 1000 | 330 - 6600 | 10 | 2.2 | 3 |
SZX-2.5" | 0.28 | 2.5" | 63 | 50 - 600 | 840 - 11800 | 15 | 3 | 4 |
SZX-3" | 0.45 | 3" | 76 | 50 - 600 | 1350 - 16200 | 15 | 4 | 5.5 |
SZX-3.5" | 0.75 | 3.5" | 89 | 50 - 600 | 2250 - 27000 | 15 | 5.5 | 7.5 |
SZX-4" | 1.05 | 4" | 102 | 50 - 600 | 3150 - 37800 | 15 | 7.5 | 10 |
SZX-6" | 2.5 | 6" | 152 | 50 - 600 | 7500 - 90000 | 15 | 15 | 20 |
Note: SS304 or SS316 material, Different directions of inlet/outlet, Insulation jacket, Rectangular port, Feeding hopper, gearbox fixed speed ratio motor, CVT Stepless adjust speed motor, frequency adjust speed motor, SS304 trolley, SS304 motor cover, etc, all are available, please leave message if you need.
CVT motor speed adjustable range: 200-1000rpm, 100-500rpm, 60-300rpm, 40-200rpm, 80-100rpm, etc.

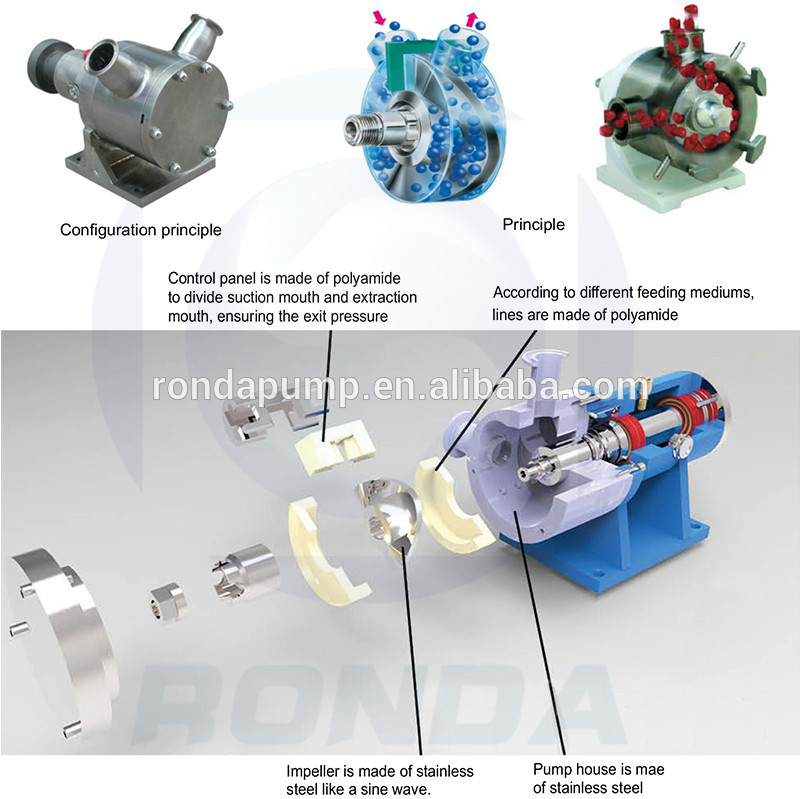

Structure principle:

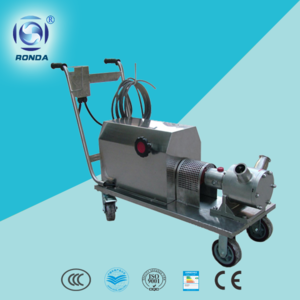

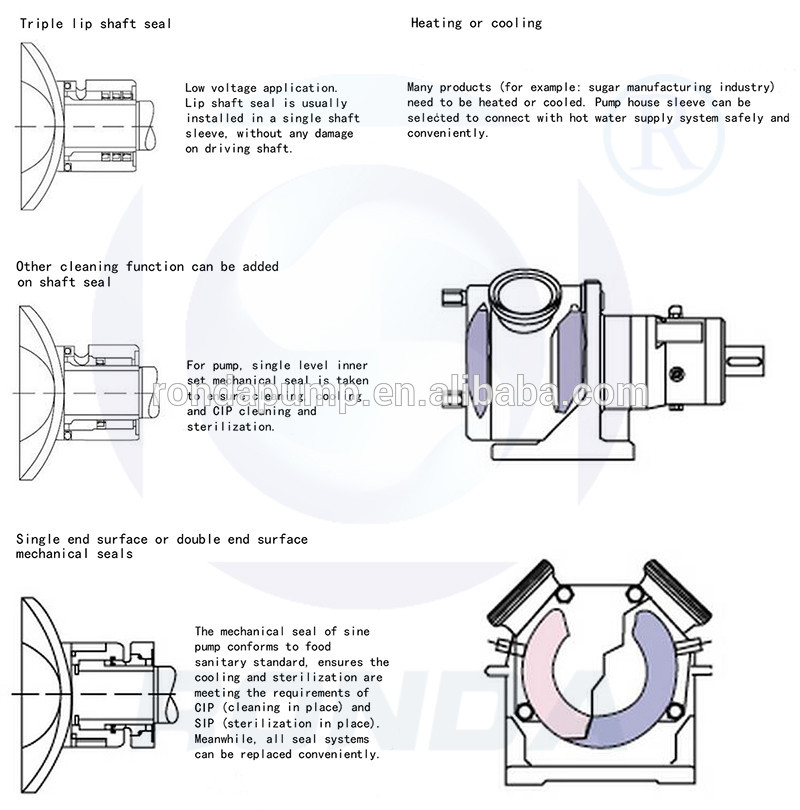

More structure:
Many configurations can meets the demands of different product feedings
Pictures:
Excellent product made of carefully selected high-quality materials:

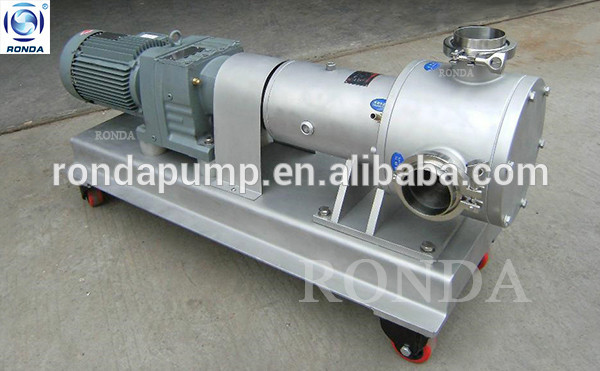

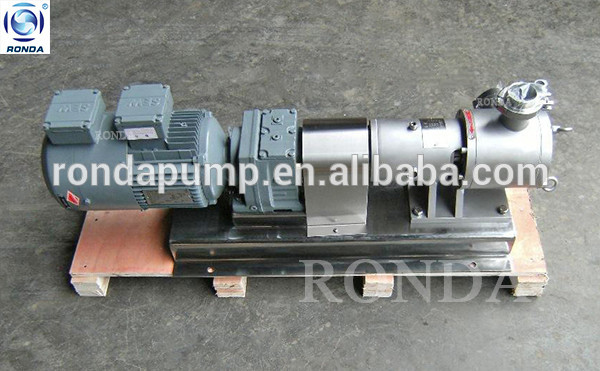

Joint venture SEW brand Gearbox fixed speed ratio motor (or ABB/Siemens motor)

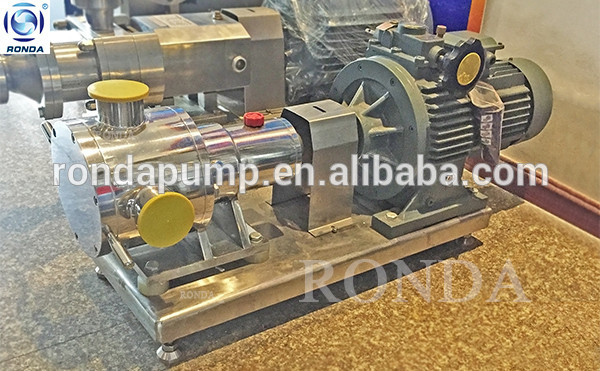

CVT handle wheel adjust speed motor with polished pump body:
