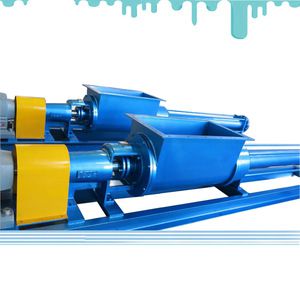

S T D - ST Hopper  Screw Pump with Hopper in Block Construction and Flanged Drive

Universally applicable ?the S T D -SThopper-Shaped Progressing Cavity Pump

S T D- ST Series hopper type single screw pump, compact structure, ideal for conveying brittle media

The St-series hopper type single screw pump has square/rectangular hopper, and has a connecting rod between propeller and squeeze cavity, which can be used in most industries to provide continuous, stable, steady and low pulsating conveying. This special design ensures that the material is better fed into the cavity between the rotor and the stator.

The other advantage of the single screw pump is that it can measure any medium in direct proportion to the rotational speed. ST series hopper type single screw pump for flange joint reducer motor straight-linked structure, compact and affordable.

Characteristicsof the STD- ST hopper-Shaped Progressing Cavity Pump

1 Hopper cavity with rectangular inlet flange and spiral feeder and squeeze cavity,

To facilitate the flow of slow and paste medium into the rotor and stator between the cavity.

2 Continuous low pulsation transmission, not affected by pressure and viscosity fluctuation

3 The conveying capacity is proportional to the rotational speed, and can achieve high precision measurement in the whole speed range;

4 High pressure no valve transmission

5 The stator with hopper type feed mouth can make the medium easy to enter the conveying cavity

6 Low noise, small vibration

7 Wide range of flow and pressure

Advantages of STD- ST hopper-Shaped Progressing Cavity Pump offers you:

The advantages of the St-series hopper type single screw pump:

1 Variable Modular System

2 Different rotor/stator geometry and wide range of materials used

3 Durable compact direct-linked structure

4 Connector suitable for various applications

5. Standard mechanical seals,other seals available

The STD- ST Progressing Cavity Pump is available

1 Maximum flow can reach 200 m3/h

2 Maximum pressure up to 48 bar

3 Using different materials, from steel to nickel-chrome to high acid-resistant materials such as double steel, HAalloy and titanium alloy

4 Different stator rubbers, from the high abrasion resistance of natural rubber to oil, acid and alkali-resistant rubber to fluorine rubber and all fluorine

5 Different mechanical seals,packing gland and special mechanical seals.

6 Smooth conveying medium

7 The pump connection conforms to the domestic and the international standard and the specialized design module

8) Easy Maintenance

Extensive application:

STD hopper type single-screw pump can be used in all industries , with continuous, stable, steady and low pulsating transmission of various media, and rotational speed proportional to the measurement of almost all media. Use hopper and screw feeder to facilitate conveying of slow-moving materials

The STD- ST series hopper type single-screw pump is mainly used for these characteristics of the media:

1 Slow flow and low fluidity of 2) medium containing 3) of solid materials) shear sensitivity of 4) lubricity or non-lubricity 5)Thixotropy and distensibility6)abradability 7) viscidity

Can transport

1) High viscosity, compaction, fragile,media that do not produce a bridging

2)Slow flow and non-free flow, solid material fluid medium

For example:

Thickening or concentrated sludge, sticky paste, cod liver oil, fish eggs, sausage sauce, lard, dough, potato residue, etc.

Excellent construction system of straight-linked single screw pump

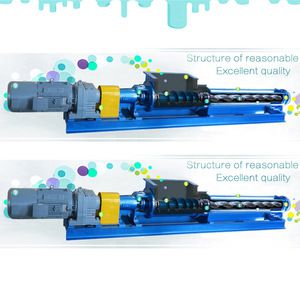

Good Structure of Hopper pump Series product

Our Design ? Easy Serviceability, Dependability, Operating Safety

(1) Rotor: abrasion resistance, corrosion resistance design

(2) Stator: Tube vulcanization, both ends sealed, using a variety of rubber, plastic and metal materials.

(3) Connecting Rod:The connecting rod is provided with a screw feeder and a squeeze chamber, which facilitates the feeding of the material into the cavity between the rotor and the stator, with two universal joints that transmit power from the drive device to the rotor.

(4) Shaft sleeve: The standard structure is a single end face, can be positive and negative rotating, wear-resistant mechanical seals. According to user requirements, can also be used by different manufacturers to provide different types of single/double end mechanical seals, assembly and other special sealing, and packing seals

(5) Suction chamber and discharge body:the suction chamber is fitted with a square/rectangular hopper. Hopper size can be adjusted according to specific application.Use flanges or threaded connections that conform to DIN standards and other international standards. The materials used are cast iron, carbon steel stainless steel and special materials according to customer's requirements.

(6) Bearing SEAT structure: The whole pump runs more smoothly.

(7) Universal joint: The screw pump has the correct joint, which has a decisive influence on the operation reliability and life cycle cost.

(8) Bracket: independent support foot; Rod; Simplifies assembly and maintenance procedures

(9) Sew Reducer Motor: The standard-equipped reducer motor for the screw pump is a German sew or Nord, which can also match customer requirements.

The maintenance of vulnerable parts

1 Rotor and stator

The wear rate of the two components is related to many factors, such as the wear characteristics, rotational speed and pressure of the pumping material. When the pump performance is reduced to meet the requirements, the stator and rotor should be replaced with a component or two simultaneous replacement.

2 Drive shaft

The wear rate of the filler contact surface depends on many factors, such as the abrasion and rotational speed of the medium. Constant maintenance of filler can maximize the service life of the pump shaft. When shaft seals fail, the shafts and fillers need to be replaced at the same time.

3 Connecting rod Assembly

Regular maintenance and lubrication can maximize the service life of the connecting parts. When the parts appear obvious wear and tear, should replace the connecting parts connecting the component, if necessary, can replace the whole shaft ,

International excellent brand screw pump parts supply

STD use their own expertise, manufacturing capabilities and channels to provide the world's major brands (Germany's Netzsch, Seepex, Mono, and so on) a full range of screw pump parts, these accessories performance is good, rugged, durable, including: stator, rotor, transmission shaft, joint shaft, PIN, PIN, or a complete set of rotating parts, etc.

WE CAN PROVIDE THE UNIVERSAL SPARE PARTS OF NETZSCH BRAND

WE CAN PROVIDE THE UNIVERSAL SPARE PARTS OF SEEPEX BRAND

WE CAN PROVIDE THE UNIVERSAL SPARE PARTS OF MONO BRAND

CERTIFICATION

1)What products does S T D offer ?

STD offers screw pump, Screw pump accessories, and the global solution of the fluid system product.

The product range summary of STD Progressive cavity pumps for conveying and metering low to highly viscous media with or without solids Macerators for macerating solid and fibrous components in the medium control systems for monitoring, regulating and controlling processes.

Services: consulting, commissioning, maintenance, NETZSCH ,SEEPEX, and MONO Universal Spare parts, repairs and various service contracts

2)Does S T D supply custom-made pumps ?

Yes, this is our specialty, we customize different design and material combinations for each application's modular system. This means that we develop the best technology and the most economical solution for your needs.

3)Can S T D spare parts be ordered online ?

Yes, S T D screw pumps and spare parts as well as other brands (NETZSCH,SEEPEX.MONO) Universal accessories can be ordered online. For order please contact us.

4)How fast can my S T D pump be delivered ?

Normally, standard pumps are delivered in 4 to 6 weeks. In urgent cases, delivery times between 2 to 5 days may be possible. Please contact us .Telephone: 0086 -189 4242 4342

5)Packing;Transport

1) Standard export packing: We will pack pump and accessories in wooden boxes, put into container. shipment by sea and air. .

2) The marks on the packing box are executed according to the international standard

3) Please check the packaging and integrity of goods when receiving them, If any damaged, please immediately report to the carrier.

4) Please kindly notice us if you have special packing requirements.

6)Product quality guarantee

According to the international standard, whole pump 1 year warranty, spare parts 6 months warranty

Buyers Attention:

1)Can screw pump dry running ?

No, the conveying elements are permanently in contact with one another, which means that dry running must be avoided in progressive cavity pumps. The S T D dry-running protection device offers reliable protection.

2)What temperatures is suitable for using S T D pump ?

S T D progressive cavity pumps can be used at temperatures from -20 C to 150 C (-4 to 302 F).

COMPANY INTRODUCTION

Guangdong Standard Fluid Systems Co., Ltd.---the largest professional manufacturer in South China about : screw pump, screw valve, emptying system screw products

The screw pump, screw valve, emptying system screw products are advanced technology, perfect structure, various forms, complete specifications, durability, is widely used in sewage treatment, chemical industry, paper, food processing, pharmaceutical, energy, environmental protection, 3D printing and other industries.

The company has an experienced, mature technology, high-quality, reliable screw pump design, manufacturing, testing, after-sales service engineer team.To provide customers with high quality products, excellent solutions and efficient services in the field of fluid systems.

In the production, research and development of screw pump products at the same time, also provides global screw products general accessories (including Germany's Netzsch, Seepex, Viscotec, the British mono, and other branded accessories) and maintenance and custom services, and provide free technical advisory services and improved optimization design. Our excellent processing capacity, rich practical experience and mature technical advantages for our products provide a stable guarantee.

Our services

1 Our screw pump series products, reasonable price, quality service, provide quality inspection. Welcome to sample Custom-made.

2 we have a special quality Supervision Department to ensure the quality of mass production.

3 If the product has quality problems, we will deal with the first time, find out the cause, take responsibility.

4 If you are interested in our products and companies, please leave a message or email us, we will give you an answer within 24 hours

Why choose us ?

1 Factory Direct Sales, no intermediate links, competitive price

2 Our machines are imported from Europe, the original machine factory, the production of stable product quality, do not use low quality equipment.

3 Ensure on-time delivery, procurement, we can provide the best quality of service control, transportation, documentation and so on.

4 We provide samples and OEM services.

5 We will reply to your enquiry within 24 hours.

6 More than 20 years of experience in this industry business, and professional team, so that our customers feel relaxed and comfortable working with us in

7 Please contact us by email and we will send you more pictures for more choices of our products.

How to make an order for S T D screw pump ?

1) Sample approval

2) Client arrange 30% deposit after receiving our PI(pro forma invoice),

3) We start bulk production and finish production within agreed lead time

4) We send shipping documents to client

5) Client arrange balance payment

6) We arrange shipment, and send original documents or telex release the goods
