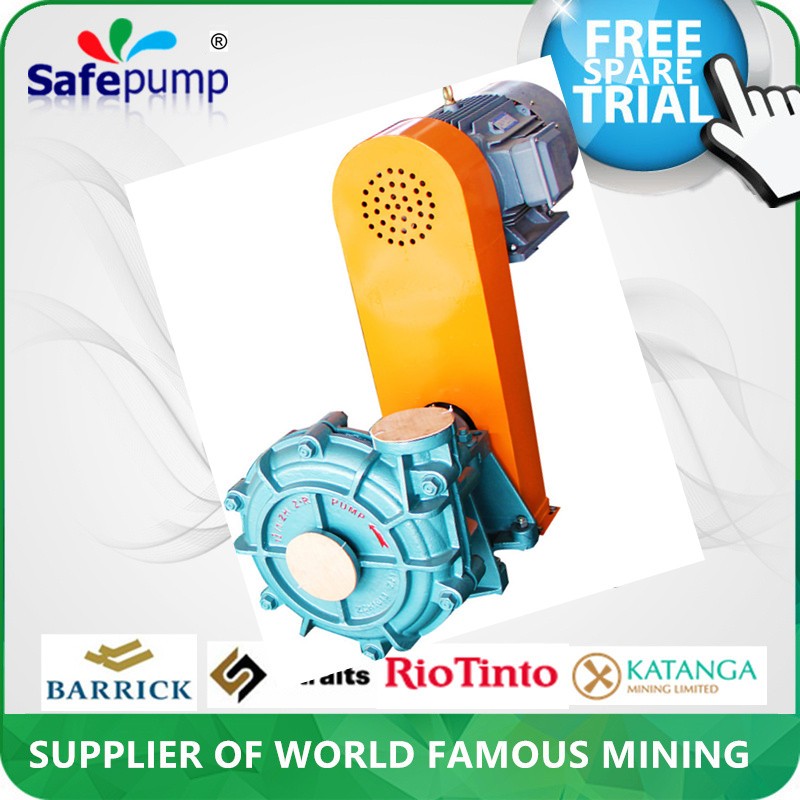

Factory sale centrifugal starch slurry pump

PRIMARY PARAMETERS

Place of Origin

Hebei, China (Mainland)

Brand Name

safepump

Model Number

8/6E SAH

Theory

Centrifugal Pump

Structure

Single-stage Pump

Usage

slurry transfer

Power

Electric

Standard or Nonstandard

Standard

Fuel

electric power

Pressure

High Pressure

Application

slurry transfer

Product name

Factory sale centrifugal starch slurry pump

Material

Cr27

Voltage

380V

Certificate

ISO9001

Color

Blue

Type

Horizontal

Name

Factory sale centrifugal starch slurry pump

Warranty

One Year

Motor

DC Motor

Feature

High Efficiency

DETAIL DESCRIPTION

Product Description

Safe pump® is the regular supplier of world famous mining companies

Export to 62 Countries, 41 agency worldwide.

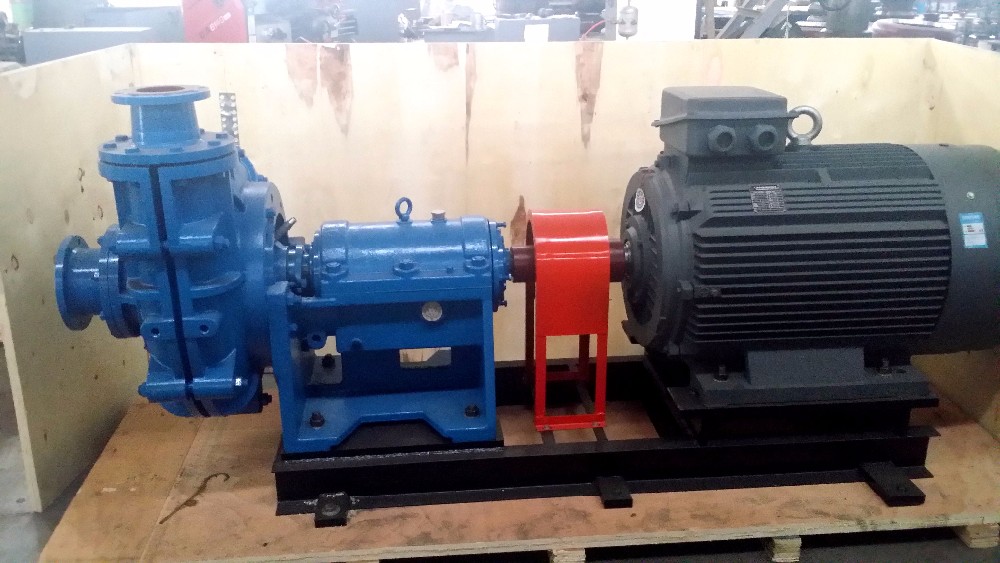

Factory sale centrifugal starch slurry pump

Introduction of S AH Safe Pump® slurry pumps

The type of S AH Safe Pump® slurry pumps are using for handing strong abrasive, high density slurry and low density, high head slurry in the metallurgical, mining, coal, power, building material and other industry departments etc.

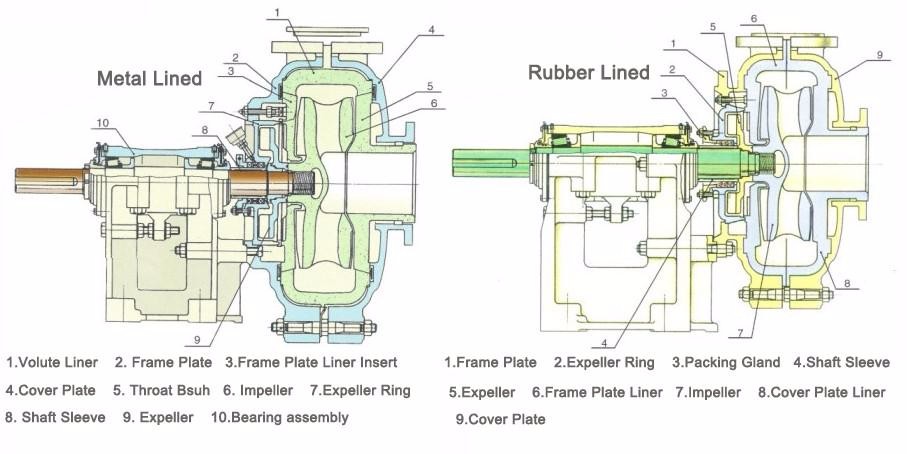

The frame plate liners for S AH series pumps have replaceable wear-resistant metal liners. The impellers are made of wear- resistant metal.The frame plate liner and impeller for S AH pump are adoptable of hard metal only.
Bearing assembly assembly use cylindrical structure, which helps adjust the space between impeller and cover plate liner easily, and being removed completely when being repaired. are adoptable of hard metal only. which helps adjust the space
between impeller and cover plate liner easily, and being removed completely when being repaired. Bearing use grease lubrication. The shaft seal could use the packing seal, centrifugal seal and mechanical seal.
The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight directions to suit installations here are the drive types, include V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices. Wide performance, good npsh and high efficiency, the pump of this type may be installed in multistage series to meet the delivery for long distance.

Product Name	Factory sale centrifugal starch slurry pump
Material	Cr27
Color	Blue
Standard	GB
Grade	A05, A07, A09, A12, A33, A49, A61, R08, R55, S31, SS304, SS316
Service	Free spare trial
Type	8/6E S AH
Used	Mining industry

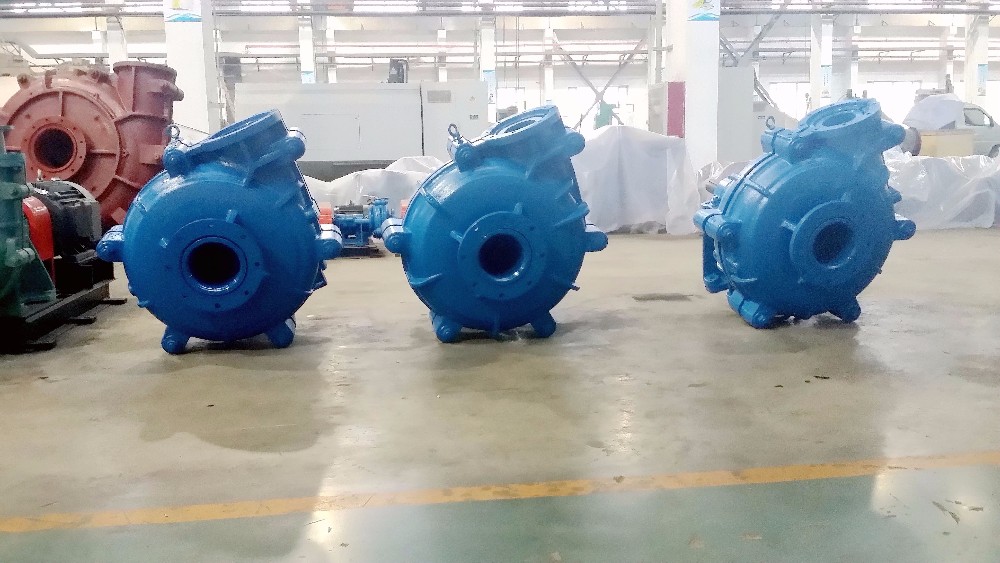

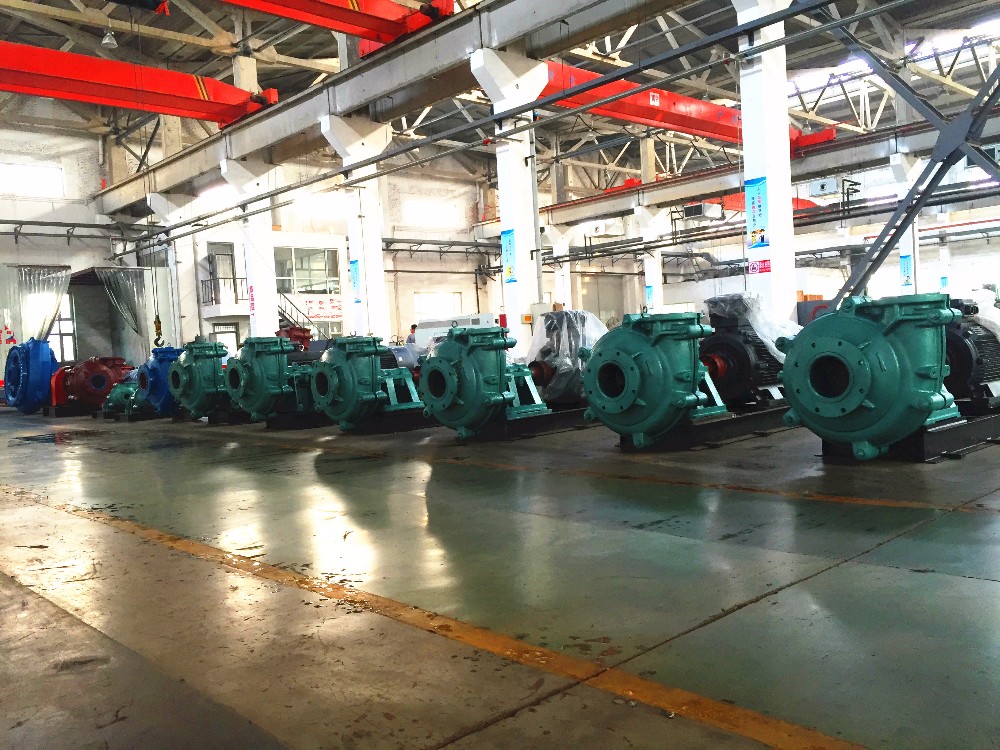

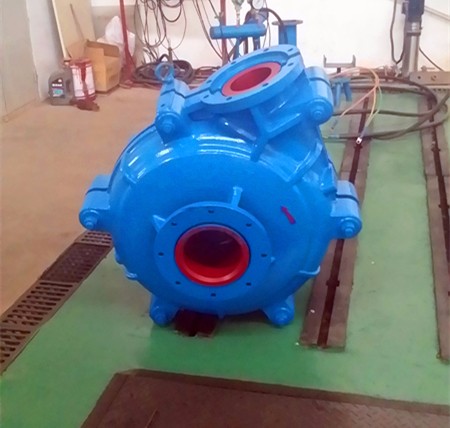

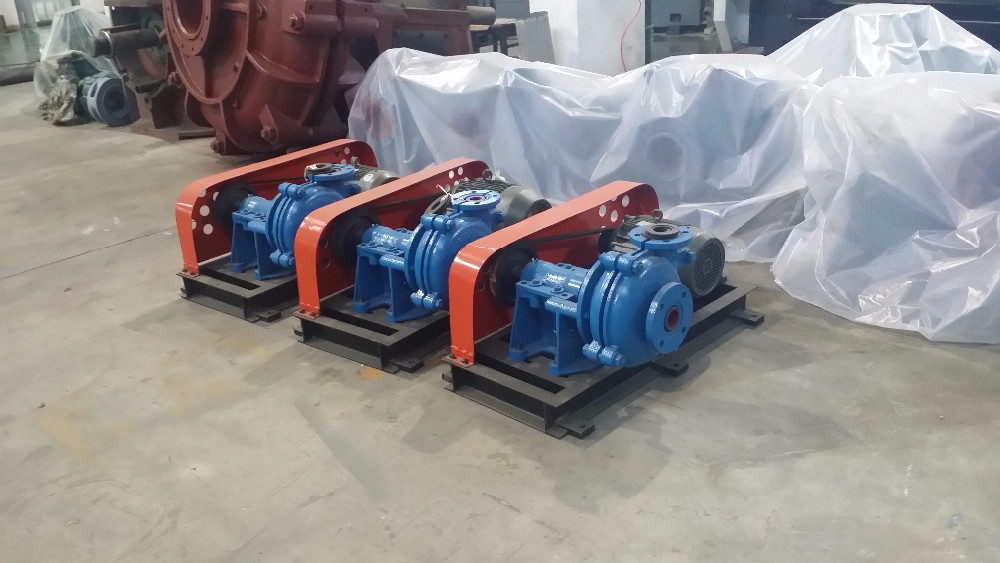

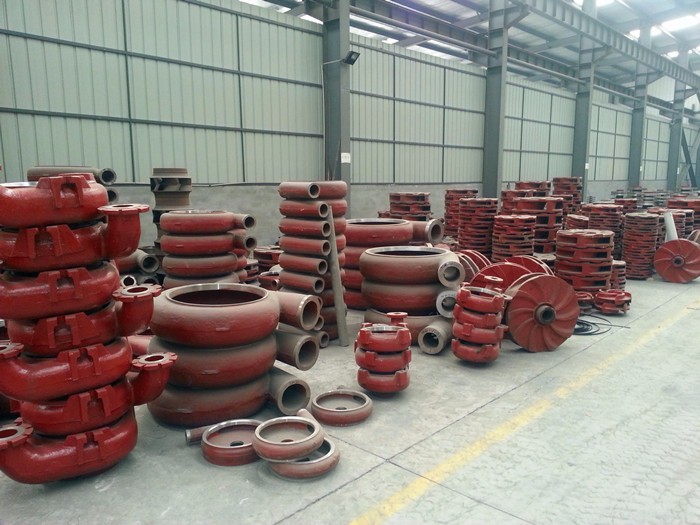

Products Show

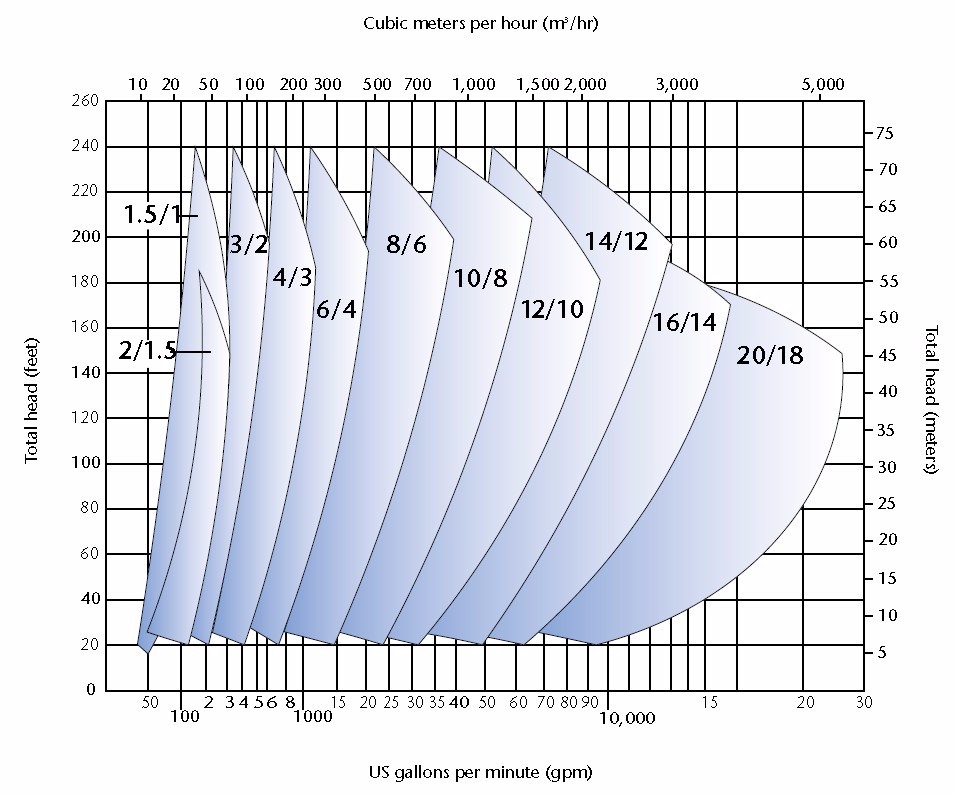

Pump Type	Pump Model	Size	Flow	Head	Application	Feature
SA-SAR Slurry Pump	1.5/1 B SA	1''-18''	4-5400 m³/h	5-75m	Ball mill	Wear resistant metal or rubber wet end parts, long service life
2/1.5 B SA	SAG mill	Wide opinions for impeller
3/2 C SA	Rod mill	Various types of pump seals to suit different working condition
4/3 C SA	Coal washing	Grease or oil lubrication
4/3 D SA	Coarse sand	Discharge branch can be positioned at intervals of 45 degree
6/4 D SA	Coarse tailing	Can be installed in multistage series
6/4 E SA	FGD	Easy to maintain
8/6 E SA	Fine tailing
8/6 F SA	Flotation
10/8 F SA	Heavy media
10/8 ST SA	Mineral processing
10/8 G SA	Mineral concentrate
12/10 F SA	Pulp and paper
12/10 ST SA	Oil sand
12/10 G SA	Mineral sand
14/12 F SA	Pulp and paper
14/12 G SA
16/14 TU SA
18/16 TU SA
20/18 TU SA

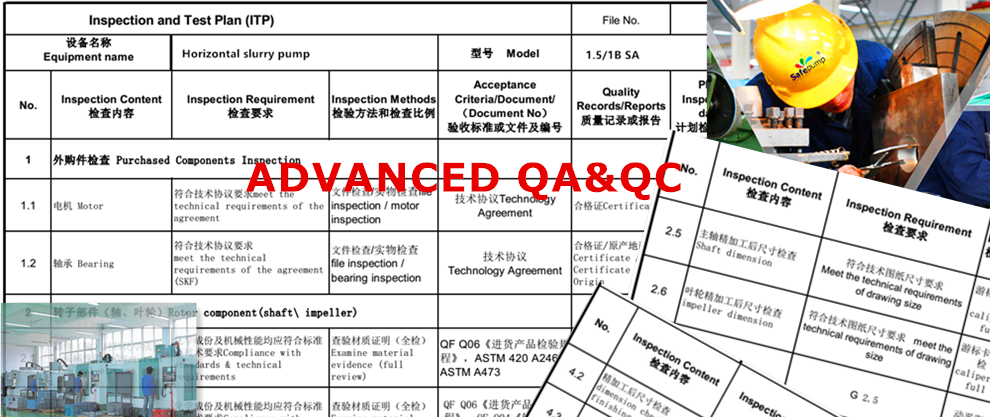

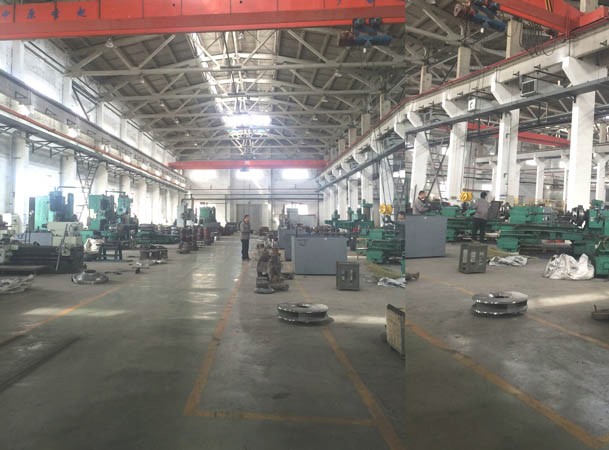

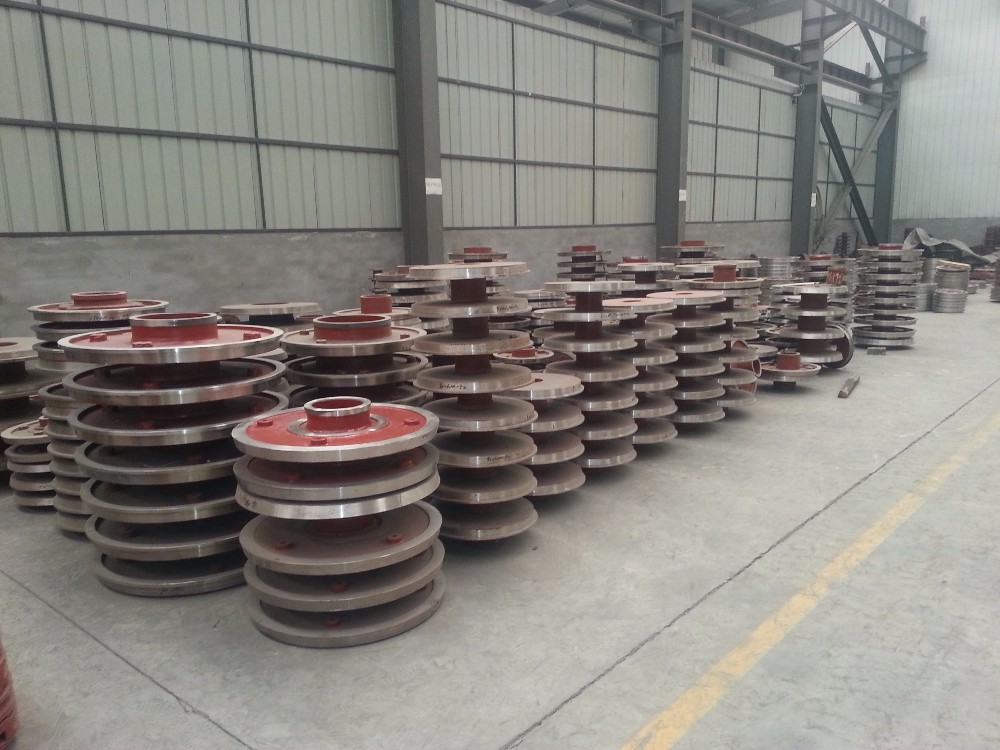

Strictly Quality Control With Advanced Equipments

Our Service

Free Trial

Fast delivery

Unconditional Refund

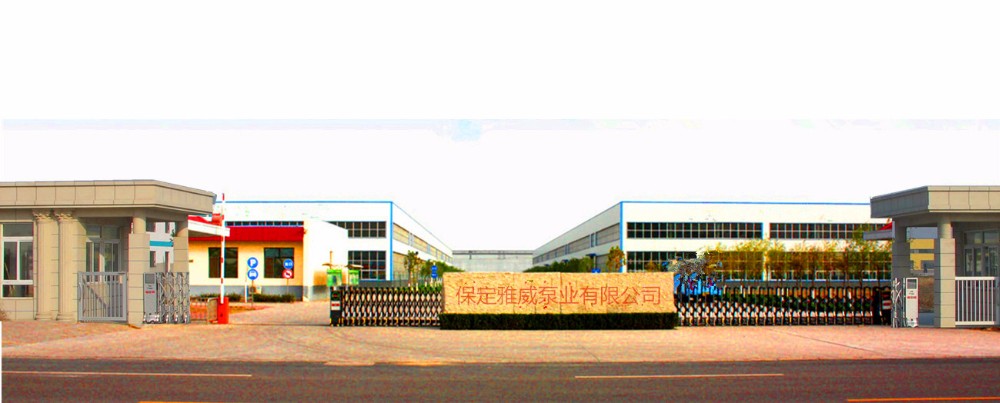

Our Company

Safe pump are the leading brand of the Chinese replaced slurry pumps and component parts for the mining and metallurgy industries. The safe pump and spare components are fully interchangeable with World famous brand slurry pumps.
For the past 30 years Safe pump has been involved with the manufacture of pumps and components for world famous brand slurry pump. Our engineers working in conjunction with these companies has allowed Safe pump to carry out research and further development of slurry pump material. Safe pump use high chrome content in the manufacturer of all metallic components, which over the years has proven to give a quality wearing product.
