| Model No. | Pipe Size | Air side/ Fluid side Material | Seat Material | Diaphragm/Ball Material |
| B80AL-SAA-A | 3’inch | Aluminium Alloy (AL) | Santonprene | Santonprene |
| Product Description | ||||
Pneumatic diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid , with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast iron , stainless steel. Pneumatic diaphragm pumps were used nitrile of different users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can not pump the media , have achieved satisfactory results. | ||||

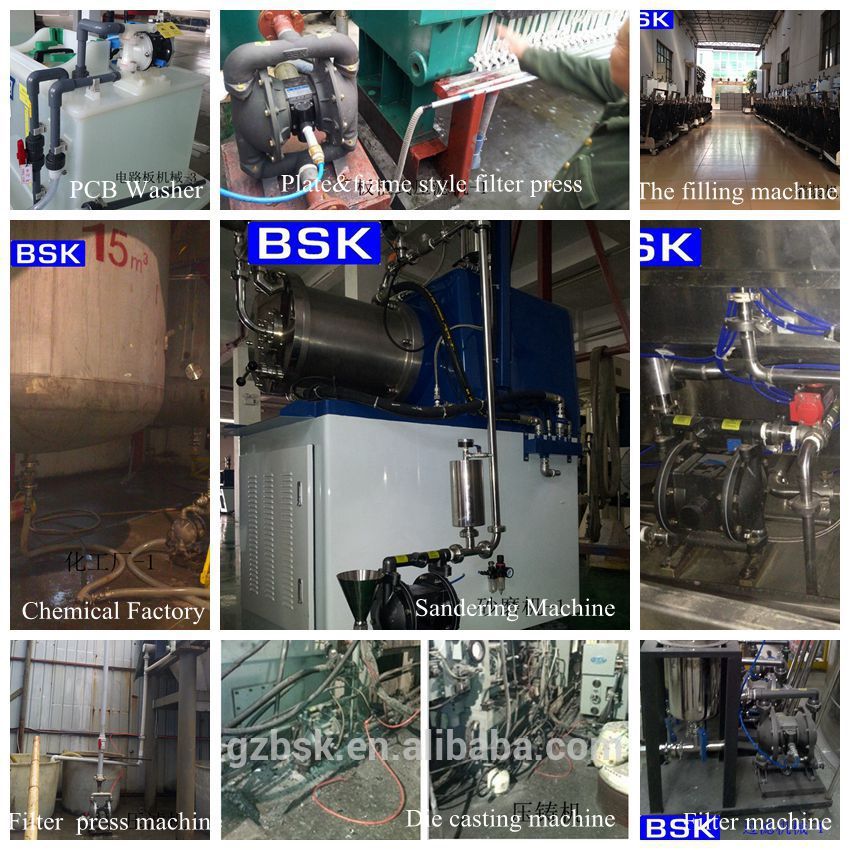

| Product Application | ||||
| * | Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ),applicable to concentrated sulfuric acid, nitric acid and other strong oxidizing materials. | ||
| * | Pharmaceutical factory | Material handling or removable barrels material ( instead of drum pumps ) | ||
| * | Biological technology factory | Pumping animal blood for refining | ||
| * | New energy plant/ multi crystalline silicon plant | Pumping polysilicon raw material for solar | ||
| * | Commodity Factory | Pumping perfume / fragrance / dairy mixture | ||
| * | Pressure filter | Plate-and-frame type filter press, for filter polluted water and separate moisture material. | ||
| * | Moving baggy filter | Industrial wastewater filtration or chemical material separation | ||
     | ||||
