lxlz abrasion resistant paper pulp horizontal impeller pump
Specification:
Item | Pulp Pump |
Paper pulp pump | LXL-Z type paper pulp horizontal impeller pump |
Model | LXL-Z |
Material | Cast iron and customized |
Color | Green and adjtstable |
Mode | Horizontal |
Impeller | Semi-open impeller |
Drive | Belt or coupling |
Seal | Soft packing seal or mechanical seal |
Medium concentration | 4%-6% |
Medium temperature | <=80°C |
Specific gravity | 1.03 |
| |
Theory | Centrifugal pump |
Structure | Single stage pump |
Usage | Paper pulp, molasses, sugar syrup |
Power | Electric |
Standard or Nonstandard | Standard |
Application | Paper making, sugaring, sugar refinery |
Outlet diameter | 80-400mm |
Capacity | 30-2300m³/h |
Head | 5-73m |
Power | 2.2-280kw |
Warranty | 1year |
Certificate | ISO9001 |
OEM | Acceptable |
Feature | High efficiency, easy maintenance, no clogging |
Parameter Table:
| Model | Capacity | Head | Speed | Efficiency | Motor power | Suction head | concdntration |
| m³/h | m | r/min | % | KW | m | % | |
| 80LXL-Z-6 | 32-50 | 7-5 | 1450 | 60 | 2.2 | 2.5 | 4-6 |
| 80LXL-Z-12 | 35-60 | 14-9 | 1450 | 60 | 4 | 2.5 | 4-6 |
| 80LXL-Z-15 | 40-65 | 16-12 | 1450 | 60 | 5.5 | 2.5 | 4-6 |
| 80LXL-Z-20 | 35-65 | 22-18 | 1450 | 60 | 5.5 | 6 | 4-6 |
| 80LXL-Z-25 | 40-75 | 26.5-22 | 1450 | 60 | 7.5 | 6 | 4-6 |
| 80LXL-Z-30 | 55-75 | 32-21 | 1450 | 60 | 11 | 6 | 4-6 |
| 80LXL-Z-35 | 56-76 | 36-25 | 1450 | 60 | 15 | 6 | 4-6 |
| 80LXL-Z-40 | 60-80 | 41-32 | 1450 | 60 | 15 | 6 | 4-6 |
| 100LXL-Z-18 | 53-134 | 18.3-14 | 1450 | 60 | 7.5 | 7 | 4-6 |
| 100LXL-Z-20 | 60-150 | 23-18 | 1450 | 60 | 11 | 7 | 4-6 |
| 100LXL-Z-20 | 50-110 | 23-18 | 1450 | 60 | 7.5 | 6.7 | 4-6 |
| 100LXL-Z-25 | 60-120 | 28-24 | 1450 | 60 | 11 | 6.7 | 4-6 |
Features:
- High efficiency and energy saving. The efficiency is 3-10% higher than the conventional pulp pump on average, energy saving and consumption reducing up to 15-30%
- Cavitation performance, long life. Actual service life is 2-3 times higher than ordinary pulp pump
- High concentrations, no plug. Transportation of pulp concentration of up to 6%
- Reasonable structure, easy maintenance. Maintenance without dismantling piping, just move the motor backwards, you can carry out the disassembly and repair of the pump.
Application:
1 Paper industry
Used for transporting pulp with the concentration below 6%.
The cycle of transmission media, promotions and pressure that is used in alkali recovery process.
2 Sugar industries
Delivering syrup for concentration below 4%, viscosity below 150mm2 / s
3 Urban sewage industries
It is widely used in sewage treatment process for the cycle of transmission media, upgrading and pressure.

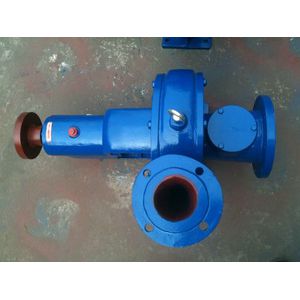

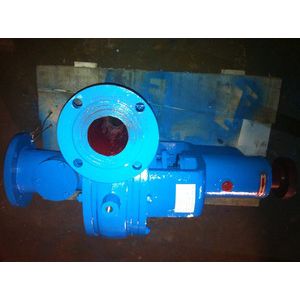

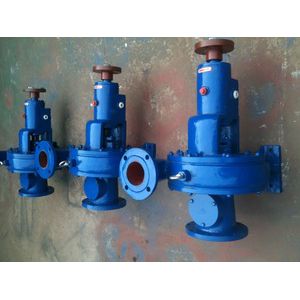

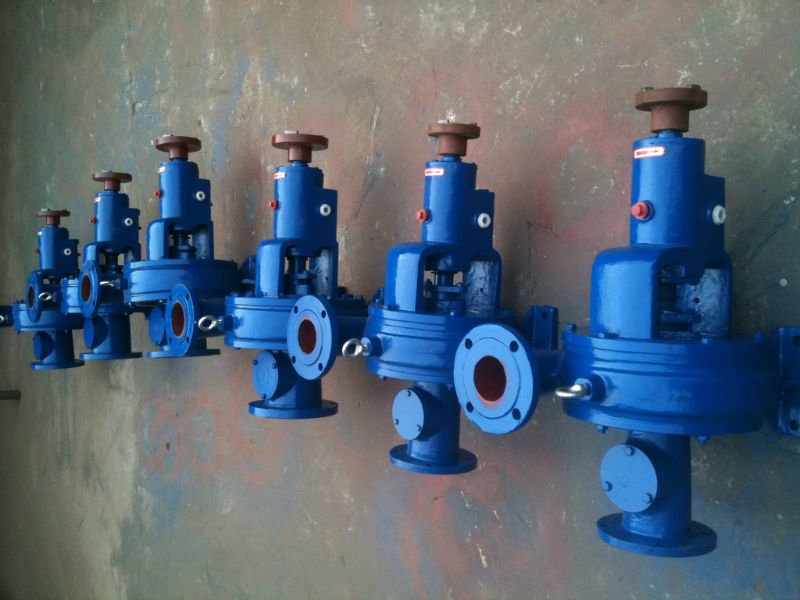

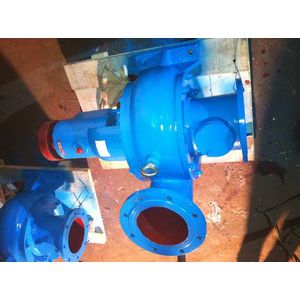

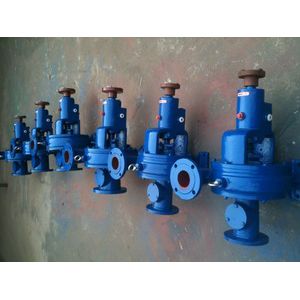

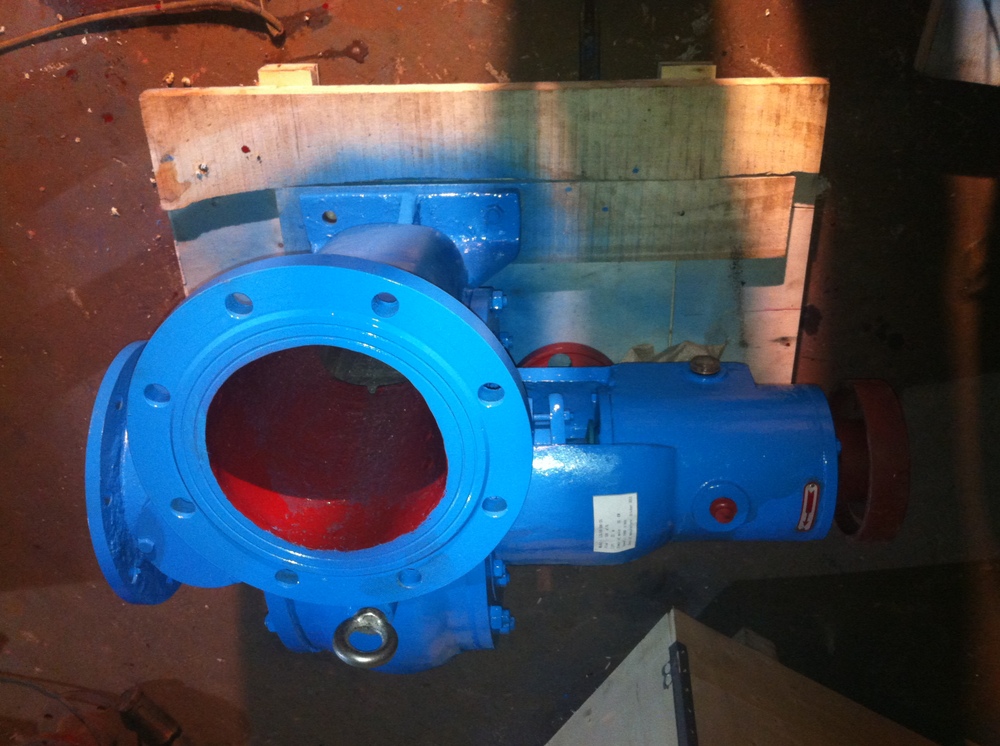

Pulp pump show
we usually use plywooden case packing, free fumigation
