Underwater dredge or mining high chrome starch slurry pump

industrial starch slurry pump is our factory technical personnel absorbing foreign advanced technology and combined with the actual situation of the majority of users, the design research and development, motor and pump coaxial integrated directly into th

Technical Feature

  • Hebei, China (Mainland)
  • An Pump
  • QSZ starch slurry pump
  • Centrifugal Pump
  • Single-stage Pump
  • High chrome starch slurry pump
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~300

PRIMARY PARAMETERS

Place of Origin
Hebei, China (Mainland)
Brand Name
An Pump
Model Number
QSZ starch slurry pump
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
High chrome starch slurry pump
Power
Electric
Standard or Nonstandard
Standard
Fuel
Electric motor
Pressure
High Pressure
Application
Mining slurry, big solids and heavy duty sewage, Water,sewage, slurry
More Application
River sand dredge pump, sewage pump
Material
High Chrome Alloy
Flow rate
7-3000 m3/h
Head
5.5 to 44.5 m
Motor power
0.75 to 200 kw
Speed
980 to 2900 rpm
Advantage
Non-clog , portable, low noise
Name
Underwater dredge or mining high chrome submersible slurry pump
Seal
Mechanical Seal submersible slurry pump

DETAIL DESCRIPTION

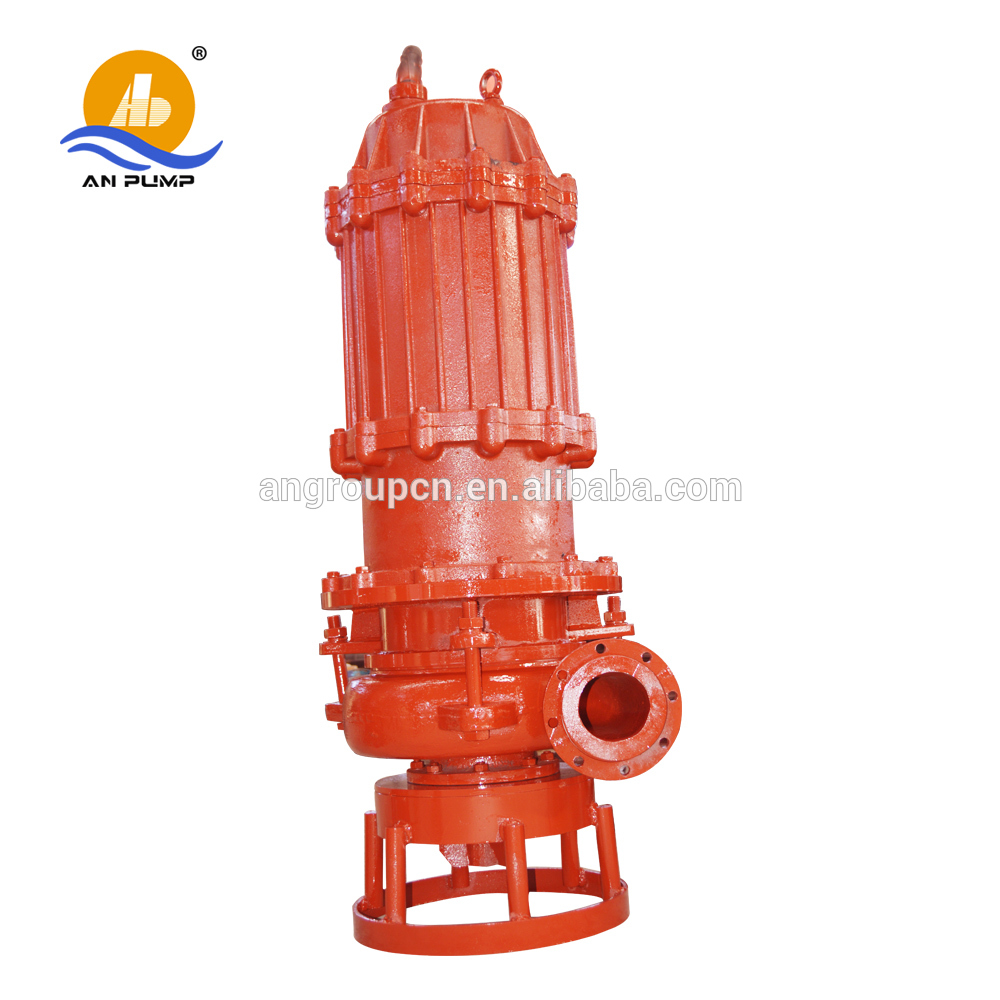

Underwater dredge or mining high chrome starch slurry pump

Product Description





QSZ industrial starch slurry pump is our factory technical personnel absorbing foreign advanced technology and combined with the actual situation of the majority of users, the design research and development, motor and pump coaxial integrated directly into the medium to work hydraulic machinery. The product is excellent selection, advanced structure, wide flow channel through ability, metallurgy, chemical, mining, power plants and other enterprise for conveying containing sand, cinder, tailings and other natural particles or liquids, it is the ideal alternative of traditional slurry pump.

The products add a mixing impeller in the bottom by another except main impeller and can precipitate in the slag jet hit the water and solid particles into the mixing liquid, the pump in the case where no auxiliary means to achieve a transport of high concentration. Unique sealing device can effectively balance the pressure inside and outside of oil chamber, making mechanical seal both ends of the pressure to maintain a balance, the maximum guarantee reliable operation of the mechanical seal, greatly prolonging its life, the motor according to user requirements increase water testing, overheating and other protection devices that make products for harsh working conditions for long-term safe operation.





Construction

Performance Chart

 Submersible starch slurry pump Show



Company Information

AN Pump

Factory History: Established in 1986
Business Type: Manufacturer and exporter
Main Products: submersible pumps to mine, submersible sewage pump, stainless steel pump, water pump, sand and gravel pump, dredger pump, pulp pump, sea water pump, irrigation pump, diesel water pump, chemical pump, circulation pump etc.

Packaging & Shipping



FAQ


Can you produce the pump with my own brand ?

Yes, we have been offering OEM service for 30 years.

Could we pay a visit to your factory ?

Yes, you are always welcome to visit our factory.

Is there any after-sales service?



Yes, we can arrange our engineer to go to your application site for assembly or maintenance.

Can you help us do the custom clearance ?

Yes, we can. We can help you find a professional custom clearance company to do it. .

What information should I let you know if I want to get a quotation?

Please let us know the pump capacity, head, medium, operation situation, quantity, etc.

Can you produce goods with special specification ?

First of all, we need to know the specification in details, and then we need to check with our technology department. We will give customers satisfying reply as soon as possible

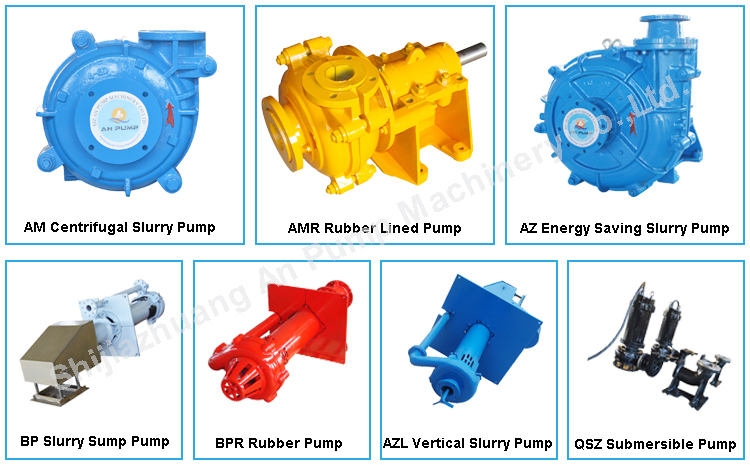

Related Products
