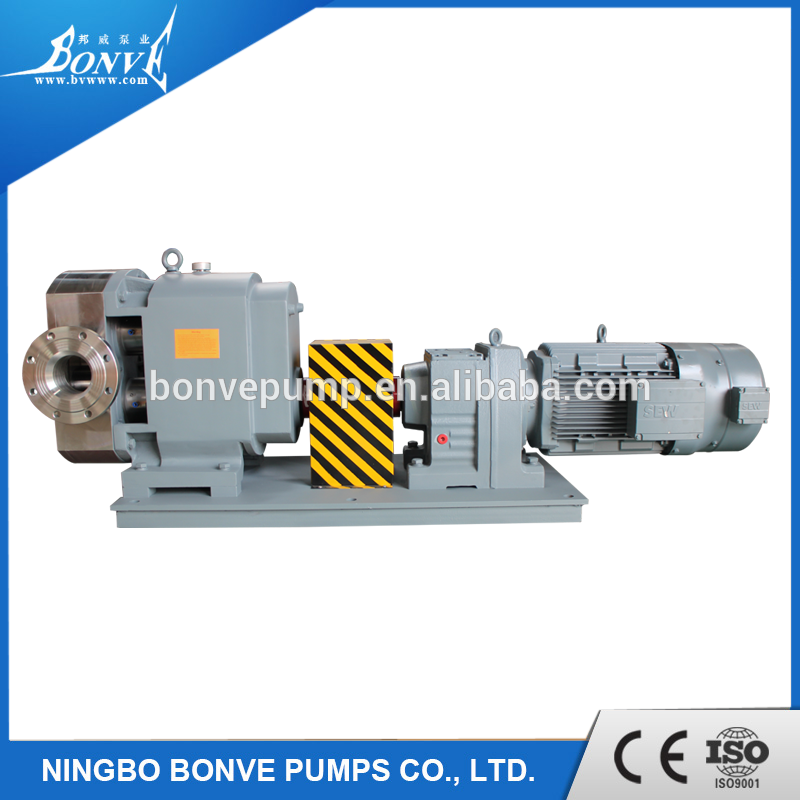

Starch paste transfer pump used in paper mills instead of screw pumps

Bonve is the first and most qualified company who can supply rotary lobe pumps in paper mills in China.

Technical Feature

  • Zhejiang, China (Mainland)
  • Bonve
  • BV6
  • Rotary Pump
  • Single-stage Pump
  • Fuel oil, etc
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
Bonve
Model Number
BV6
Theory
Rotary Pump
Structure
Single-stage Pump
Usage
Fuel oil, etc
Power
Electric
Standard or Nonstandard
Standard
Fuel
Electrical power
Pressure
Low Pressure
Application
Liquid Products
Product name
Oil transfer pump
Material
Stainless Steel
Voltage
220V/380V
Flow rate
200L/MIN
Certificate
CE ISO9001
Motor power
11KW
Rotating speed
200-300RPM
Pessure
0.6Mpa
Feature
Long Life
Warranty
2 Years

DETAIL DESCRIPTION

Starch paste transfer pump used in paper mills instead of screw pumps

Product Description

Brief Introduction

Bonve is the first and most qualified company who can supply rotary lobe pumps in paper mills in China. It also expanded its business in Sountheast Asian Countries in 2013. We committed to offer high quality pumps with affordable price. The pumps we made not only durable but efficient, definitely save a lot of time and cost to our clients.



Typically pumped media

 Coating Pigments

 Alum

 Anti-foaming agents

 CMC

 Polymers

 Starch Slurry

 GCC Fillers

 PCC Fillers

 TiO2 Fillers

 Kaolin

 Cooked Starch

 Emulsions

 Resins

 Retention Aids

 Sizing agent

 TiO2 Slurry

 Specialty Chemicals



Technical parameters

Material:SS304/SS316/SS316L
Max. Flow:300m3/h
Max.pressure:12bar/ 174PSI
Max. working temperature:150 C / 302 F
Suggested working speed:20-600rpm
Rotor Type:single leave, 2-leaves, 3-leaves
Mechanical seal:Carbide alloy (Standard), fluororubber O-ring
Shaft seal type:Single mechanical seal/Double mechanical seal with cooling system
Voltage:110V, 220V, 380V, 575V etc.
Driving:Fixed speed geared motor, TEFC geared motor with inverter controlled
Connections:Clamp, Thread, Flange
Connection standard:DIN, SMS, 3A, RJT, ISO/IDF
Operated:Electic
Packaging Details:Plywood case, fumigated wooden case
Delivery details:Usually within 20 days after receiving T/T down payment

(Price will depend on different model pump, different configuration. Detailed pls kindly contact us.)


Breakdown drawing

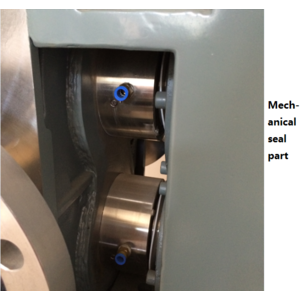

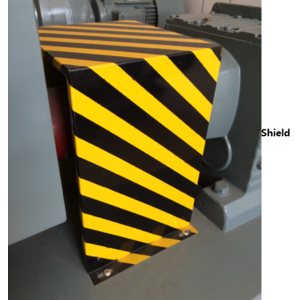

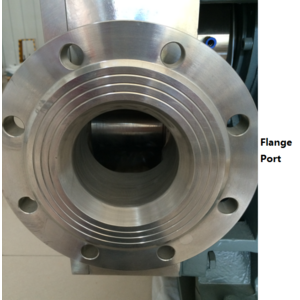

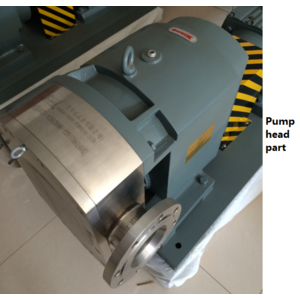

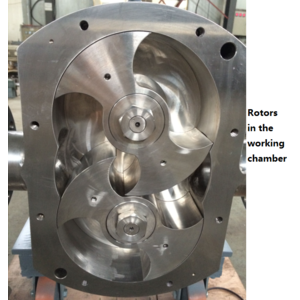

Main features







 Schematic diagram





 Production Process



Company Information

About BONVE

Your rotary lobe pumps partner (supplier)

Being the Chinese leading manufacturer in pumps, Bonve Committed to offer high quality pumps to our clients with affordable price. The Machine we made not only durable but efficient, can definitely save a lot of your time and cost.



When you choose a Bonve pump, you not only get the high quality pumps, but you also get the advantage of Bonve’s engineering expertise and years of application knowledge in the food, chemical, pharmaceutical and cosmetics industries.



We are not satisfied until our pumps have been successfully integrated into your  plants and processes. This is our passion!



 Bonve production base



Bonve processing equipment



 Honors



Bonve cooperators

Why us

How we guarantee the supplied pump is your best choice?

--Special design for your targeted pump. We have a team of senior sales engineers who help end-users solve their problems happened during the design stage to the finish products.

--With more than 15 years industry experience, offering rich and actual solution. Pumps we sold out has been over 500,000units.

--Customers we served from various industries more than 3,000 including food, beverages, daily chemicals, pharmacy, pulp and paper, coating and painting, oil and gas, biotechnology etc.



How we control quality?

-Organized control to select and evaluate of our vendors.

-Incoming inspection for all the raw material.

-Quality process control?

Raw material inspection⇒Process spare parts according to approved drawings⇒Assemble the pump based on customs using condition (record the gap between rotors and rotor and pump cavity, refer to the below records)⇒Test pump’s performance (record flow rate, discharge pressure,current and temperature)⇒Inspecting conformity



Warranty

We are proud to show customers that Bonve has opened a new chapter about the guarantee period of 2 years while other manufactures are still with 1 year only. Bonve pumps have already upgraded to the current fourth-generation ones with the following advantages after 15 years unremitting R&D, innovation and manufacturing.

1. Mechanical seal design becomes more commonly use and durable.

2. Improvement of the pumps structure ( the bearings vary from the previous 4 to current 6 which ensures high stability and more operating pressure).

3. Shaft sleeves are applied to the quick-wearing pots, simplify the spare parts replacement.The shift-able character of framework oil seal’s prolongs the pumps life span 3 times compared to former design.

Low maintenance and long life are Bonve’s unbeatable merits which not only lessen customers’ concerns but also help customers solve the financial loss due to dis-manipulation in the course of production.
