Goorui Side Channel Blowers
Applications:
Packaging Industry, Plastics Industry, Food Industry, Wood Industry, Handling & Lifting Systems
Printing and Paper Pharmaceutical Industry, Pneumatic Conveying Beverage Industry
,Environmental Technology Textile Industry, Medical & Hospitals Other Applications
The other main features are:
1) Beautiful surface
2) Easy installation
3) Low noise level
4) No vibration, and therefore complete dynamic stability
5) Pulsation-free discharge
6) Minimal maintenance
7) Higher pressure ratio
8) Cooler running bearings
9) Longer grease life
10) Simple maintenance
11) 100% oil-free air
12) Suitable for environmental protection
13) Small dimensions portable.easy intall.
Side channel blower model details"
| New Model | Single | Frequency | Rated | Voltage | Rated | Max | Rated | Rated | Sound | Weight |
| Double | Output | Current | Airflow | Vacuum | Pressure | |||||
| Stage | Hz | KW | V | A | m3/h | mbar | mbar | dB(A) | Kg | |
| GHBH 003 34 1R7 | Single | 50 | 2.2 | 200-240/345-415Y | 12.8 | 318 | -210 | 200 | 69 | 29 |
| 60 | 2.55 | 220-275/380-480Y | 12.8 | 376 | -210 | 200 | 72 |
THE Model curve as following :

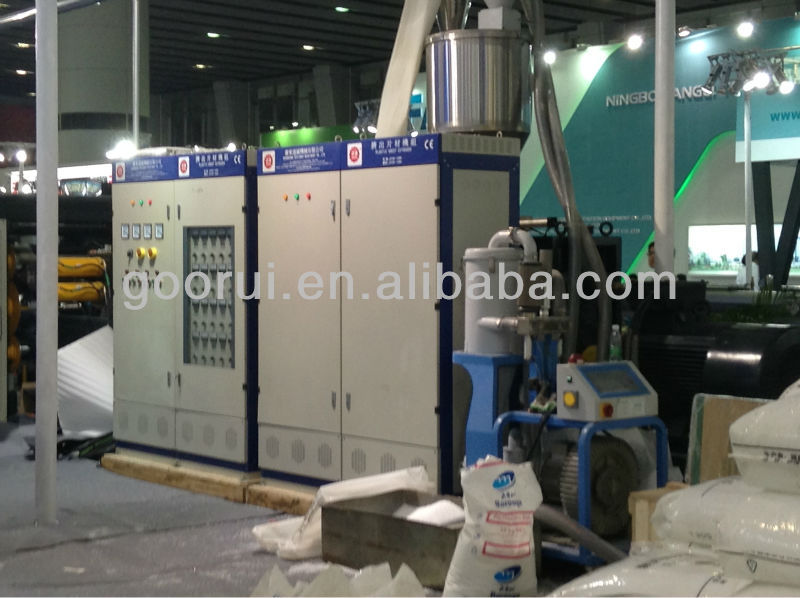

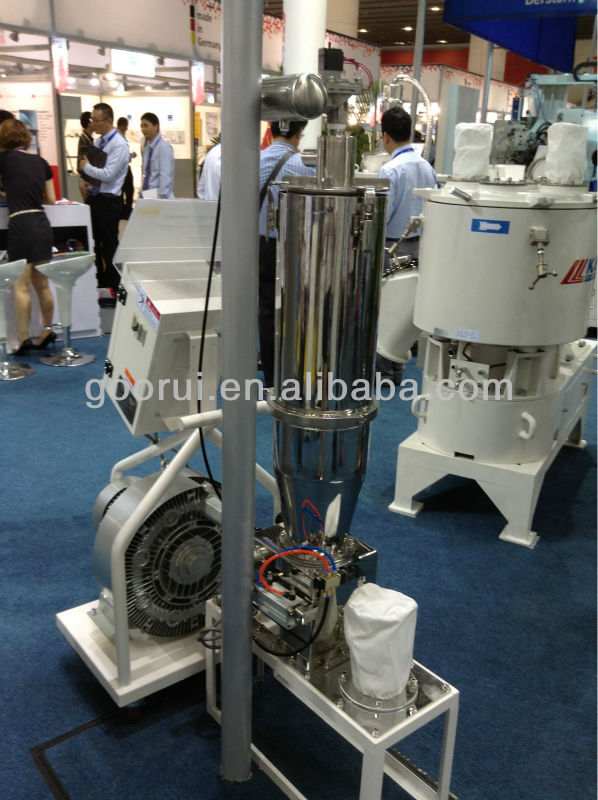

The industrial application picture :
