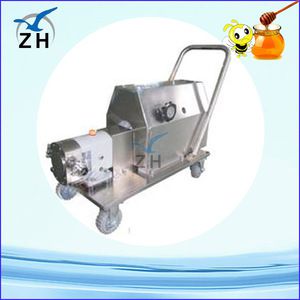

grain conveyor vacuum pump sanitary cooking oil pump
Products Special
Product Name: | grain conveyor vacuum pump sanitary cooking oil pump |
Description: | Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries |

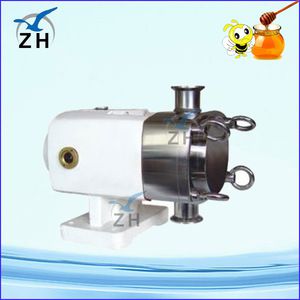

Construction: | Horizontal ZB3A Series and vertical ZB3A series, diffirent rotor shapes(tri-lobe rotors butterfly type rotors, etc) |
Material: | SS304/SS316L/1.4301/1.4404 |
Seal Material: | EPDM (Standard, FDA approval) |
Max. Flow: | 90m3/h / 395 GPM |
Max.pressure: | 12bar/ 174PSI |
Max. working temperature: | 120 C / 248 F |
Max. rev: | 1450 rmp |

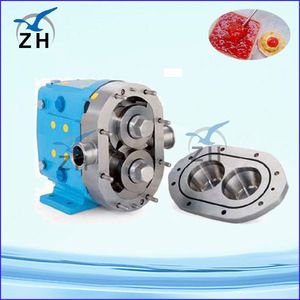

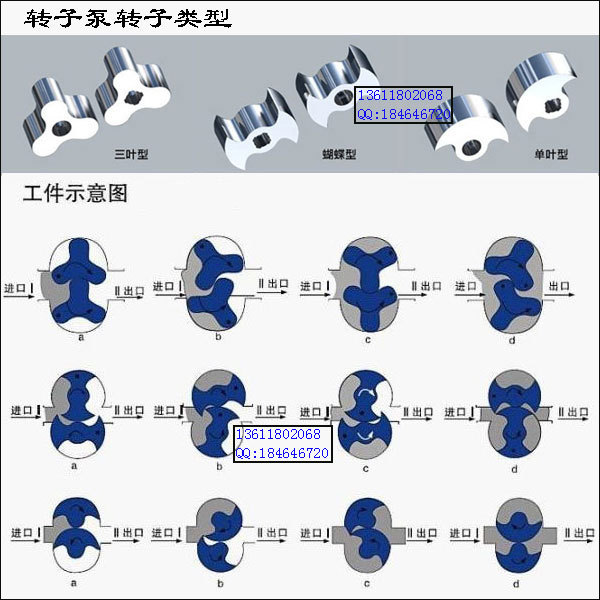

Rotor Type: | 2-leaves, 3-leaves, butterfly, signal butterfly |
Mechanical seal: | SIC/SiC/EPDM(Standard) |
Motor power: | 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …22KW |
Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
Voltage: | 220V, 380V |
Motor: | ABB, LOCAL,50hz/ 60hz |
Surface treatment: | Inner polished and Sandblast outside |
Availably connection: | Clamp, Thread Butt weld, Flange |
Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
Operated: | Electic |
Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |

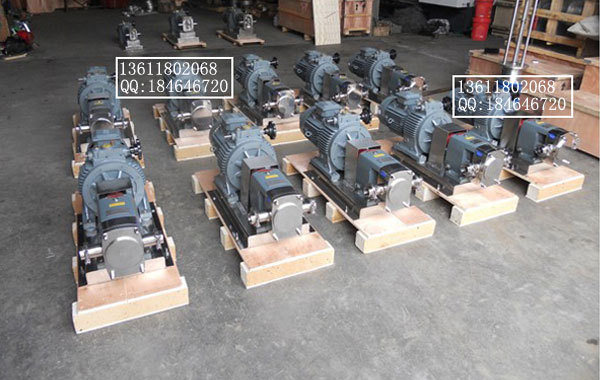

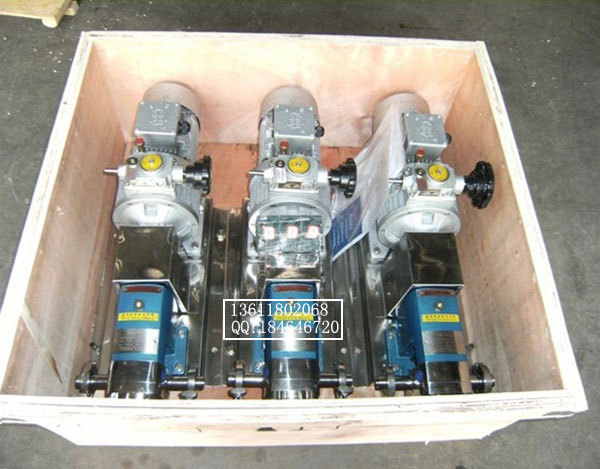

Packaging Details: | Plywood case or customerized. Or as per the request of customers |
Delivery details: | Usually within 20 days after receiving T/T down payment |

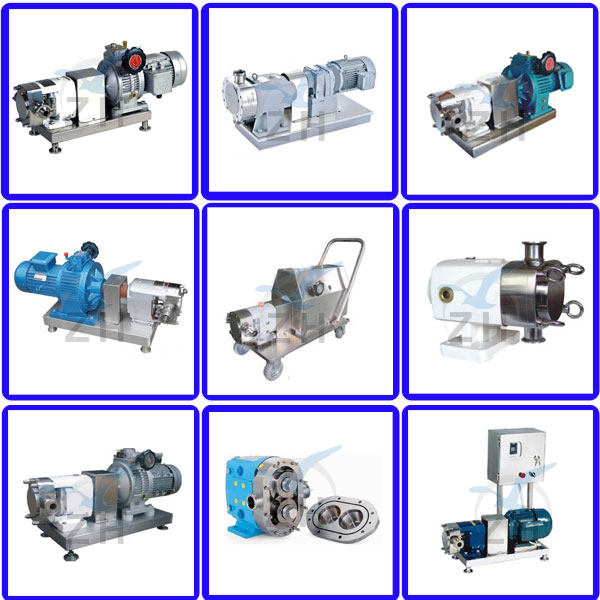

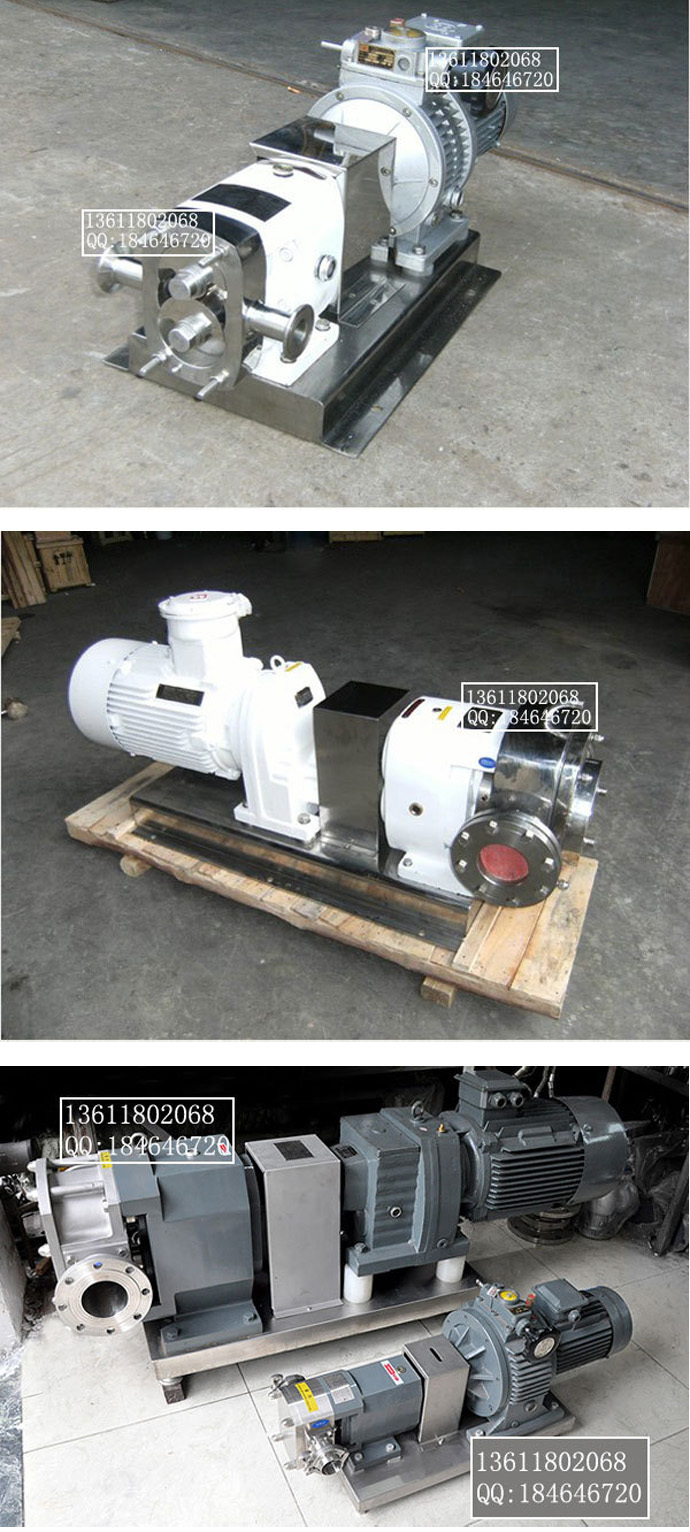

Different Type
Application
Food Industry | Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc. |
Daily Chemicals | Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc. |
Pharmacy | Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc. |
Chemical Industry | Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc. |
Other Industry | Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc. |
Certificate
After Service
1.Warranty Period: one year (Attention: Machine's warranty range don't include damageable Spare Parts;
For other parts,providing new free parts for clients in warranty period)
2. Supporting for technique for stainless steel mixing water tank
3.Free train using machine and free repair
Ralated Products
seller's information
Name | susan li | Company | Zhu Heng Industrial |
Contact No. | 0512-50136708 | Business Time | 8:00~17:30 |
Skype | bcnmetal | Address | Kunshan Jiangsu China |

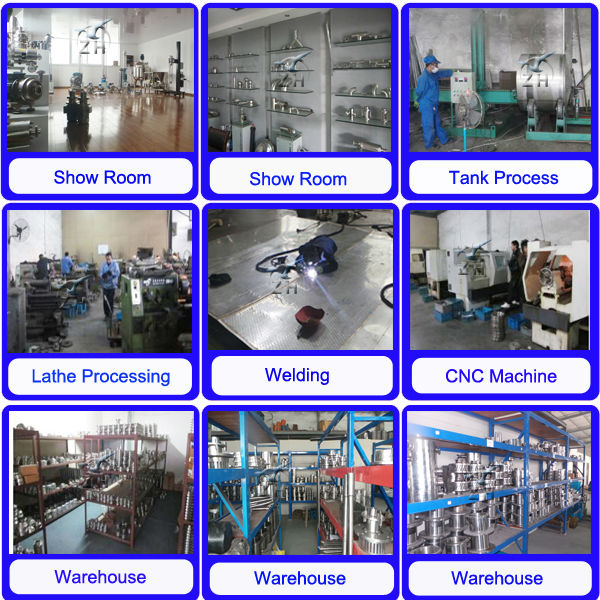

About Us
