Customized Corn Field Electric Motor Irrigation Pump
·Type: | ·Media: | ·Application: |
Centrifugal | Multi water | Handing |
·Other characteristics: | ·Flow rate: | ·Head |
Horizontal | Min.:60m3/h | Min: 16.5m |
| Max.:120m3/h | Max: 24m |

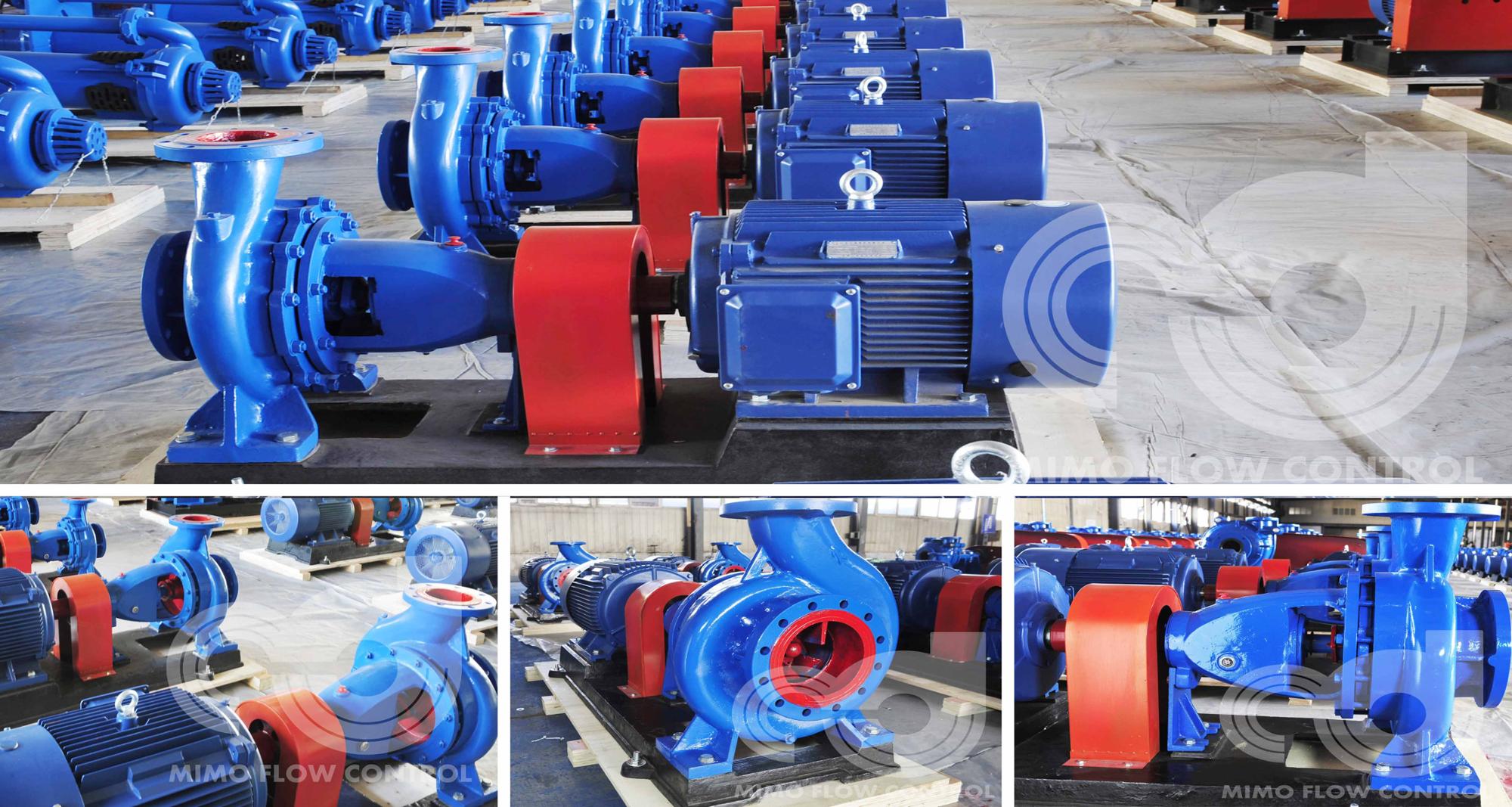

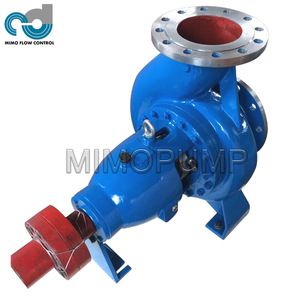

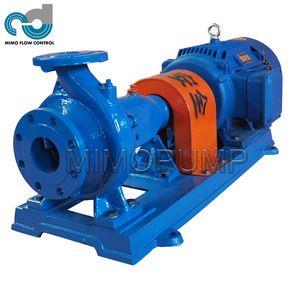

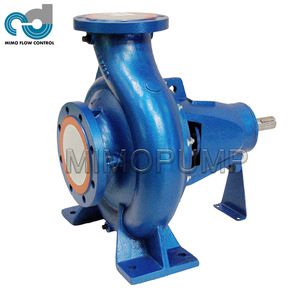

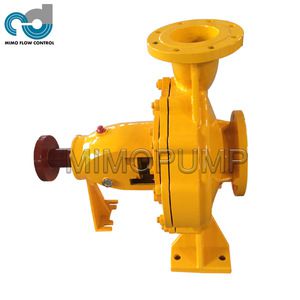

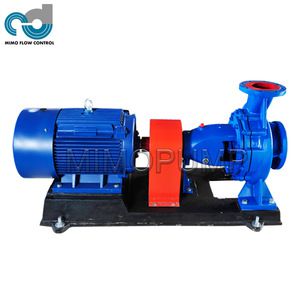

MIS End Suction Water Pump Series
IS series single-stage end-suction centrifugal pump is an energy-saving pump designed by teamwork in the whole nation. Its hydraulic capability is distributed reasonably, wide option for user, conveniently check and repair, the efficiency and throw is up to advanced international level.
This pump is suitable for industrial and city water supply, water drainage, and widely used for agricultural irrigation, transportation pure water or other liquids which physical and chemical nature is similar to pure water.
(IS:temperature not exceeding 80℃ ,ISR: temperature not exceeding than 150 ℃)

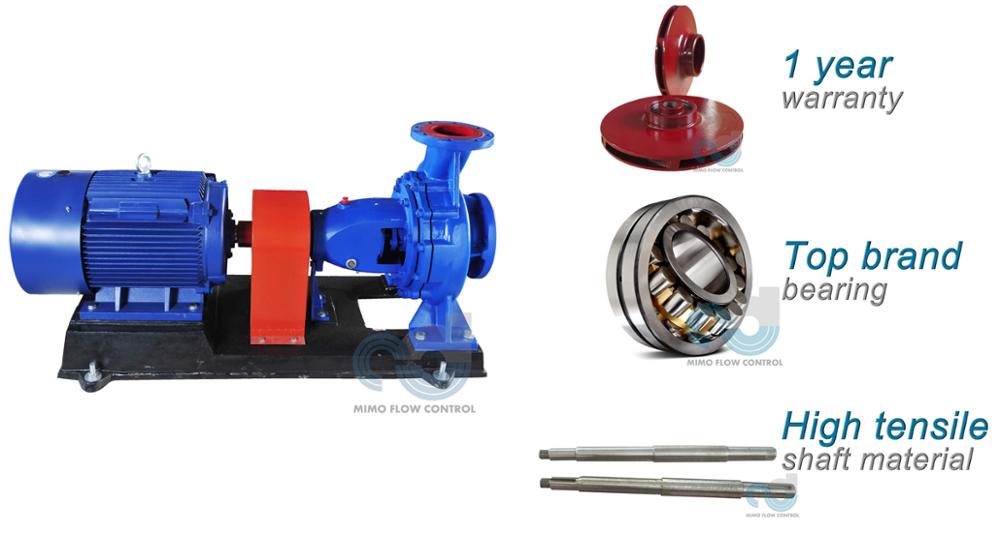

Features
• High efficiency Single-stage
• Durable, low noise, long life bearing
• Premium quality mechanical seal
• Electric or diesel drive
| No. | Type | Speed | Flow | Head | Power Kw | Eff | NPSHr | Impeller | |
| rpm | m3/h | m | Shaft | Motor | % | m | mm | ||
| 1 | IS | 2900 | 12.5 | 20 | 1.13 | 2.2 | 60 | 2 | 130 |
| ISR50-32-125 | 2900 | 6.3 | 5 | 0.16 | 0.55 | 54 | 2 | 130 | |
| 2 | IS | 2900 | 25 | 20 | 1.97 | 3 | 69 | 2.5 | 130 |
| ISR65-50-125 | 1450 | 12.5 | 5 | 0.27 | 0.55 | 64 | 2 | 130 | |
| 3 | IS | 2900 | 50 | 20 | 3.63 | 5.5 | 75 | 3 | 137 |
| ISR80-65-125 | 1450 | 25 | 5 | 0.48 | 0.15 | 71 | 2.5 | 137 | |
| 4 | IS | 2900 | 100 | 20 | 7 | 11 | 78 | 4.5 | 139 |
| ISR100-80-125 | 1450 | 50 | 5 | 0.91 | 1.5 | 75 | 2.5 | 139 | |
| 5 | IS | 2900 | 200 | 50 | 33.6 | 45 | 81 | 4.5 | 216 |
| ISR125-100-200 | 1450 | 100 | 12.5 | 4.48 | 7.5 | 76 | 2.5 | 216 | |
| 6 | IS | 1450 | 200 | 20 | 13.5 | 18.5 | 81 | 3 | 262 |
| ISR150-125-250 | 1450 | 200 | 20 | 13.5 | 18.5 | 81 | 3 | 262 | |
| 7 | IS | 1450 | 400 | 20 | 26.6 | 37 | 82 | 4.6 | 199 |
| ISR200-150-250 | 1450 | 400 | 20 | 26.6 | 37 | 82 | 4.6 | 199 |

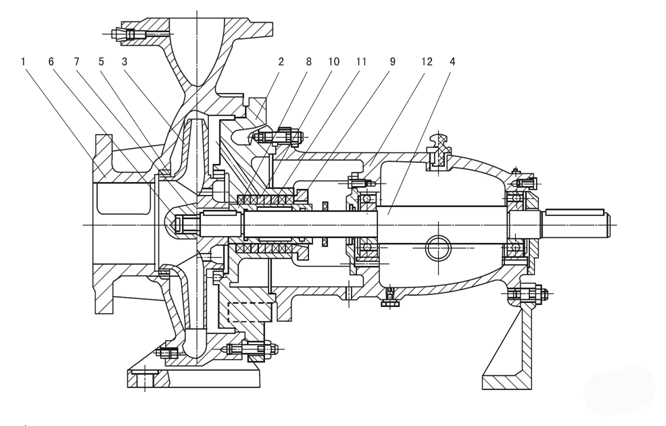

| MATERIALS OF IS WATER PUMPS | ||
| No. | Part Description | Material Specification |
| 1 | Pump Casing | Cast Iron |
| 2 | Pump Cover | Cast Iron |
| 3 | Impeller | Cast Iron |
| 4 | Shaft | 45# Steel* |
| 5 | Sealing ring | Cast Iron |
| 6 | Impeller nut | Cast Iron |
| 7 | Lock washer | Cast Iron |
| 8 | Shaft sleeve | Cast Iron |
| 9 | Packing gland | Graphite |
| 10 | Packing ring | Cast Iron |
| 11 | Packing | Cast Iron |
| 12 | Bearing Assembly | Cast Iron |
| Bolts | Zinc Plated Steel |
* Other shaft material options are available.

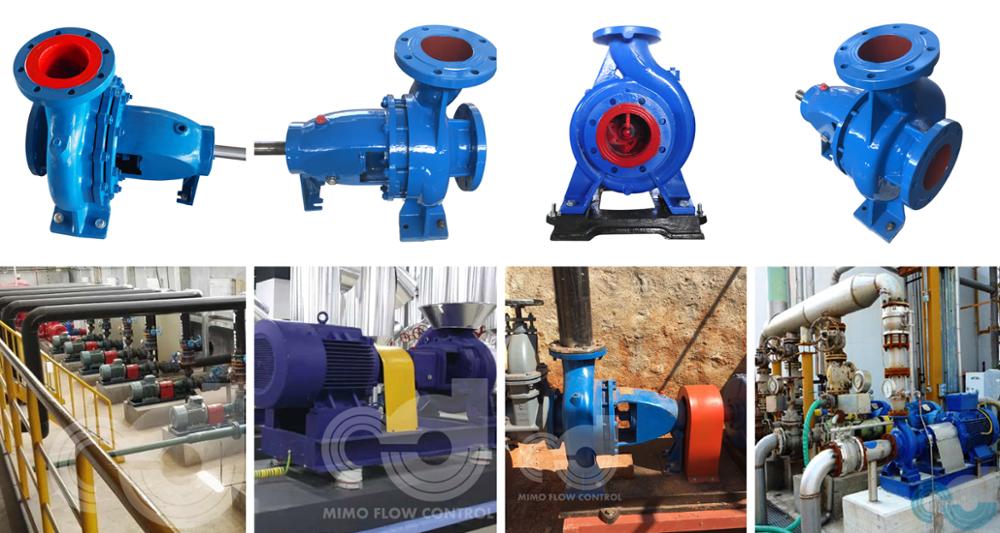

Applications
·Domestic water boosters
·Sprinkler/Firefighting
· Water treatment plants
· Seawater pumping
· Chemical / Processing
· Food processing
· Irrigation
· Designed for heavy duty industrial use including belt drive applications.
· General water transfer in processing plants, mines, construction sites and irrigation
