Self priming food grade self priming sanitary pump stainless steel palm soybean corn oil milk wine transfer pump
Working Principle
Driving gear (outside rotor) with internal tooth drives the internal rotor and turns in same direction in the full closed pump body. The inlet is from the outlet. When it turns, negative pressure formed at the suction port, the liquid inlet and being take to the outlet by rotor, then the liquid is impelled from the discharge port and the gears mesh. The transportation of liquid finished.
Structure Feature
As figure, the pumps are mainly composed of internal rotor, outside rotor, shaft, pump casing, front cover, seal, bearing etc.
The pump' seal adopts packing seal or mechanical seal. When the delivered medium is high temperature, high viscosity or strong corrosion, packing seal should be adopted.
When the delivered medium is easy crystal linic, we can design the heat preservation jacket in pump casing and front cover in order to melt the medium with steam when working. The pump can be also fitted with the safety valve.

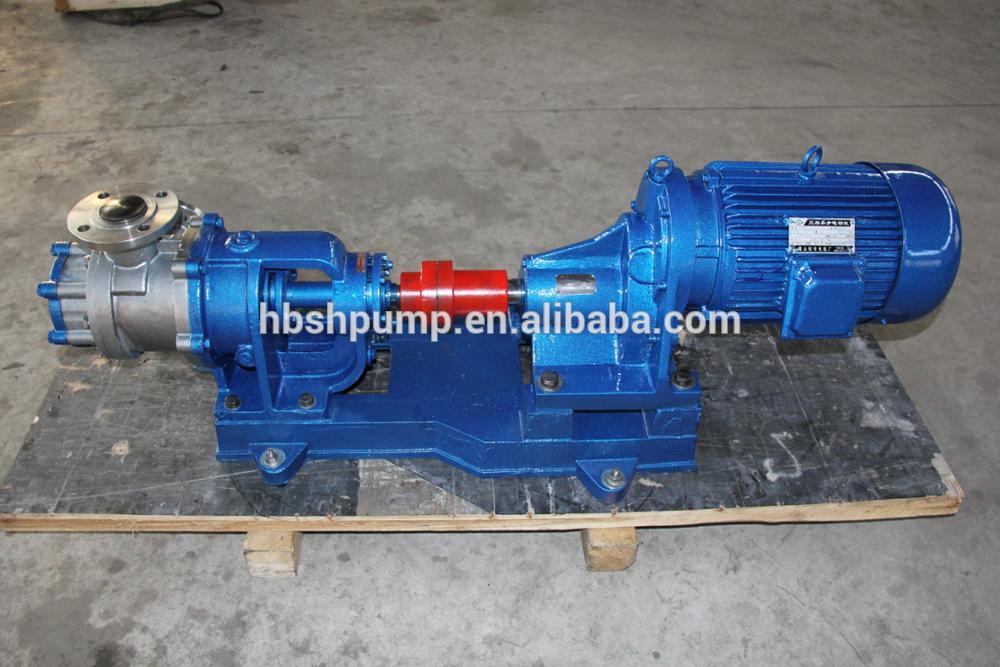

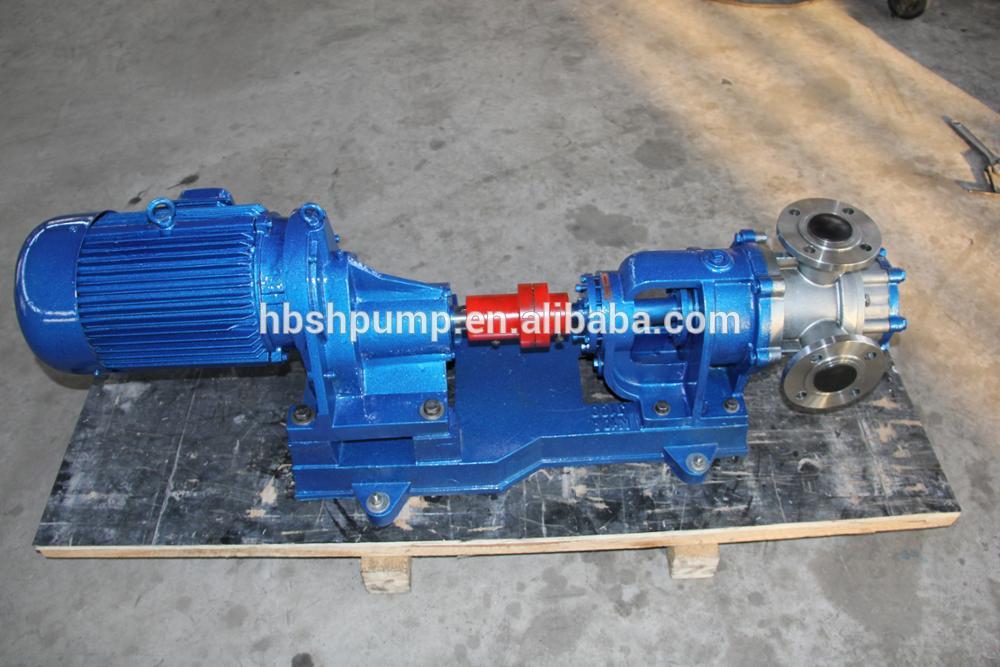

The pump set is composed of the pump, motor and baseplate.
The driving way is belt wheel driving or coupling driving.
Specification
Model | NYP-series |
Flow rate | ≤160L/minute |
Output pressure | 6-15 Bar |
Pump material | Cast iron/ stainless steel |
Efficiency | 80% |
Frequency&voltage | Customized from the customer power supply |
Application scope | transport various lubrication liquid at temperature not higher than 70 ℃. If temperature is up to 200 ℃,anti-high temperature material will be matched.Its viscosity is 5*10-5-15*10-3m2/s. Such as : Alcohol.gasoline, Aqueous Ammonia, Isopropyl ether, Petoleum products and so on.
|
Our Pumps are Multifunctional

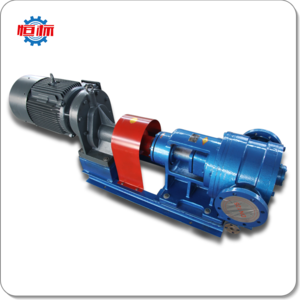

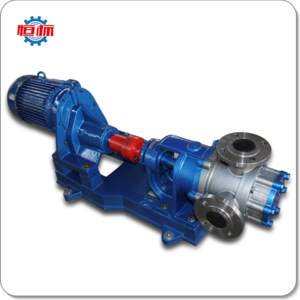

More Products
FAQS
1.Q: Can I use diesel engine for your pumps?
A: Yes, other power source like gasline engine, tractor PTO are also acceptable
2. Q:What information should I provide to get your quotation?
A: a. What liquid do you want to transfer? (oil, water, food, corrosive chemical liquid, with solid particle or not)
b. What is the flow rate or capacity (cbm/h, L/min)?
c. What is the discharged head(m,feet, Mpa, Bar)
3. Q:Do your company provide the OEM service?
A: yes,
4. Q:What is the MOQ?
A: 1 Set
