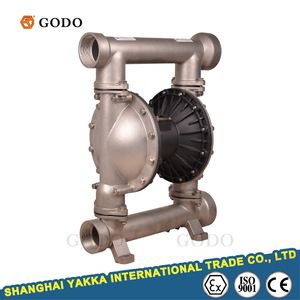

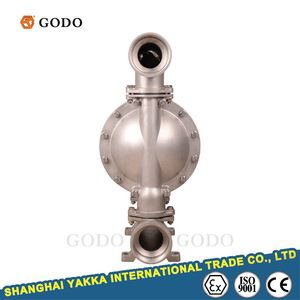

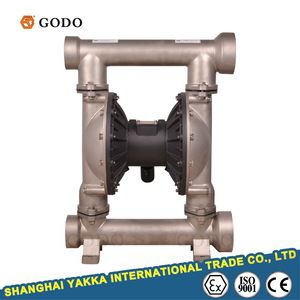

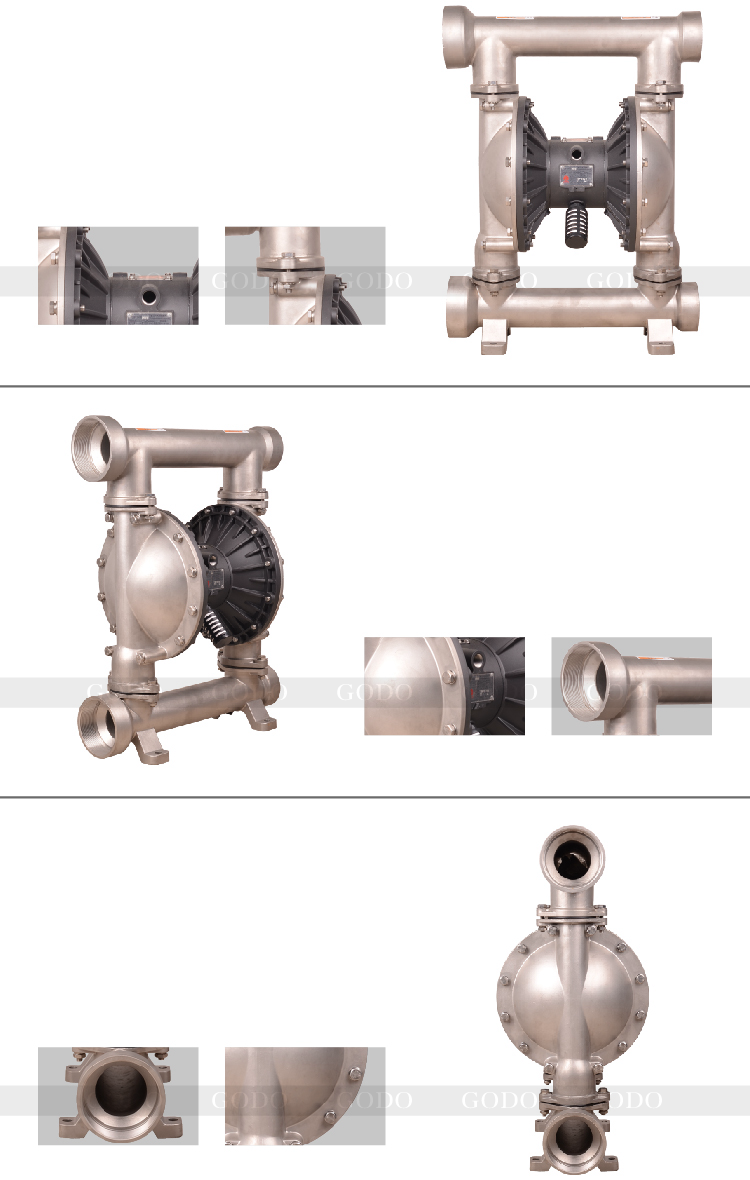

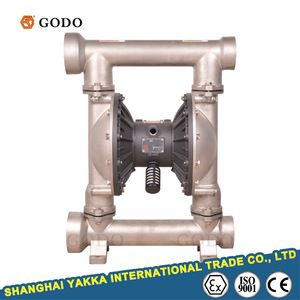

Peanut Butter, Corn Paste, Mashed Potato Transfer Food Pump
Anti-explosion No need to connect with electricity.
It is more safe when installing in flammable and
explosive condition.
Self-priming Pump will stop working when pressure
exceeds limited range, and will start to work when
pressure returns to normal.
Good flow ability Fluid can easily pass through
when viscosity within 10000 centipoise, even with
small solids.
Easy to use No need irrigation water, simple
structure with less quick wear parts.Easy to install
and maintenance.Flow rate and pump lift can be
adjusted by changing air pressure.
Idle operation No need to fill in lubrication oil, and
can operate dry without damage.
No leaking Good sealing and quality seal parts
can prolong pump’s lifecycle and reduce wear
and tear.
Baking Process The pump body use baking
finish,which is more artistic and anti-friction.
New Designed Air Valve New designed air
valve with higher degree of precision and working
more stable, even can work in low atmospheric
pressure condition.
Precision Casting Process High pressure
casting process with smooth inner and outer walls,
which is more convenient for the fluid to pass.
Model | Calibe (in) | Ma.Flow (L/min) | Max.Lift (m) | Max.suction Lift (m) | Outlet Pressur (kg) | Grain diameter (mm) | Into Calibe (in) |
QBY3-10 | 10 | 18.9 | 70 | 2.5-3 | 7 | 1.5 | 1/4 |
QBY3-15 | 15 | 18.9 | 70 | 2.5-3 | 7 | 1.5 | 1/4 |
QBY3-20 | 20 | 57 | 70 | 4.5-7.6 | 7 | 2.5 | 1/4 |
QBY3-25 | 15 | 57 | 70 | 4.5-7.6 | 7 | 2.5 | 1/4 |
QBY3-25A | 25 | 116 | 84 | 5.4 | 8.4 | 3.2 | 1/2 |
QBY3-32 | 32 | 151 | 84 | 5.4 | 8.4 | 3.2 | 1/2 |
QBY3-40 | 40 | 151 | 84 | 5.4 | 8.4 | 3.2 | 1/2 |
QBY3-50 | 50 | 378.5 | 84 | 5.48 | 8.4 | 4.8 | 1/2 |
QBY3-65 | 65 | 378.5 | 84 | 5.48 | 8.4 | 4.8 | 1/2 |
QBY3-80 | 80 | 568 | 84 | 5.48 | 8.4 | 6.4 | 1/2 |
QBY3-100 | 100 | 568 | 84 | 5.48 | 8.4 | 6.4 | 1/2 |
QBY3-125 | 125 | 1041 | 84 | 2.4-7.6 | 8.4 | 9.4 | 3/4 |
Air Compressor Selection | Filter Press Selection | |||||||||||||||||||||||||||||||||||||
|
|

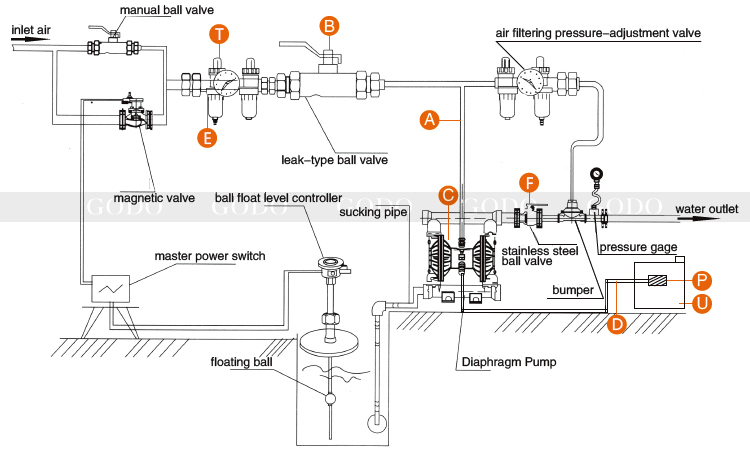

A Gas Pipeline D Exhaust Pipe P Muffler | B Cuprum Ball Valve E Pneumatic FRL T Air Pressure Regulator | C Intake Pipe Quick Connection F Leak Type Cuprum Ball Valve U Container For Exhaust |
(Peanut Butter, Corn Paste, Mashed Potato Transfer Food Pump)
