Wholesale latest solar pump brushless solar water pump
Remind: the above price only includes the solar water pump + built-in controller, if you need other relevant products for solar pump system, such as solar panels, mounting system, etc., please contact us.
Feature:

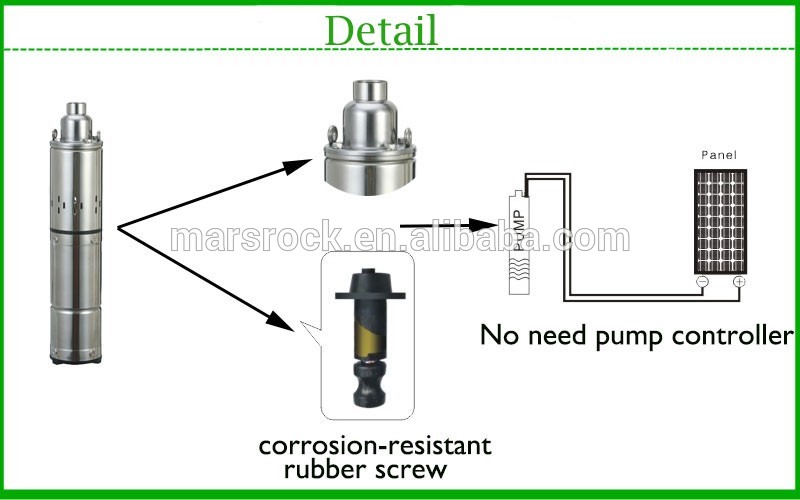

1. The latest technology of built-in controller, free maintenance.
2. Wide input voltage, flexible suit for all kinds of output solar panel.
3. Brushless motors made of rare earth materials confirm efficient and reliable operation.
4. The multi-voltage design ensures that the pump operates even in low light conditions, increasing the amount of water produced.
| Pump Data | Solar Panel Data | ||||
| Pump Voltage | Pump Input Voc | Vmp=18V | Vmp=24V | Vmp=30V | Vmp=36V |
| Voc=22.5 | Voc=30 | Voc=37.5 | Voc=45 | ||
| 12V | | 2 | 1 | 1 | 1 |
| 24V | | 3 | 2 | 2 | 1 |
| 36V | | 3 | 2 | 2 | 1 |
| 48V | | 3 | 2 | 2 | 1 |
| 96V | | 6 | 4 | 4 | 3 |
Material: aluminum body, Rust-proof cast iron outlet, brushless motor.
| Model | Power (w) | Voltage (v) | Speed (rpm) | Max Follow (m3/h) | Max Lift (m) | Outlet (MM) |
| 25DCS30-2-12-40-300 | 300 | DC12V | 3500 | 2 | 40 | 25 |
| 25DCS50-2.5-24-50-400 | 400 | DC24V | 3500 | 2.5 | 50 | 25 |
| 25DCS70-3-48-70-500 | 500 | DC48V | 3500 | 3 | 70 | 25 |
| 40DCS7-6-24-35S-400 | 400 | DC24V | 3500 | 6 | 35 | 40 |
| 40DCS7-6-36-40S-400 | 400 | DC36V | 3500 | 6 | 40 | 40 |
| 40DCS7-6-48-40S-500 | 500 | DC48V | 3500 | 6 | 40 | 40 |
| 40DCS12-6-48-60S-600 | 600 | DC48V | 3500 | 6 | 60 | 40 |
| 40DCS16-6-48-80S-800 | 800 | DC48V | 3500 | 6 | 80 | 40 |
| 40DCS20-6-96-100S-1000 | 1000 | DC96V | 3500 | 6 | 100 | 40 |
| 40DC7-6-24-35-400 | 400 | DC24V | 3500 | 6 | 35 | 40 |
| 40DC7-6-36-40-400 | 400 | DC36V | 3500 | 6 | 40 | 40 |
| 40DC7-6-48-40-500 | 500 | DC48V | 3500 | 6 | 40 | 40 |
| 40DC12-6-48-60-600 | 600 | DC48V | 3500 | 6 | 60 | 40 |
| 40DC16-6-48-80-800 | 800 | DC48V | 3500 | 6 | 80 | 40 |
| 40DC20-6-96-100-1000 | 1000 | DC96V | 3500 | 6 | 100 | 40 |
| 40DCS13-6-48-80S-600 | 600 | DC48V | 3500 | 6 | 80 | 40 |
| 40DCS16-6-48-100S-700 | 700 | DC48V | 3500 | 6 | 100 | 40 |
This device can be widely used for drinking water, vegetable planting in small areas, greenhouse irrigation, sprinkling irrigation for fruit farm and other water usage without AC. This device is an indispensable water lifting tool.
Q1: Are you a factory?
A. Yes. We are professional manufacturer of PV products since 2006.
Q2: Is OEM and ODM service available?
A: Of course. We have many years experience of OEM & ODM service.
A: Trial sample order is OK.
Q4: What’s your payment terms?
A: T/T, L/C, D/A, D/P etc.
Q5: What is the delivery time?
