Trolley-type mobile oil Gear Pump price
Description
YGP Series screw gear pump use two screw gears to transfer various viscous and volatile liquids but no solid granuals, such as gasoline, diesel, kerosene, and lubricated oil etc. with advantage of compact size, high flow rate, big delivery head, low noise and high suction vacuum. The pump is equipped with relief valve. It is an ideal pump for tax fuel vehicles, oil tank trucks and also transportation of other vapor-liquid mixture liquids etc.. Surge-controlled pump, the latest model of oil pump, is equipped with self-regulating valve, which can regulate the pressure of inner pump.
Technical Specification | |||

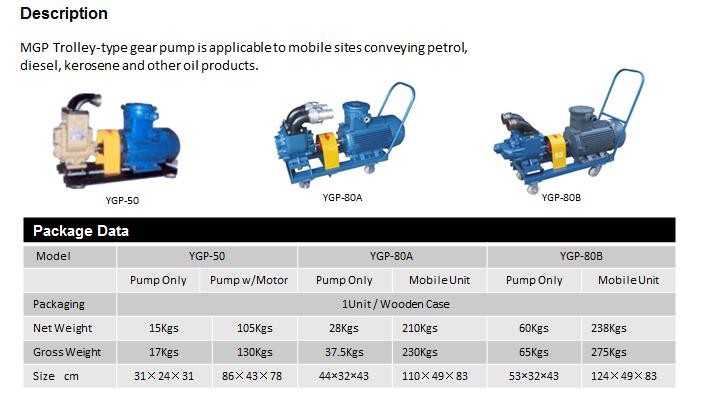

Model | YGP-50 | YGP-80A | YGP-80B |
Size | 2" | 3" | 3" |
Flow Rate | 300L/Min | 1000L/Min | 1000L/Min |
Delivery Head | 30M | 60M | 60M |
Suction Head | 5M | 7M | 7M |
Speed Range | 700-1250RPM | ||
Rated Speed | 960RPM | ||
Working Pressure | 0-0.3Mpa | 0-0.5Mpa | |
Bypass Valve | Yes | No | Yes |
Material | Aluminum | Aluminum/Iron | Iron |
Motor Power | 2.2Kw | 11Kw | 11Kw |
