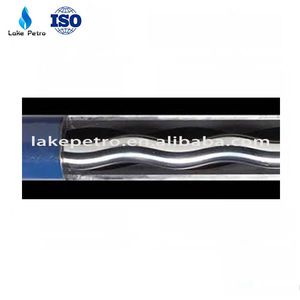

single screw pump / progressive cavity pump for oil production
Features:

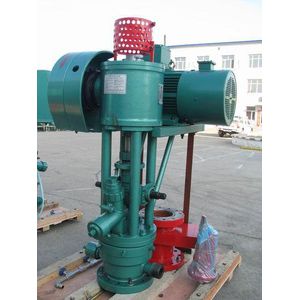

single screw pump for oil production is a new type of mechanical extracting equipment, applicable for the oil exploitation of low, high viscosity crude oil, high pour point oil, high wax-bearing oil, high sand and gas content oil, etc. The permanent magnet brushless DC motor direct drive screw pump ground drive system developed by out company has the advantages of smooth operation, energy saving, low running costs, low noise, easy management, minimum maintenance workload, etc.It can operate stably and effectively, with high efficiency of gear reduction transmission, bulky equipment, low failure rate, good reliability and simple parameter adjustment, etc.
Technical Specifications:
Spec | Head | Theoretical Displacement | Rotor Screw Joint | Max Viscosity(50) | Stator Outer Diameter | Stator Screw Joint | Rod Speed | Casing Diameter |
Unit | M | M3/D | In | Mpa/S | MM | In | r/min | MM |
GLB40-21 | 900 | 5.5-10 | 7/8" | 8000 | 73 | 27/8"TBG | 96-173 | ≥114 |
GLB40-22 | 1800 | 5.5-10 | 7/8" | 8000 | 90 | 31/2" TBG | ||
GLB75-21 | 900 | 10-18 | 1" | 6000 | ||||
GLB75-27 | 1200 | 10-18 | 7/8" | 7000 | ||||
GLB75-40 | 1700 | |||||||
GLB75-48 | 1900 | 10-18 | 1" | 6000 | ||||
GLB120-27 | 1200 | 16-29 | 7/8" | |||||
GLB120-36 | 1600 | 16-29 | 1" | |||||
GLB120-40 | 1700 | 16-29 | 1" | 6000 | 102 | |||
GLB190-27 | 1200 | 26-47 | 1" | 6000 | 102 | 4"TBG | 96-173 | ≥140 |
GLB190-33 | 1500 | |||||||
GLB190-40 | 1700 | |||||||
GL300-21 | 900 | 41-74 | 1" | 5000 | ||||
GLB300-27 | 1200 | |||||||
GLB400-20 | 860 | 55-99 | ||||||
GLB400-30 | 1300 | |||||||
GLB500-14 | 600 | 69-124 | ||||||
GLB500-21 | 900 | 69-127 | ||||||
GLB600-14 | 600 | 82-149 | ||||||
GLB600-21 | 900 | |||||||
GLB800-16 | 700 | 110-199 | ||||||
GLB208D30 | 1500 | 30 | 1" | 5000 | 102 | 4"TBG | 100 | |
GLB208D40 | 1800 | 30 | 1" | 5000 | 108 | |||
GLB347D30 | 1500 | 50 | 19/16" | |||||
GLB347D27 | 1200 | |||||||
GLB486D27 | 1200 | 70 | ||||||
GLB486D20 | 900 | |||||||
GLB625D20 | 900 | 90 | 19/16" | 4000 | ||||
GLB736D14 | 600 | 110 | ||||||
GLB736D20 | 900 |
