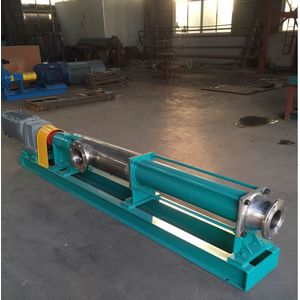

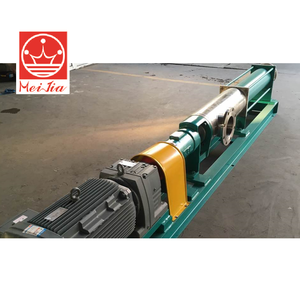

304 and 316 Stainless steel screw pump for food
flow | 0.1m³/h-500m³/h |
pressure | 0-48bar |
temperature | -20-120 or 180 |
Viscosity range | 0-1000000cp |
Solid particle | diameter30mm Fiber length350mm |
Product structure drawing

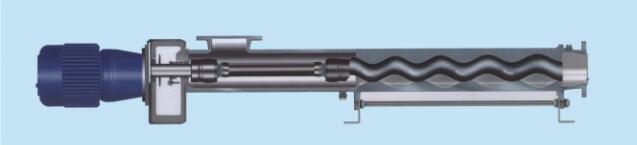

Fluid delivery pump

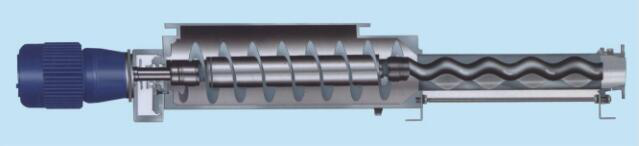

Rectangular hopper with auger feed pump
Large hopper with auger pump
Auger pump with stirring auger

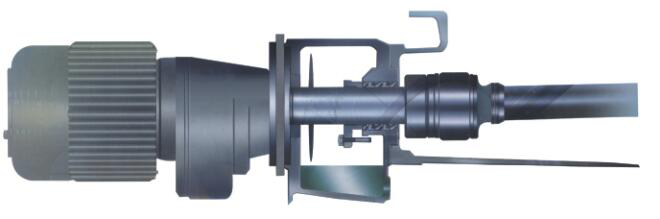

Vertical pump
Single screw pump Characteristic
1 medium adaptability, can transport high solid content medium, up to 70%, can transport a variety of different viscosity medium, also can transport all kinds of fibrous material of medium
2, steady flow, conveying without pulsation, can be used as metering pump.
There is no shear and no pulsation during conveying, and it is suitable for conveying medium with high shear sensitivity and easy to be damaged by centrifugal force.
3 , small vibration, low noise, continuous transmission without interruption.
4, flow and speed is proportional to, with good variable adjustment
5. The installation position can be tilted freely
6, self-priming capacity, up to 7 meters
7, the mechanism is simple, convenient maintenance, no need to use other special tools
Screw pump performance parameter table

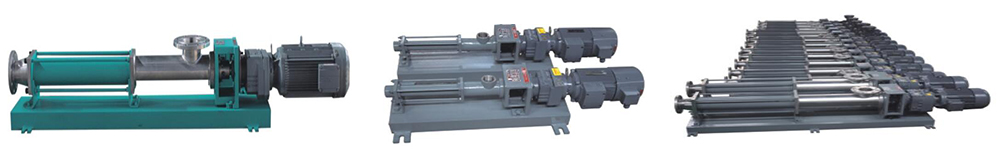

Other products
Packaging & Shipping
China
