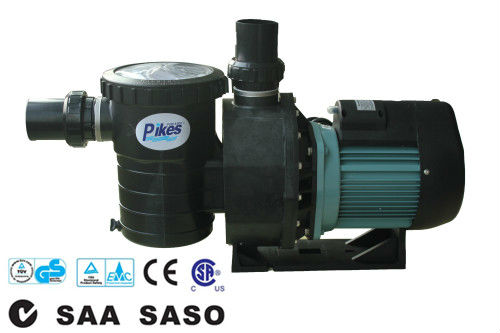

"SB" Series Pump
swimming pool circulation pumps
"SB" series heavy duty pump delivers high flow and energy efficiency
ultra performance. It is suitable for commercial swimming pool. 2 inch
suction and discharge port with transparent lid. Ring lock seal design to
eliminate suction leaks and to maximize suction efficiency.
Highlight Features:
swimming pool circulation pumps
| 1 | Asynchronous, two poles |
| 2 | Class insulation: 130 |
| 3 | IPX5 waterproof standard |
| 4 | Built-in thermal protection |
| 5 | Overload protection |
| 6 | External heat sink to ensure maximum cooling capability |
| 7 | Available in 50Hz or 60Hz with 220V / 380V / 110V |
| 8 | Special design union compatible for both Imperial and Metric measurement standard |
| 9 | S.S 316 Shaft |
| 10 | S.S 316 Mechanical seal |
| 11 | Extremely quite running |
| 12 | Transparent lid for easy checking |
| 13 | Using NSK bering |
| 14 | Easy maintenance and repairs |

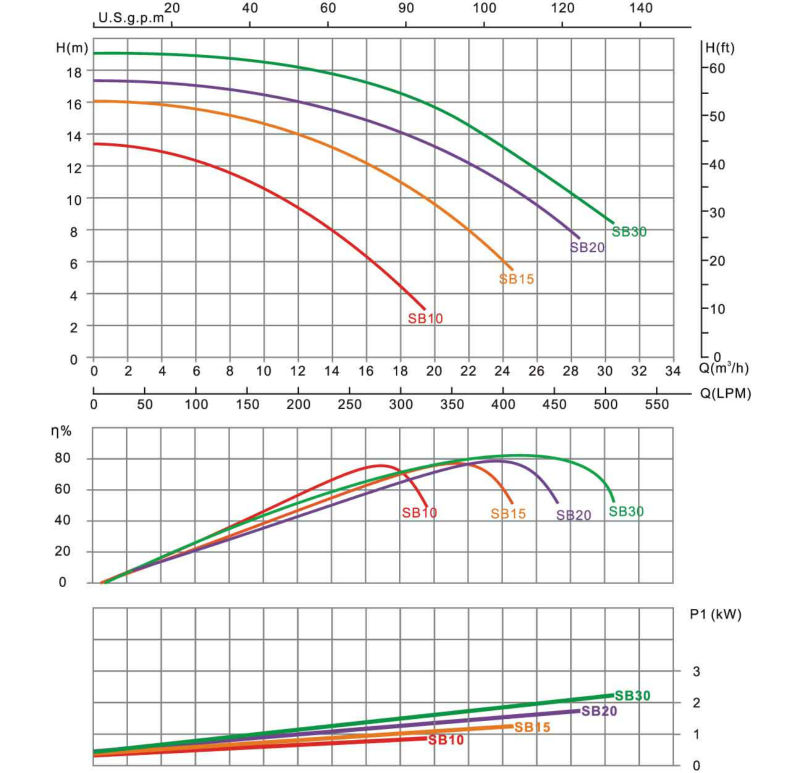

Technical Information

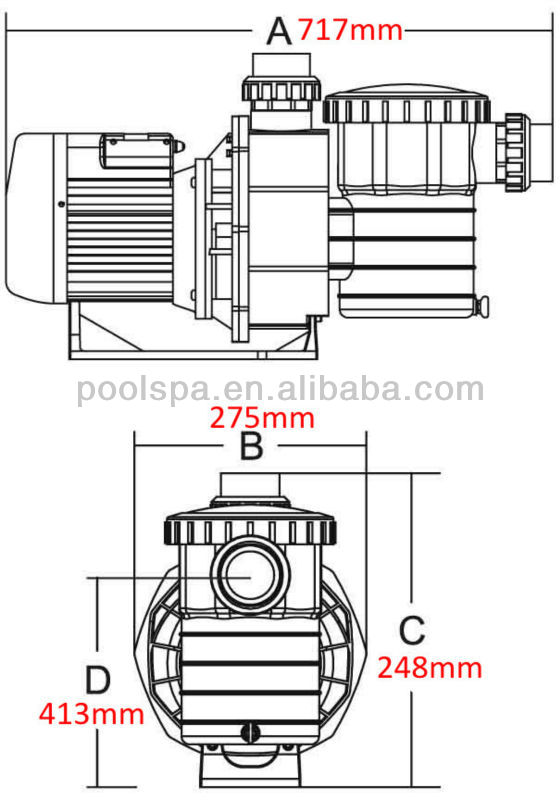

Technical Information & Dimension
swimming pool circulation pumps
 | swimming pool circulation pumps | |||
| Model No | Connection Size | Input power | Horsepower | Weight |
| SB10 | 2 inch / 63mm | 0.97kW | 1.0hp | 16.00kg |
| SB15 | 2 inch / 63mm | 1.30kW | 1.5hp | 17.00kg |
| SB20 | 2 inch / 63mm | 1.80kW | 2.0hp | 23.00kg |
| SB30 | 2 inch / 63mm | 2.18kW | 3.0hp | 24.00kg |

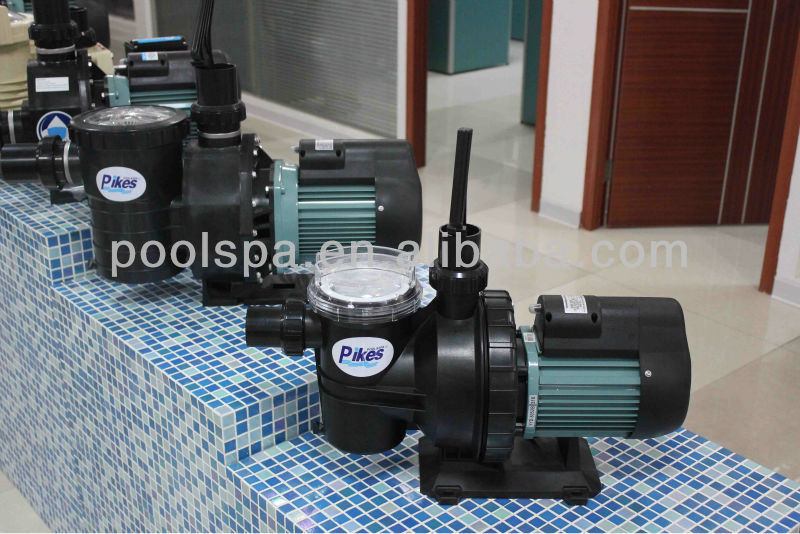

Pumps Real Pictures

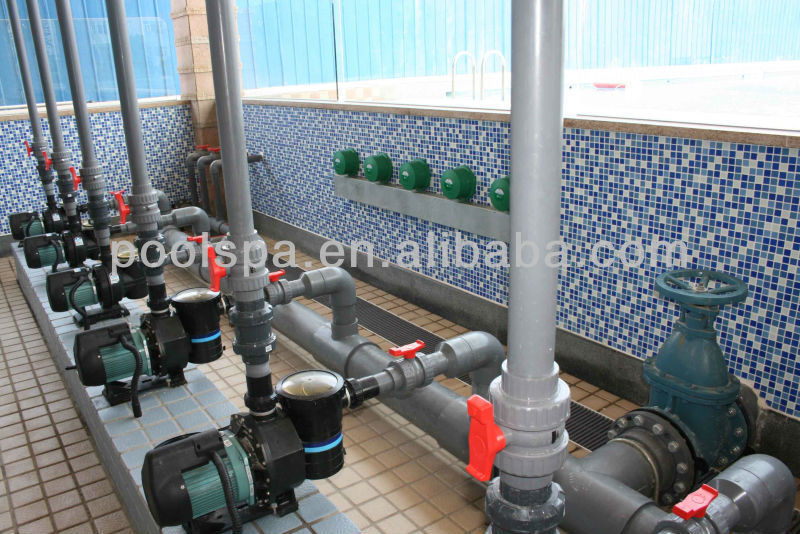

Pumps Working Pictures

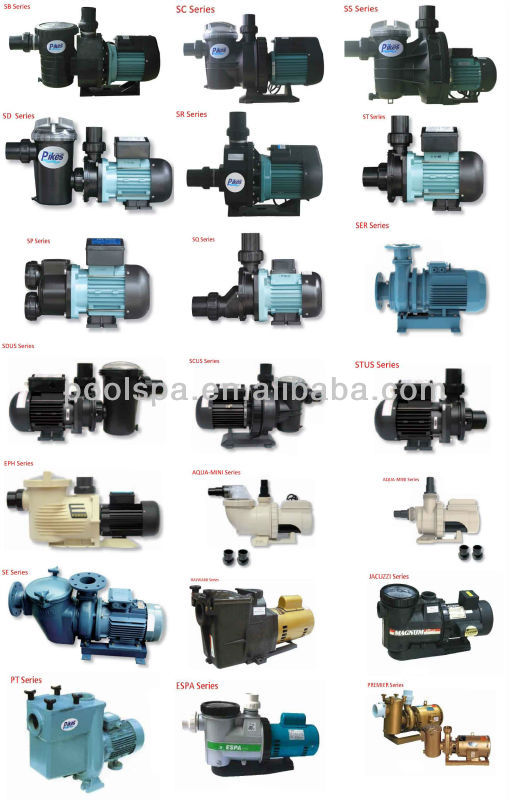

More Models
Payments & Delivery & Discount
| 1 | Paymet Details | 30% in advance,+70% balance should be paid before delivery. |
| 2 | Delivery Details | 1x20ft for 15 days;1x40ft for 20 days. |
| 3 | Port of Loading | Huangpu,Mainland china. |
| 4 | Discount | Are offered baced on order quantities. |
About Us
Guangzhou Vigor Health Equipment Co., Ltd.
A professional manufacturer of high quality swimming pool products for more than 15 years.
10.000m² factory in Qingyuan city, 1000m² Office & show room in Guangzhou.
