Single Stage Solenoid Valve Structure Vacuum Pump With New Refrigerant

High precise vaccum gauge offers you an accuate reading.

Technical Feature

  • Zhejiang, China (Mainland)
  • VALUE
  • V-i140SV
  • Vacuum Pump
  • Single-stage Pump
  • Air Pump
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$76.2~80.77

PRIMARY PARAMETERS

DETAIL DESCRIPTION

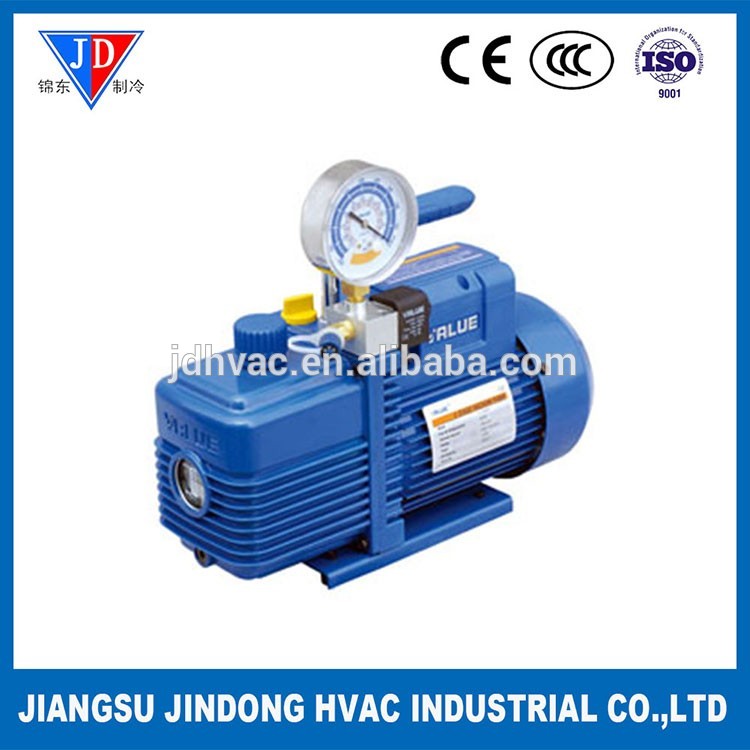

Single Stage Soleniod Valve  Vacuum Pump

With New Refrigerant

Product Description

 The Features of Vacuum Pump:

1. Integrated body cylinder block structure with high precision

2. Soleniod valve structure to prevent reflux.

3. High precise vaccum gauge offers you an accuate reading.

4. Oil window design to avoid run out of oil.

5.Suit for: R410A,R407C,R134A,R12,R22 etc.varied refrigerant.

Specifications



ItemSingle stage vacuum pump
ModelV-i120SVV-i140SVV-i180SVVE125S
Rated voltage220V~/50Hz220V~/50Hz220V~/50Hz220V~/50Hz
Pumping rate 3.6m3/h7.2m3/h14.4m3/h5.4m3/h
Ultimate pressure2Pa 2Pa 2Pa 2Pa
Motor power 180w250w 550w180w
Oil capacity 250ml250ml660ml280ml
Dimension(mm)290*124*255318*124*265395*145*318290*124*230
Weight6.7kg8.6kg15.4kg7.2kg
Air inlet connecting thread7/16"-20UNF7/16"-20UNF7/16"-20UNF7/16"-20UNF(without vacuum gauge)
Detailed image
