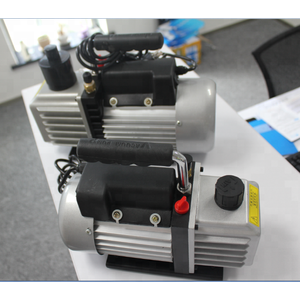

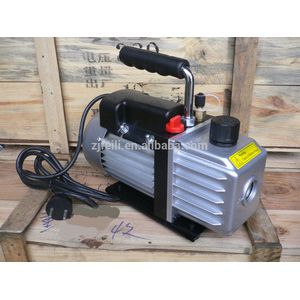

AC vaccum pump refrigeration hvac vacuum pump
( ac vacuum pump , refrigerastion vacuum pump )
***Pump Industries Chaos
In recent years, the competition of electric ac vacuum pump system between suppliers is increasingly fierce. Even in Taizhou city which is a famous PUMP City in China, there are many factories make different quality vacuum pumps. Many suppliers in order to get more market share, they use inferior material for lower price. And there are many “suppliers” they purchase pumps’ accessories from others and just assemble to a whole pump. Some firms are even Dummy corporations, but they call themselves pump manufacturers.
Zhejiang Feili Pump Co., Ltd. Never sell any renewed refrigeration hvac vacuum pump ,we are Alibaba International Trade Insurance Enterprise. Our vacuum pumps have been Exported to 58 Countries and Beijing Olympic use Feili Pump. More than 90% customers make payment before meeting us!
Introduction
refrigeration hvac vacuum pump is compact, light and attractive in design. It uses the big starting torque which is specially designed for low temperature environment. It is guaranteed start normally in winter’s low temperature. It is applicable to lab vacuum packaging.
Product features
1.Prevent returning oil design
Air intake channel do special design, can prevent the reflux pump oil and pollution after stopping pump is pumped containers and pipes
2.The environmental protection design
Fuel Tank for inter-layer processing, and set up on the exhaust oil and gas separation device, no oil and reduce the pollution of the oil mist.

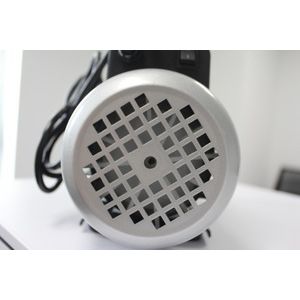

3.Aluminum alloy motor casing
Motor USES the aluminum alloy shell, high cooling efficiency, guarantee run continuously for a long time, and has good appearance quality.
4.Integrative design
ac refrigeration hvac vacuum pump adopt integrated design, make the product more compact and lighter is reasonable.
5.Large starting torque
In view of the low temperature and low voltage, specially designed to ensure low ambient temperature in winter under the condition of normal starting.
6.The shockproof rubber machine feet, reduce vibration and noise.
Application of ac refrigeration hvac vacuum pump

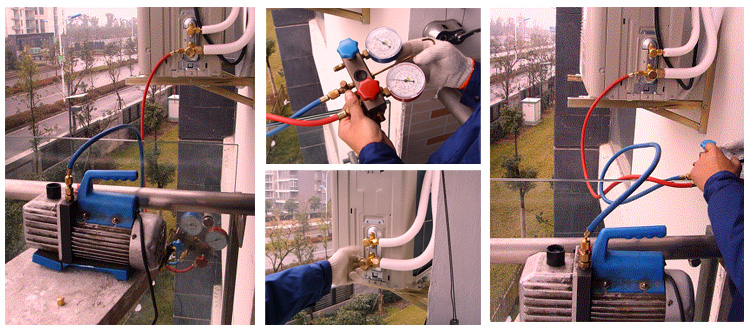

This kind of refrigeration hvac vacuum pump widely used in food packaging, scientific research, medical treatment, electronics, chemicals, medicine and laboratory of universities and colleges. automobile reparation, gas analysis, medicine mechanism, printing mechanism and other electric rotary ac vacuum pump evacuations.
Advantage for ac refrigeration hvac vacuum pump
2. Equipped with gas ballast valve to pump a little water vapor.
3. Equipped with oil-anti-suckback devices for convenient starting.
4. This is an improved vacuum pump for ac vacuum pump.
Specification of ac refrigeration hvac vacuum pump
| Model | Flow rate | Ultimate vacuum | Power(HP) | Speed(r/min) | Inlet Port | Oil Capacity(ml) | Dimension (mm) | Weight(KG) | |||
| FL-0.5A | 220V/50HZ | 1CFM | 2Pa | 150Microns | 1/6 | 220V/50HZ | 1440 | 1/4SAE | 160 | 240*121*230 | 6 |
| 30L/min | |||||||||||
| 110V/60HZ | 1.2CFM | 110V/60HZ | 1720 | ||||||||
| 36L/min | |||||||||||
| FL-1A | 220V/50HZ | 2CFM | 2Pa | 150Microns | 1/4 | 220V/50HZ | 1440 | 1/4SAE | 250 | 249*121*230 | 7.2 |
| 60L/min | |||||||||||
| 110V/60HZ | 2.5CFM | 110V/60HZ | 1720 | ||||||||
| 72L/min | |||||||||||
| FL-1.5A | 220V/50HZ | 3CFM | 2Pa | 150Microns | 1/4 | 220V/50HZ | 1440 | 1/4SAE | 200 | 249*121*230 | 7.5 |
| 90L/min | |||||||||||
| 110V/60HZ | 3.6CFM | 110V/60HZ | 1720 | ||||||||
| 108L/min | |||||||||||
| FL-2A | 220V/50HZ | 4CFM | 2Pa | 150Microns | 1/3 | 220V/50HZ | 1440 | 1/4SAE | 250 | 315*125*240 | 8.8 |
| 120L/min | |||||||||||
| 110V/60HZ | 4.8CFM | 110V/60HZ | 1720 | ||||||||
| 144L/min | |||||||||||
| FL-3A | 220V/50HZ | 6CFM | 2Pa | 150Microns | 1/2 | 220V/50HZ | 1440 | 1/4SAE | 320 | 340*135*260 | 9.8 |
| 180L/min | |||||||||||
| 110V/60HZ | 7.2CFM | 110V/60HZ | 1720 | ||||||||
| 216L/min | |||||||||||
| FL-4A | 220V/50HZ | 8CFM | 2Pa | 150Microns | 3/4 | 220V/50HZ | 1440 | 1/4SAE | 700 | 390*145*280 | 15.5 |
| 240L/min | |||||||||||
| 110V/60HZ | 9.6CFM | 110V/60HZ | 1720 | ||||||||
| 288L/min |
*** Double Stage refrigeration hvac vacuum pump
| Model | Flow Rate | Ultimate vacuum | Power(HP) | Speed(r/min) | Inlet Port | Oil Capacity(ml) | Dimension (mm) | Weight(KG) | |||
| 2FL-0.5C | 220V/50HZ | 1CFM | 0.2Pa | 15Microns | 1/4 | 220V/50HZ | 1440 | 1/4SAE | 200 | 315*125*240 | 7 |
| 30L/min | |||||||||||
| 110V/60HZ | 1.2CFM | 110V/60HZ | 1720 | ||||||||
| 36L/min | |||||||||||
| 2FL-1C | 220V/50HZ | 2CFM | 0.2Pa | 15Microns | 1/3 | 220V/50HZ | 1440 | 1/4SAE | 250 | 315*125*240 | 9 |
| 60L/min | |||||||||||
| 110V/60HZ | 2.5CFM | 110V/60HZ | 1720 | ||||||||
| 72L/min | |||||||||||
| 2FL-1.5C | 220V/50HZ | 3CFM | 0.2Pa | 15Microns | 1/3 | 220V/50HZ | 1440 | 1/4SAE | 300 | 340*135*260 | 10 |
| 90L/min | |||||||||||
| 110V/60HZ | 3.5CFM | 110V/60HZ | 1720 | ||||||||
| 108L/min | |||||||||||
| 2FL-2C | 220V/50HZ | 4.2CFM | 0.2Pa | 15Microns | 1/2 | 220V/50HZ | 1440 | 1/4SAE | 280 | 340*135*260 | 10 |
| 120L/min | |||||||||||
| 110V/60HZ | 5CFM | 110V/60HZ | 1720 | ||||||||
| 144L/min | |||||||||||
| 2FL-3C | 220V/50HZ | 6CFM | 0.2Pa | 15Microns | 3/4 | 220V/50HZ | 1440 | 1/4SAE | 600 | 390*145*280 | 16 |
| 180L/min | |||||||||||
| 110V/60HZ | 7.2CFM | 110V/60HZ | 1720 | ||||||||
| 216L/min | |||||||||||
| 2FL-4C | 220V/50HZ | 8CFM | 0.2Pa | 15Microns | 3/4 | 220V/50HZ | 1440 | 1/4SAE | 650 | 425*155*280 | 17 |
| 240L/min | |||||||||||
| 110V/60HZ | 9.6CFM | 110V/60HZ | 1720 | ||||||||
| 288L/min |

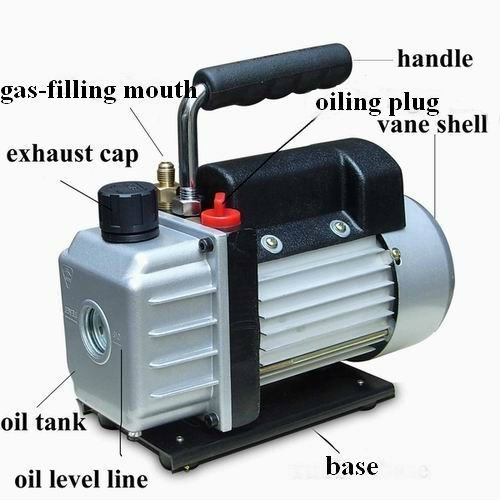

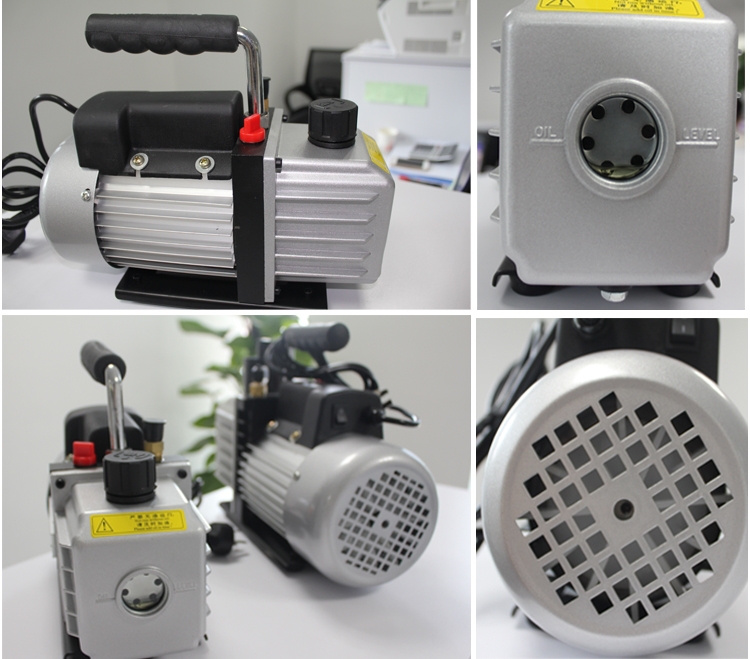

More Details of refrigeration hvac vacuum pump
More refrigeration hvac vacuum pump
1. Exported to 58 Countries and Beijing Olympic use Feili Pump
2. More than 90% customers make payment before meeting us!
3. Reorder rate up to 80%
4. Never sell any renewed pumps,we are Alibaba International Trade Insurance Enterprise
5. Quick response within 2-8hours, solve problems in 2 days.
About company:

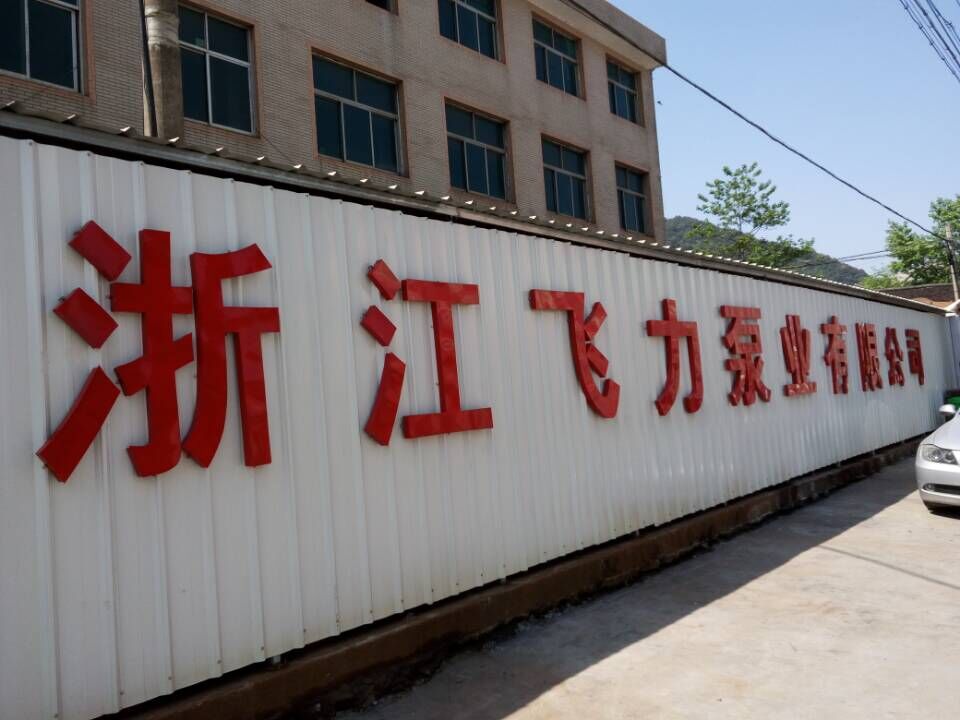

In 2005, Mr Chen established a company named Zhejiang Feili Pump Co.,ltd.,with 5 professional experienced engineers, 80 workers and a sales team in Taizhou. We always insist “best quality , long-term cooperation”,
that’s the reason why our reorder rate up to 80% for years. And we always offer quick response within 2-8hours, solve problems in 2 days .
Mr Chen wants the world know Feili Pump, so he decides to form a new export sales team in Hangzhou--which is a beautiful city famous for west lake, because E-business is very booming there. Now we have 2 sales departments, one is in Taizhou city, another is in Hangzhou city. Two young teams, will enlarge to more teams and do better in the future!
About Products:
We are professional manufacturer of sewage pump, solar pump, dc water pump, submersible pump, air
compressor, vacuum pumps. We have been this line for nearly 10 years, we never sell any renewed product.
Our products have been exported to 58 countries and areas. More than 90% customers make payment beforemeeting us!
Q1: Are you a factory or a trading company?
A: Pump manufacturer.
Q2: Can you do OEM?
A: Yes, we can. Any OEM are welcome!
Q3: How about the MOQ?
A: Usually, it is 1PCS for each model ac vacuum pump.
Q4: How about the delivery time?
A: Usualy, 10-30days. But it depends on your order quantity.
Q5: How about the warranty?
A: 1 year.
