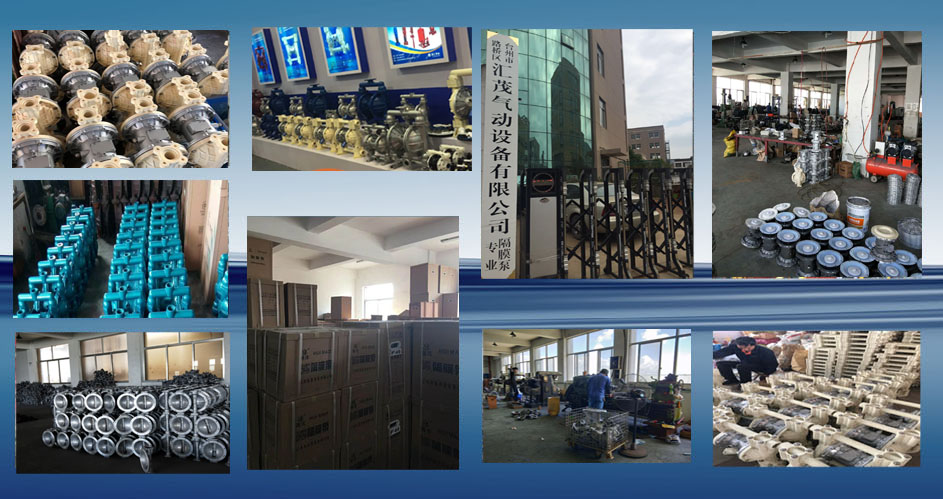

Workshop
Product Description

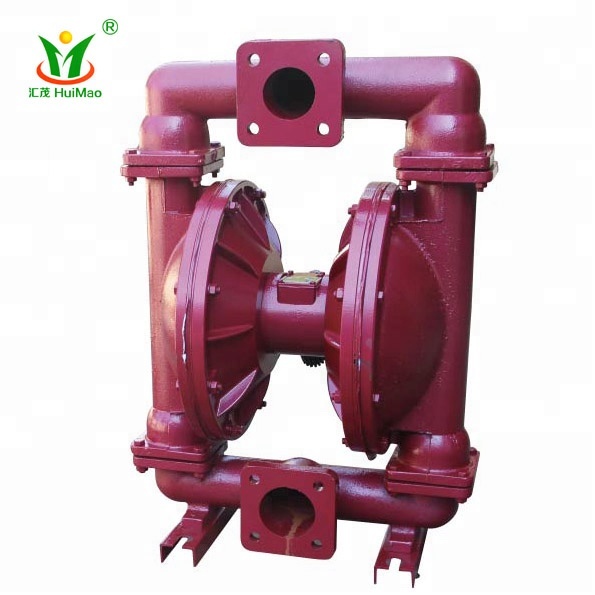

1. Item No.: QBY-3inch-CI (QBY-80CI)
2. Size of Product:
3. Size of inlet: 80mm
4. Size of out let: 80mm
5. Maximum of Suction range: 7m
6. Maximum of Pump head: 50 m
6. Maximum transport of solid particles: 8mm
7. Normal air Consumption: 1.1m3/min.
8. Usually Diaphragm: NBR
Main Features
a) No need of lead water, has the merit of self-sucking pump, dive pump, shield pump, slurry pump.
b) It can be immersed in media work
c) No need for oil lubrication of the pump, even the idling of pumps, it has no impact
d) The outlet pressure and flux has reached no step adjustment through the valve opening adjustment
e) Can transmit the adhesive liquid and large particles
f) Diversity of material,no rotating parts,applicable to various erosive situations
g) By changing the air supply to adjust the flow delivery
h) By changing the air pressure to adjust the pump lift
i) Once over-loading ,the pump will automatically stop
j) No mechanical seal, easy maintenance, low cost,
k) Modularization of main valve and air motor. No broken, easy to disassemble and repair.

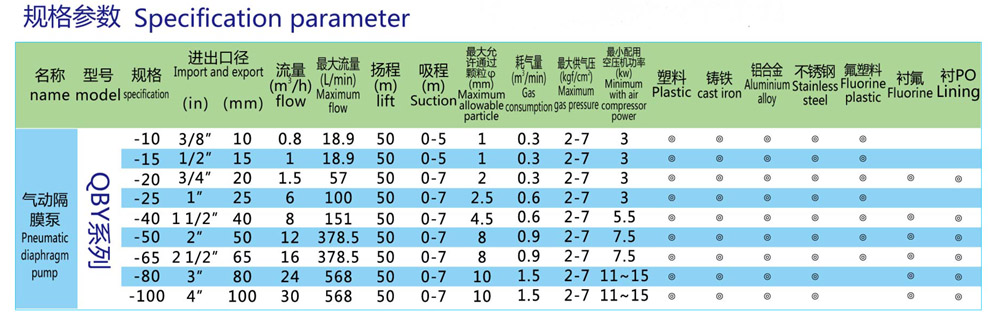

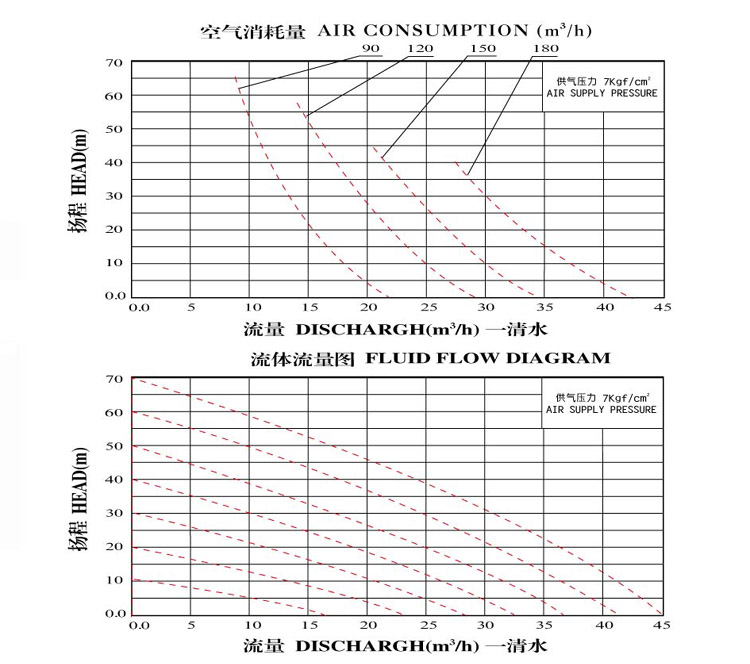

Specification
Company Information
Taizhou Wemore Pneumatic Equipment Co., Ld is located in Taizhou Binhai Industrial zone, It was founded in 2008 and it is specialize in reseaching and producing the pneumatic diaphragm pump .The pneumatic diaphragm pump is new liquid transmission machinery and it is the most innovative category of pumps. Powered by compressed air, a variety of corrosive liquids, liquids with particles or high viscosity, volatile, flammable or highly toxic liquids can be pumped thoroughly.
The company has a number of high-quality scientific research personnel and management team, to focus on the diaphragm pump research and development, learning from advanced foreign technology on the basis of constant innovation, formed to Geely, Huimao of a variety of models of diaphragm pump series, products sold at home and abroad, by the user trust, for many years been rated as the national product quality supervision and spot checks of qualified enterprises. The company always adhere to the "quality survival, reputation and development" business philosophy, the use of scientific management mode and advanced production testing equipment, and continuously forge ahead, constructing a comprehensive marketing network, and strive to improve customer service services, and actively build diaphragm pump industry well-known brands.
Welcome new and old customers to inquire negotiate. Thank you!
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample charge.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
