Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
-Max pressure up to 10 bar
Pump's construction:
-Pump body: Plastic or stainless steel
-Impeller: PP/stainless steel
-Motor shaft: Stainless steel
-Mechanical seal: Ceramic and graphite
-Insulation class: B/F
-Protection Class: IPX4
Idea For:

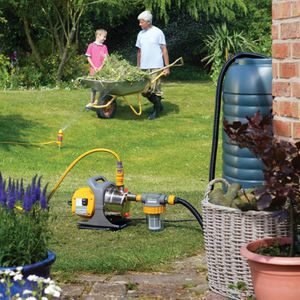

- Water supply from rain barrels
- Pressure booster, irrigation system
- Installations/ apparatus industry, industrial applications
- Rain water utilisation, filter sytems, lowering of ground water
- WC flushing supply with washwater from wells or tanks
Pump's Application:

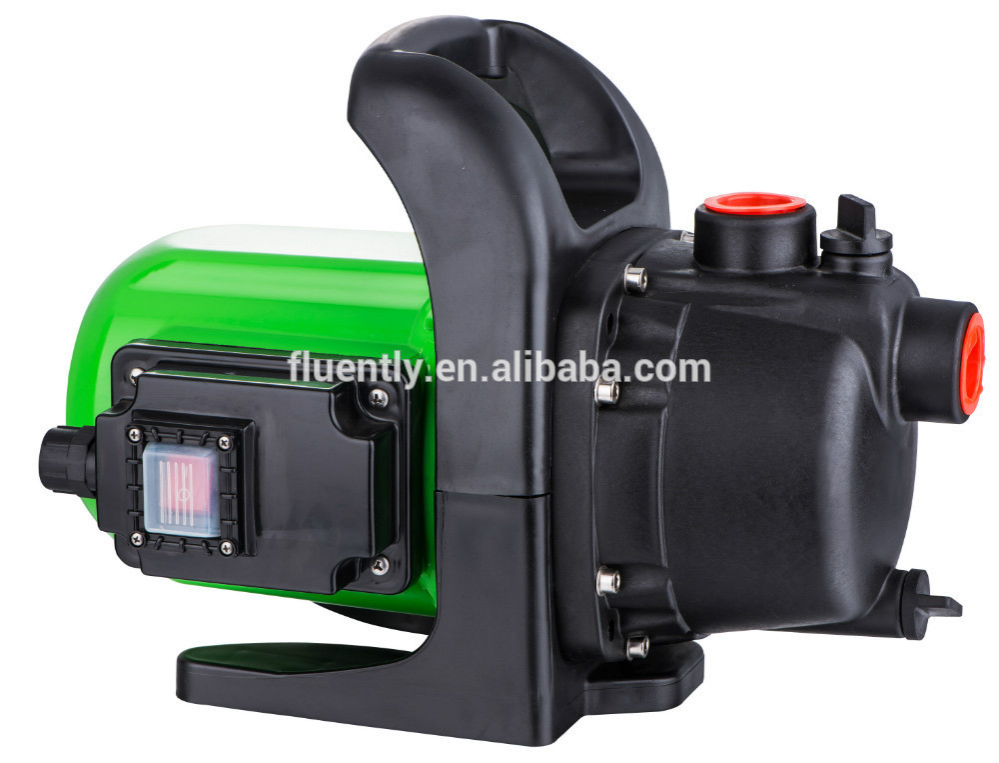

- Garden jet pump can be uses as a boost up household water pressure on clear water, such as gardening, water supply and washing. Stainless steel housing prevented rust and long lasting.
-These pumps should be installed in a covered area, protected against the weather.
-It's always advisable to install a foot valve or non-return valve on the suction opening.

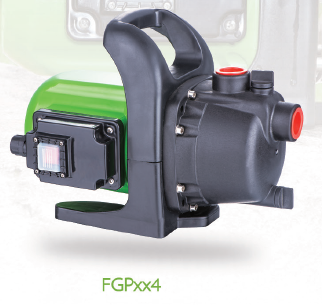

FGPxx4 ("xx" standard for power watt)

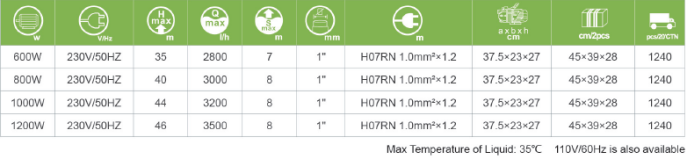

Specification:

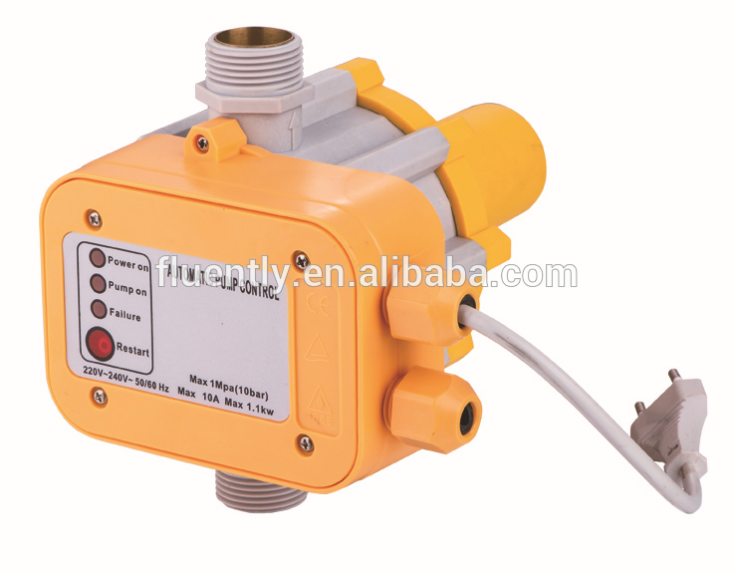

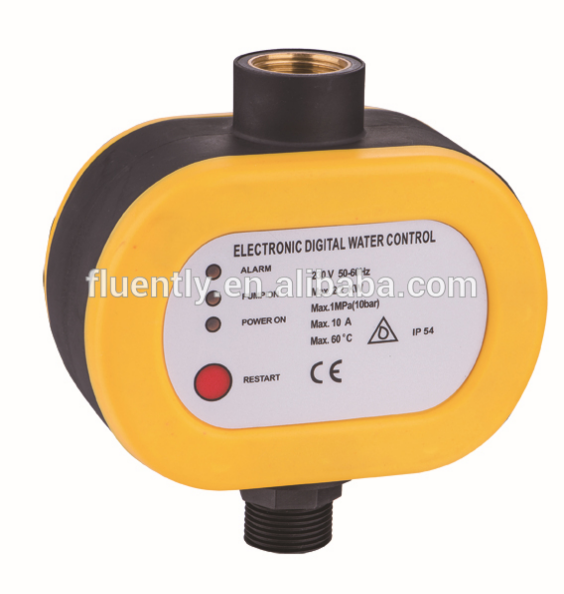

Electronic Pressure Controller Is Optional For All Garden Surface Pump
