200 hp 100kw farm high suction drilling pressurizing centrifugal pump

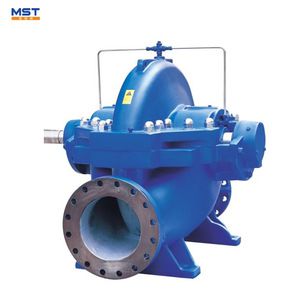

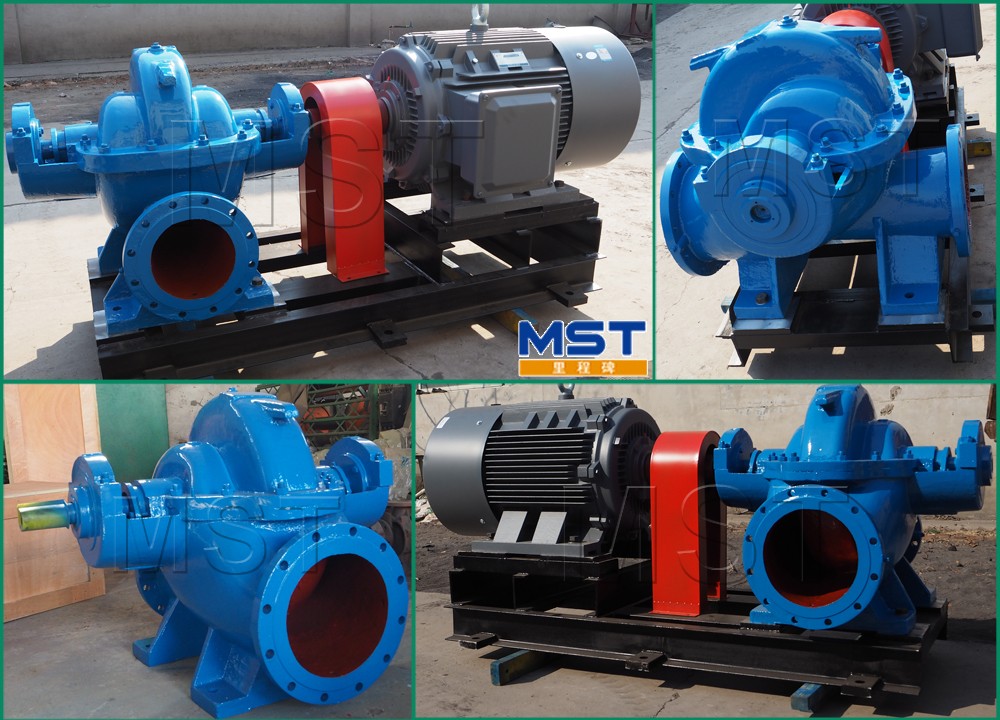

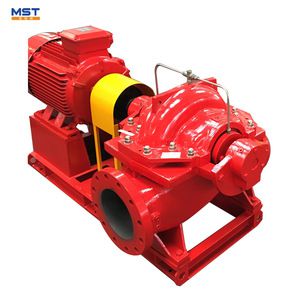

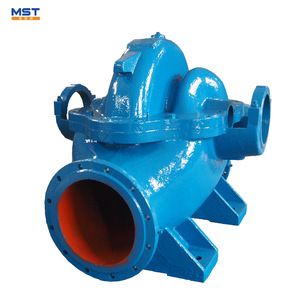

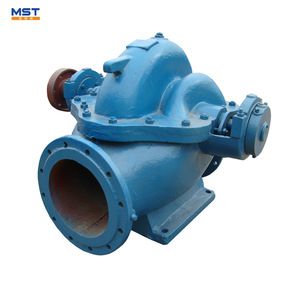

S (SH) series 500hp split case water pump with motor are late-model energy-saving horizontally split pumps newly developed by us on the base of the old style double suction pumps at home and abroad.

500hp split case water pump with motor are used to handle clean water or other liquids similar to waterin physical and chemical properties.medium temperature not exceeding 80°C.This series of pumps are applicable for water supply for factories,mining,urban water supply  and drainage,power stations, farmland irrigation and drainage,and soon.Shaft sealing is soft packing sealing.

Pump Features :

1:   Adopts horizontal, vertical axis medium open type double pump shell structure, lining for cemented carbide  or rubber has good wear-resisting, corrosion resistance and high reliability.

2:  High efficiency hard alloy, and low NPSH.

3:  to meet the different operation conditions, adopted the brief type structure bearing parts, selected high bearing capacity design, alloy bearing grease lubrication oil.

4:   through adjusting the clearance between protection board and impeller, ensuring the pump efficient operatio.

5:   using packing seal, impeller sealing , container type mechanical seal to adapt to different operating mode requiremen.

6:   Pump and drive can choose straight league transmission, triangle, hydraulic transmission device coupled transmission, reducer drive.

7:   the outflow direction can be installed by eight Angle rotation to adapt to different site installation condition.

8:   available to use multipole series, to satisfy the long-distance transmission requirements.

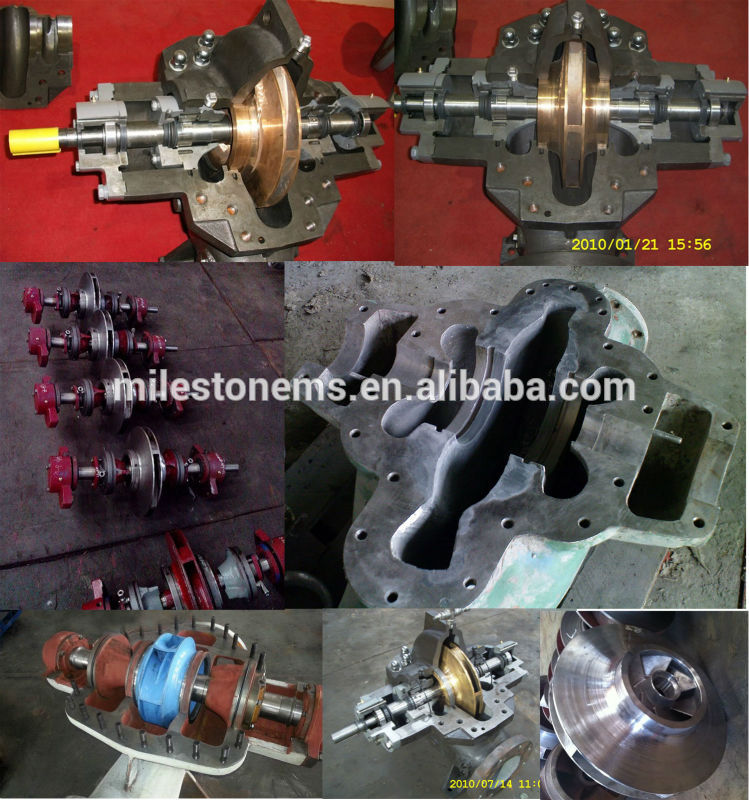

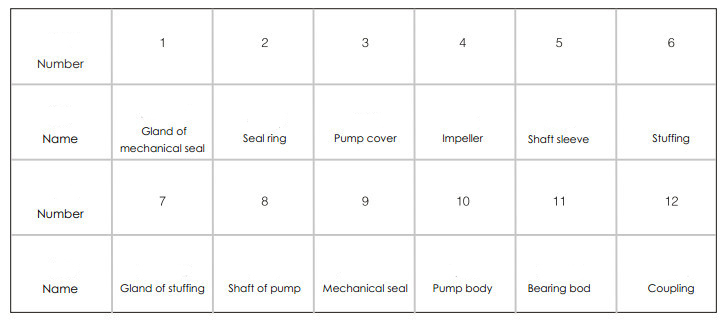

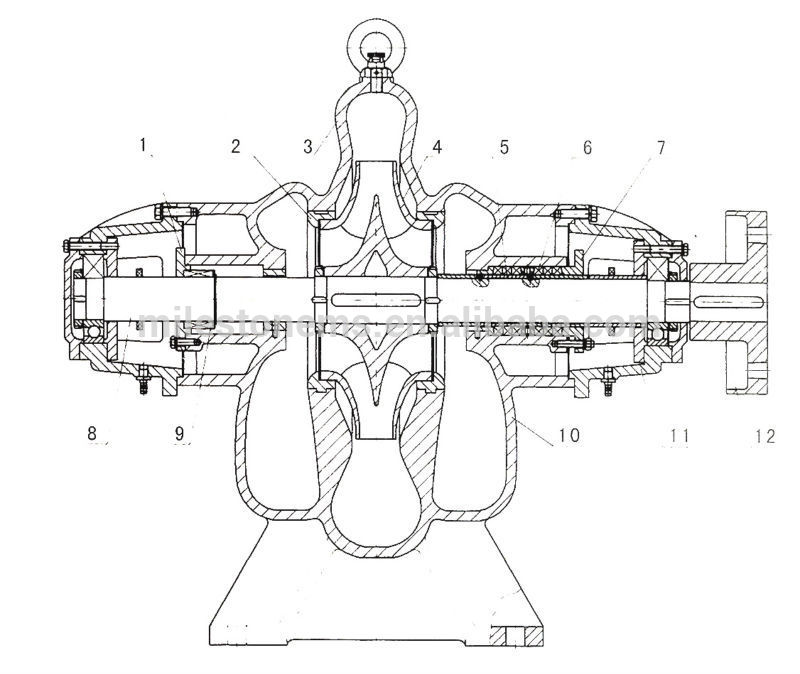

n Construction drawing

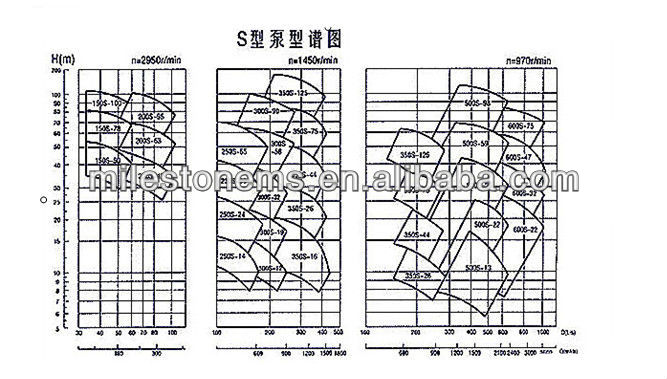

n Curves Chart

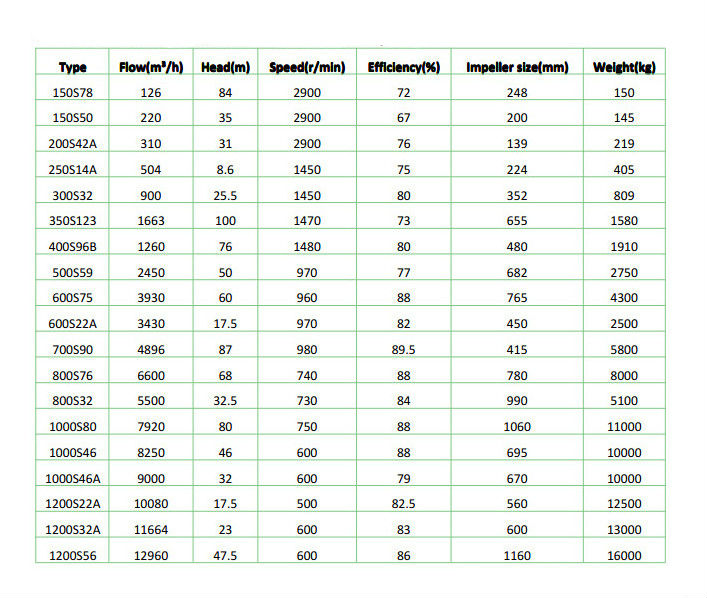

Parameter Table

• 20 years experience of manufacture with 5 years oversea service.
• Advanced equipment with qualified engineers.
• Large foundry to control excellent quality.

Why always me, because we do pump right!!!
