Compressed Air Driven Liquid CO2 Booster Pump-DGGDSeries

Fire Extinguisher CO2 Filling pump

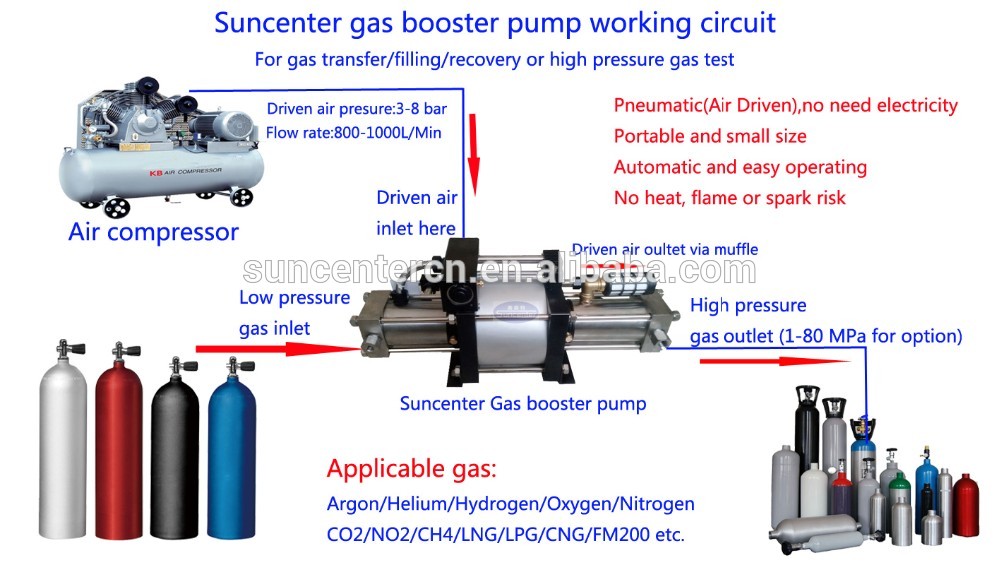

SUNCENTER pumps are air driven at a drive air pressure of 2 to 10bar (29 to145 psi) by the  normal air compressor. Basically the principle of operation is similar to a reciprocating amplifier where control of the piston at the end position is regulated by a pilot operated 4/2 way valve.

Suncenter pumps feature a large air piston joint to a smaller diameter plunger. The pressure ratio is the difference of these two areas and is the method of determining maximum outlet pressure. Higher pressures obtained by using higher pressure ratios.Suncenter model numbers reflect the pumps nominal pressure ratios, while the technical data indicates exact ratios. The outlet pressure is easily to set through a simple air regulator. By multiplying the pressure ratio by the available shop air pressure, the nominal outlet pressure can be calculated.

Key features include:

1.Compressed Air driven - no electricity required (connect to normal air compressor)
2.In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar
3.No airline lubricator required
4.Max Pressures up to 640Mpa (6400 bar)
5.Wide range of models with different ratios
6.Built-in-cooling on most models
7.Easy to install, operate and maintain
8.Best price / performance ratio
9.No heat, flame or spark risk and explosion proof
10.Automatic pressure holding, whatever the cause of the pressure drop,
the Suncenter   pump will automatically start, keep the loop pressure constant

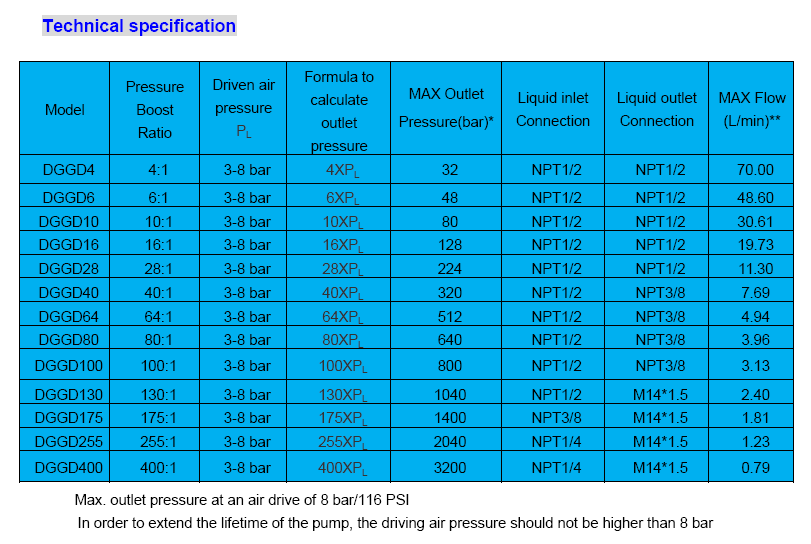

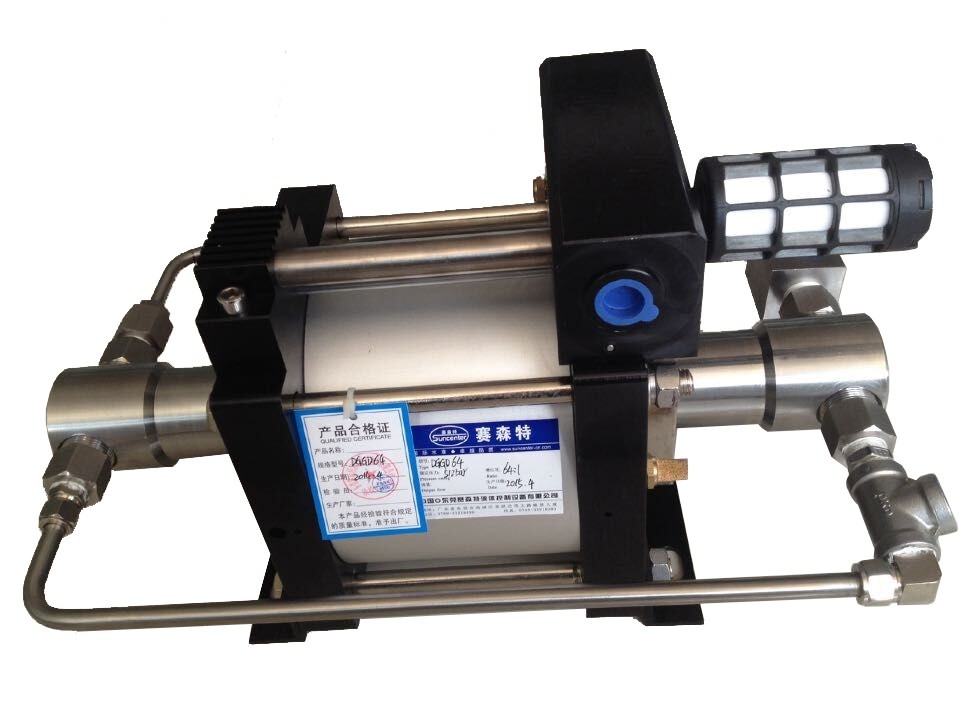

DGGD Series Liquid CO2 Booster Pumps(Double acting, single air drive head)

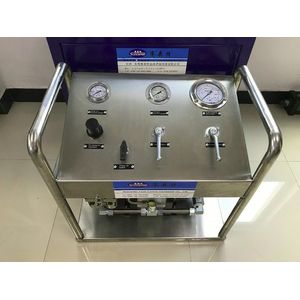

Suncenter DLS Series  Liquid CO2 filling booster pump system
Fire Extinguisher CO2 Filling equipment

SUNCENTER- CO2 booster pump system are compact and delicacy solution tailored to customer specific requirements with air driven pumps as well as all accessories to be fitted and installed on the frame or in closed cabinet.

To operate this system, the pressure gauges, valves and pressure regulators have to be fitted on panels. The outlet pressure is easily to be set through a simple air regulator. The pump stops automatically when this end pressure is reached and restarts with a slight drop in the outlet pressure or an increase in the air drive pressure.

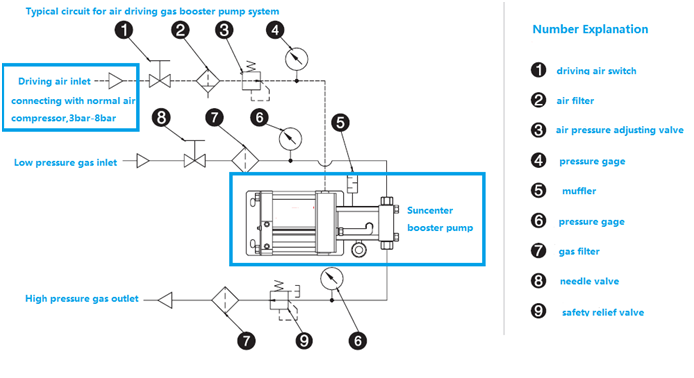

As the pressure will be generated by means of a pneumatically operated pump,the electric connection will not be necessary. To operate this system, the air driven pump have to be equipped with the air control unit combined filter, pressure-regulating valve, pressure control gauge as well as manual relieve valve. In this operation, the pump will be mounted to the stainless steel tank in the closed cabinet in a compact and space saving manner. Pressure gauges, valves and pressure regulators will be fitted on panel.

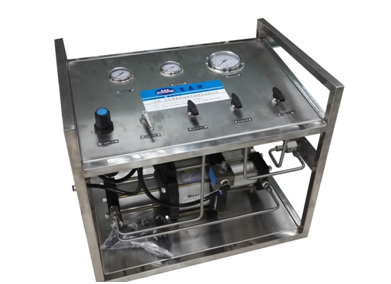

DLS-DGGD Liquid CO2 booster system = booster pump+ following valves, gages, and parts

The standard CO2 gas booster pumps system including following parts:

Air –driven liquid CO2 gas booster pump
Stainless steel (carbon steel) material cabinet (Three models for choosing)
F.R.L combination for driven air (adjusts air pressure, add lubricating oil and water filter)
Driven air switch (Pump starting switch), driven air pressure gauge
Gas inlet switch, Gas inlet pressure gauge
Gas outlet switch, Gas outlet pressure gauge, unloading valve, interconnecting pipes etc.
And we could also customize it according to clients’ special requirement

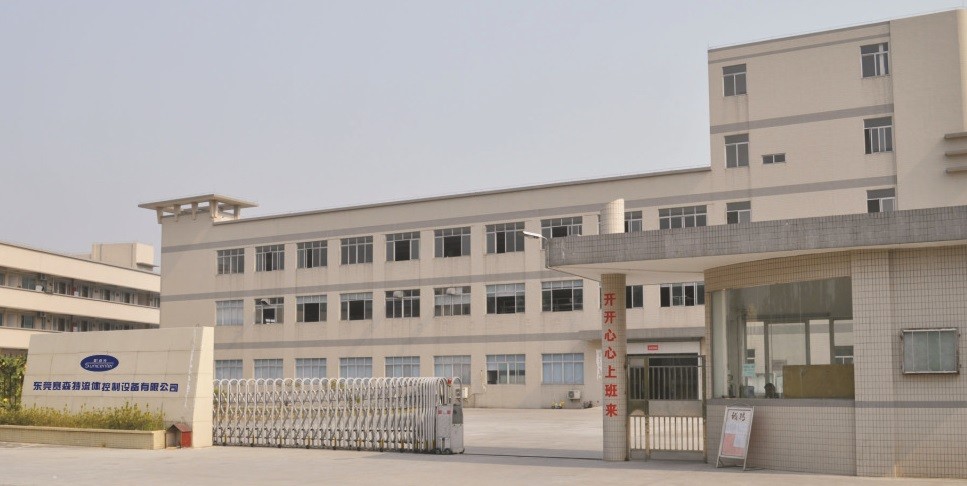

Suncenter Fluid Control Equipment Co., Ltd is the memeber company of Suncenter Group,which is located in Dongguan city of Guangdong province in China.With more than 15 years experiences in fluid pressure exchange and controlling field, we provide various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best product quality,competitive price as well as excellent after-sales service, we have win a great reputation in the field.

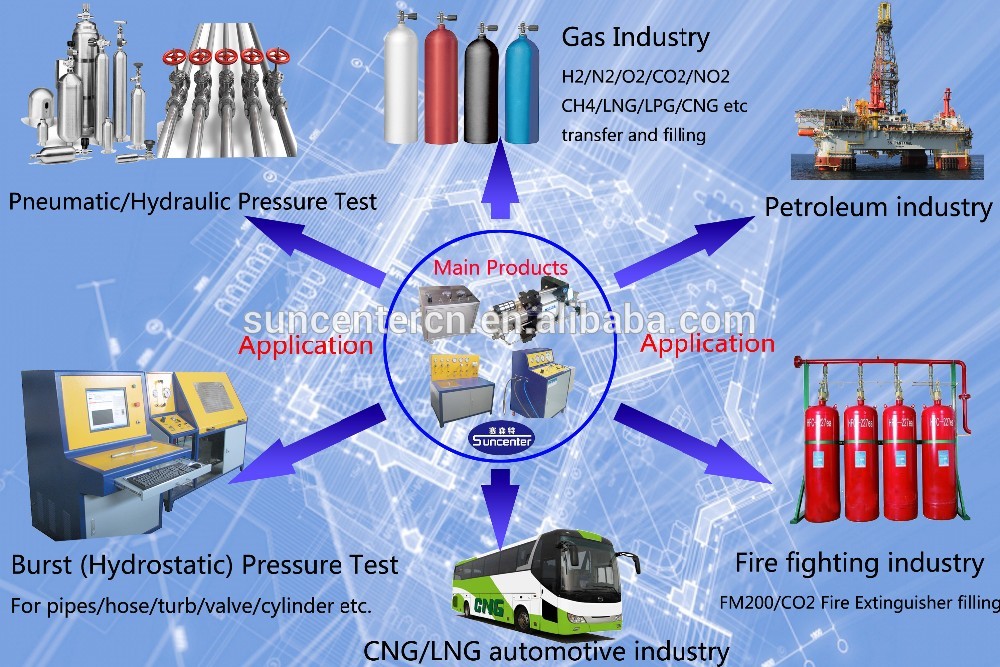

Our main products including:
Pneumatic Booster Pumps (Air Driven Gas Booster Pump,Air Driven Liquid Pump,Air Amplifiers)

Pneumatic Booster Systems (Air Driven Gas/Liquid Booster Stations, HFC-227ea/FM200 filling machine,

High Pressure Hydraulic/Pneumatic Test Machine,Burst/Hydrostatic pressure testing machine,

Impulse Testing Machine,etc.)

If you are interested in any of our products, please feel free to contact us, we could also make the customized products according to your special requirements.

How to Select Suncenter Air Driven Gas Boosters/Systems?

In order to choose suitable booster pump or systems for you,

please kindly reply us the following questions:

1.What is your present gas pressure?(    )bar

2.What is your gas?oxygen gas,nitrogen gas or other gases?

3.What outlet gas pressure do you want?(    )bar

4.What driven air pressure (of your air compressor) can you offer?(    )bar,

because our booster is completely air operated and no need any electricity

5.What outlet gas flow rate do you need?(    )L/min

How to Select Suncenter Air Driven Liquid Boosters/Systems?

In order to choose suitable liquid booster pump or systems for you,

please kindly reply us the following questions:

1.What is the liquid you want to booster?

2.What outlet liquid pressure do you want?(    )bar

3.What driven air pressure (of your air compressor) can you offer?(    )bar,

because our booster is completely air operated and no need any electricity

4.what outlet liquid flow rate do you need?(    )L/min
