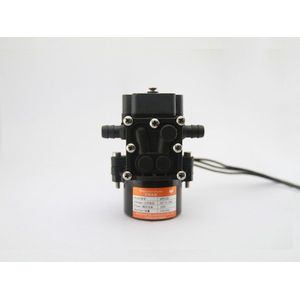

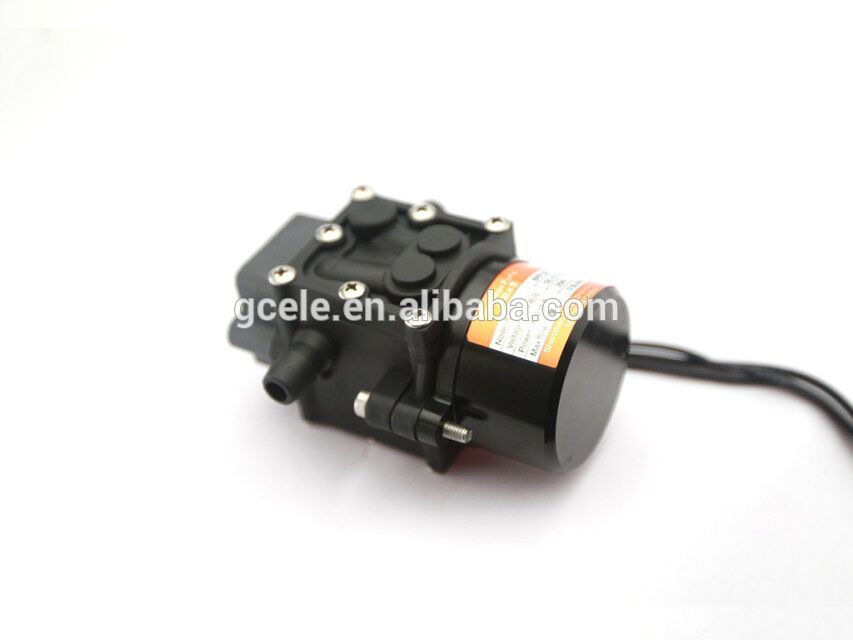

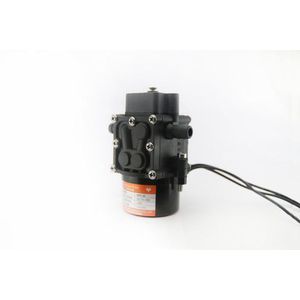

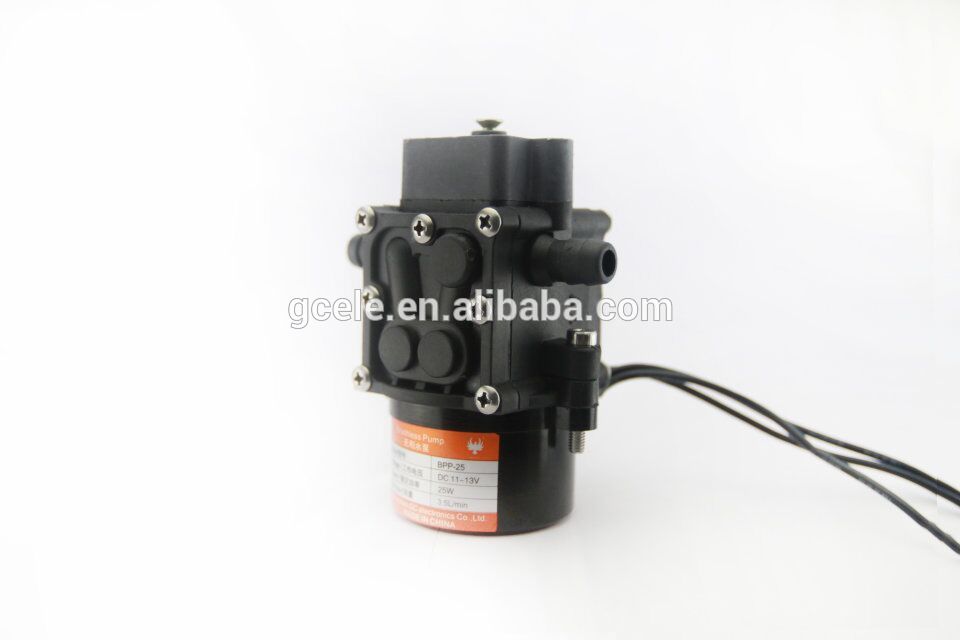

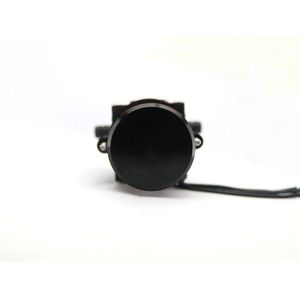

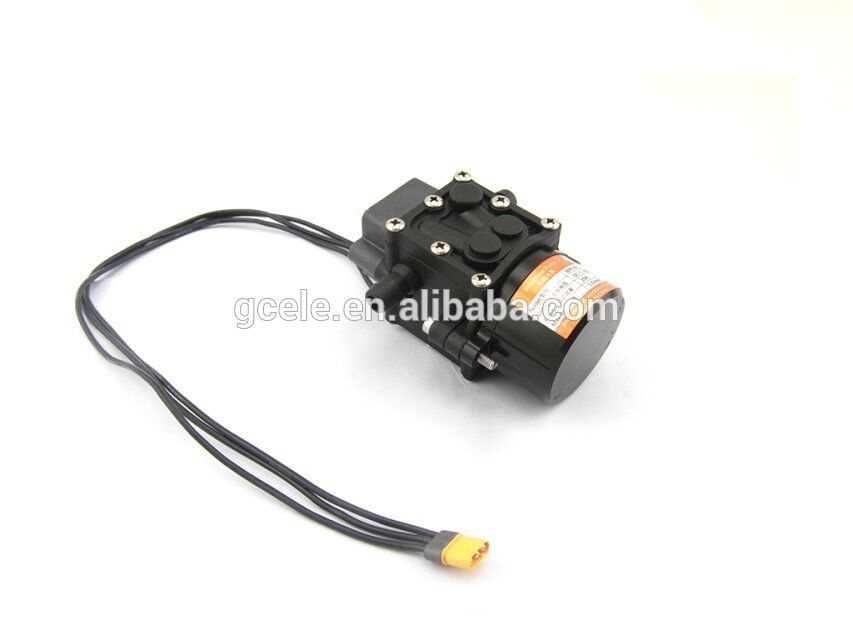

JMRRC DC 22-25V Brushless high pressure electricmini pump water pump with lower noise diaphragm pump
Comparable with ordinary water pump, this kind of brushless water pump has lower noise, smaller volum, lighter weight.

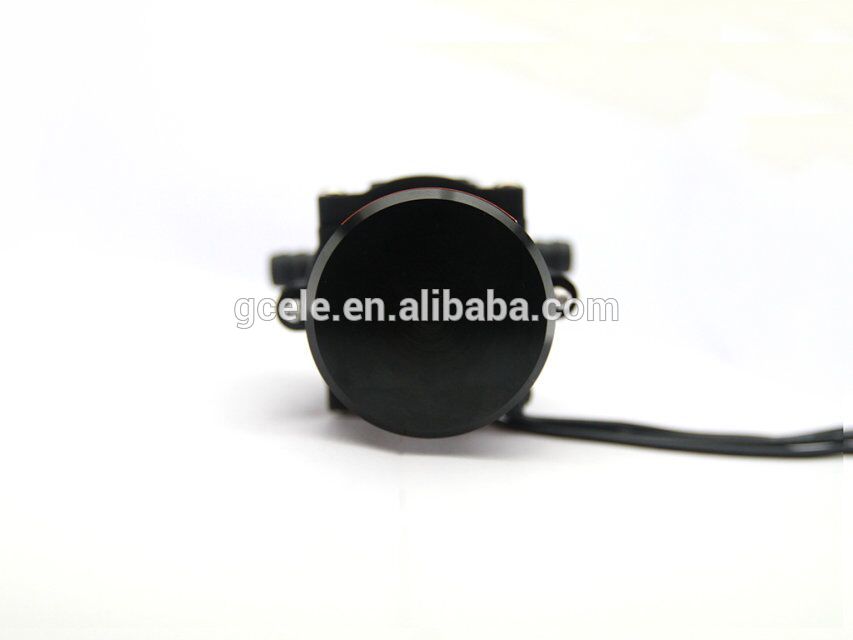

Pump motor is using imported bearings to extend the service of motor life. The motor shell is made of aluminum alloy, to alleviate the heat caused by long working.
| Model | BPP-25 |
| Working voltage | DC 22-25V |
| Power | 25W |
| Max flow | 3.5L/min |
| Pressure | 1mpa |
| water inlet diameter | about 10mm |
| Dimension | 99.6*71*52.5mm |
| Weight | 284g |

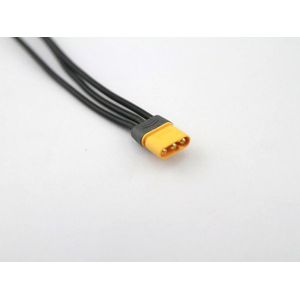

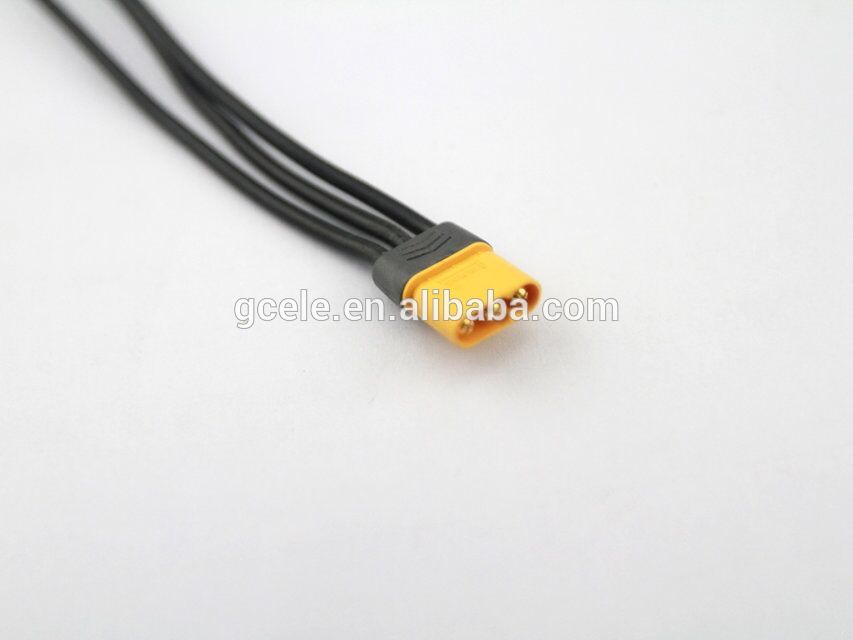

The water pump is using the Amass MR30 plug
1, Lower nosie when working, small volum, light weight
2, pump is made of CNC processing sealed aluminum, it has the effect of dust-proof, anti-rust, waterproof cooling.

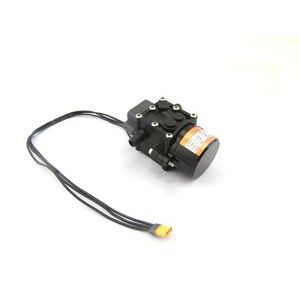

3, Matching long extension line, using Anti-slip MT30 tree-core plug. WIth high reliability, safe and convenient for fasting plug in/out.
4, There is a instruction of water outlet direction on the pump.
5, Pump can be assembled on any direction.
1, The water pump must assemble the water pump electronic switch, it can not connect the power supply directly.
2, The water pump motor can not use in the water.
It is used for:
Shenzhen GC Electronic Co, Ltd specializes in the production of multi-rotor completed UAV drones and accessories. The company takes "always providing customers with high-quality products" as its core. We have designed a variety of 3k full carbon fiber frames for 4,6,8 Axis aircraft. We also producing the high efficiency brushless power system.
Our products are mainly used for aerial photography, entertainment, agriculture and security, etc. We try to make lighten frame and reasonable structure to bring a better performance.
