Product Application：

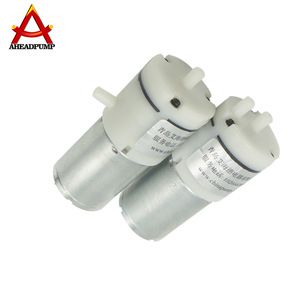

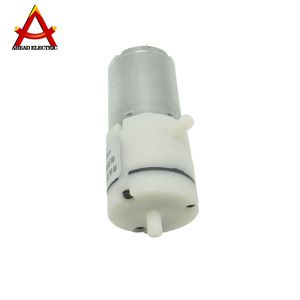

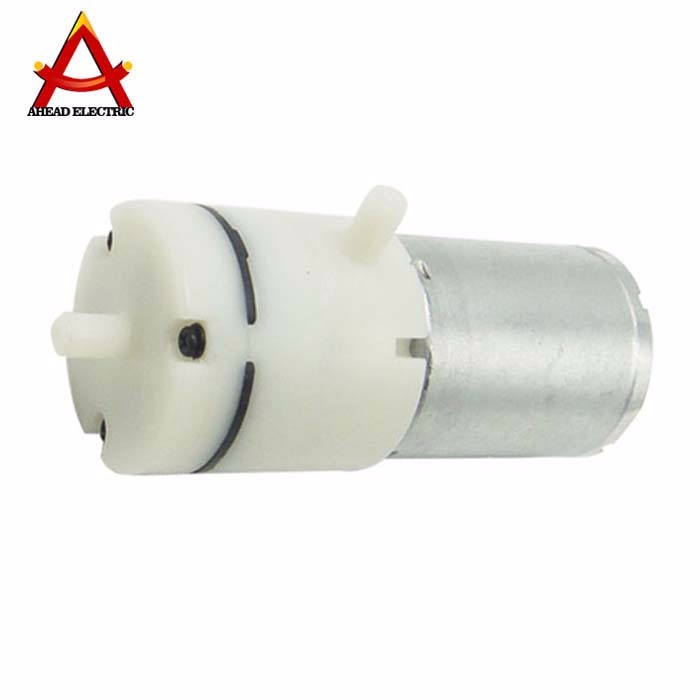

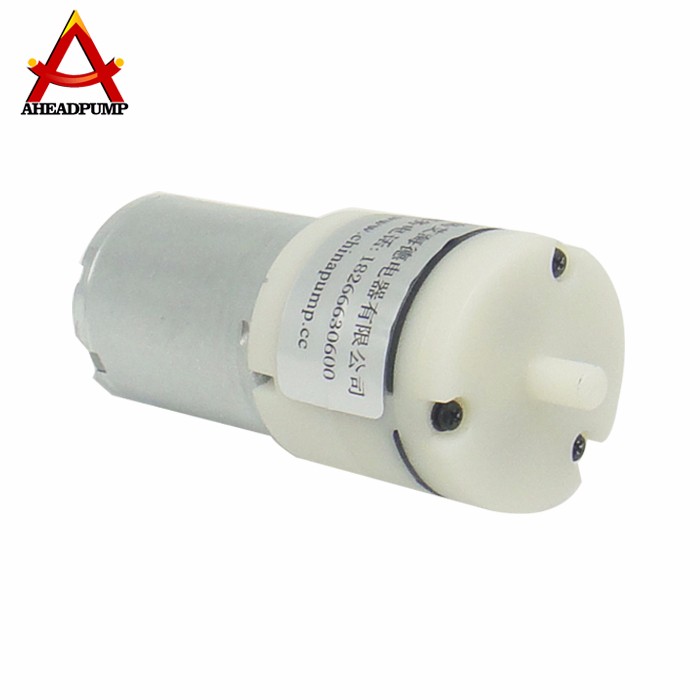

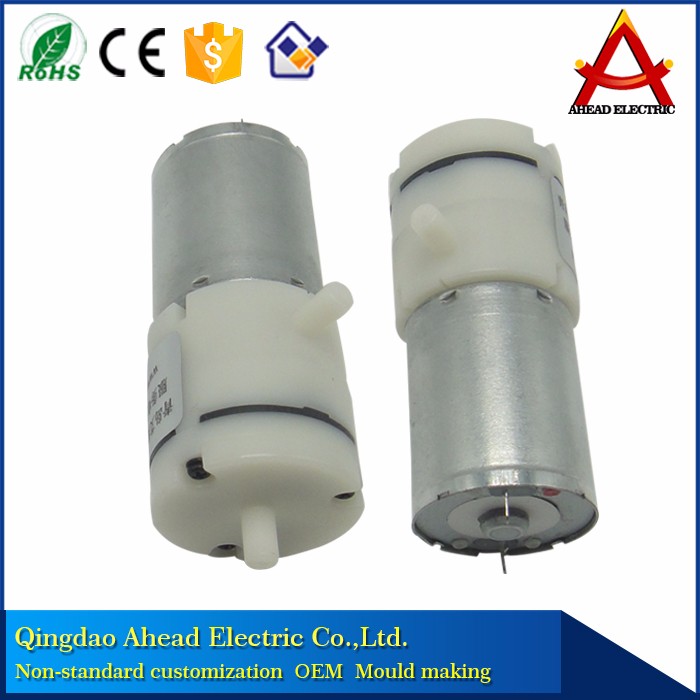

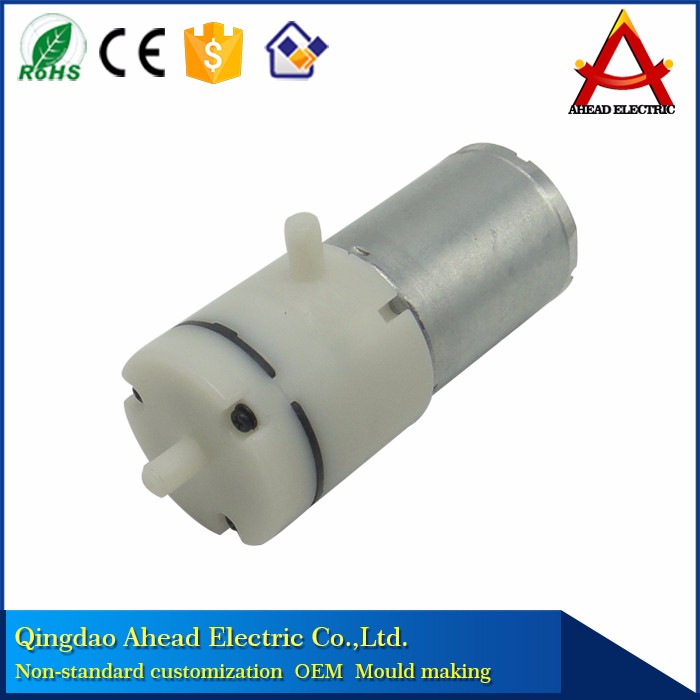

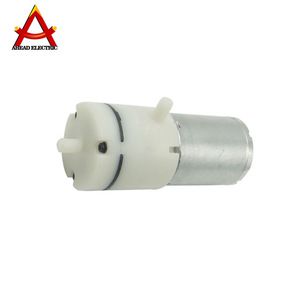

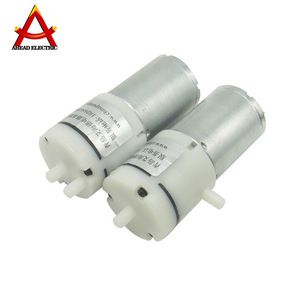

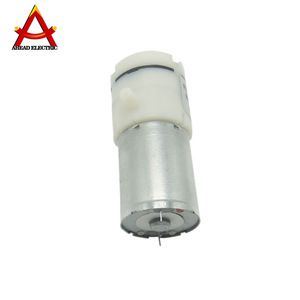

1.6v 12v dc mini battery operated medical high pressure diaphragm electric vacuum pump
2.voltage:DC3/6/9/12/24V
3.1.8-2L/m,max -60Kpa
4.Noise:less than 35 dB
5.OEM label offer
| 6v 12v dc mini battery operated medical high pressure diaphragm electric vacuum pump | |||||

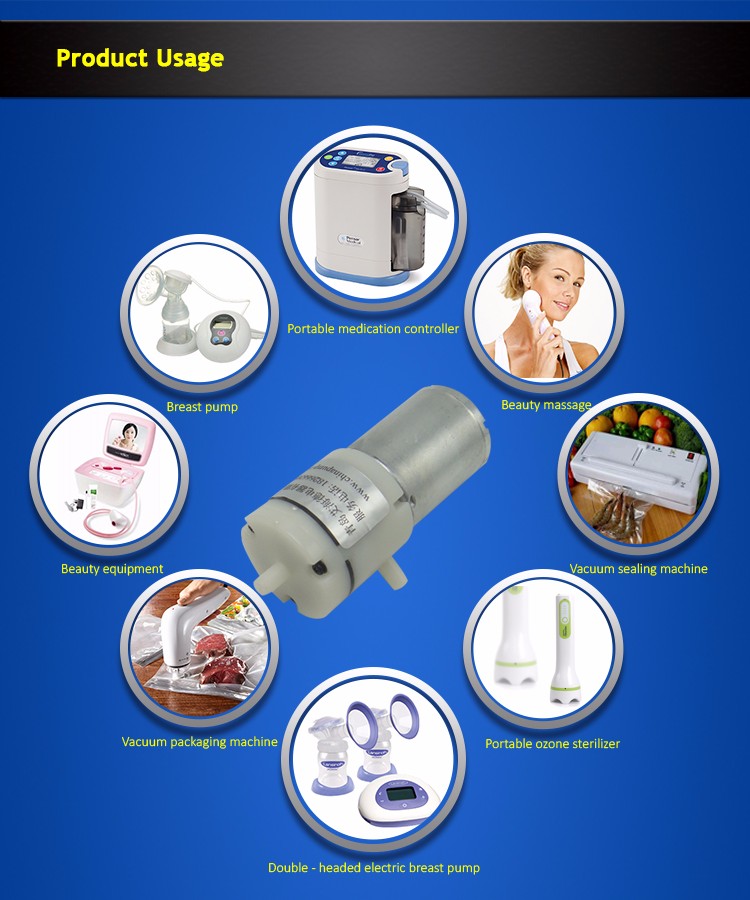

| Apply for:Medical massage equipment, hematomanometer,memory pillow, ventilators and other inflatable products. | |||||
| Model | A120 | ||||
| Rated voltage | DC 3.0V | DC 6.0V | DC 9.0V | DC 12.0V | DC 24.0V |
| Rated current | < 600mA | < 300mA | < 200mA | < 110mA | < 75mA |
| Air inflation time | ≤10S | ≤10S | ≤10S | ≤10S | ≤10S |
| Gas flow | >2.0LPM | >2.0LPM | >2.0LPM | >2.0LPM | >2.0LPM |
| Max pressure | -30~-60Kpa | -30~-60Kpa | -30~-60Kpa | -30~-60Kpa | -30~-60Kpa |
| Gastight | ≤3mmHg/min | ≤3mmHg/min | ≤3mmHg/min | ≤3mmHg/min | ≤3mmHg/min |
| Load noise | 35~ 40dB | 35~ 40dB | 35~ 40dB | 35~ 40dB | 35~ 40dB |
| Life time/hour | > 500H | > 600H | > 600H | > 600H | > 600H |

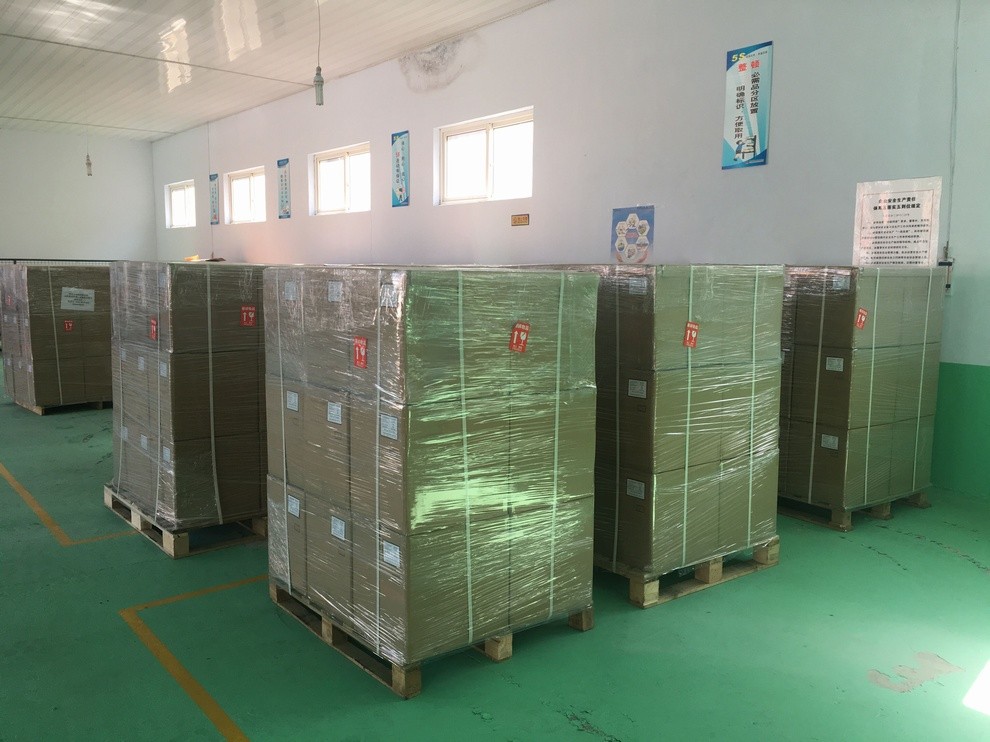

| Packaging | |
| Size | 400 * 350 *430(mm) |
| Weight | 16kg |
| Packaging Details | 6v 12v dc mini battery operated medical high pressure diaphragm electric vacuum pump The box size is 400 * 350 *430(mm). weight is 16kg. |
Shipment Service
* Inquiry and consulting support.
* Sample testing support.
* It supports a variety of Express.
Technical Service
* design service.
* buyer label offered.
1.Q:Where is your company located?
A: Our factory is located in Qingdao City, Shandong Province, China.
2.Q:Which product will applied to?
A: Used in Small home appliances, medical massage equipment, medicine nebulizer, Dilatancy machine, memory pillow, breathing machine, display cabinets, aquariums, tourniquet, sphygmomanometer, gynecological treatment apparatus, enema machines and other rehabilitation therapy devices and other products.
3.Q:What is the product structure?
A:It's a micro-diaphragm brush motor vacuum pump.
4.Q:What's the max vacuum pressure?
A:We can produce as customer requirments,such as -25Kpa~-60Kpa.
5.Q:What's the lifetime of the pump?
A: According to customer requirements,our company provides 600 ~ 1000 hours standard and 1000 ~ 1500 hours non-standard pump. For beauty equipment and medical products are guaranteed for one year.
6. Q:What's the working environment?
A:This product needs to work at a stable voltage, if customer needs to work under fluctuating voltage, please contact customer server and tell the detailed requirements of the product, we make samples as your request, after it is confirmed,then produce mass production.
7.Q:What's the forbidden working condition?
A:The product is forbidden to sun exposure, can not work in wet environment.
Forbidden to reverse the positive and negative.
8.Q:How to test the noise of the pump?
A:Put 5cm sponge under bottom of the pump , 40cm away to test the noise in noise room.
9.Q:What's kind of shipping methods for shipment?
A:We are big customer of Fedex,we usually ship samples via it.
We can ship production as customer requirement such as Fedex, by sea or shipping agent.
10.Q:What's package of the product?
A:225pcs/carton, the carton size is 30*25*25cm.
If you need OEM package,please contact the customer server.
11.Q:How to get the free samples?
A: Please supply your company name and web to our customer server to arrange.
If you pay us the sample fee,we will return to you after mass production.
12.Q:What's the certification your product have?
A:Our products have CE, RoHS certification, also offer UL and food-grade standard products.
