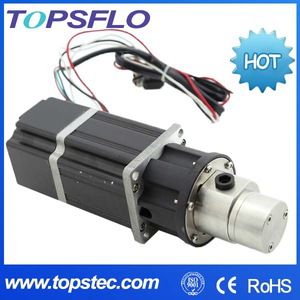

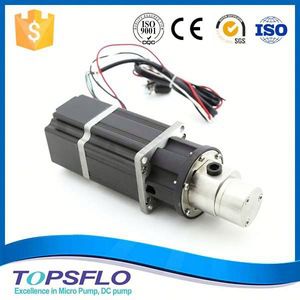

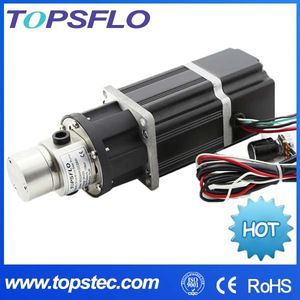

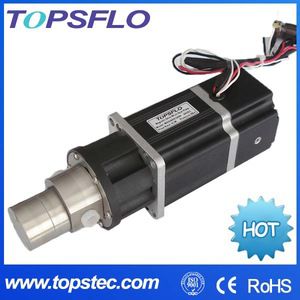

DC Brushless Magnetic Drive Pump / High pressure gear pump/high pressure water pump
OEM and ODM service are avaiable under your request.
The specifications only for reference, for details, please contact with us!
High precision brushless high pressure commercial hydraulic gear pump
OEM and ODM service are avaiable under your request.
Technical Feature
- China (Mainland)
- TOPSFLO
- MG200XK/DC24WI
- Rotary Pump
- Gear Pump
- Water, oil, various liquid
$180~300
PRIMARY PARAMETERS
Place of Origin
China (Mainland)
Brand Name
TOPSFLO
Model Number

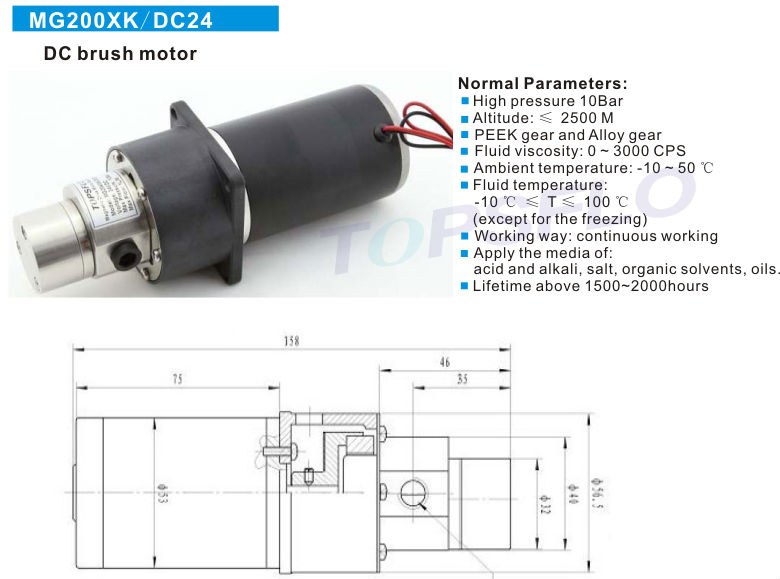

MG200XK/DC24WI
Theory
Rotary Pump
Structure
Gear Pump
Usage
Water, oil, various liquid
Power
Electric
Standard or Nonstandard
Standard
Fuel
DC power, Battery
Pressure
High Pressure
Application
Various liquid transfer or boosting, hemodialysis machines, printing chemicals,water treatment,
Temperature range
-10~100 Celsius degree
Certificate
CE,RoHS, ISO9001
Motor
DC brushless motor
Pump Material
316 L stainless steel
Liquid
water, oil, chemical liquid
Gear Material
PEEK, PPS
Pressure output range
1bar 7bar 10bar
Flow Range
Voltage
24vdc.
