Sailflo12v 160PSI high pressure diaphragm pump/water pumping machine with pricepump

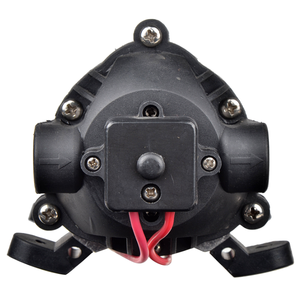

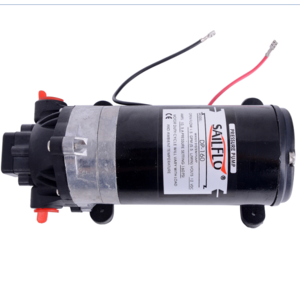

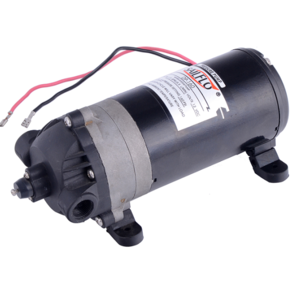

| SAILFLO 3 Chamber DC Diaphragm Pump DP Series |
| This series pump with high pressure, Perfect for portable car wash machine, carpet clear machine,sweeper and agriculture sprayer etc. Use it with fresh or weak acid/ alkaline liquid. These pumps automatically turn on and off when you turn the tap on and off. We have tested these pumps and found they will operate to a 2 metre suction lift and 11 meters head. |
| Feature: | |
| Type: | 3 Chamber Diaphragm |
| Port Size: | 3/8” BSPT Female Thread |
| Liquid: | 140°F [60 °C] Max |
| Self-priming: | 6 feet [about 2M] |
| Max pressure | 160psi(11bar);can be adjust to 170psi. |
| Run Dry: | Yes (within 30 second) |
| Motor: | Permanent Magnet, Intermittent |
| Duty Protection: | Thermal Overload, Automatic Restart |
| Volts: | 12/24 VDC motors standard |
| Standard Connector: | 1/4” BSPT Male Thread, 3/8” hose barb |
| Approved Certificate: | CE and RoHS |
| √ High volume flow rate, Built-in chec valve |
| √ Permanent Magnet motor with longer lifetime |
| √ Antivibration pad,easy installation. |
| √ Self-priming,Top quality Automatic Pressure Switch. |
| √ Thermally Protected |
| √ Low Noise,with excellent resistant to chemical corrosion. |
STANDARD PUMP CONFIGURATIONS
| Model | Volt | Flow(LPM/GPM) | Pressure(PSI/BAR) | Valve | Amp Draw(A) |
| DP-60 | 12 | 4.6(1.2) | 60(4.1) | EPDM/VITON | 7.0 |
| DP-60B | 24 | 4.6(1.2) | 60(4.1) | EPDM/VITON | 4.0 |
| DP-80 | 12 | 5.5(1.5) | 80(5.5) | EPDM/VITON | 8.0 |
| DP-100 | 12 | 5.5(1.5) | 100(7.0) | EPDM/VITON | 9.0 |
| DP-120 | 12 | 5.5(1.5) | 120(8.3) | EPDM/VITON | 9.5 |
| DP-120B | 24 | 5.3(1.5) | 120(8.3) | EPDM/VITON | 4.5 |
| DP-160 | 12 | 5.5(1.5) | 160(11.0) | EPDM/VITON | 10.5 |
| DP-160B | 24 | 5.5(1.5) | 160(11.0) | EPDM/VITON | 4.2 |
| XIAMEN USAIL INDUSTRY AND TRADE CO.,LTD has specialized in research ,design and |
| manufacturing multiple micro diaphragm water pump,Bilge pump, Washdown kit,Agricultural |
| sprayer and Garden tools etc more than 10 years. |
| Quality is first, SAILFLO pumps had been approved with the CE and RoHs international |
| Certificate.We are devoted to develop excellent products to meet customers' demand.The |
| products have a good market in North America ,South America ,Australia,Europe and others |
| countries and regions. OEM/ODM custom service is warm welcome.We sincerely welcome domestic |
| and overseas clients to negotiate business and build up good relations for creating bright future! |
