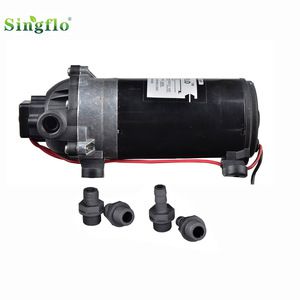

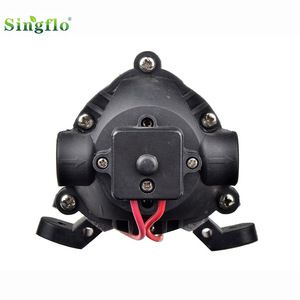

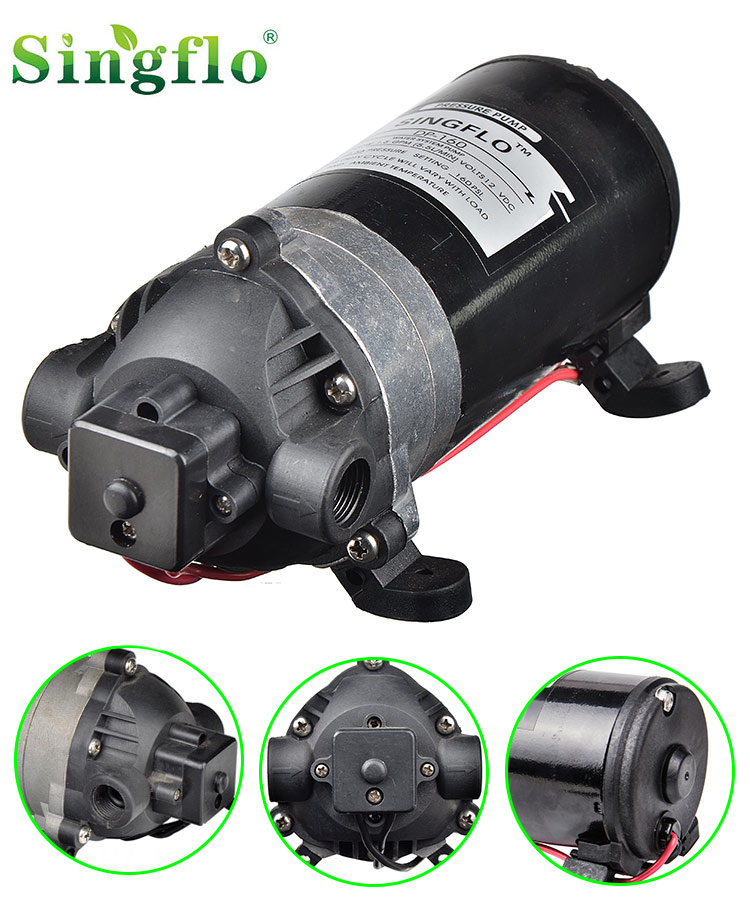

Singflo DP-160 5.5L/min 160psi 10.5A pumps 12v water/water pressure booster pump/high pressure water jet cleaning machine
Application:
Water purification,filter machine,chemical metering and fluid supply.
High pressure pumps used in sprayers and spray fixtures for high plants.
Food,beverage filling and liquid transfer.
Can be used for washing car and conditioner.
| Feature & Benefits | |
| Production Name | Diaphragm Pump |
| Pump Design | 3 Chamber Diaphragm |
| Port Size | 3/8" (12.5mm) Hose barb |
| Voltage | 12v,24v dc / 115v,220v dc |
| Check Valve | EPDM or Vtion |
| Liquid Temp | 140℉(60℃) Maximum |
| Self-Priming | 6.5 feet (2M) susction |
| On/demand pressure | Adjustable pressure switch from 60psi-170psi for OEM needed |
| Motor | Built-in Thermal protector |
| Rubber feet | for noise reduction from vibration |
| Bypass system | Bypass system is available |
| Threaded connections | it with multiple fittings allow connect to any outlet |
| Model | Volt | Flow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| DP-60 | 12 | 4.6 | 60 | 7 |
| DP-60B | 24 | 4.5 | 60 | 4 |
| DP-80 | 12 | 5.5 | 80 | 8 |
| DP-100 | 12 | 5.5 | 100 | 9 |
| DP-120 | 12 | 5.5 | 120 | 9.5 |
| DP-120B | 24 | 5.3 | 120 | 4.5 |
| DP-160 | 12 | 5.5 | 160 | 10.5 |
| DP-160B | 24 | 5.5 | 160 | 4.2 |
| DP-100M | 230 | 5.5 | 100 | 0.6 |
| DP-160S | 120 | 5.5 | 160 | 1 |
| DP-120M | 220 | 5.5 | 120 | 0.5 |
| DP-160M | 220 | 5.5 | 160 | 0.55 |
| Inlets size: | 3/8''hose barb, thread | |||
| Outlets size: | 3/8''hose barb, thread | |||
| dimension/pc: | 26.5x12x10.5cm | |||
| Net weight/pc: | 2.4kg | |||
| Gross weight/pc: | 2.7kg | |||
| Carton dimension(10pcs AC Voltage): | 64x39x22cm | |||
| Carton dimension(10pcs DC Voltage): | 63x29x22.5cm |
Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your shipping item?
A: We ship items via EMS, DHL, UPS, TNT, China Post or Hong Kong Post.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
Q: Why i find some price on your items show only 1-20USD/pcs, when can i get the price at 1usd?
A: 1-20USD is just a price range for your reference here.
Guarangee:
1. We offer 12 months limited Warranty of Manufacturer for defective items (excluding items damaged and /or misused after receipt).
2. If you have any problems with the item received, please let us know within 7 days after received. Please contact us before send items back! If problem really exists, a replacement or a refund is available after we receive the items in goods condition.
