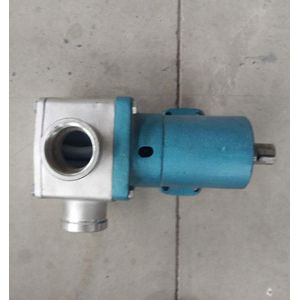

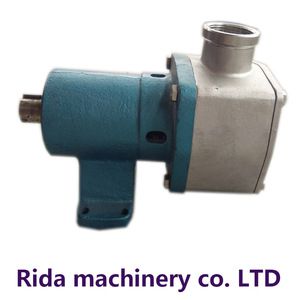

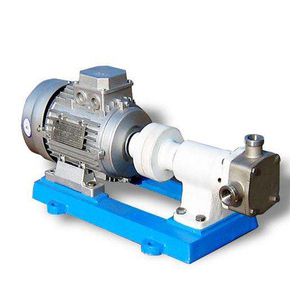

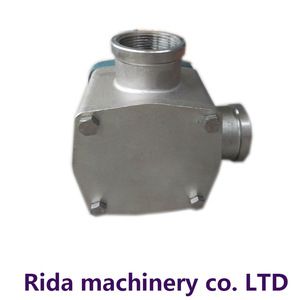

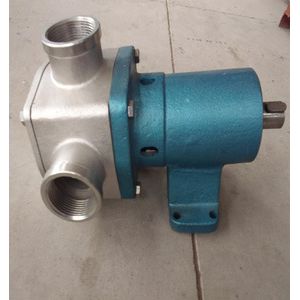

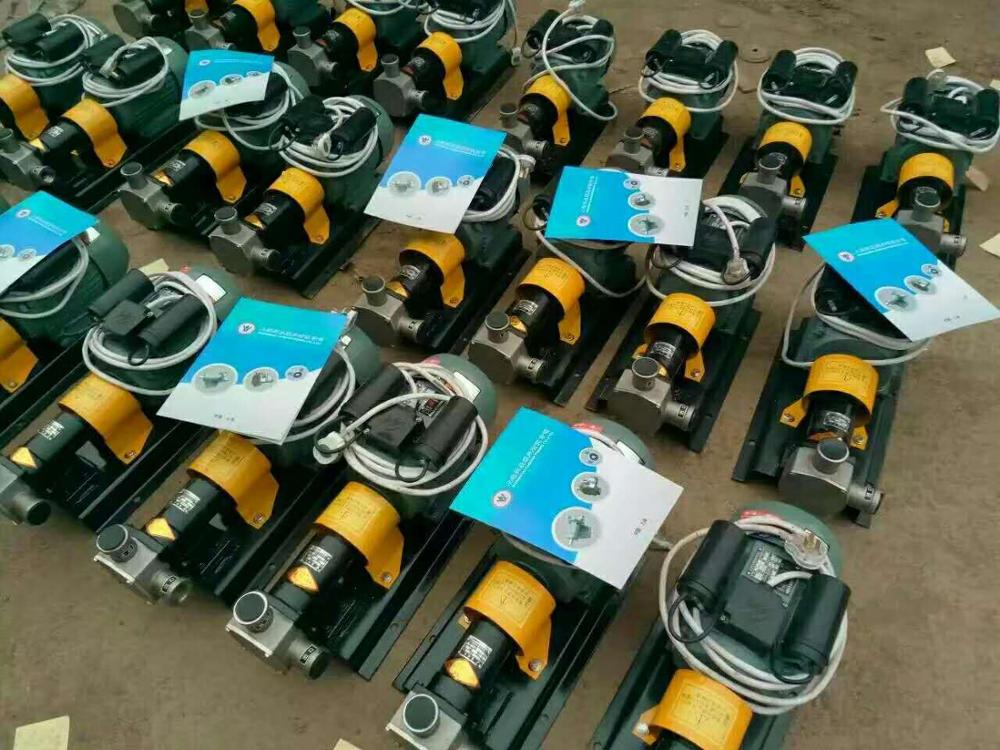

The hrzb-s pump is a vacuum pump and a displacement pump with some unique characteristics. Since it was invented more than 60 years ago, it has been widely used in various industrial and mining occasions.

Features:

Small size and large flow - generally speaking, the same volume is the smallest when compared with competitive pumps. Easy to install and move.

Instant complete self-absorption - no additional device is required, no rehydration is required before starting. The suction can reach five meters.

The pump body is made of stainless steel, all of which are stainless steel (1Cr18Ni9Ti).

The viscosity of conveying medium can reach 2000 mm

It can deliver air - containing liquid, foam liquid and no gas resistance

It can transport suspended soft and hard particles.

The soft movement of the rotor does not damage the medium that is sensitive to shear, such as paper dispersing agent.

Flexible rotor running without metal contact without spark; With explosion-proof motor, it is especially suitable for delivery of alcohol, gasoline, acetone and other solvents.

Beautiful appearance, durable and convenient maintenance

Application:

The outstanding self-priming pump performance and strong adaptability to the working conditions of applied in all kinds of industrial situation, carries on the inverted bucket, warehouse, underground tank of liquid pool suction row, sampling and various, viscid fluid conveying, such as inverted bucket only need to import the hose inserted into the barrel can be smoked light static. It is widely used to replace centrifugal self-priming pump, hydraulic pump, gear pump and other pumps.

Chemical industry - weak inorganic acid, organic acid, alkali, salt, oil, alcohol, ketone, ester and other extensive media

There are not very strict areas of health requirements

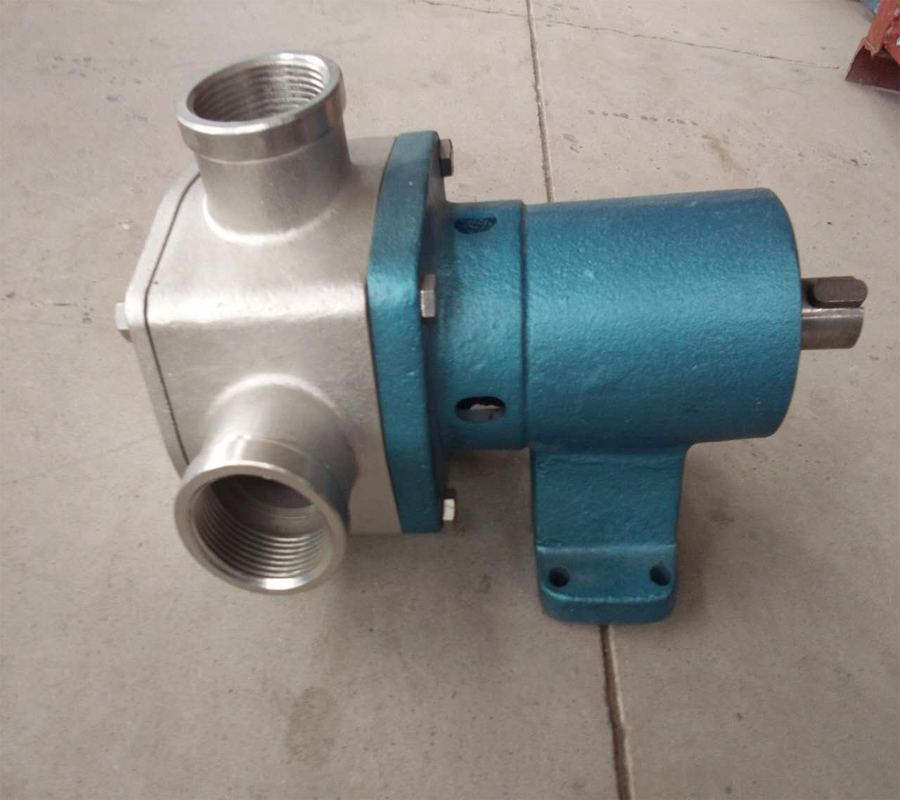

I. product description:

The flexible vane self-priming pump is called flexible rotor pump, flexible rotor pump and flexible impeller pump based on its working principle and structure. Flexible blade self-priming pump is a kind of vacuum suction fluid (without perfusion lead liquid) was used for the first time, squeeze the drainage of the new type of positive displacement self-priming pump, both dry self-priming capacity, also have strong ability of conveying, conveying shear sensitive, ideal material of low viscosity, containing suspended particles, in has the characteristics of centrifugal pump stability without pulse at the same time, also can such as rotor pump, gear pump displacement pump transporting high viscosity medium. The rubber impeller does not generate spark when it runs, and it can be used to carry inflammable and explosive dangerous goods, which can realize zero security risks. Since its invention more than two decades ago, it has been widely used in various industrial and mining occasions.

Ii. Working principle:

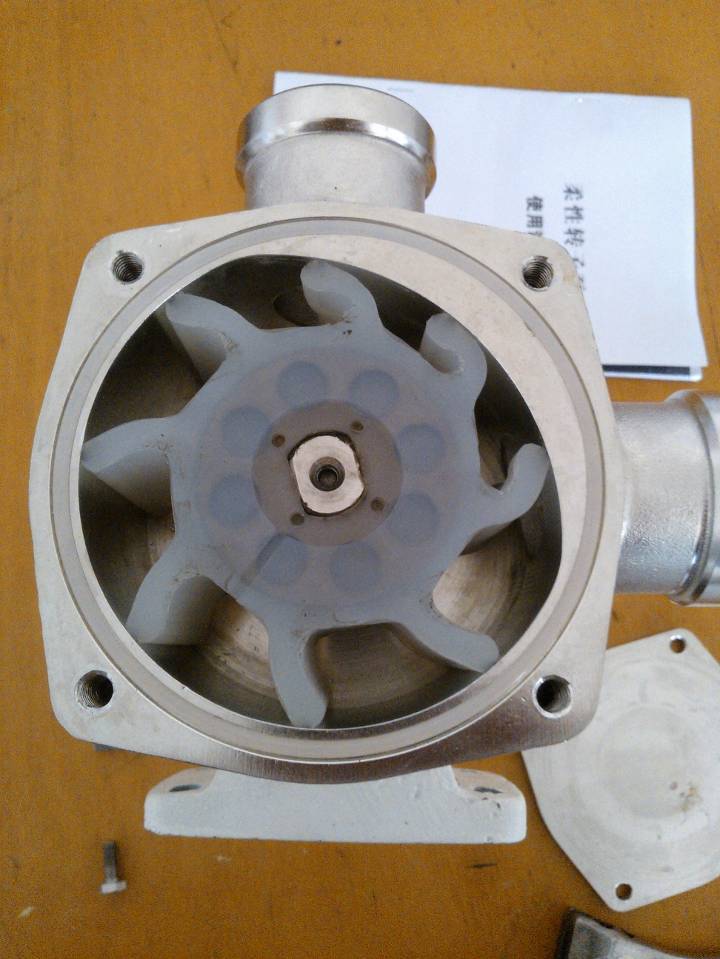

In the pump chamber, there is an eccentrically convex block. When the flexible blade leaves the eccentric block, the volume between the blades increases continuously, resulting in a vacuum, which makes the liquid continuously inhaled into the inlet of the pump cavity.

When the flexible blade rotates, the fluid is brought into the outlet by the pump chamber.

(3) when the flexible blade in contact with the eccentric convex block again, bending, and accompanied by a squeezing action, make the liquid continuously, without pulse discharge pump cavity, so as to finish the whole course of suction line

Iii. Flexible elastomer technology:

As the core technology of the flexible pump, the impeller of the pump should have good elasticity, small permanent deformation, and can withstand the long and high frequency flexion without breaking or tearing. The excellent impeller elastomer technology determines the excellent performance and durability of the pump. There are two kinds of materials: hydrogenated ding and silica gel. The impeller is mainly used for oil, mineral oil, gasoline, diesel oil and aviation kerosene. Silica gel is mainly used in food medicine health industry or weak acid weak base type medium

Iv. Product features:

Small size, large flow.

The flow does not pulsate.

No liquid can reach up to 5 meters of water column.

A fluid and a half fluid that can be treated with absolute viscosity of 5000 centipoise.

It can deliver air - containing liquid, foam liquid and no gas resistance.

It can transport suspended hard and soft particle medium without damage to the pump and medium.

The soft action of pump does not damage the shear sensitive and shaking medium.

All the over-current components are SUS304, AISI316 stainless steel; The special designed pump cavity has no dead Angle, internal and external surface polishing; Meet the aaa and GMP standards.

The pump head can be quickly removed and installed for cleaning (minimum downtime) - even for a novice, the disassembly will not exceed five minutes. The CIP can be cleaned in situ (120 degrees c).

The import and export can be rotated with the head of the pump at 360 degrees to fit the pipe connection.

The inlet and outlet direction can be interchangeable - adjust the motor steering.

The only rotating part in the pump cavity - the flexible impeller has no metal contact in operation, so the work is quiet.

Small investments, low maintenance, and cost of use compared to competitive pumps.

V. product application:

Chemical industry - weak inorganic acid, organic acid, alkali, salt, oil, alcohol, ketone, ester and other extensive media.

On the health food industry - not very strict requirements field used in the packaging or nutritional liquid and semi-liquid (containing suspended particles hard soft, with different viscosity, fragile, absolutely can't emulsion), such as MianJiang, jam, egg, tomato sauce, salt, spices, oils, canned food, jam, jelly, milk, ice cream, yogurt and fruit grain of yogurt, whey, glucose syrup, honey,, tomato juice and pulp, beer, wine, grape juice, to stem grapes, soft drinks, fruit pulp, concentrated fruit juice.

Daily chemical - cosmetic emulsion, bath, shampoo, soap, detergent, toothpaste.
