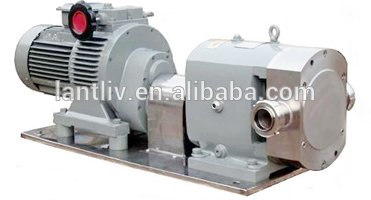

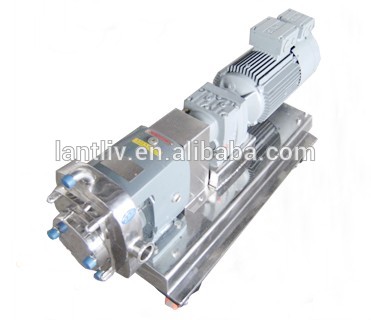

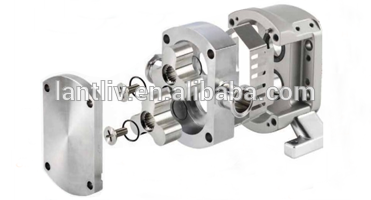

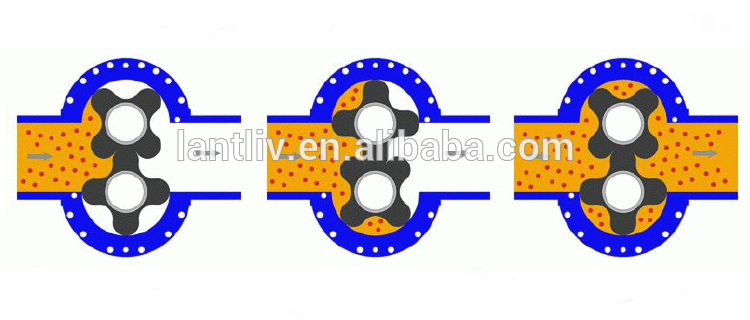

Rotor pump is also named rotary lobe pump, three lobe pump, sole pump etc. When the two simultaneous reverse rotating rotors (with 2-4 gears) revolve, it produces suction force at the inlet (vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revolve in the sequence of A--B--C--D. When it revolves to position A, only housing I is filled with medium .When it revolves to position B, housing B encloses part of the medium; when it goes to position chousing A encloses medium, and finally it goes to position D, then housing A , B and II are interlinked and the medium is transported to the outlet. As this process is repeated, medium material is transported continuously.
Rotary lobe pump is widely used to transfer various special material, stiff material, mixture with different specific gravity, corrosive material and material with large particle, such as yogurt, cheese, fruit jam, shampoo, cosmetics, syrup, paint etc.
| Model | Power (kw) | Suggect Speed (rpm） | Flow (L/H) | Liter per 100Round |
| LIF-3 | 0.55 | 200-500 | 300-800 | 3L |
| LIF-6 | 0.75 | 200-500 | 650-1600 | 6L |
| LIF-8 | 1.5 | 200-500 | 850-2160 | 8L |
| LIF-12 | 2.2 | 200-500 | 1300-3200 | 12L |
| LIF-20 | 3.0 | 200-400 | 2100-5400 | 20L |
| LIF-30 | 4.0 | 200-400 | 3200-6400 | 30L |
| LIF-36 | 4.0 | 200-400 | 3800-7600 | 36L |
| LIF-52 | 5.5 | 200-400 | 5600-11000 | 52L |
| LIF-66 | 7.5 | 200-400 | 7100-14000 | 66L |
| LIF-78 | 7.5 | 200-400 | 9000-18000 | 78L |
| LIF-100 | 11 | 200-400 | 11000-22000 | 100L |
| LIF-135 | 15 | 200-400 | 15000-30000 | 135L |
| LIF-160 | 18.5 | 200-400 | 17000-34000 | 160L |
| LIF-200 | 22 | 200-400 | 21600-43000 | 200L |
3. The parts of contact with medium adopt stainless steel. The rotating speed can be adjusted according to the delivered medium's phsical property.
4. It applies to food, drink, brewing, medical industry, daily and chemical industry, petroleum industry etc.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

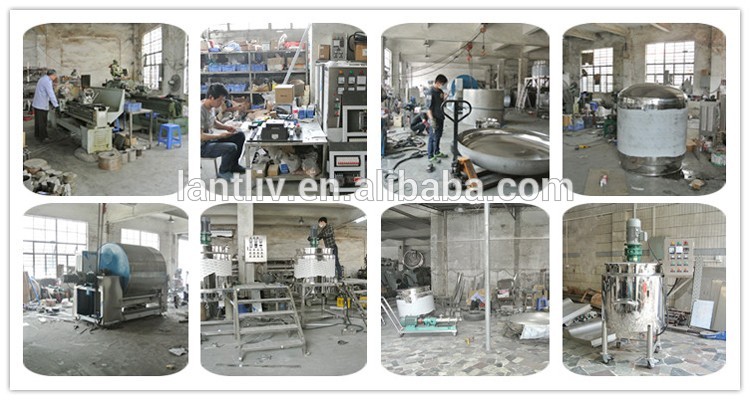

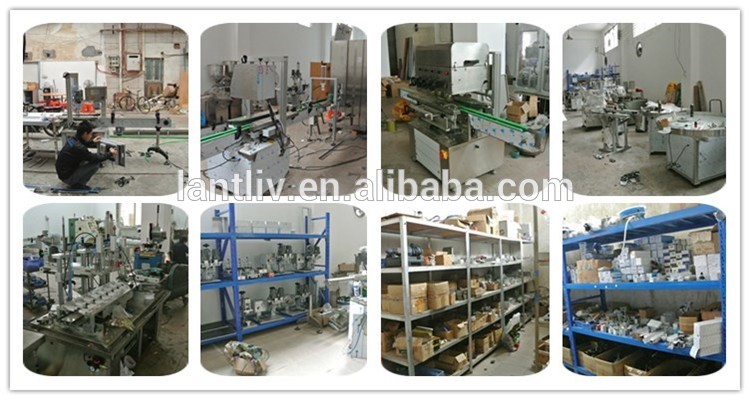

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

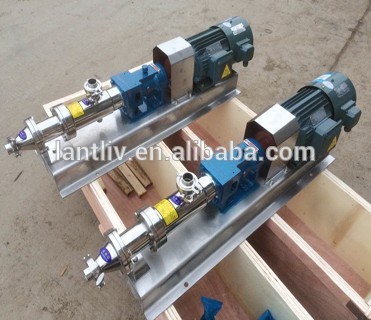

| Packaging | |
| Size | 0.58 (L) * 0.3 (W) * 0.45 (H)M |
| Weight | 100kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Packaging | |
| Size | 0.58 (L) * 0.3 (W) * 0.45 (H)M |
| Weight | 100kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
