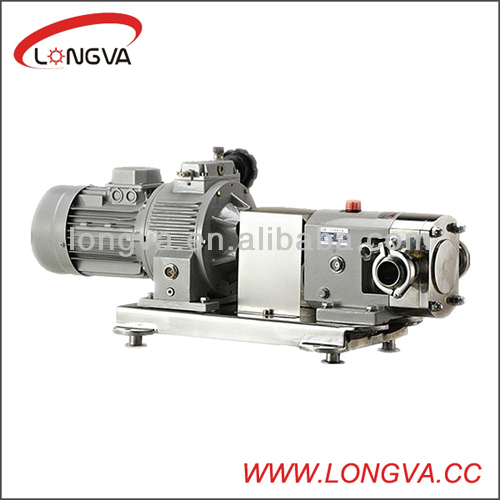

Stainless Steel Sanitary Rotor Pump

Name: Stainless Steel Sanitary Rotor Pump Spec0.3T - 43T, 0.55KW - 22KWMaterialSUS304, SUS316LStandardDIN, SMSVoltage≤3KW, 220-240/380-420V, Δ/Y; >3KW, 380-420/660-690V, Δ/Y Frequency50Hz/60HzConnectionClamp, Union, FlangeLift60mInlet/outlet25

Technical Feature

  • Zhejiang, China (Mainland)
  • LONGVA
  • Longva301
  • Centrifugal Pump
  • Single-stage Pump
  • food, medicine, Daily Health industry
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$100~500

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
LONGVA
Model Number
Longva301
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
food, medicine, Daily Health industry
Power
Electric
Standard or Nonstandard
Standard
Fuel
electric
Pressure
Low Pressure
Application
sanitary
main material
stainless steel 304 and 316L

DETAIL DESCRIPTION

Name: Stainless Steel Sanitary Rotor Pump

Spec0.3T - 43T, 0.55KW - 22KW
MaterialSUS304, SUS316L
StandardDIN, SMS
Voltage≤3KW, 220-240/380-420V, Δ/Y; >3KW, 380-420/660-690V, Δ/Y
Frequency50Hz/60Hz
ConnectionClamp, Union, Flange
Lift60m
Inlet/outlet25 - 102mm





To choose perfect products, please confirm:



1. Inlet/outlet size.

2. Flow rate.

3. Lift.

4. Motor Power.

5. Voltage.

6. Connection End.

7. Medium.
