Application of stainless steel rotor pump
Lobe Pump ( rotor pump, rotary pump) is widely used to transfer various special material, stiff material, mixture with different specific gravity, corrosive material and material with large powder. Such as yogurt, cheese, fruit jam, shampoo, cosmetics, syrup, paint etc.

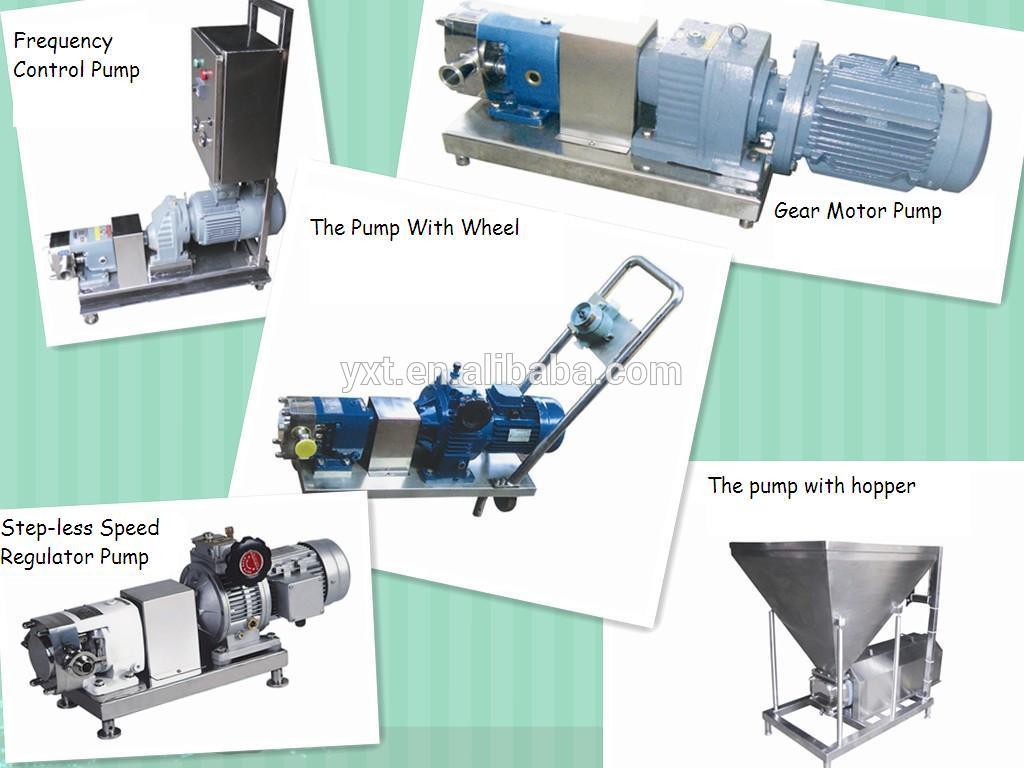

Driving system
step-less variator +motor. The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.
Gear reducer + motor: the driving is easy with constant rotary speed of the rotor,which also leads to nonadjustablity of flow.
Frequency transformed motor + transducer: it realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.
Connection type:
clamp, flange, thread.
Contact material:
SS304, SS316, 316L.

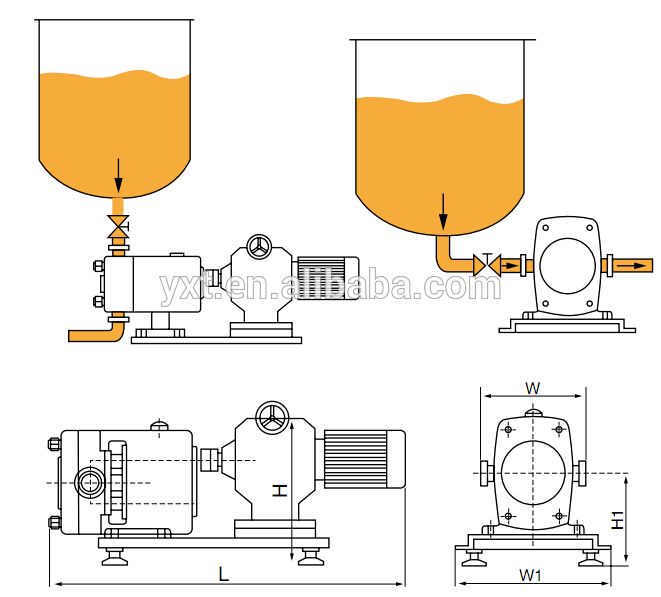

Drawing of pump:
Main Parameter
| Model | Power(KW) | Diameter | L | H | H1 | W | W1 | Connection type |
| ZB3A-3 | 0.55 | Φ25×1.5 | 710 | 290 | 150 | 150 | 240 | clamp,thread ,flange |
| ZB3A-6 | 0.75 | Φ25×1.5 | 780 | 390 | 170 | 190 | 240 | |
| ZB3A-8 | 1.5 | Φ25×1.5 | 850 | 400 | 170 | 190 | 280 | |
| ZB3A-12 | 2.2 | Φ32×1.5 | 980 | 450 | 185 | 220 | 330 | |
| ZB3A-20 | 3 | Φ38×1.5 | 1000 | 450 | 190 | 250 | 330 | |
| ZB3A-30 | 4 | Φ50.8×1.5 | 1050 | 480 | 220 | 270 | 350 | |
| ZB3A-36 | 4 | Φ38×1.5 | 1100 | 490 | 220 | 270 | 360 | |
| ZB3A-52 | 5.5 | Φ50.8×1.5 | 1250 | 580 | 260 | 270 | 480 | |
| ZB3A-66 | 7.5 | Φ63.5×1.5 | 1350 | 600 | 260 | 270 | 480 | |
| ZB3A-78 | 7.5 | Φ63.5×1.5 | 1260 | 600 | 295 | 370 | 480 | |
| ZB3A-100 | 11 | Φ76×2 | 1320 | 670 | 295 | 370 | 480 | |
| ZB3A-135 | 15 | Φ89×2 | 1500 | 670 | 295 | 370 | 480 | |
| ZB3A-160 | 18.5 | Φ102*3 | 1500 | 720 | 320 | 420 | 560 | |
| ZB3A-200 | 22 | Φ102*3 | 1500 | 720 | 320 | 420 | 560 |
Technical Parameter
| Model | Flow per 100 rotation (L) | Suggested regulated RPM (r/min) | Capacity (L/H) | Power (KW) |
| ZB3A-3 | 3 | 200-500 | 300-800 | 0.55 |
| ZB3A-6 | 6 | 200-500 | 650-1600 | 0.75 |
| ZB3A-8 | 8 | 200-500 | 850-2160 | 1.5 |
| ZB3A-12 | 12 | 200-500 | 1300-3200 | 2.2 |
| ZB3A-20 | 20 | 200-500 | 2100-5400 | 3 |
| ZB3A-30 | 30 | 200-500 | 3200-6400 | 4 |
| ZB3A-36 | 36 | 200-400 | 3800-7600 | 4 |
| ZB3A-52 | 52 | 200-400 | 5600-11000 | 5.5 |
| ZB3A-70 | 70 | 200-400 | 7100-14000 | 7.5 |
| ZB3A-78 | 78 | 200-400 | 9000-18000 | 7.5 |
| ZB3A-100 | 100 | 200-400 | 11000-22000 | 11 |
| ZB3A-135 | 135 | 200-400 | 15000-30000 | 15 |
| ZB3A-160 | 160 | 200-400 | 17000-34000 | 18.5 |
| ZB3A-200 | 200 | 200-400 | 21600-43000 | 22 |

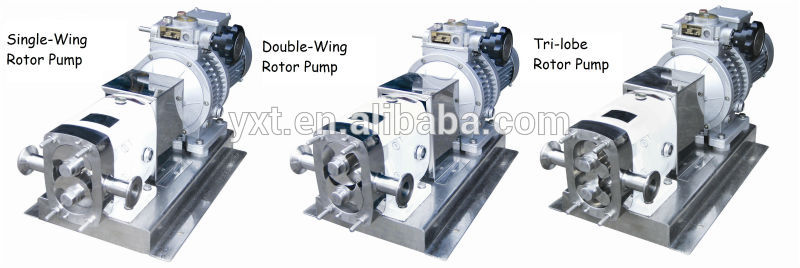

ZB3A other type you can choose:

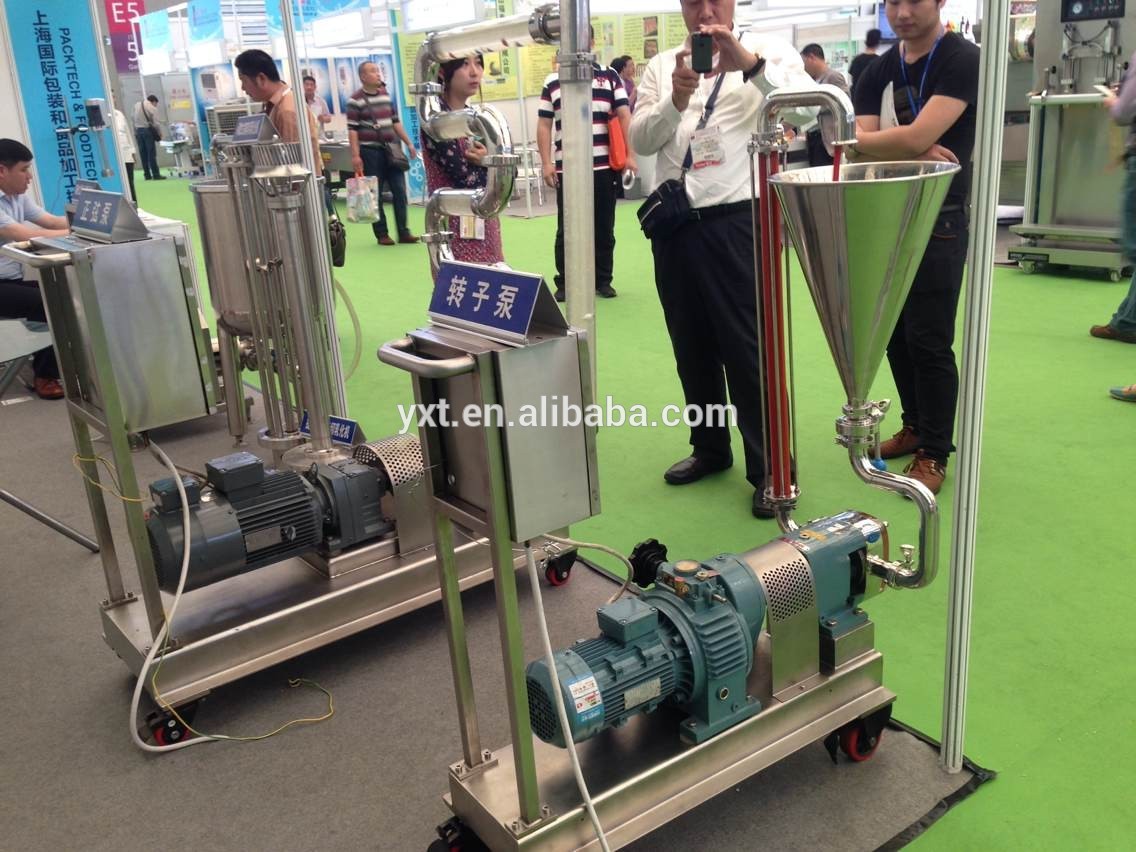

Pump Working exhibition:

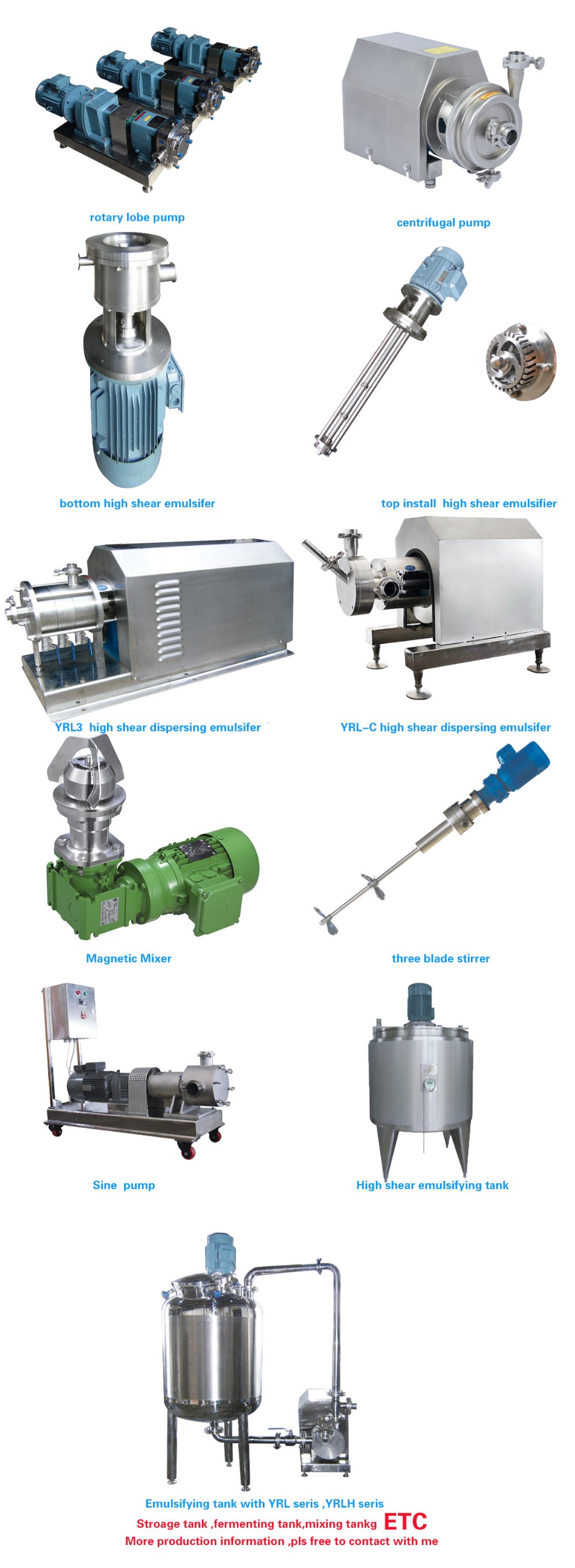

Factory Other Pump Picture:
