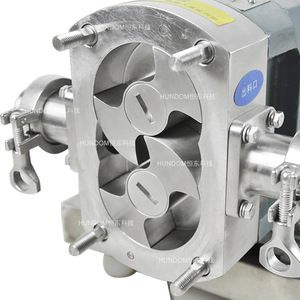

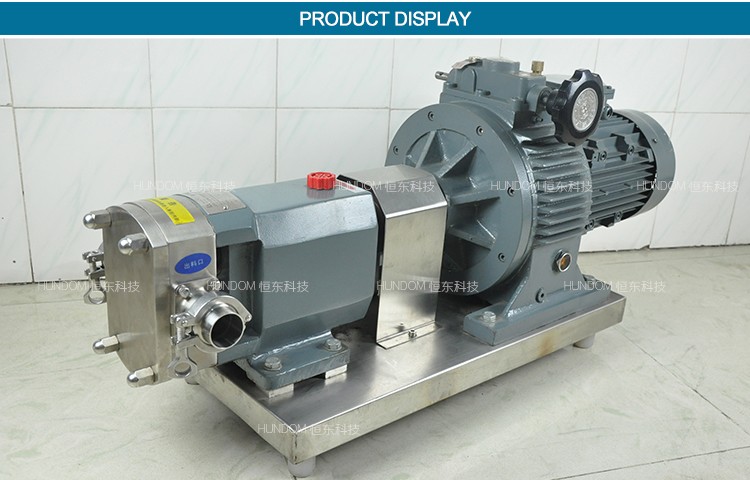

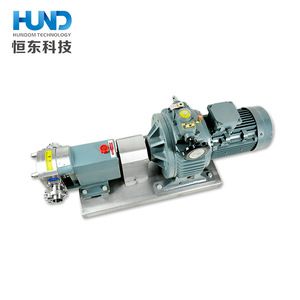

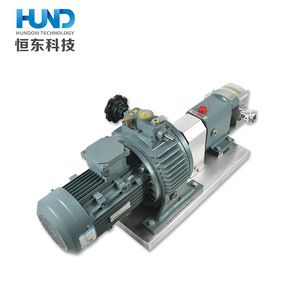

Stainless steel rotor gear pump for high viscosity liquid

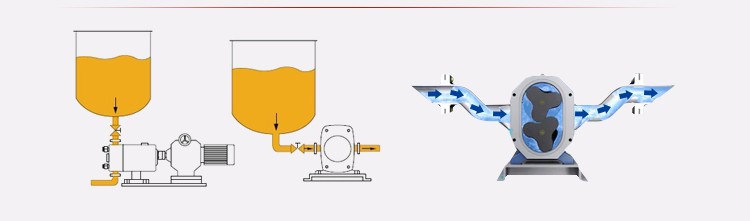

Working principle:

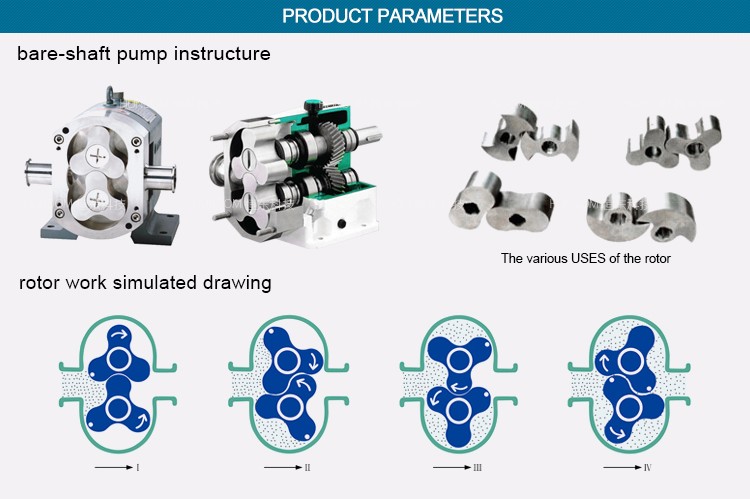

Rotor gear pump is also named rotary lobe epump, three-lobe pump, sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.

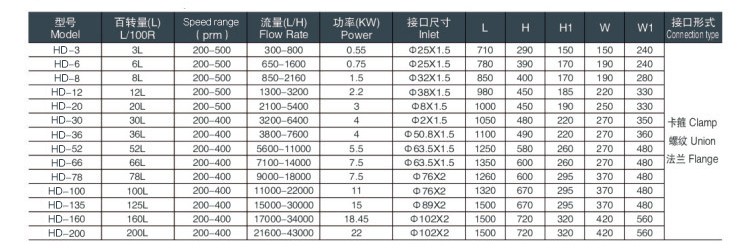

Technical Parameters:
| Model | Capacity (L/100R) | Speed (RPM) | Flow (L/Hour) | Power(kw) |
| HD-3 | 3 | 200-500 | 300-800 | 0.55 |
| HD-6 | 6 | 200-500 | 650-1600 | 0.75 |
| HD-8 | 8 | 200-500 | 850-2160 | 1.5 |
| HD-12 | 12 | 200-500 | 1300-3200 | 2.2 |
| HD-20 | 20 | 200-500 | 2100-5400 | 3 |
| HD-30 | 30 | 200-400 | 3200-6400 | 4 |
| HD-36 | 36 | 200-400 | 3800-7600 | 4 |
| HD-52 | 52 | 200-400 | 5600-11000 | 5.5 |
| HD-66 | 66 | 200-400 | 7100-14000 | 7.5 |
| HD-78 | 78 | 200-400 | 9000-18000 | 7.5 |
| HD-100 | 100 | 200-400 | 11000-22000 | 11 |
| HD-135 | 125 | 200-400 | 15000-30000 | 15 |
| HD-160 | 160 | 200-400 | 17000-34000 | 18.5 |
