low pressure rotary Rotor lobe gear Pump

Rotor pump are used in a variety of industries including pulp and paper, chemical, food, beverage,pharmaceutical, and biotechnology.

Technical Feature

Zhejiang, China (Mainland)

LIGAO

RPRotary Vane Pump A rotary vane pump is a positive-displacement p

Rotary Pump

Diaphragm Pump

Oil

Send Standard Inquiry

Add Inquiry List

$22~850

PRIMARY PARAMETERS

Place of Origin

Zhejiang, China (Mainland)

Brand Name

LIGAO

Model Number

RPRotary Vane Pump A rotary vane pump is a positive-displacement p

Theory

Rotary Pump

Structure

Diaphragm Pump

Usage

Oil

Power

Electric

Standard or Nonstandard

Nonstandard

Fuel

electric

Pressure

Low Pressure

Application

Metering

DETAIL DESCRIPTION

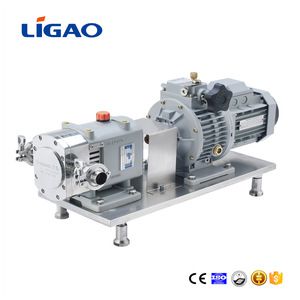

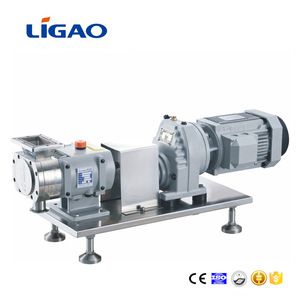

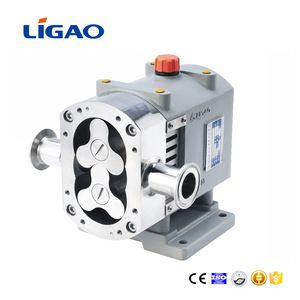

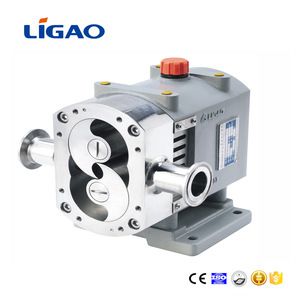

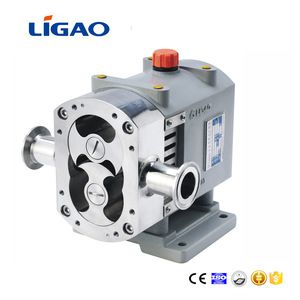

Rotor Pump

A rotor pump is a positive-displacement pump that consists of vanes mounted to a rotor that rotates inside of a cavity.

Rotor pump are used in a variety of industries including pulp and paper, chemical, food, beverage,pharmaceutical, and biotechnology.They are popular in these diverse industries because they offer superb sanitary qualities, high efficiency, reliability, corrosion resistance and good clean-in-place and steam-in-place (CIP/SIP) characteristics.

Rotor pumps can handle solids (e.g., cherries and olives), slurries, pastes, and a variety of liquids. If wetted, they offer self-priming performance. A gentle pumping action minimizes product degradation. They also offer continuous and intermittent reversible flows and can operate dry for brief periods of time. Flow is relatively independent of changes in process pressure, too, so output is relatively constant and continuous.

Ligao Rotor Pump Parameter:

Model	L/R	RPM	Flow L/H	Pressure Mpa	Viscosity CP	Power KW	Caliber mm
RP1	0.05	40~700	0-1000	1.0	1-1000000	0.25-1.5	1''
RP2	0.1	40~700	200-2000	1.2	1-1000000	0.55-2.2	1.25''
RP3	0.17	40~500	400-3000	1.2	1-1000000	0.75-3.0	1.5''
RP5	0.26	40~500	600-5000	1.5	1-1000000	1.5-5.5	2''
RP8	0.46	40~450	1000-8000	1.5	1-1000000	2.2-11	2.5''
RP12	0.70	40~450	1600-12000	1.5	1-1000000	3.0-15	2.5''
RP20	1.2	40~400	2800-20000	1.5	1-1000000	4.0-18.5	3''
RP35	0.35	40~400	5000-35000	1.5	1-1000000	7.5-30	4''
RP55	0.42	40~350	10000-55000	1.5	1-1000000	11-45	DN125
RP80	0.52	40~350	16000-80000	1.5	1-1000000	7.5	DN150
RP120	0.72	40~300	26000-120000	1.5	1-1000000	7.5	DN150

Note:

1. The motor power should be increased when delivering high viscosity liquid,and adopts stepless speed regulator or frequency transformer to adjust the speed;

2. The flow in tile table fefers to the aata tested taking water as the medium

3. You can choose Hoop / Flange connection.

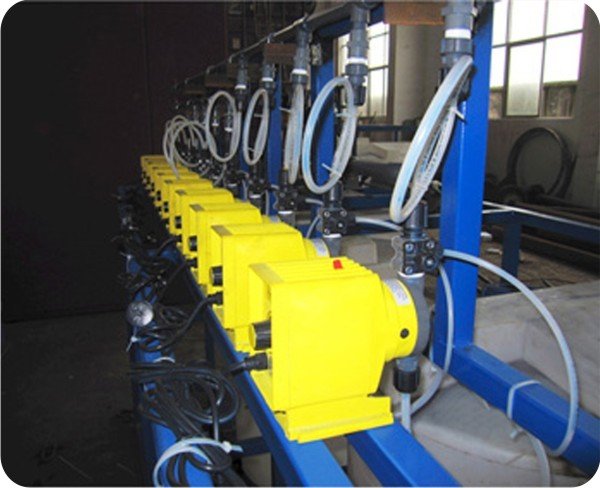

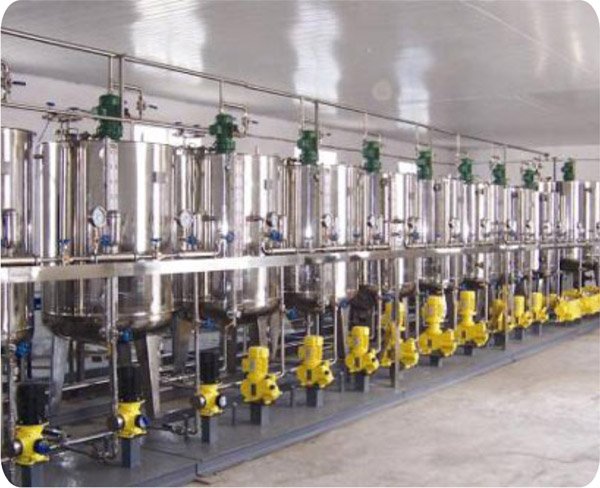

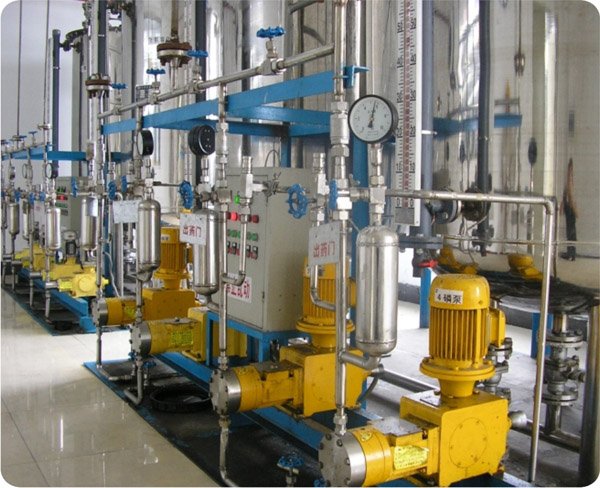

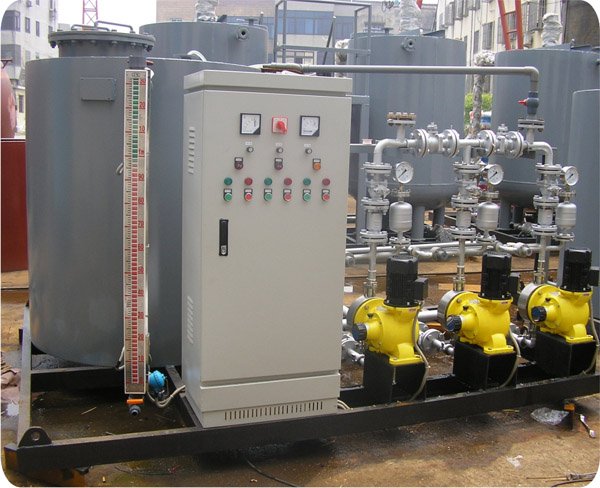

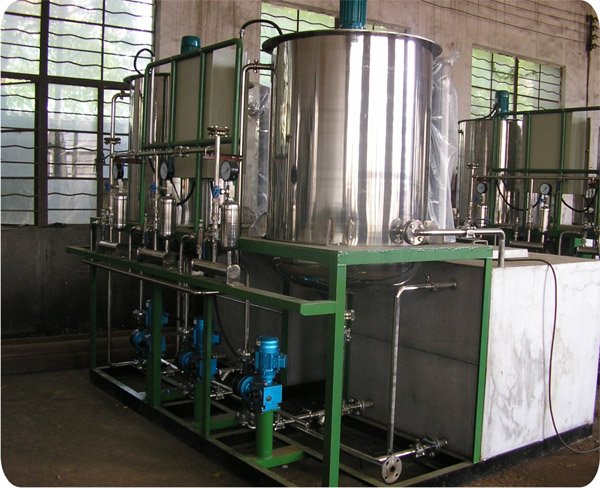

Product Show
