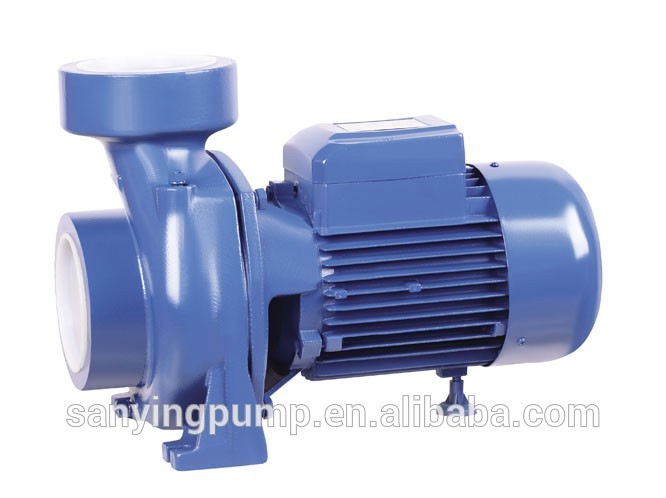

600L/min large flow MHF series centrifugal pump with stainless steel shaft

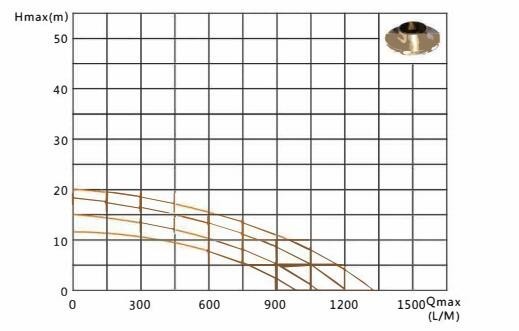

Performance Range
• Flow rate up to 600L/min(7.2m³/h)
• HEAD up to 23m
Operating Limits
• Suction lift up to 9m
• Fluid temperature up to 60℃
• Maximum ambient temperature 40℃
Standard Data And Equipment
Single phase 220V/50Hz. Brass impeller, carbon steel motor shaft,with thermal protector inside.Other model and material such as three phase,110V,60Hz, dual voltage, stainless shaft,ect, will be available upon request.

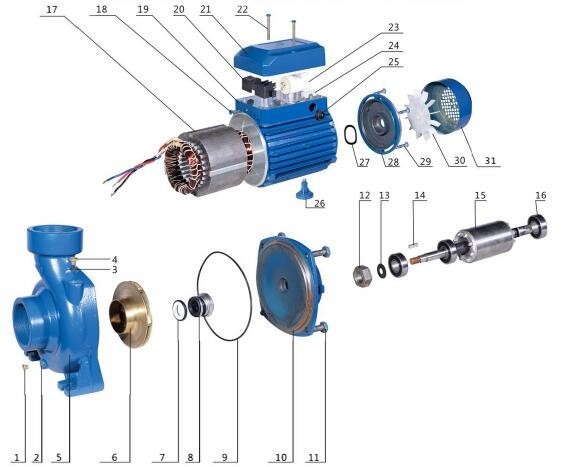

Pos.component | Construction Characteristics |
1.Pump body | Cast iron,complete with threaded parts in compliance with ISO228/1 |
Motor bracket | Stainless steel AISI 304 |
3.Impeller | Stainless steel AISI 304 |
4.Motor Shaft | Stainless steel EN 10088-3-1.14104 |
5.Mechanical seal | Pump seal shaft Material Model Diameter stationary ring /rotational ring/elastomer AR-14 14mm ceramic/graphite/NBR
|
6.Bearings | 6201zz/6201zz
|
7.Capacitor | Pump capacitance Single-phase (230V/240V) 110V MHF-5B 20uF450VL 40uF300VL |
8.Electric motor | MHF:single-phase 230V-50Hz with thermal overload protector built-in to the winding. MHF:Three-phase230/400V-50Hz. Pumps fitted with the three-phase motor option offer IE2(IEC60034-30)class high performance. Insulation:F class Protection: IP X4 |
Q: Can you do OEM?
A: Yes, we can.
Q: How about the MOQ?
A: Normally, it is 100PCS for each model.
Q: How about the delivery time?
A: Normally, 35 days. But it depends on your order quantity.
Q: How about the warranty?
A: 1 year.
Q: What certificate do your product have?
A: We have CE, GS, UL, RoHS certificate. Most of our products are CE standard.
Q: Do you have skype?
A: Yes, pls add for further communicating.
Q: Where is your loading port?
A: Ningbo , China port
Q: Are you a manufactuer or trading company
A: We are a manufacturer specialize in water pump and electrical motor more than 10 years
