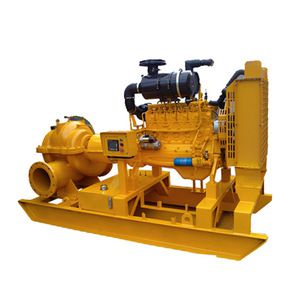

Double Suction Centrifugal Water Pump
1.Introduction
TPOW series double suction centrifugal water pump is single-stage double-suction split volute casing centrifugal pump and is specially designed and manufactured by our company which based on the market requirement and introducing in German lead technology. Pump through original impeller and modified impeller and cutting, the pump is with full and broad, high efficiency. In the performance scope, according to consumers’ needs, may provide pump with any flow and head.
2.Specification
| Model: | TPOW Series (Outlet diameter: DN80-800mm ),FX: TPOW80-220 |
| Max. capacity: | 11600m3/h |
| Max. Head: | 200m |
| Working Pressure: | up to 25bar (2.5Mpa) |
| Operation Temperature: | up to +105°C |
| Voltage: | U=380V, 6kV,10kV |
| Net.Weight (bare pump): | 181KGS-7809KGS |
| Materials of Construction: | Cast iron,ss304,ss316,ss316l |
| Engine: | Cummins,Perkinks,Deutz,Chinese Diesel engine,Electric Motor or as customer request. |
| Engine type: | Water cooled/Air cooled |
| Accessories: | fuel tank, control panel, two or four wheels trailers, silence-box or weather-proof etc. |
| Method of Connection: | Motor mounted,engine mounted,V-belt driven |
| Skid Mounted on the Trailer : | 2 or 4 wheels trailer |
| Package: | Standard export plywood case |

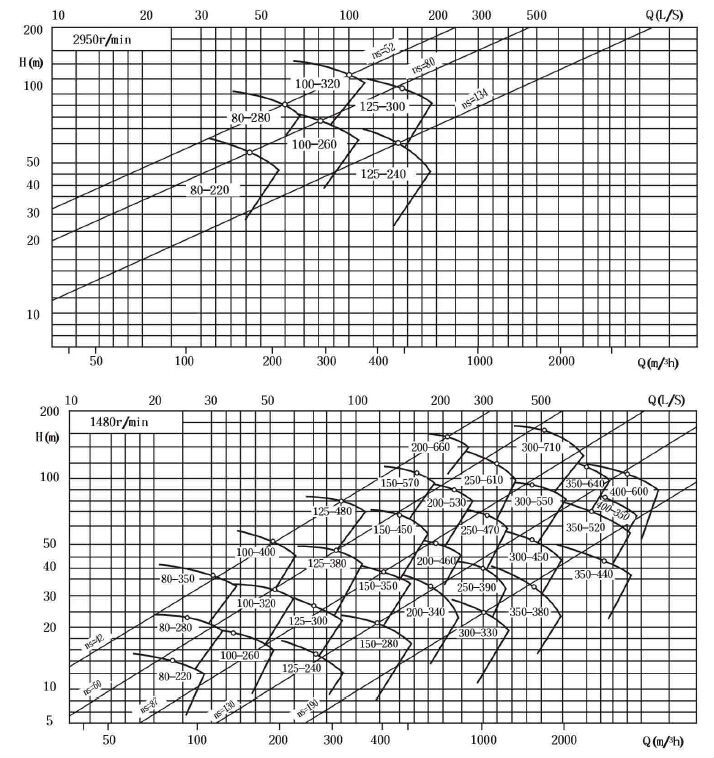

3.Performance Curve

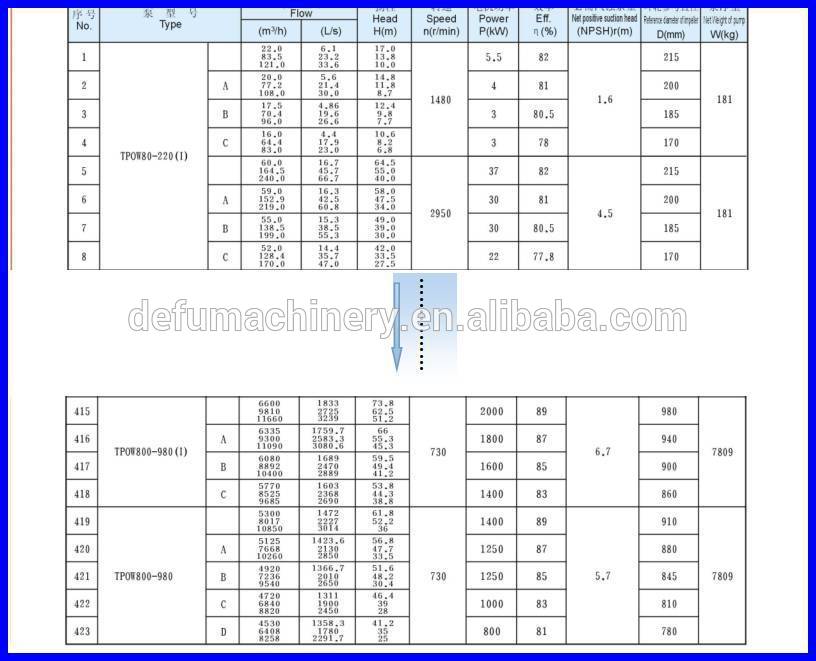

4.Parameters Table
(Please do not hesitate to contact us to get more models!)
5.Structure performance
1.Compact structure, less room occupied, compressed axial size.
2. Low vibration, low noise, the following meansure to reduce vibrates and noise.
A The pump casing is double-volute structure.
B. Rotor part axial size is short and fine rigidity.
C. The shaft uses high precise imported bearing.
6.Application Area
TPOW series double suction water pump are widely used in waterworks, irrigation and drainage pumping stations, power stations, industrial water supply systems, fire fighting applications in refineries.

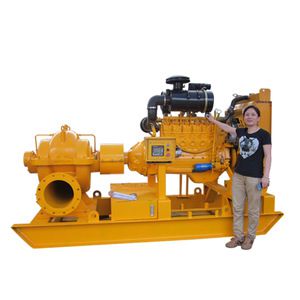

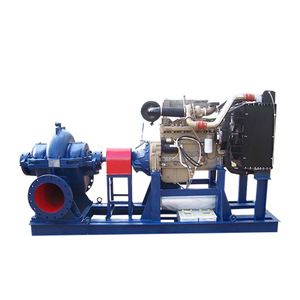

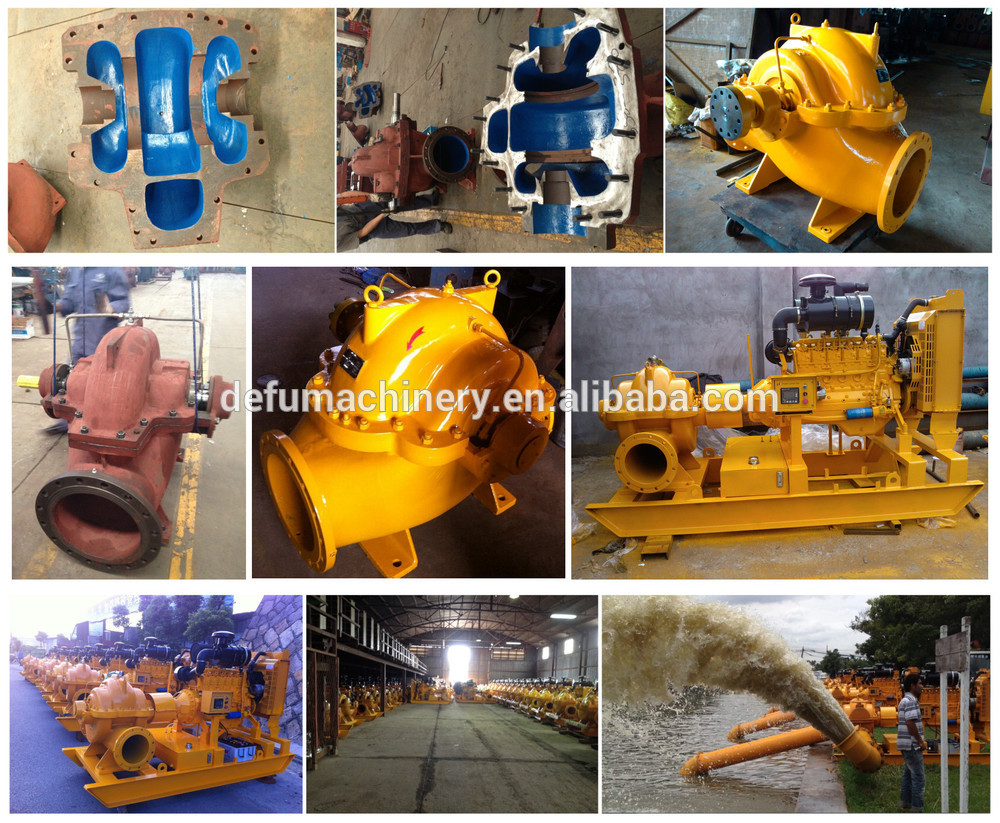

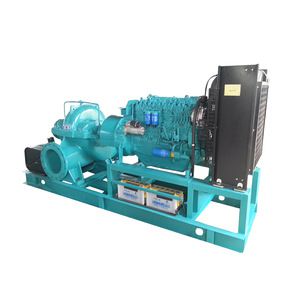

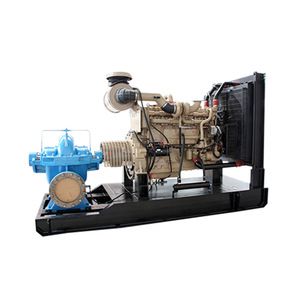

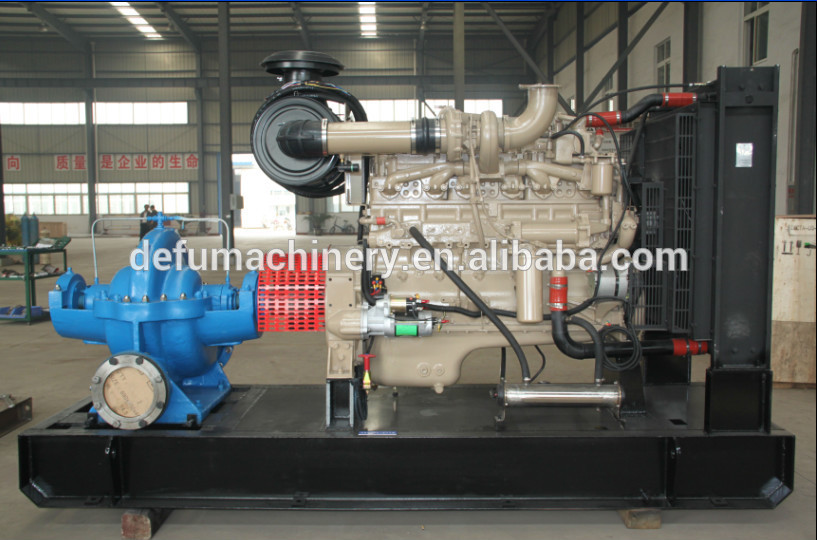

7.The Images of our double suction pump

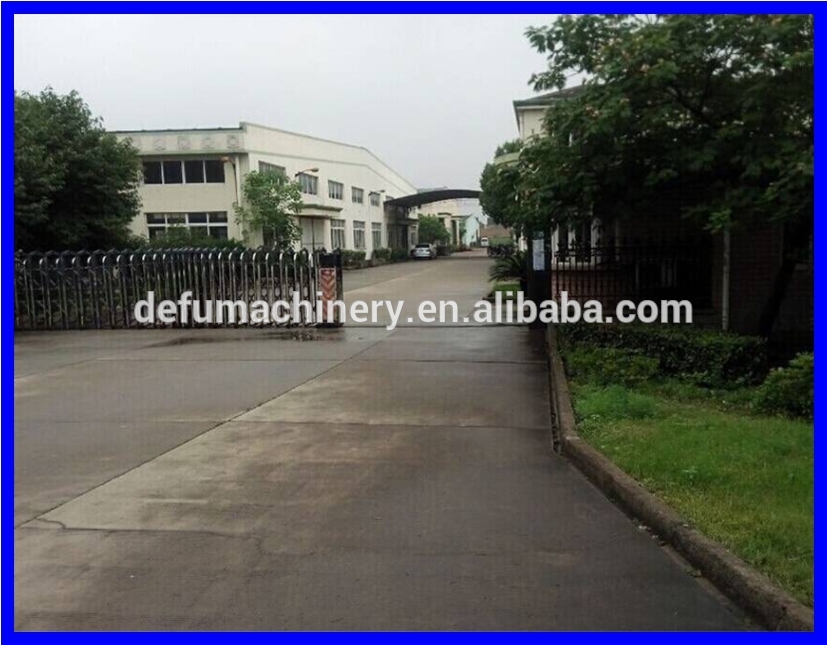

Welcome to our Factory
About Us
Website: www.defupump.com
DEFU Machinery is an Enterprise involved in designing ,developing ,manufacturing and selling water pumps , Including self priming pump ,centrifugal pump ,diaphragm pump , gear pump , diesel engine pump and some others . Relying on the local industrial chain , DEFU has established its production base in Shanghai ,Hubei and Shandong province .
