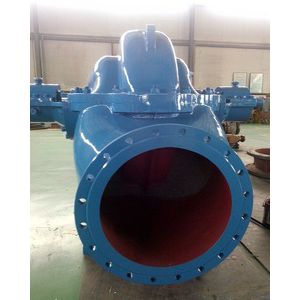

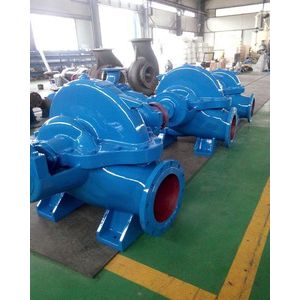

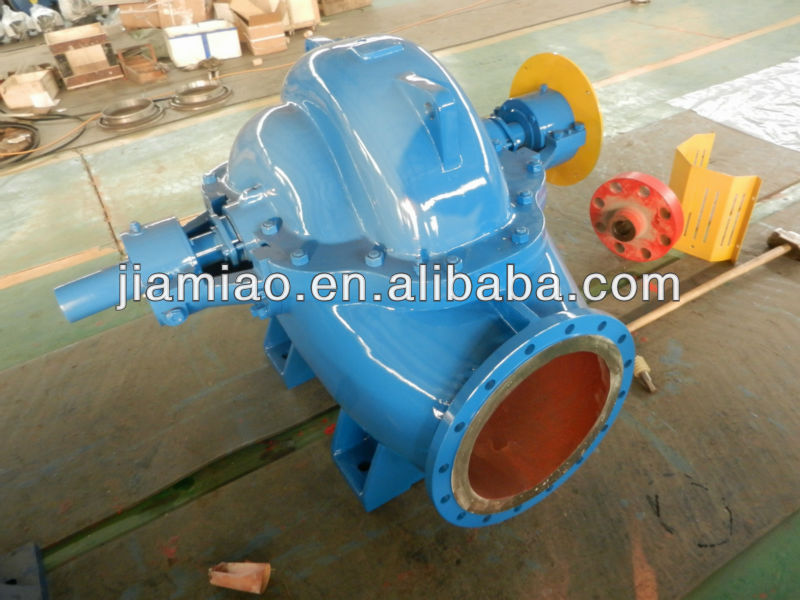

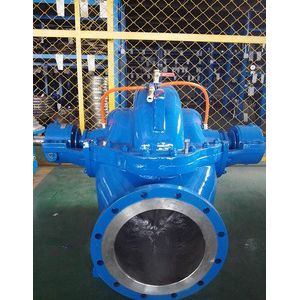

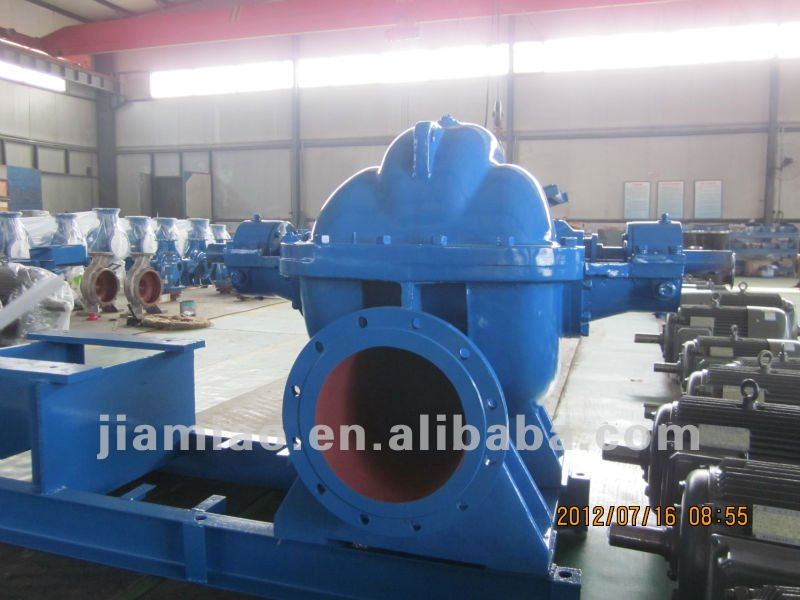

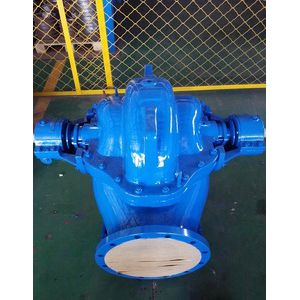

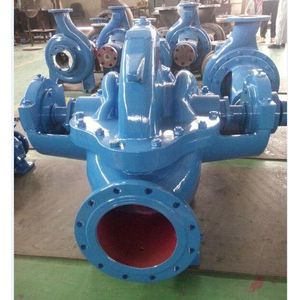

duplex stainless steel axial casing centrfugal pump

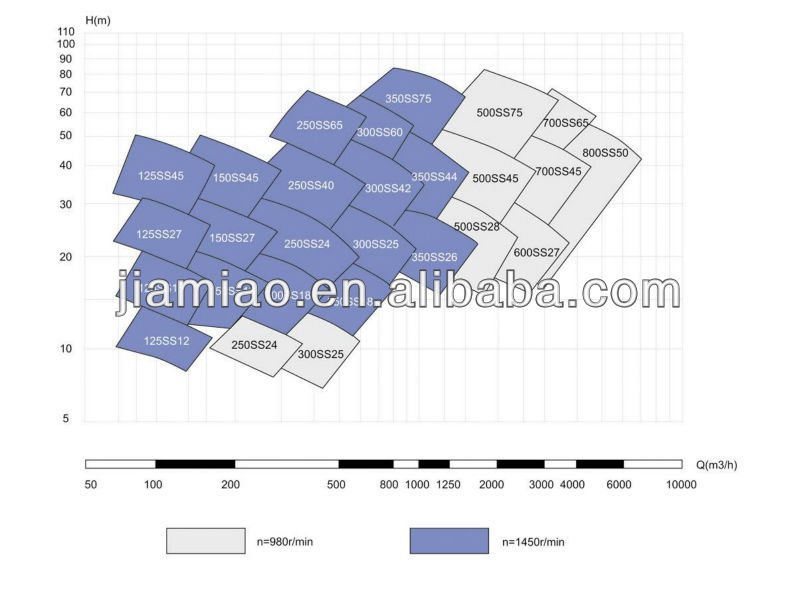

Performance range:
Capacity:100~5500m³/h
Head range: 8~75m
Speed :980 ,1450r/min
Steering: clockwise or counter clockwise rotation depend on clients' requirements
Material configuration:
| material | common (Q) | stainless steel (F) | Two-phase stainless steel (X) |
| pump body/ pump bonnet | magnesium iron | 304 | Two-phase stainless steel |
| impeller | 304 | Two-phase stainless steel | Two-phase stainless steel |
| shaft sleeve/ impeller ring | 2Cr13 | 304 | 304 |
| shaft | 40Cr | 3Cr13 | 3Cr13 |
| bearing body | HT250 | HT250 | HT250 |
Product descrption:
SSFeed pulp pump has realized the bestcombination results of high efficiency,high dependability and low pules.
It is used for transporting the puling under ensity of 1% in pulp supp-lystem of paper making machine at a medium-high speed.
Which is in favorof improving the volume of production and quality of the paper.
According to the specific requests of the customer,seal types of packing seal,signle mechanical and the double mechanical seal are available foe the double-sided pump.
Double-side feed pulp pump is uesd for the pulping sysetem of the medium-high speed paper machine. After unique design and precision forging.
With a precision forging,resin bonded sand several internal works, impeller of the feed pulp pump has a high smoothness so as to prevent for the formation of deposit and fiber agglomerates in avoiding the occurance of the parper flaw and broken ends.
